Coverings
Tiling pagination refers to the arrangement dynamics of tiles laid out on a surface. The main elements of pagination include the format, the fit, the direction of the grout joints, and the number of tiles required for a given space.
The advantages of creating pagination using the Revest tool in the Promob library are:
It offers a realistic projection of how the tiling will look in the space.
Within Promob, the rendering tool allows you to visualize the finishes of the materials.
It provides quick solutions for choosing the type of tile, as well as for combining material colors, grouts, and patterns.
Convenience for making changes to the tiles during the project presentation to the client.
Quick listing of the quantity of tiles, streamlining the workflow for architects, designers, planners, and other Promob users, as well as ensuring accuracy in material purchasing and reducing waste on the construction site.
Detailed instructions correctly indicating the assembly of the tiles, turning the layout into an instruction manual, thereby reducing installation time and errors.
Different Types of Pagination

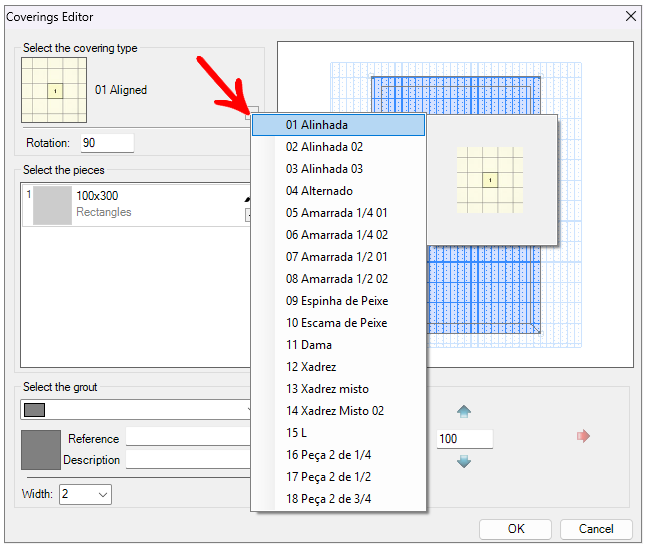

1. In the Coverings Editor, under Select the type of pagination, the available layout types are displayed.
There are 18 different types of pagination, which are:
Alinhada
Alinhada 02
Alinhada 03
Alternado
Amarrada 1/4 01
Amarrada 1/4 02
Amarrada 1/2 01
Amarrada 1/2 02
Espinha de Peixe
Escama de Peixe
Dama
Xadrez
Xadrez Misto
Xadrez Misto 02
L
Peça 2 de 1/4
Peça 2 de 1/2
Peça 2 de 4/4
To create a background-type pagination, please refer to the article Creating Background-Type Covering.
Materiais
A textura dos materiais é a parte mais importante da paginação, pois nele é possível elaborar várias combinações e padrões personalizados, trazendo harmonia no ambiente. Para isso:
1. Em Editor de Paginação após a seleção do tipo de paginação, clique em Editar informações da peça, e as opções de cadastro e materiais são exibidas.
Materials
The texture of the materials is the most important part of pagination, as it allows for creating various custom combinations and patterns, bringing harmony to the space. To do this:

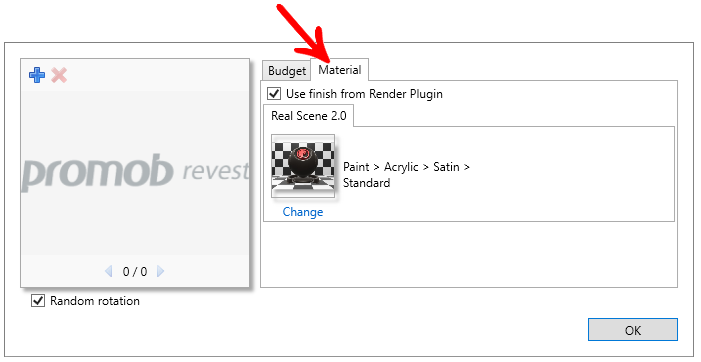

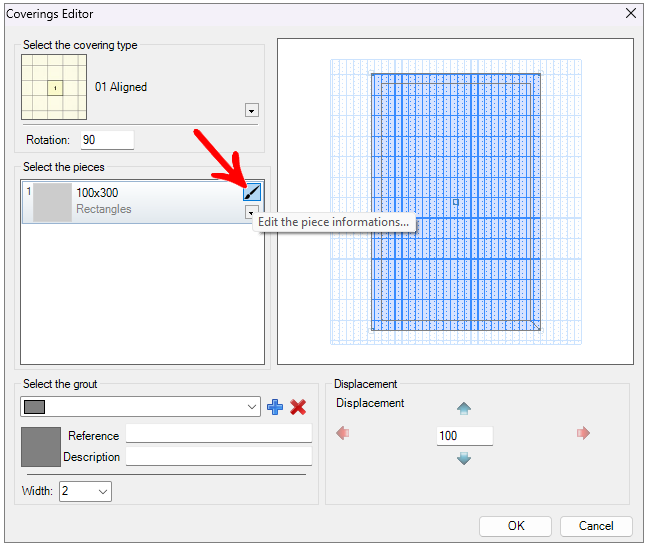

1. In the Coverings Editor, after selecting the type of pagination, click on Edit the piece informations, and the registration and material options will be displayed.
