In this type of coating, it can be applied in specific areas such as stripes, entire walls, or in different shapes.
The available options to insert the coating are:
Option 01

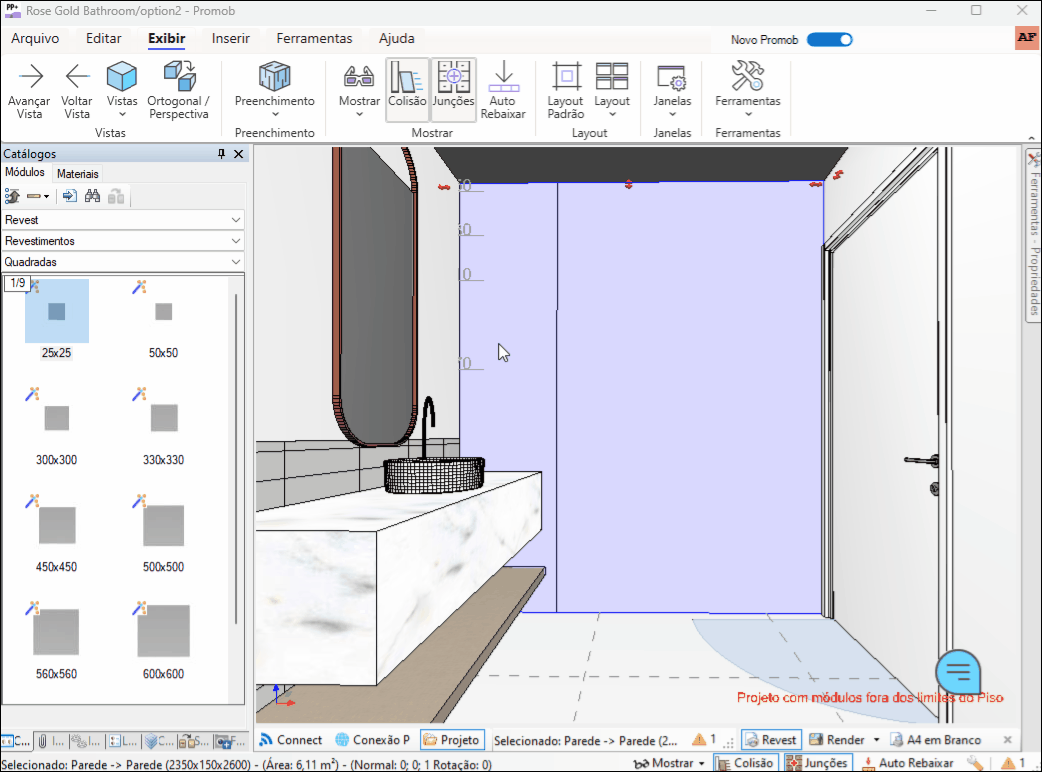

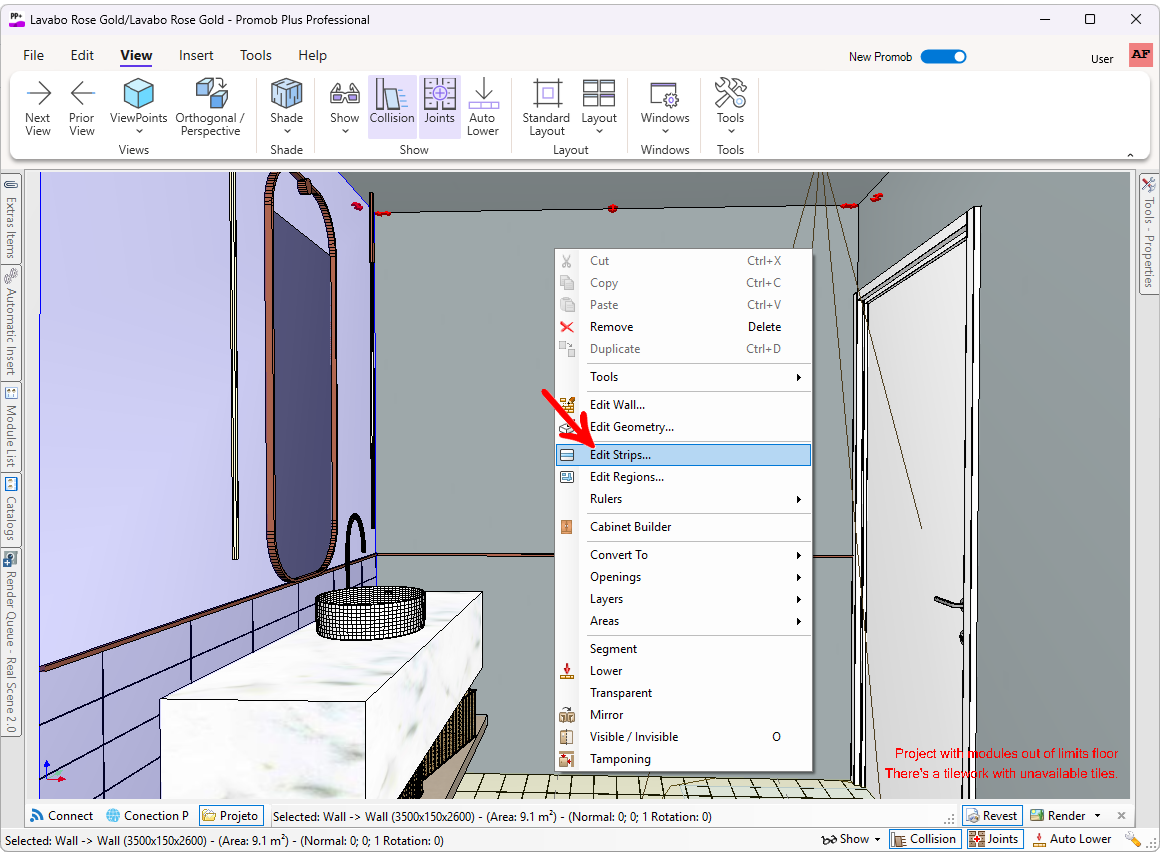

1. Right-click on the area of the wall where you want to apply the coating, and select the option Edit Strips.

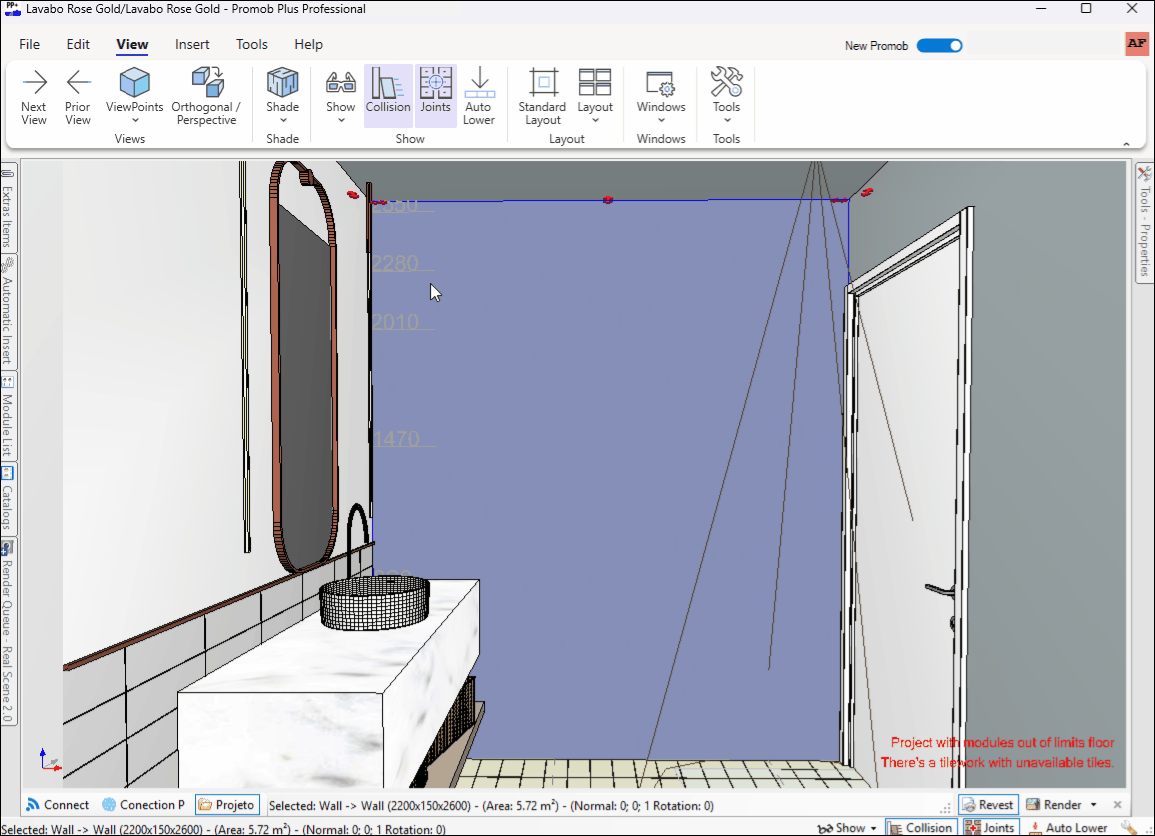

2. Choose the direction of the vertical or horizontal stripe and insert it in the desired area.
3. In Catalog, go to Coverings - Squares, locate the piece with the desired dimension.

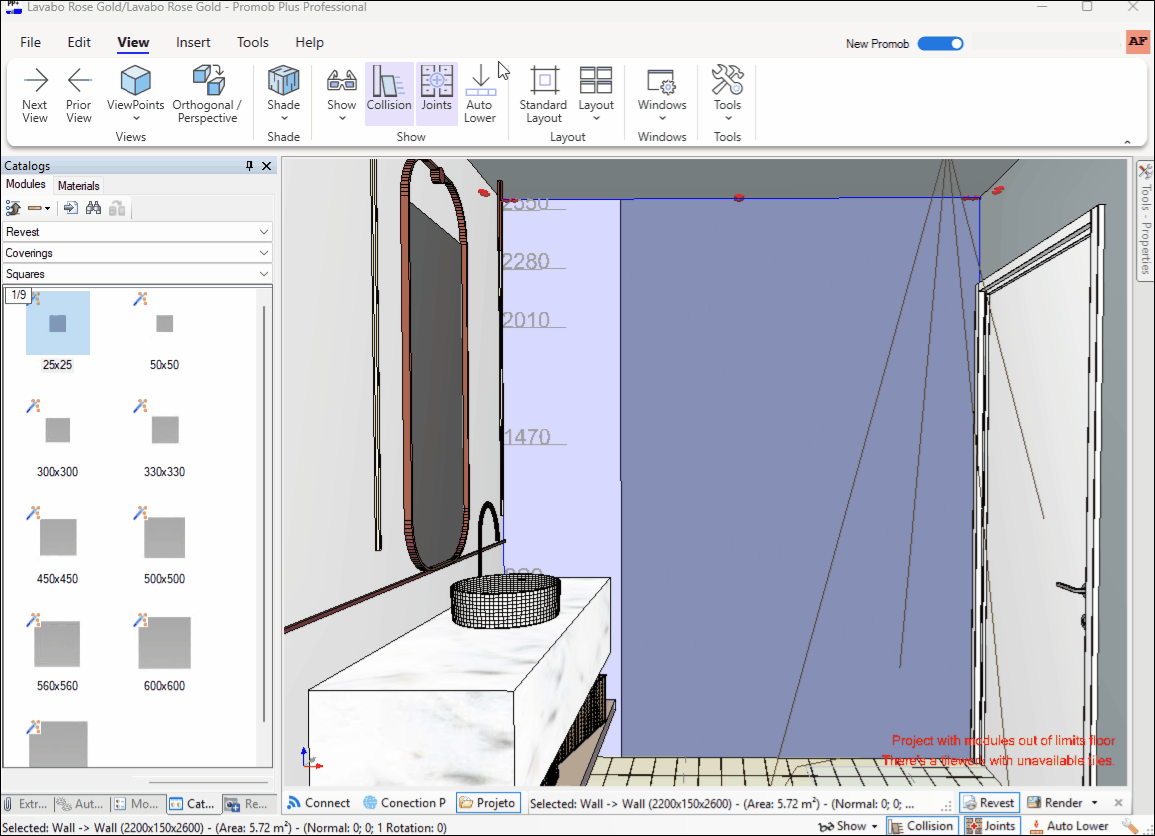

4. Select the coating and drag it over the area where you want to apply it. Select the option Background, and the pagination editor opens, make the necessary adjustments and click OK.
Option 02

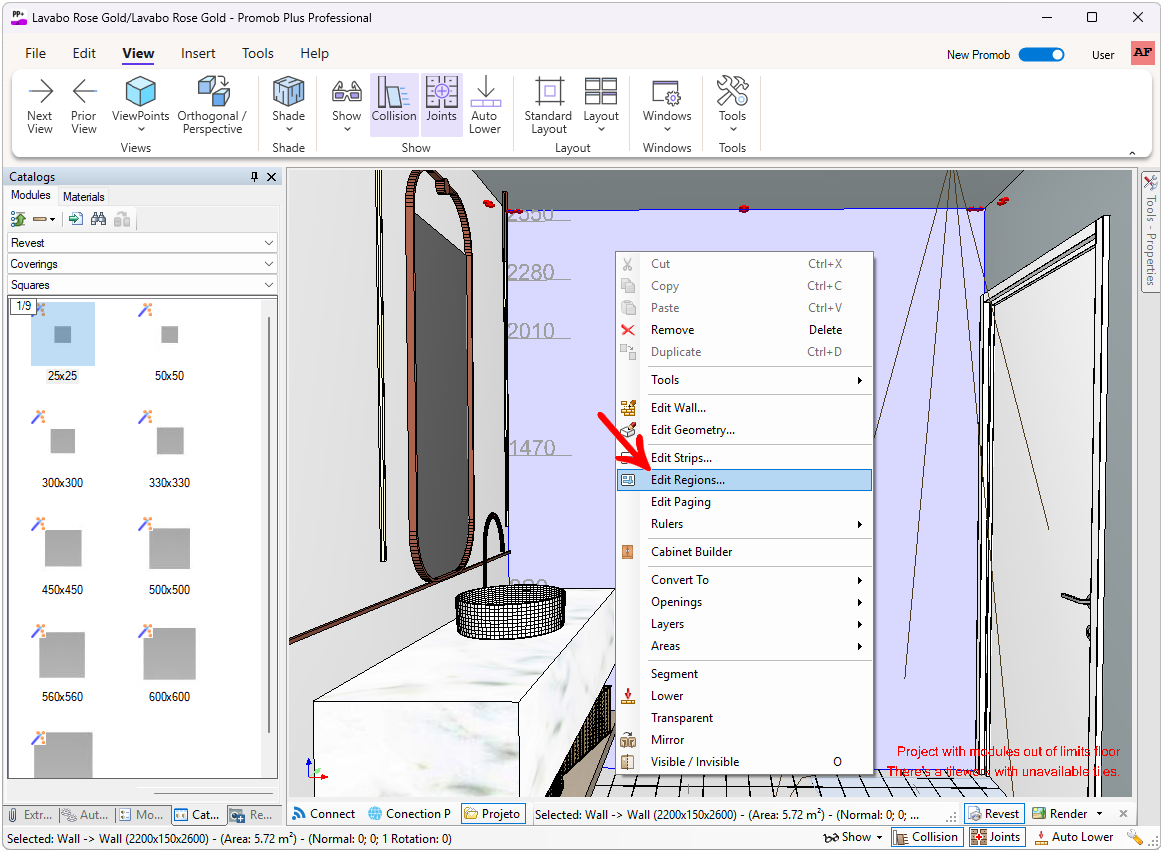

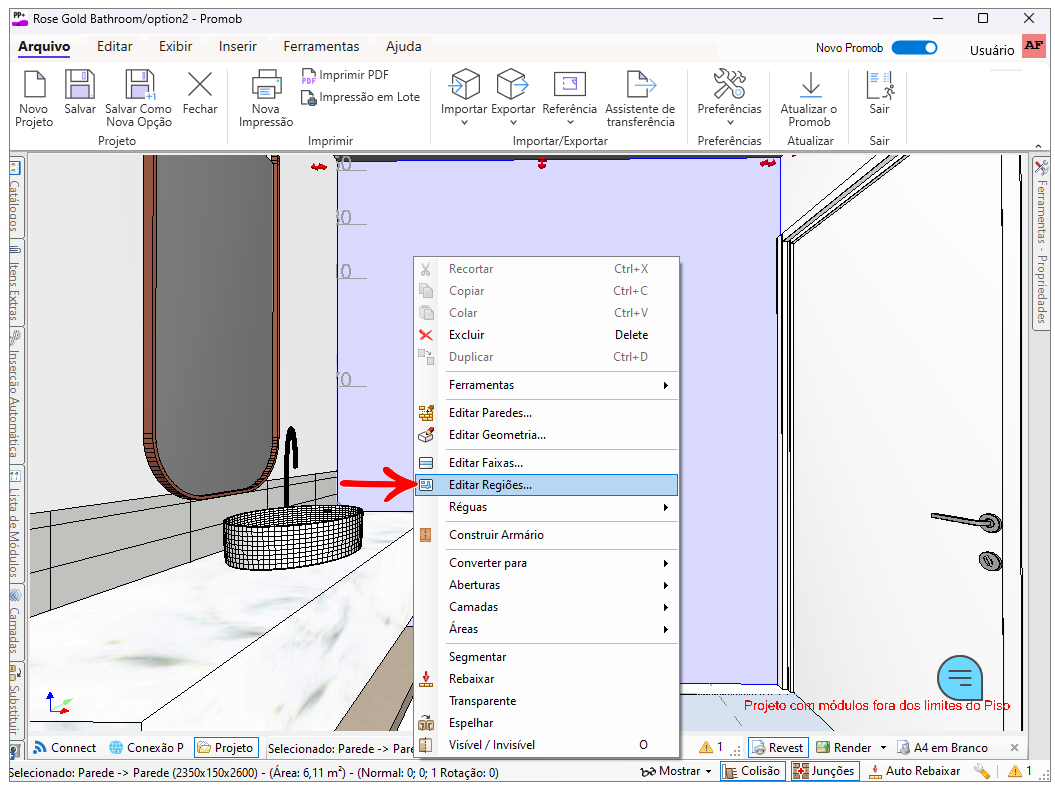

1. Right-click on the area of the wall where you want to apply the coating, and select the option Edit Regions.
2. Choose the shape of the geometry and draw. In this option, the drawing can be done freehand or from exact measurements, which can be edited from the Edit Regions.

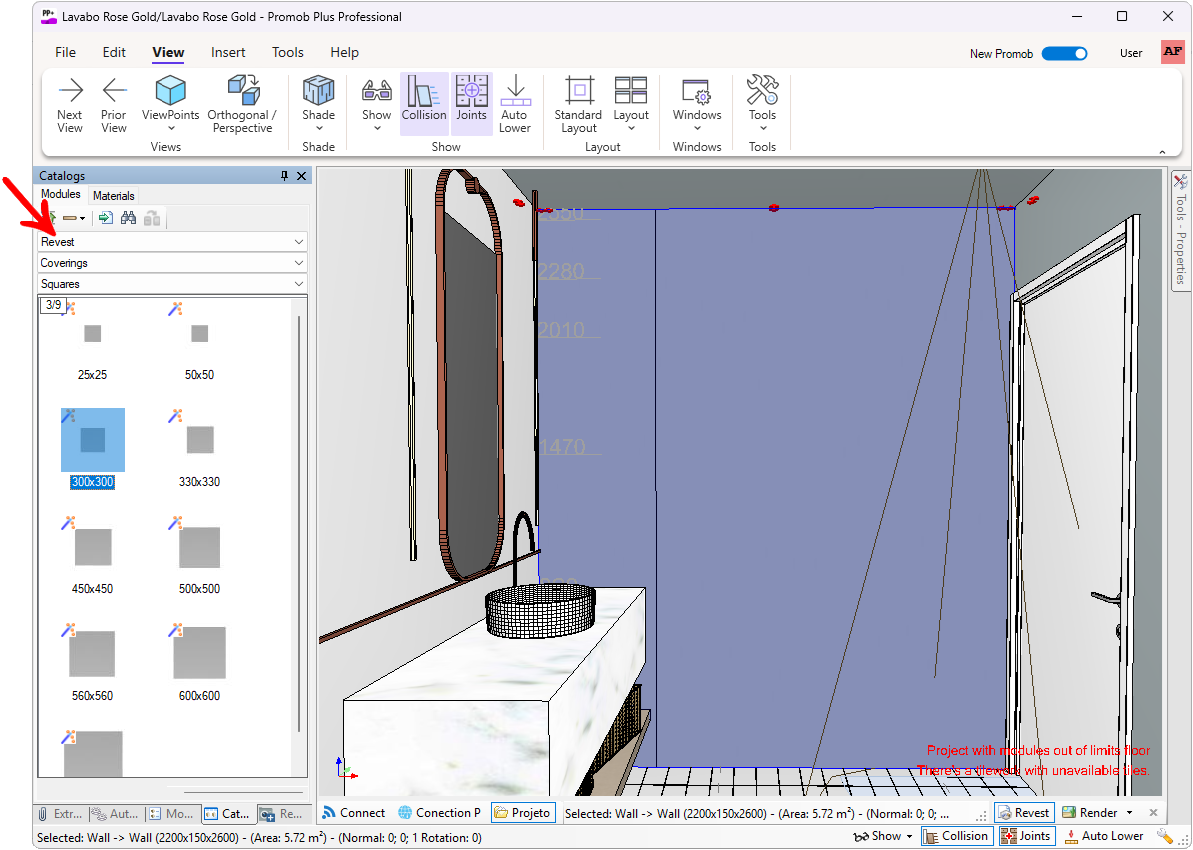

3. In Catalog, go to Coverings - Squares, locate the piece with the desired dimension.
4. Select the coating and drag it over the area where you want to apply it. Select the option Background, and the pagination editor opens, make the necessary adjustments and click OK.
5. In the Coverings Editor, make the desired adjustments:
Coverings Models: select one of the pagination options. After selecting the model, the preview of it is displayed.

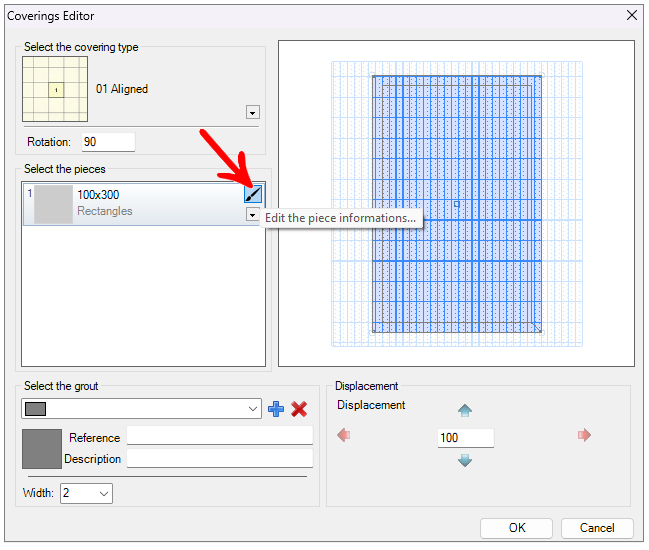

Selection of pieces: click on Edit Piece Information to insert the textures of the finishes used in the pagination.

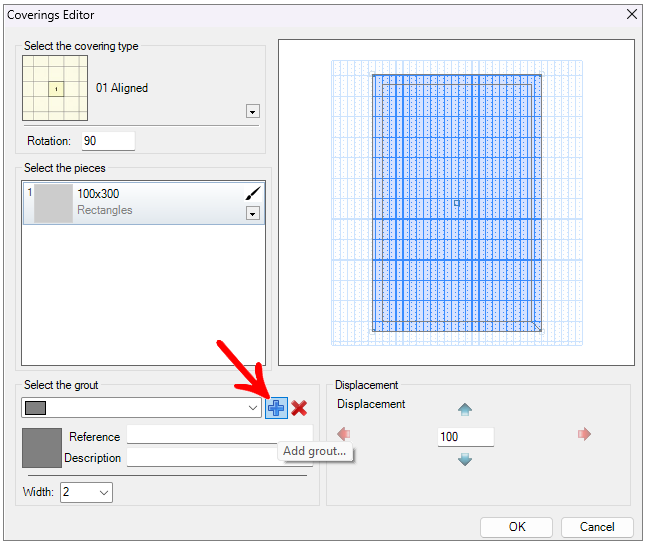

Selection of grout: select one of the grout options and create options using the button Add Grout.
Add piece to library: after finishing the selection of textures for the materials, the settings can be saved for use in a future project.
6. Click on OK to apply the pagination made in the 3D environment.
Spine Fish

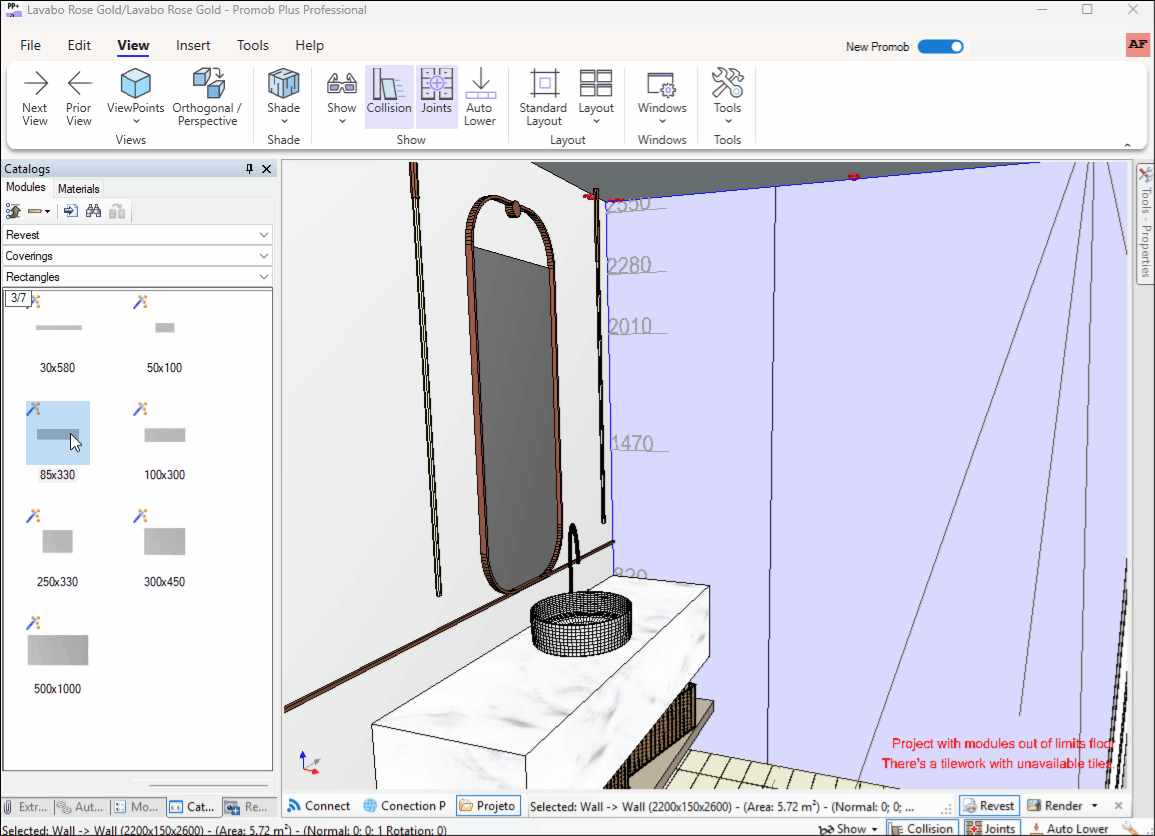

The Spine Fish Covering can be created in the same way, see below a demonstrative example:
