IMPORTANT: it is mandatory to insert the piece in the 3D environment through the Catalogs tab for the Select Grout tab to be displayed in the Coverings Editor.

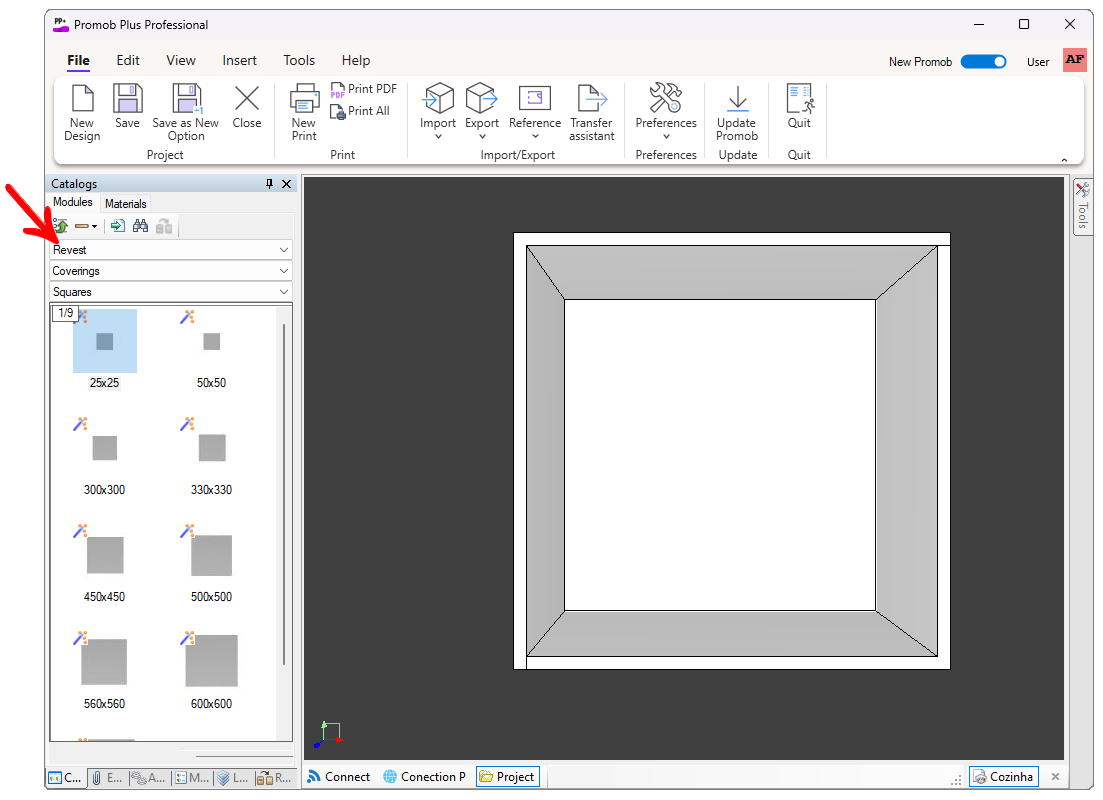

1. In Catalogs, select the Revest library. Then choose the covering and drag it into the desired environment, wall, or floor.

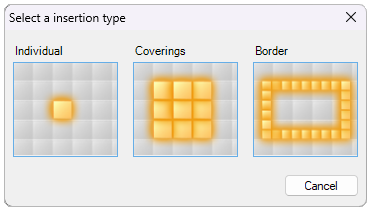

2. Choose the type of insertion

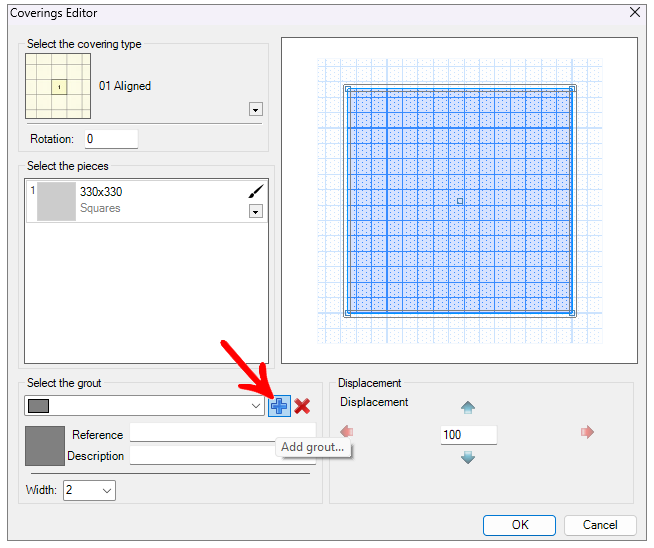

3. In the Coverings Editor, click on Add Grout.

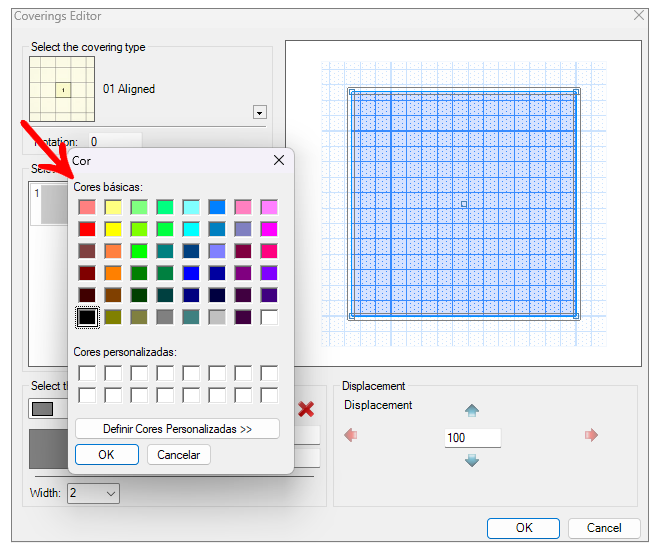

4. Select the grout color

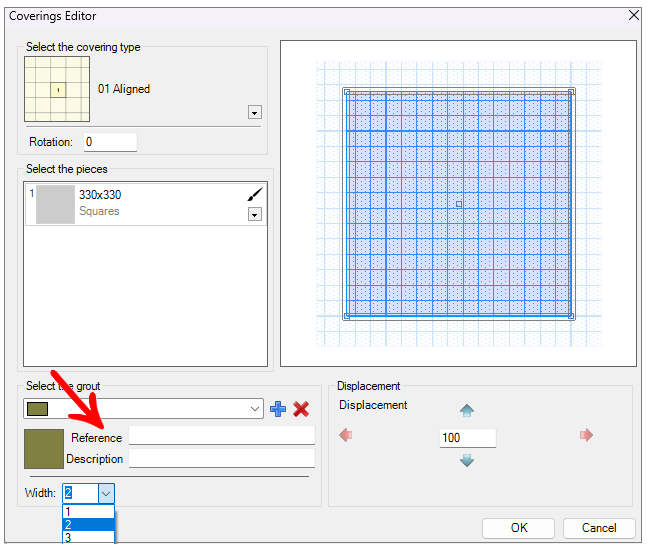

5. Enter Reference and Description and select the width in millimeters, then click on the Ok option. The covering will be inserted with grout.
