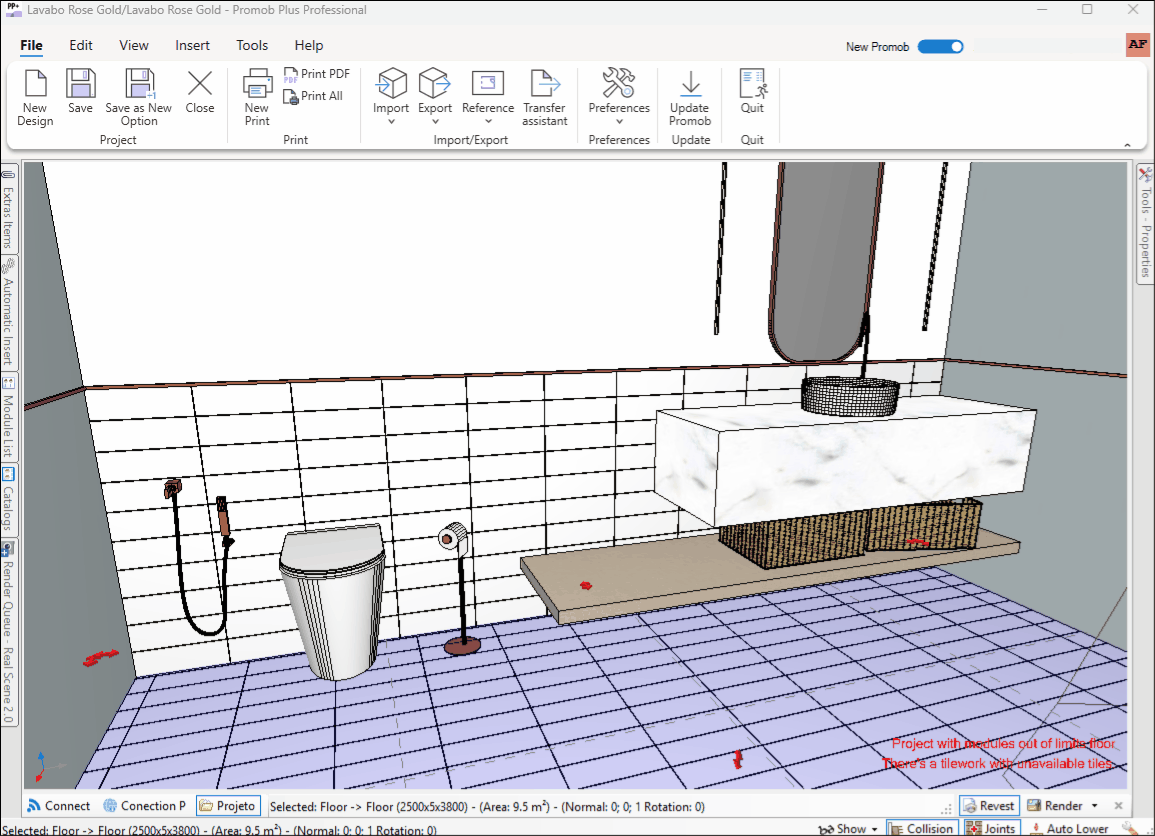

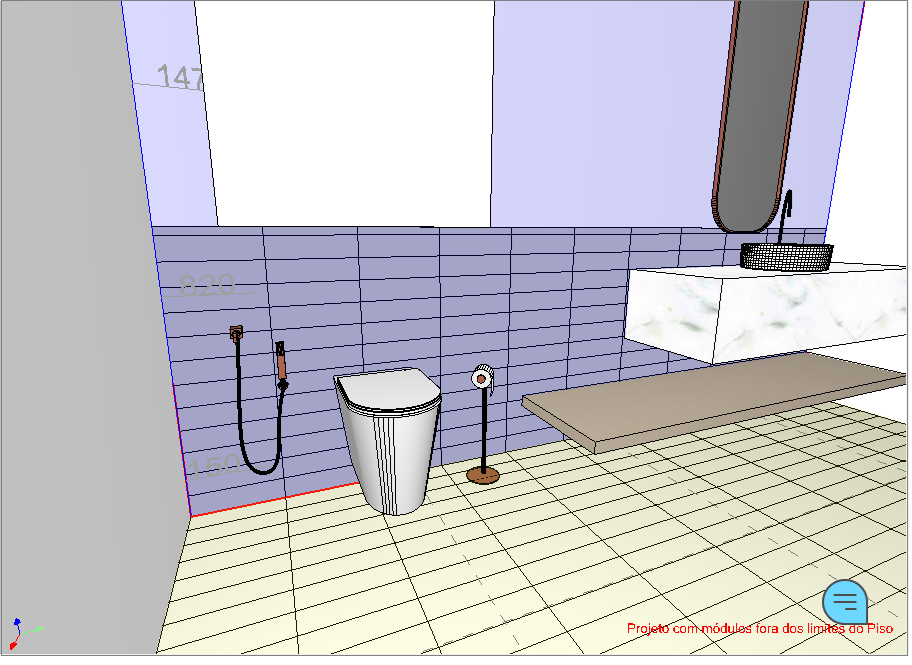

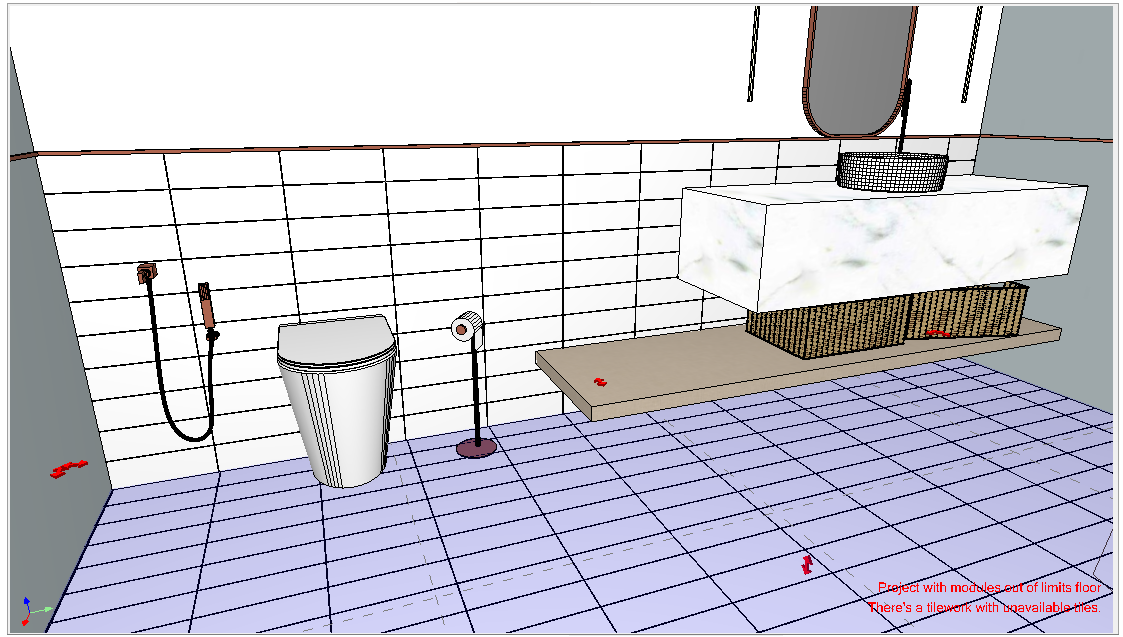

To ensure that the grout of the floor and wall are aligned in Promob Revest, it is possible to manually align the grout joints as desired. There are two options to perform the alignment:
Option 01
Displacement Tool

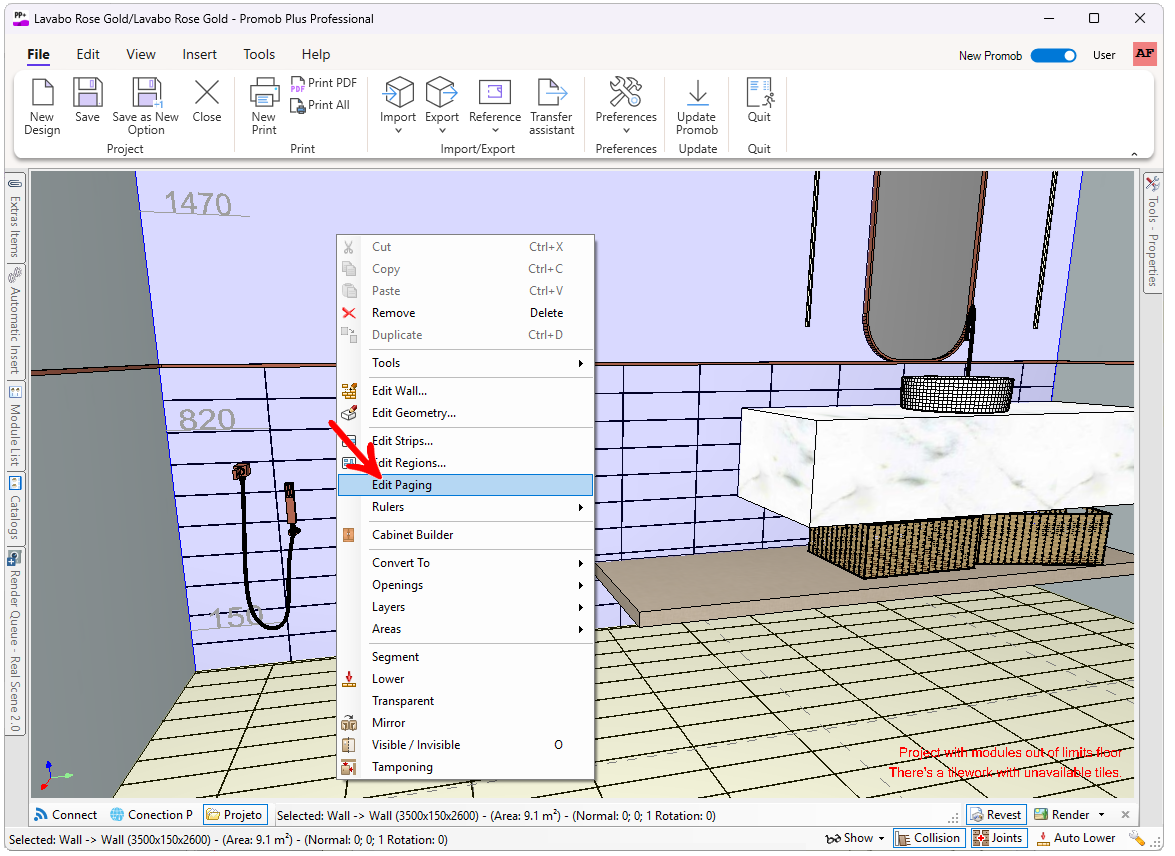

1. After inserting the layout on the wall and floor, right-click on one of the layouts and select the option Edit Paging.

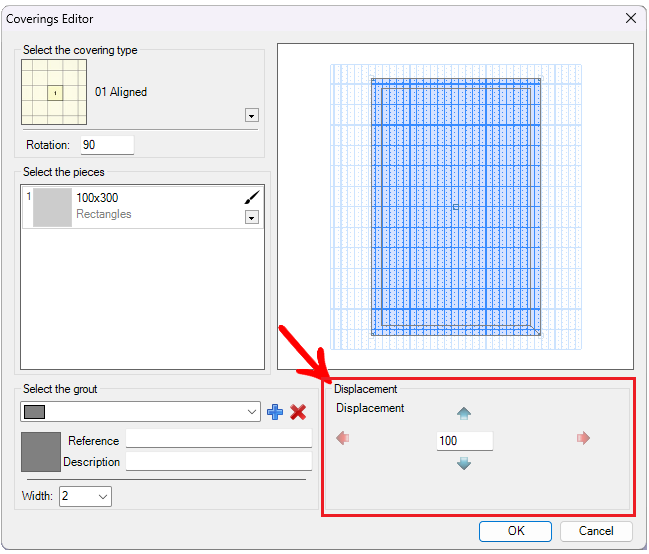

2. In the Coverings Editor, under Displacement configure the value you want in the Displacement field to move the layout to the right/left, up or down, according to the project's needs.

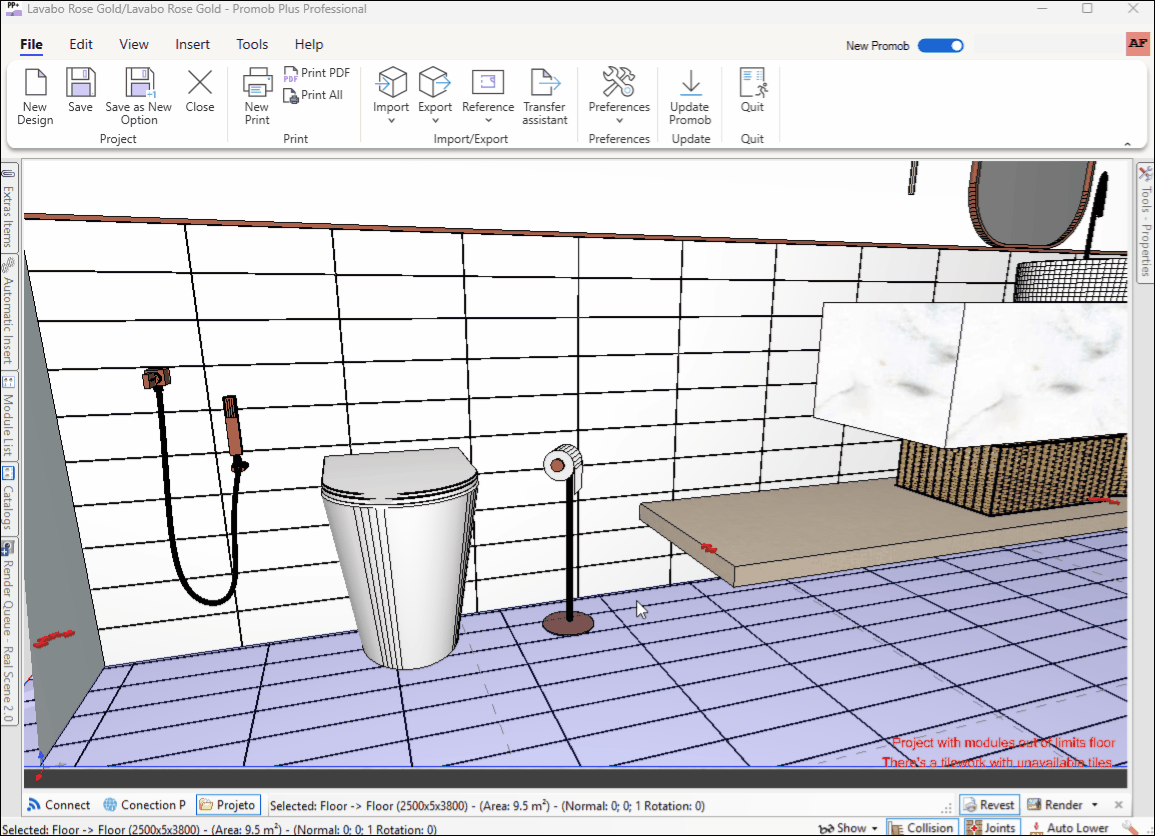

3. Click on OK and check if the alignment is as desired. If necessary, repeat the process.
Option 02
Right mouse button pressed
1. After inserting the layout on the wall and floor, right-click on one of the layouts and select the option Edit Paging.

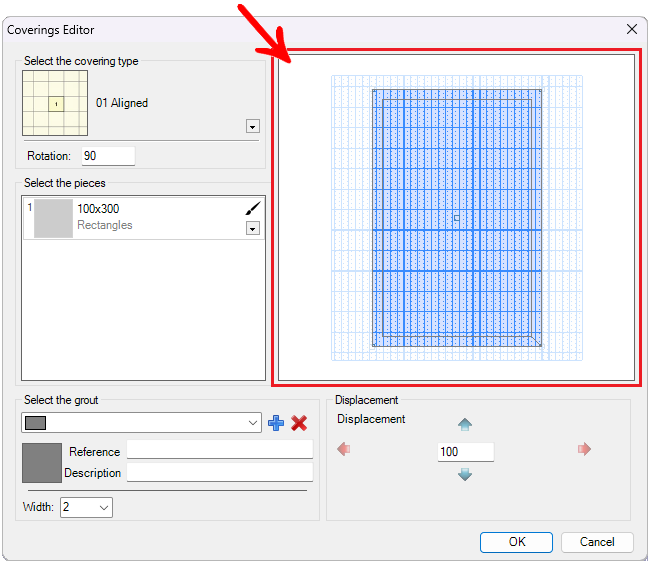

2. In the layout selection screen, hold down the right mouse button on the layout, and drag it from side to side as needed to align the grout.
3. Click on OK and check if the alignment is as desired. If necessary, repeat the process.
