In this type of insertion, a border is created for the floor of the environment. To create the border:

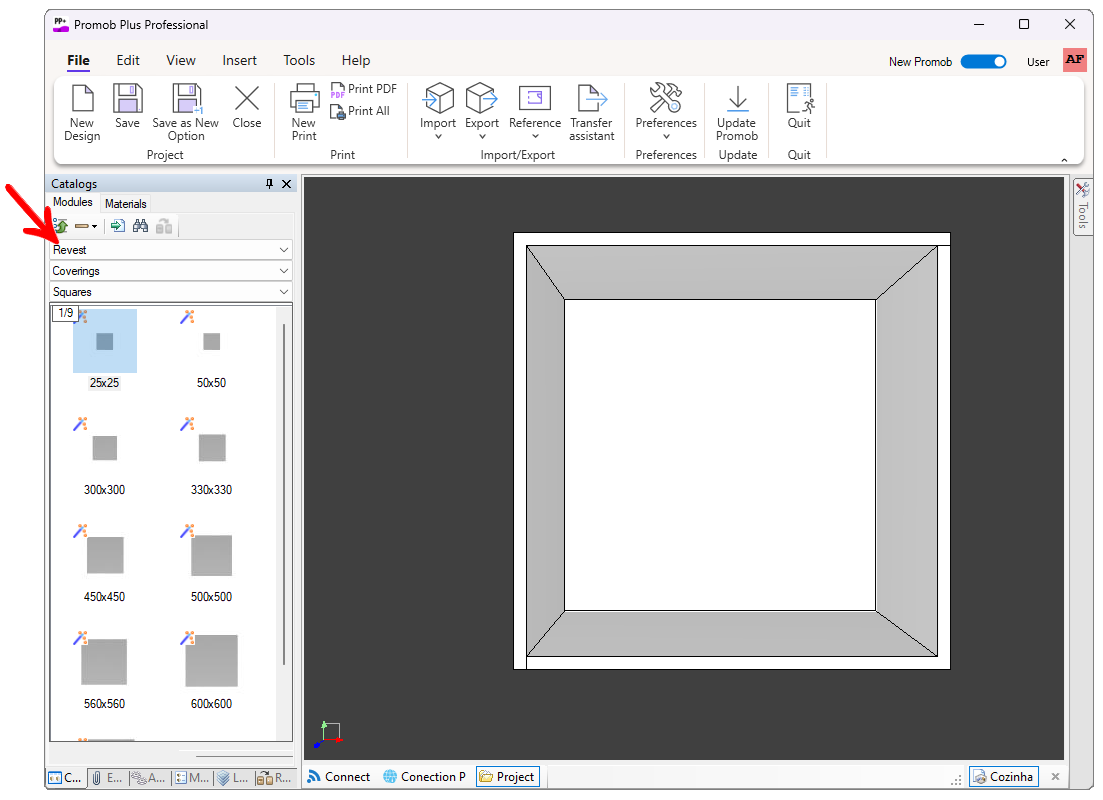

1. In Catalogs, select the library Revest - Coverings.

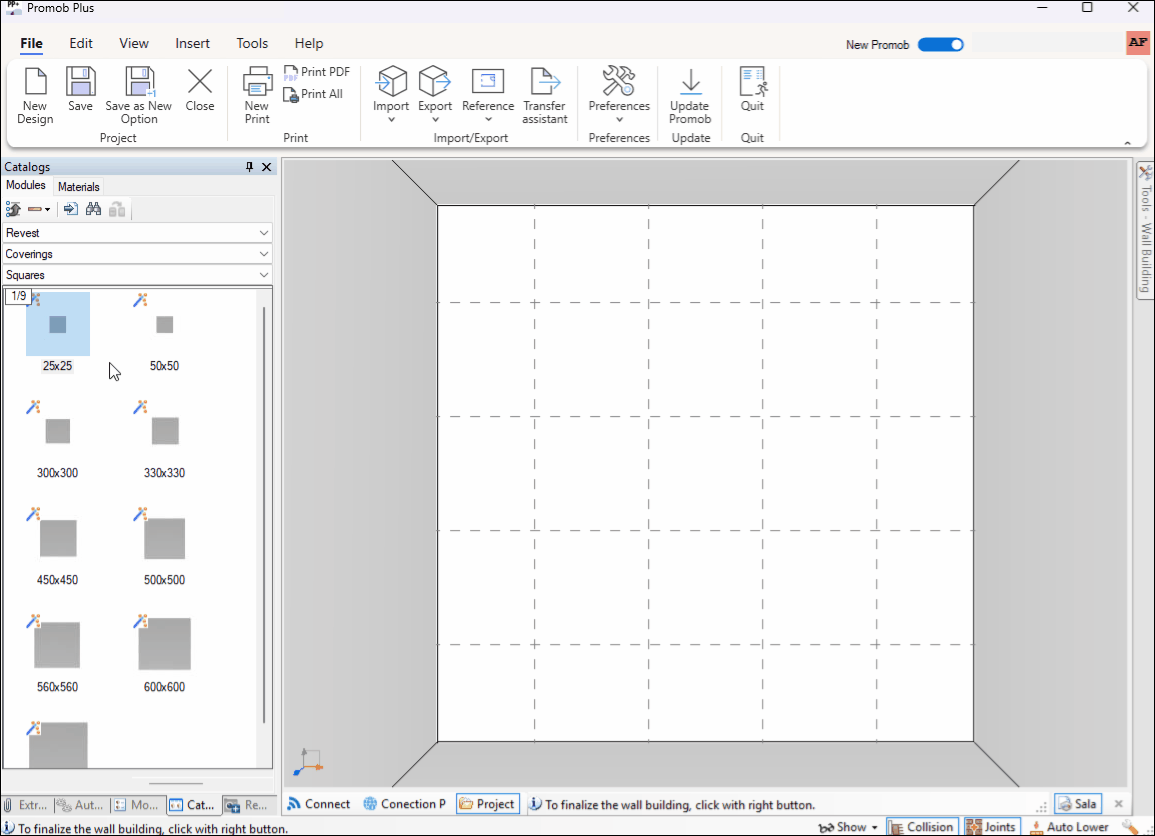

2. Select the coating and drag it over the area where you want to apply it (wall, floor, geometries).

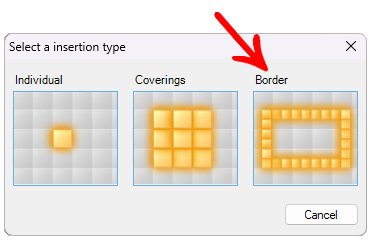

3. Select the option Border.

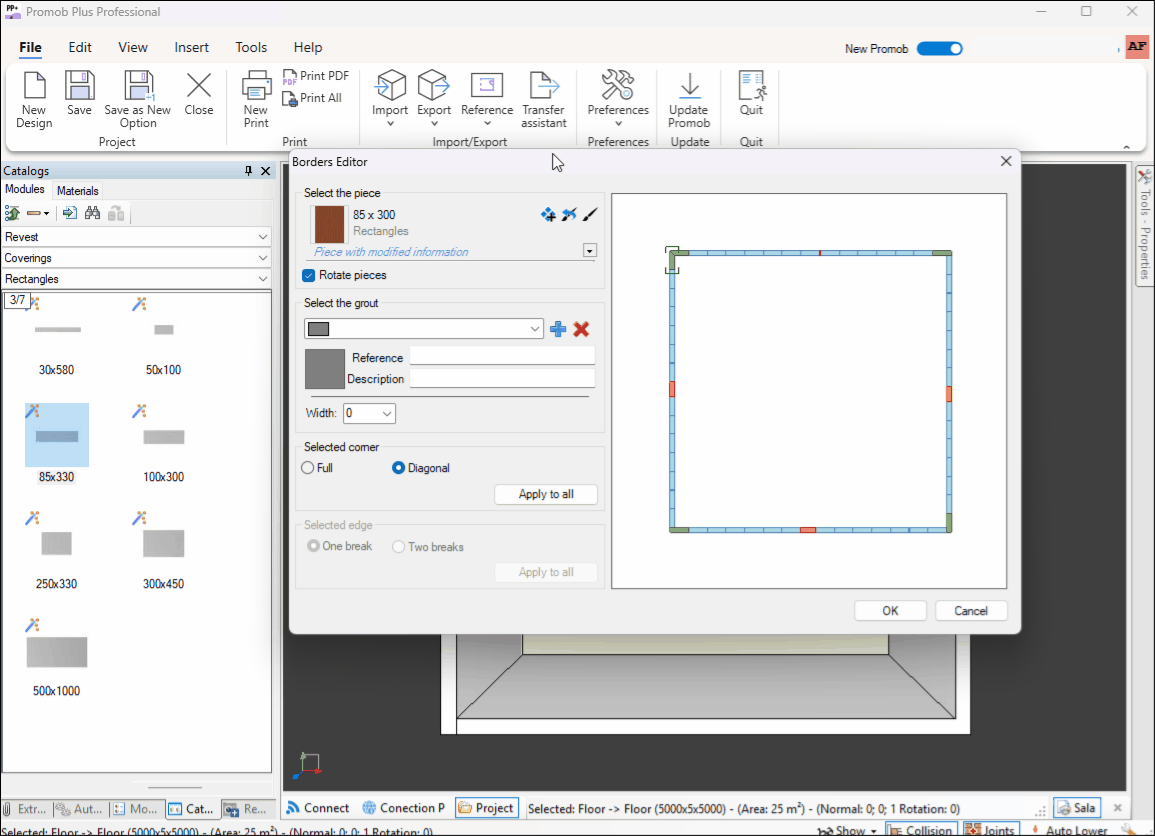

4. The options in the border insertion window are:

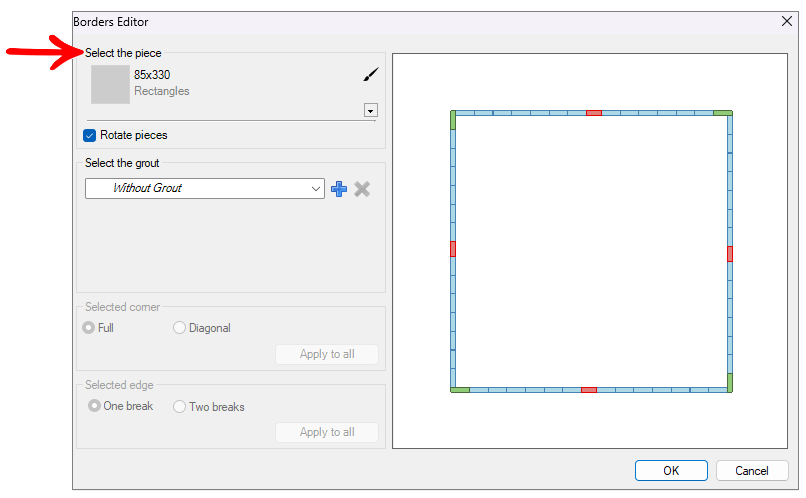

4.1. Borders Editor: click the arrow and select the border piece.

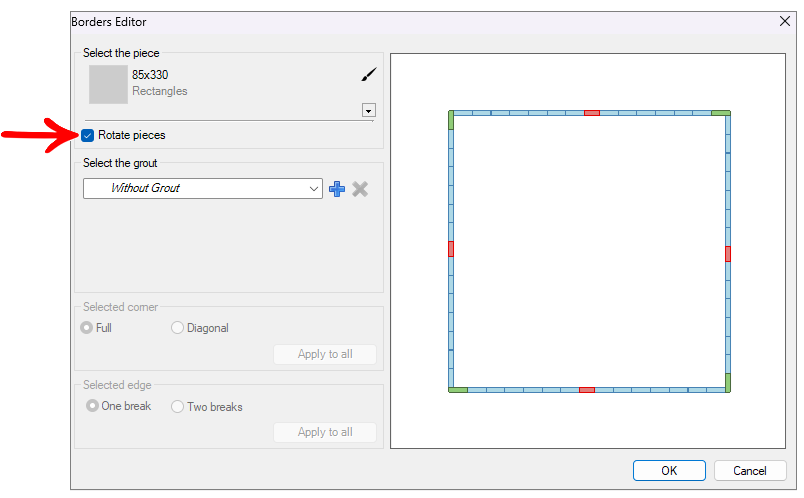

4.2. Rotate pieces: define the rotation of the pieces in the selected model, that is, the direction of the pieces in the border.
4.3. Piece selection: click on Edit Piece Information to add the texture of the materials used in the pagination.

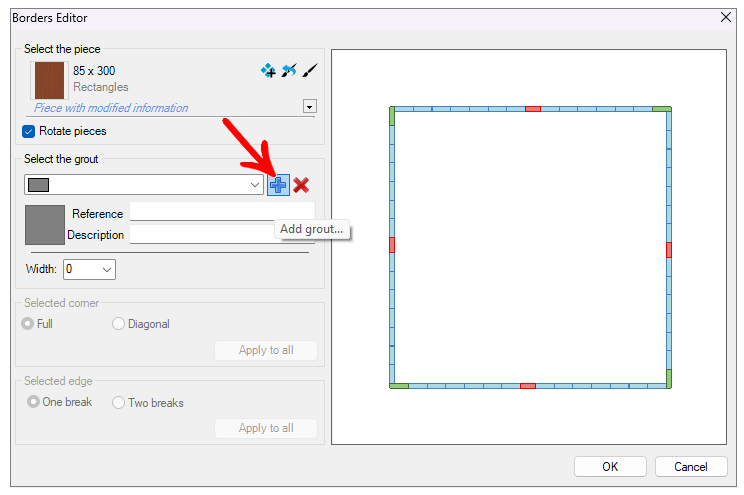

4.4. Grout selection: select one of the grout options and create other models using the Add Grout button.
4.5. Selected corner: in the border image, click on one of the corners and select the corner option full or diagonal.
4.6. Selected edge: in the border image, select one of the edges identified by the red color, and define the number of breaks. To position one break or two breaks, click on the red piece and drag it to the desired location.

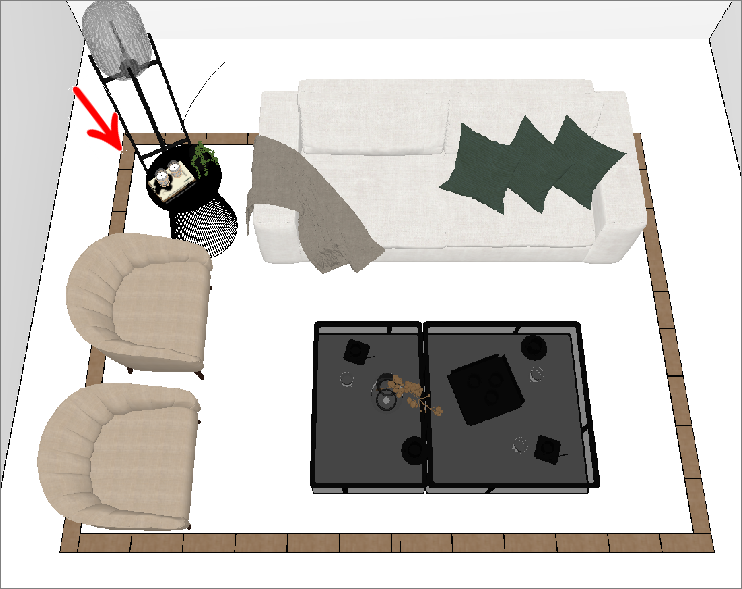

5. Click on OK to see the border in the 3D environment.
