Template styles are sets of template configurations to facilitate the configuration of modules in the design. After defining the modules templates, we configure the styles:
1. Apply Save New Style

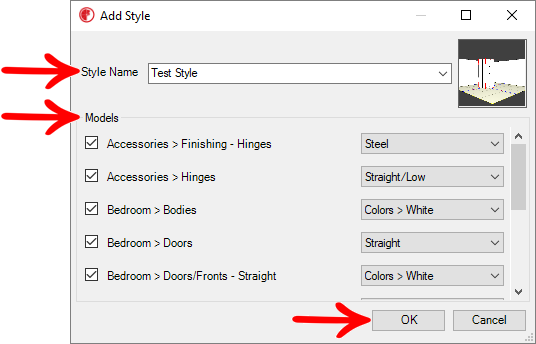

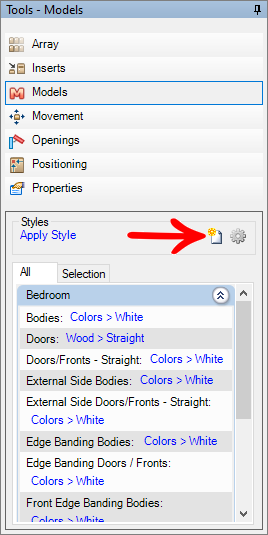

Click the Save New Style button. Add a name for the style, select the models to consider, and click OK.
2. Apply Style

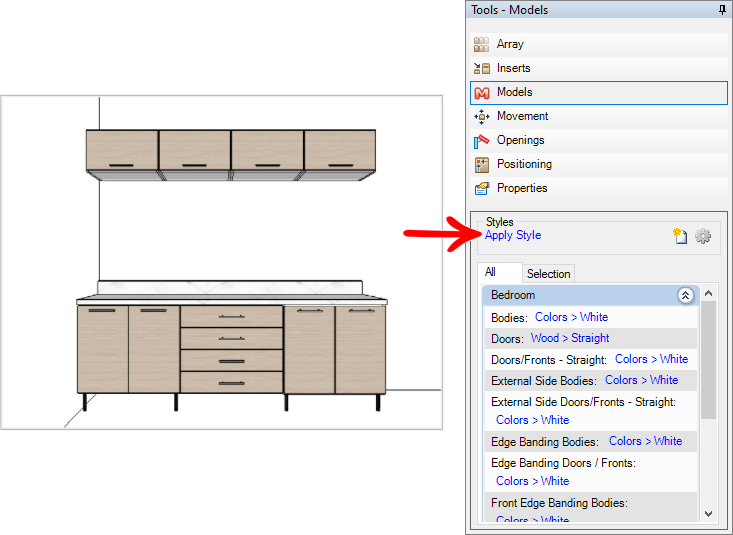

Click Apply Styles and then select the style you want to apply.
NOTES: Style creation is associated only for visible templates.
- Example: if a box has Front Box and Front Ribbon models, but the Front Ribbon model is configured as not visible in the model registry (as described in the article: Catalog - Models Finishes), the front ribbons will not be changed by styles, even if the Change sibling models by: ID option is enabled.
3. Rename

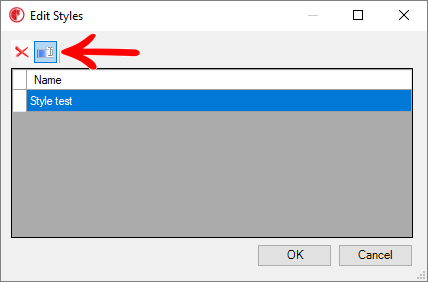

Click Edit Styles, select the style you want to edit the name, then click Rename. Rename the Style and click Enter.
4. Remove Style

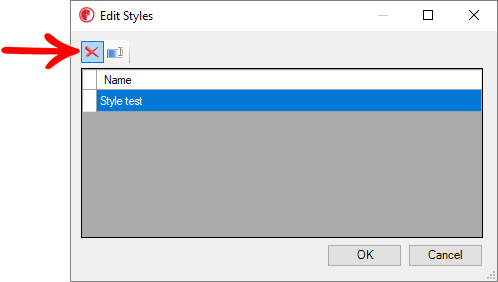

Click Edit Styles, select the style you want to remove and click Remove.
