The pagination type tiling completely covers the selected surface (such as wall, floor, or geometry) with the chosen covering. This option also allows for combinations of pieces and finishes.
How to create a pagination type tiling:
1. Access the covering library:

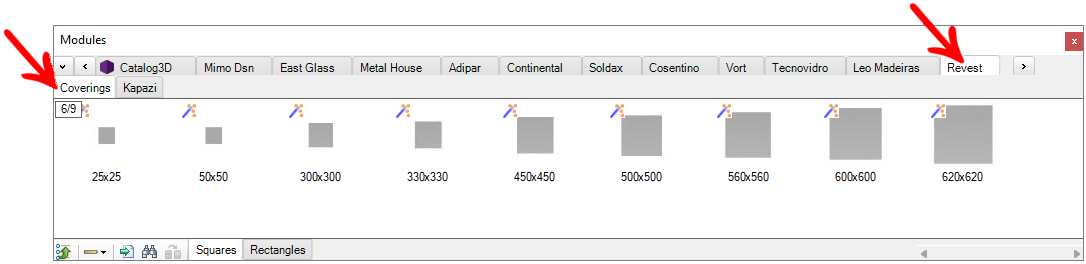

In the modulation bar, click on Revest library - Coverings.
2. Drag the covering to the desired area:

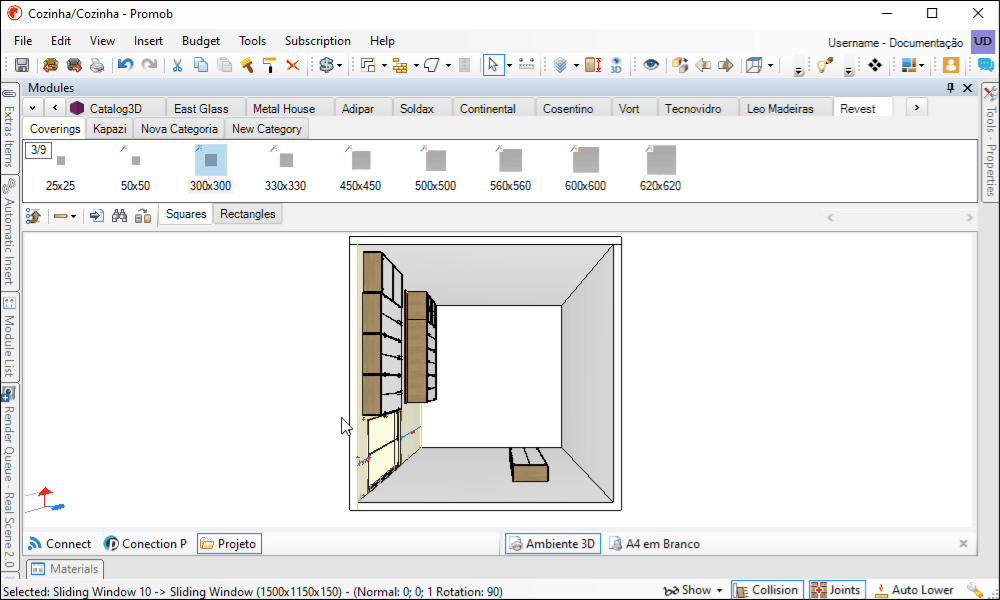

Select the covering from the library and drag it to the surface you want to apply it to, such as a wall, floor, or other geometries.
3. Choose the type of insertion:

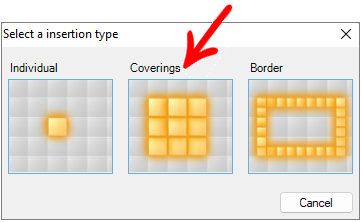

Upon releasing the covering, the application type selection window will be displayed.
Select the pagination option.
4. Configure the tiling options:
The tiling configuration window will be displayed with the following options:

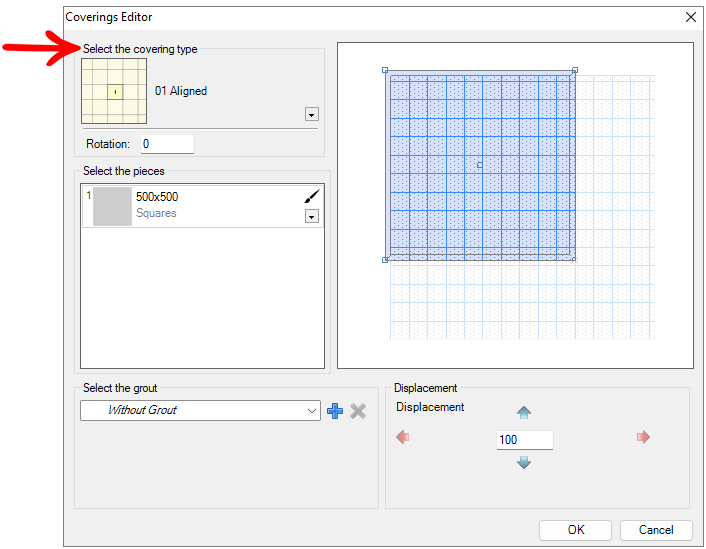

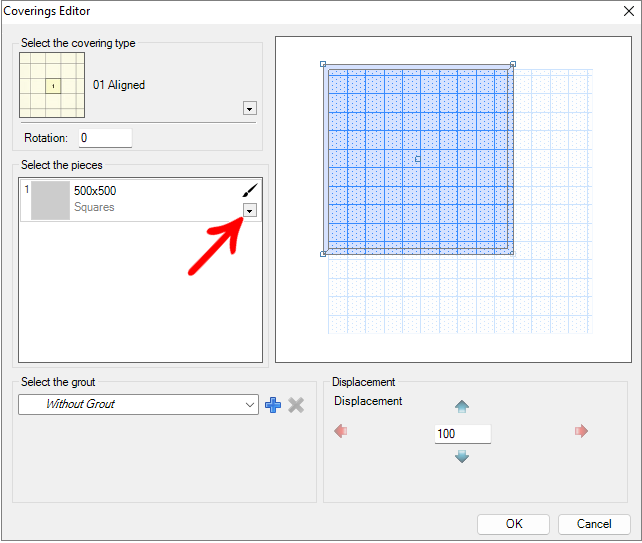

Select the pieces: Click the arrow to display the list of available models and select the desired one. The model preview will be displayed automatically.

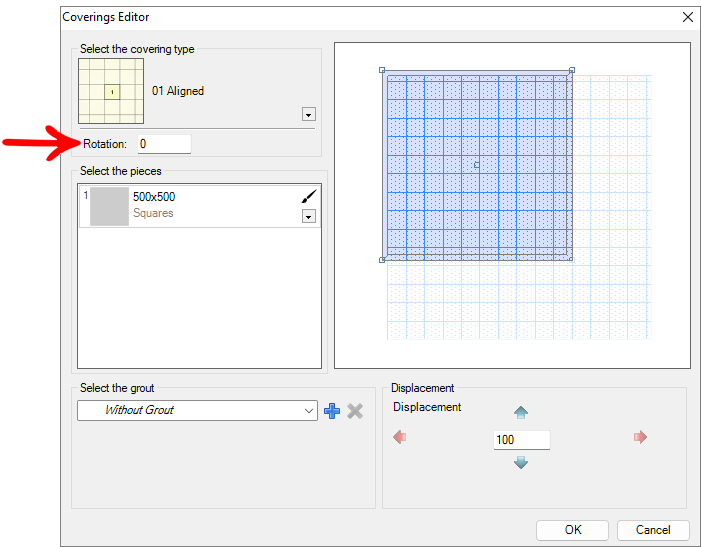

Rotation: Set the rotation angle of the pieces within the selected model.

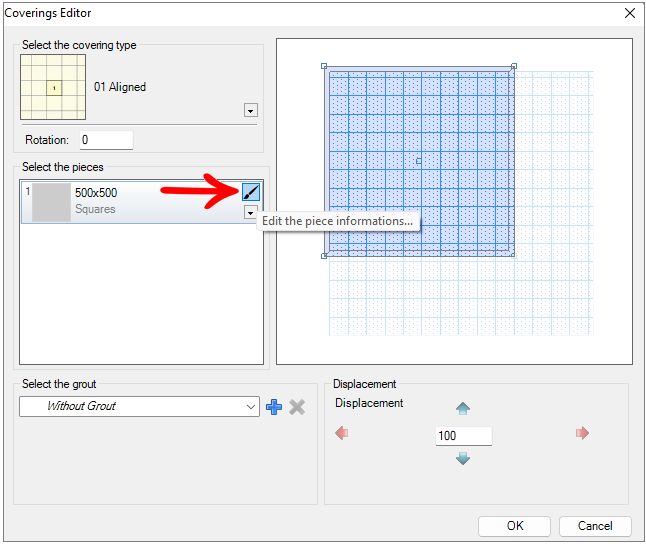

Piece Selection: Click on Edit the piece informations to configure the textures and finishes used.

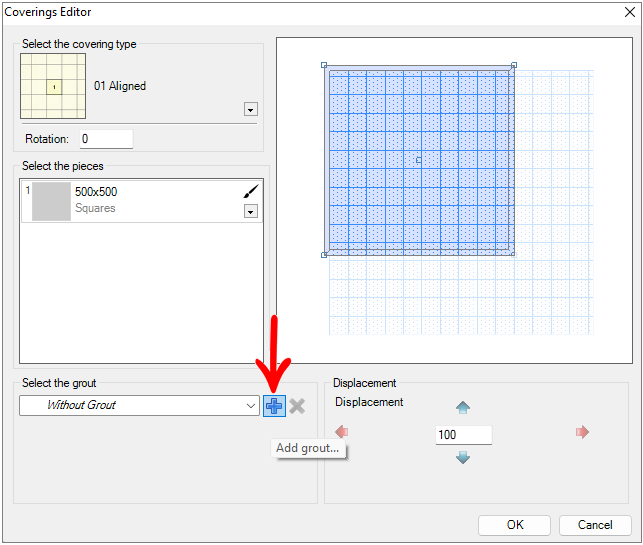

Select the Grout: Select an existing grout color or click on Add Grout to create a new custom option.

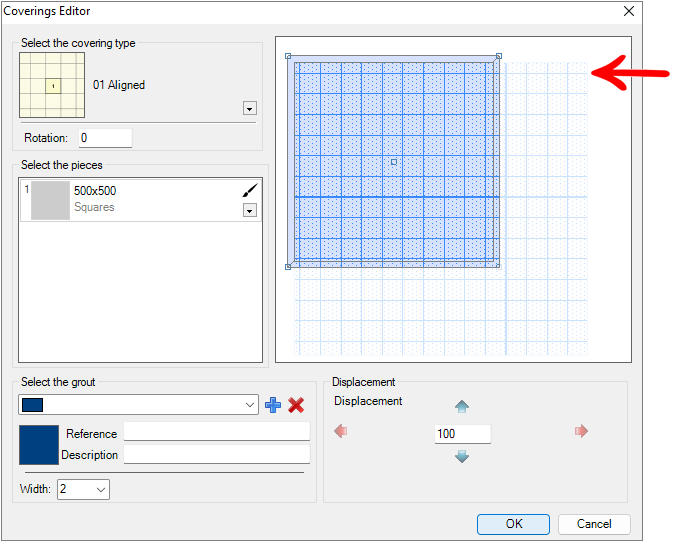

Start of Tiling: Click on a piece on the surface and drag it to define the starting point of the tiling. Use the Zoom, Pan, and Movement tools to adjust the view and positioning accurately.
5. Finalize the application:

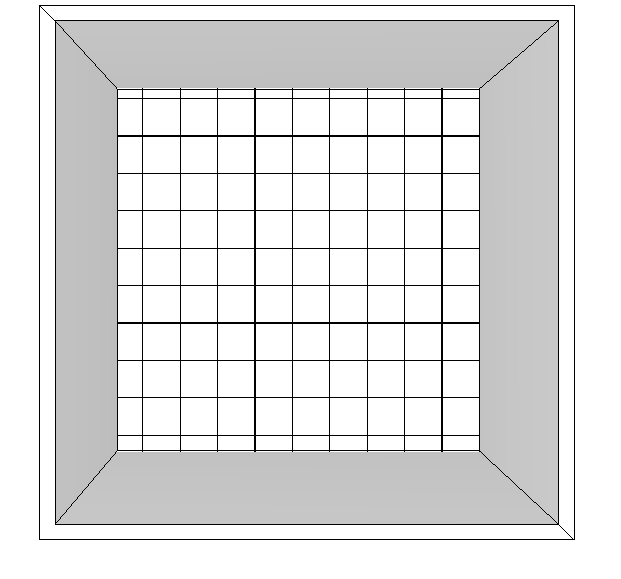

After setting the configurations, click OK. The tiling will be applied to the environment automatically.
