In this type of insertion, an outline is created on the floor of the environment, using specific covering pieces to form the baseboard.
How to create the border:

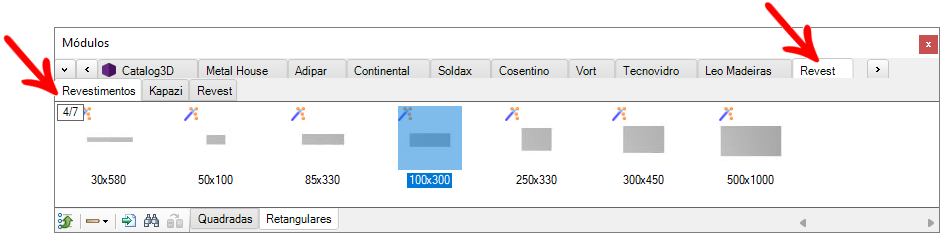

1. In the modulation bar, click on the library Revest – Coverings.
2. Select the desired covering and drag it to the region where it will be applied (wall, floor, or geometries).

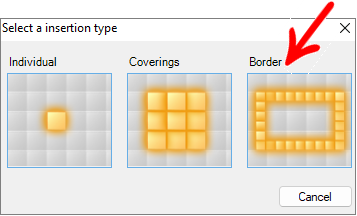

3. In the options window, select Border.

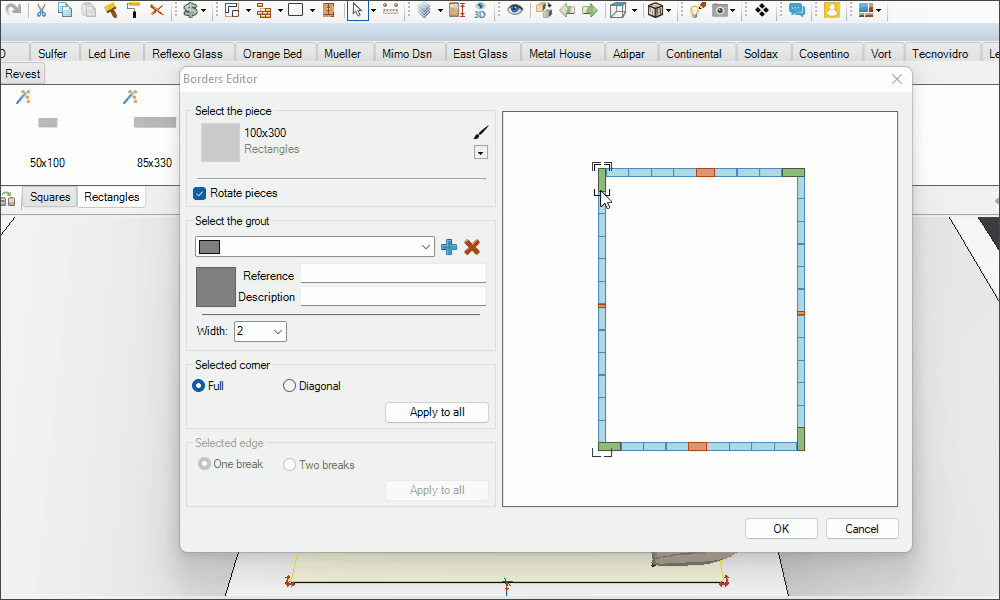

4. Configure the options in the border insertion window:
4.1. Borders Editor

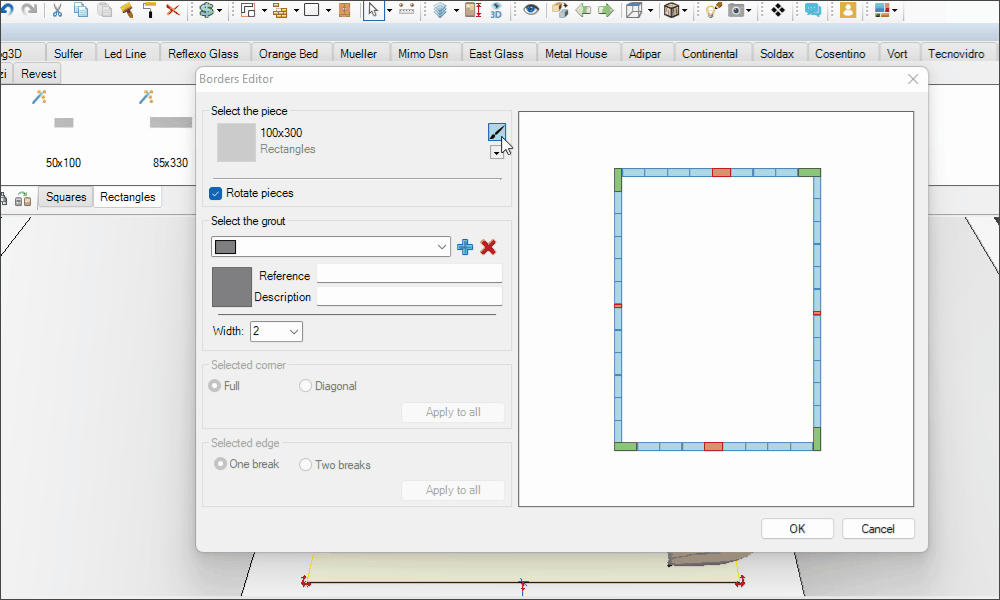

Click the arrow and select the piece that will be used as the border.

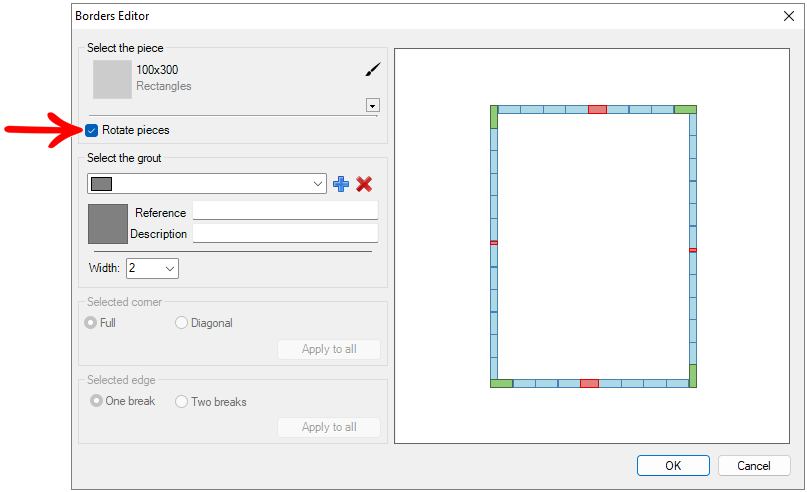

4.2. Rotate pieces
Set the rotation of the pieces in the selected model (direction of piece application).
4.3. Piece selection
Click on Edit Piece Information to add the texture of the materials used in the layout.
4.4. Grout selection

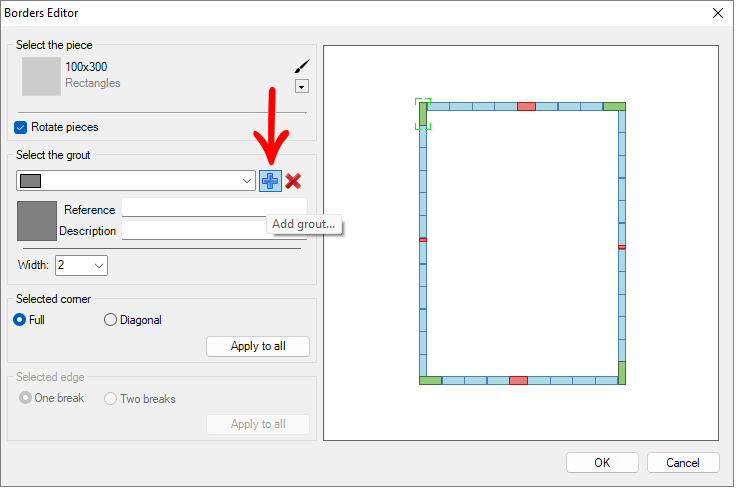

Choose one of the grout options or create new models using the Add Grout button.
4.5. Selected corner
In the baseboard image, click on one of the corners and choose between Full Corner or Diagonal Corner.
4.6. Selected edge

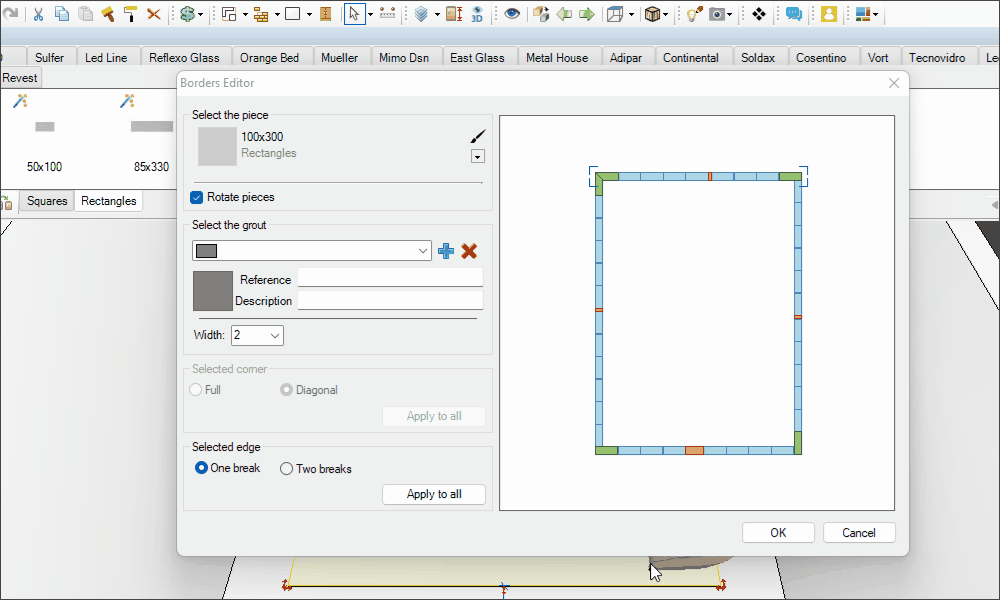

In the baseboard image, select one of the edges highlighted in red and set the number of breaks.
To add breaks (1 or 2), click on the red piece and drag it to the desired position.
5. Click OK to view the baseboard applied in the 3D environment.
