Revest – How to Import and Export a Piece Catalog

Updated
Follow

In Promob Revest it is possible to import and export Piece Catalogs, facilitating sharing between users and standardizing the coverings used in projects.



How to import and export catalogs

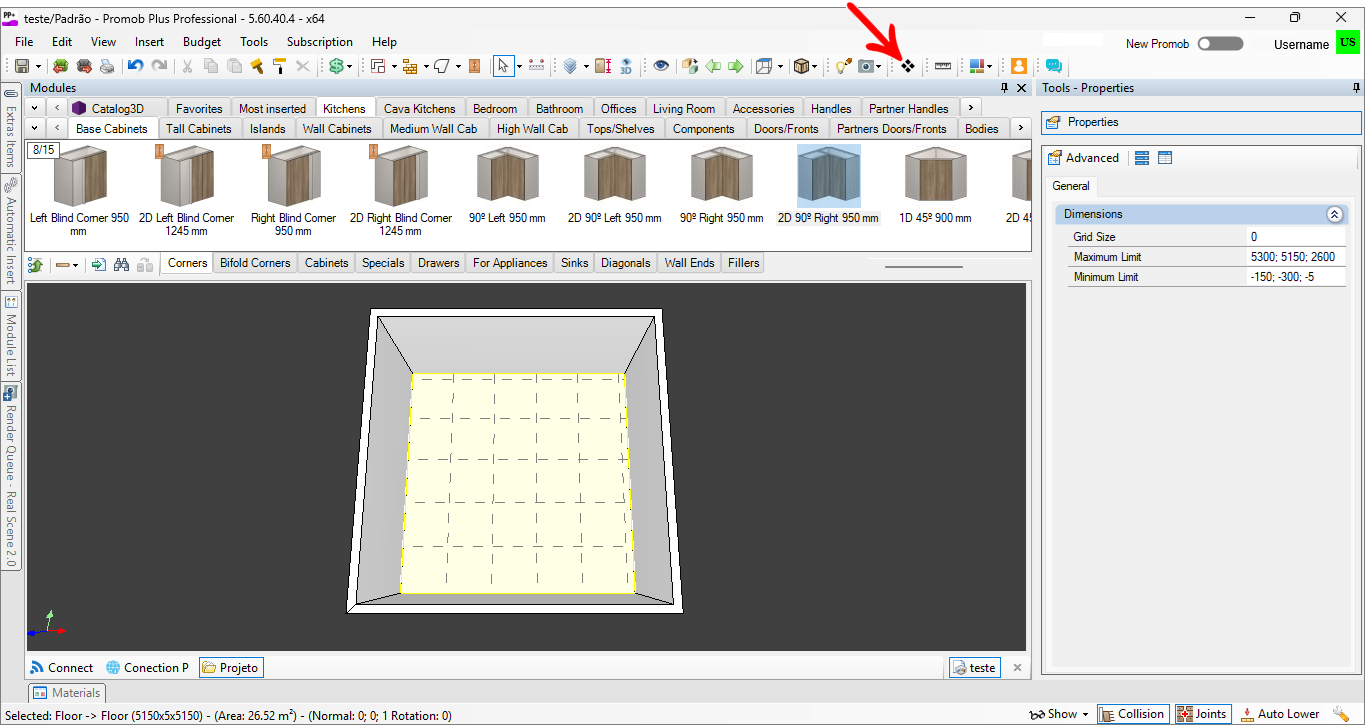

1. With Promob open, click the Revest shortcut on the toolbar.

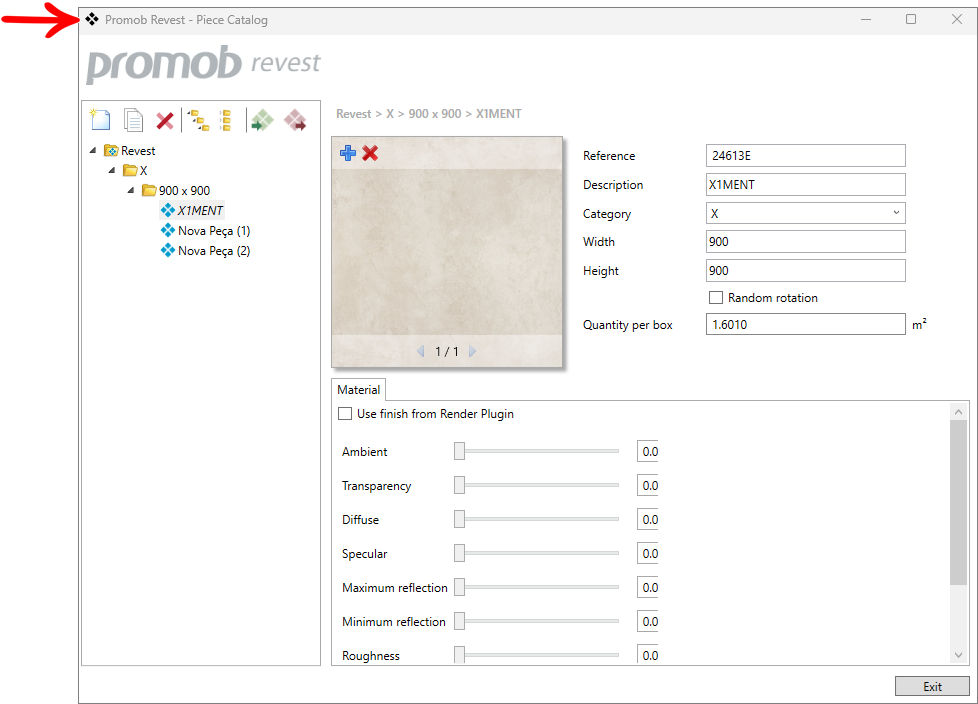

2. The Piece Catalog screen will be displayed.



IMPORTANT:

  • This is the catalog that can be imported or exported.

  • The field Quantity per box is available only for the Revest plugin.


3. Locate the Import Catalog mceclip2.png and Export Catalog mceclip3.png buttons.





Import Catalog mceclip2.png

  • Allows you to bring to your computer a catalog produced on another machine.

  • IMPORTANT: when importing, the current catalog will be replaced.

  • During import, a confirmation message will appear requesting permission to proceed.






Export Catalog mceclip3.png

  • Allows you to generate a copy of your current catalog for use on another computer.

  • When clicking Export Catalog, a window will open to select the destination directory.

  • The file will be saved with the extension .revestexport.
