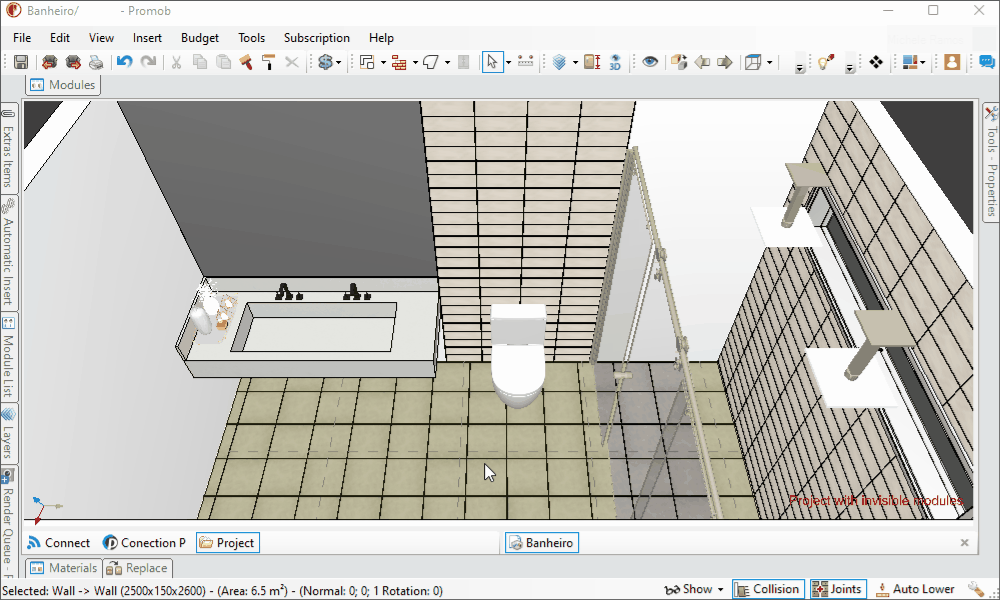

To have the floor grout and wall grout aligned in Promob Revest, it is necessary to make manual adjustments and visually validate in the 3D environment.
IMPORTANT: alignment may require small adjustments until the fit meets the expected result.
There are two ways to perform the alignment:
Option 1 – Using the Displacement Tool

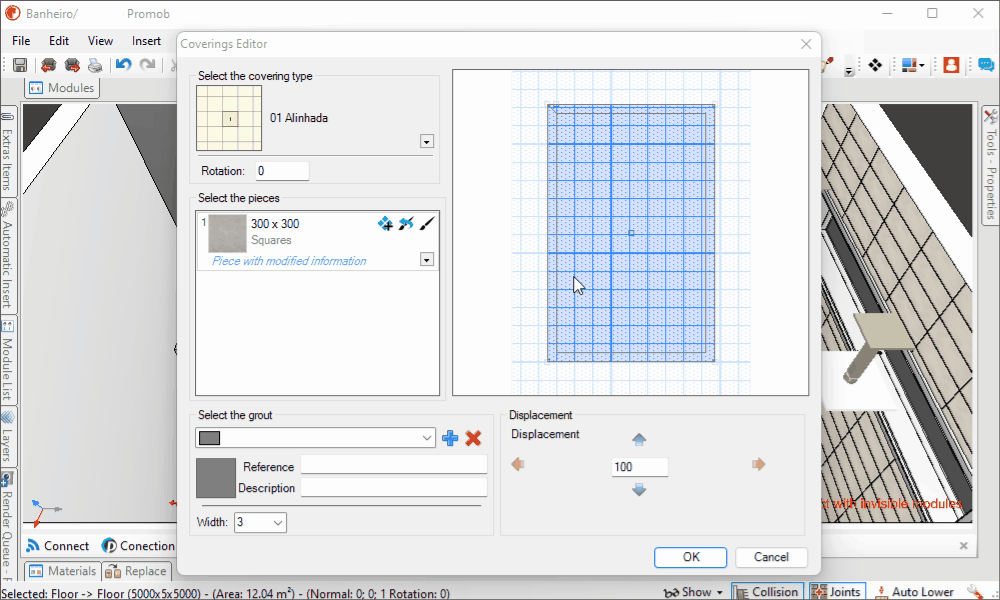

1. After inserting the paging on the floor and wall, right-click on one of the pagings and select Edit Paging.

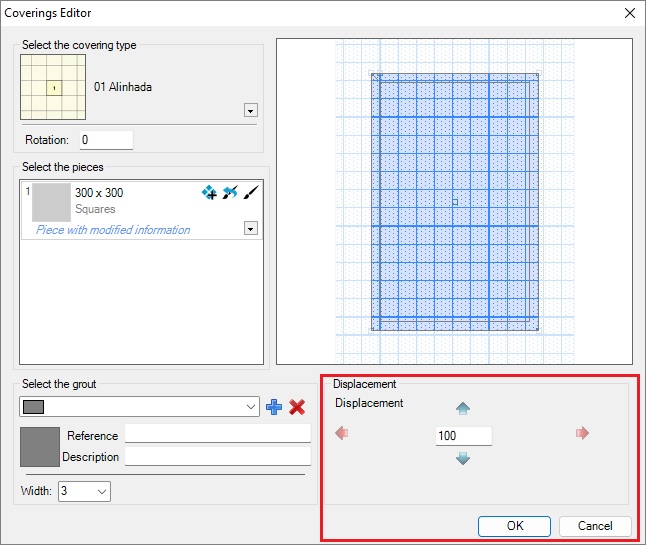

2. In the Displacement field, set the desired value in the Displacement field to move the paging:
Right / Left
Up / Down
3. Adjust until the floor grout is aligned with the wall grout.
Option 2 – Moving Directly with the Mouse
1. In the 3D environment, hold down the right mouse button on the paging.
2. Drag horizontally or vertically until the grout is aligned as needed.
3. Click OK to confirm the change.
4. If it is still not as desired, repeat the process until the desired alignment is achieved.
