The External Dimensions settings are the measurements settings, which will be automatically displayed in the modules of the Bathrooms group in the 3D Space. Even after the measurement configuration is established, it is possible to change the dimension in the 3D Space.

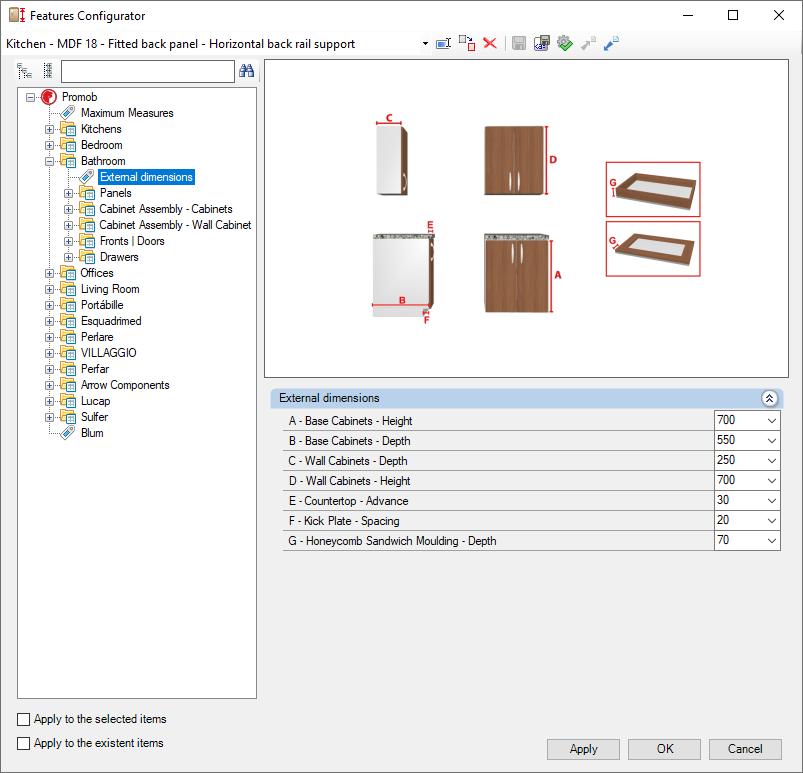

Check below the definitions of each configuration available in Features Configurator - Bathroom - External Dimensions. If necessary, see how to apply dimension settings here.

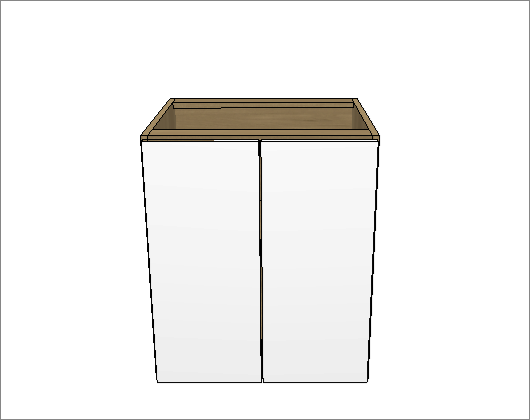

A – Base Cabinets - Height: defines the height of the Bathroom base cabinets.

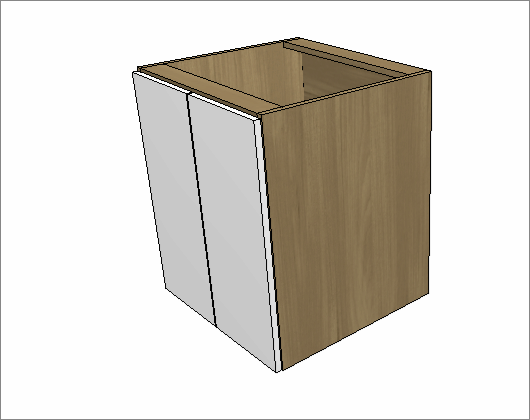

B – Base Cabinets - Depth: defines the depth of the Bathroom base cabinets.

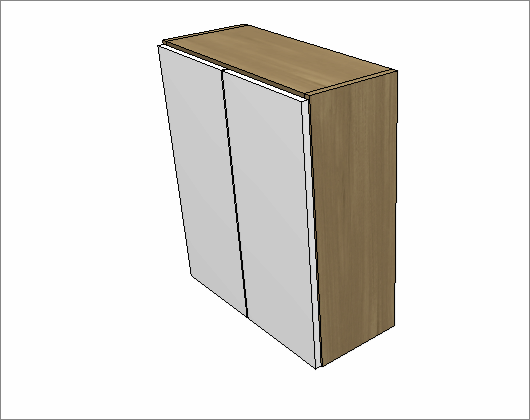

C – Wall Cabinets - Depth: defines the depth of the wall cabinets of Bathrooms.

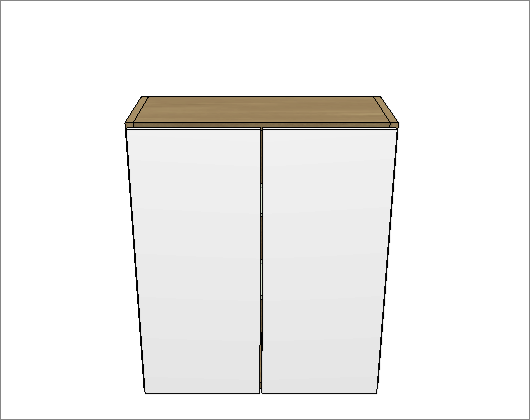

D – Wall Cabinets - Height: defines the height of the wall cabinets of Bathrooms.

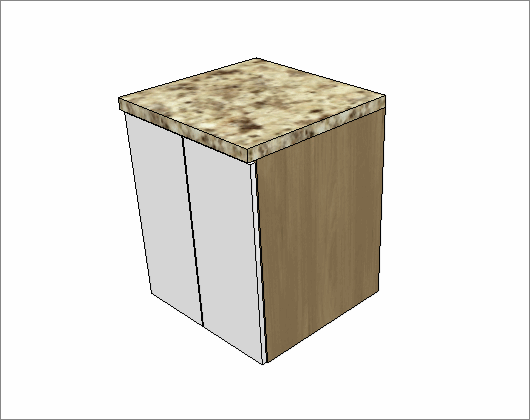

E – Countertop - Advance: defines the advance value of the countertop over the bathroom module box. The depth of the countertop is changed according to the configured value.

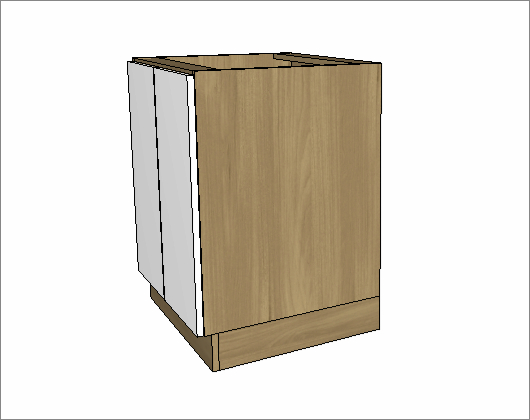

F – Kick Plate - Spacing: sets the offset of the module kick plate.

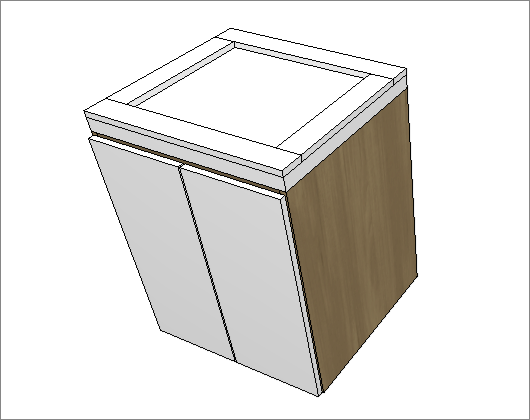

G – Honeycomb Sandwich Moulding - Depth: sets the depth of the Honeycomb Sandwich Moulding.
