Check below, the definitions of each configuration available in Dimension Configurator - Bathrooms - Fronts | doors. If necessary, see here how to apply dimension settings.
The available settings for Bathrooms library fronts and doors are:

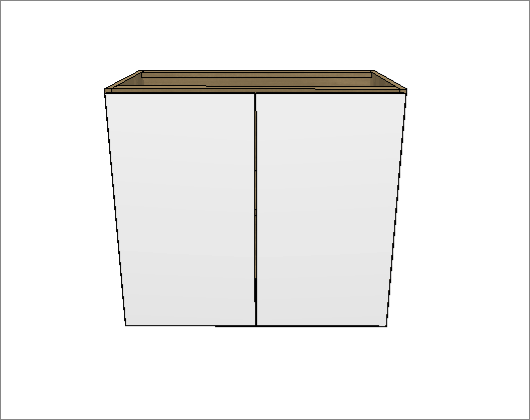

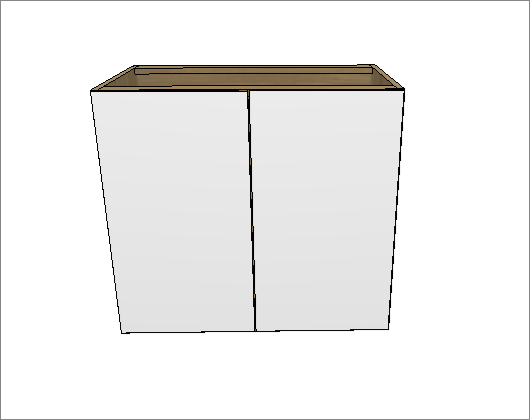

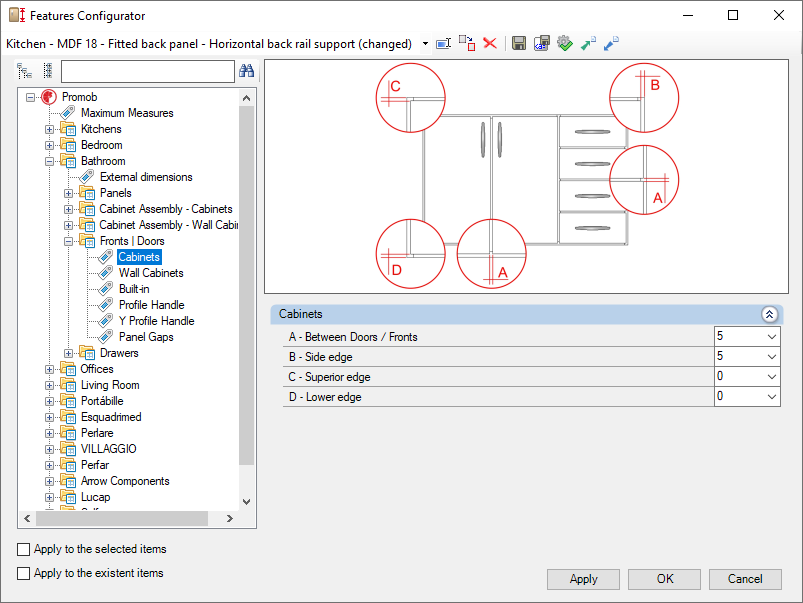

Cabinets
Cabinets
A – Between Doors / Fronts: Set the distance between the module's doors.
B – Side edge: Sets the side distance between the module and the Door for Base Cabinets.
C – Superior edge: Sets the upper distance between the module and door in Base Cabinets.
D – Lower edge: Defines the bottom distance between the module and door in Base Cabinets.

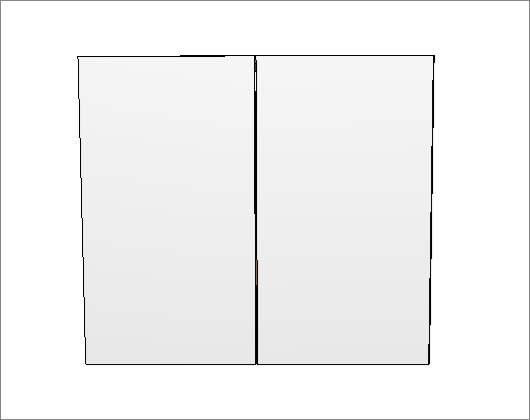

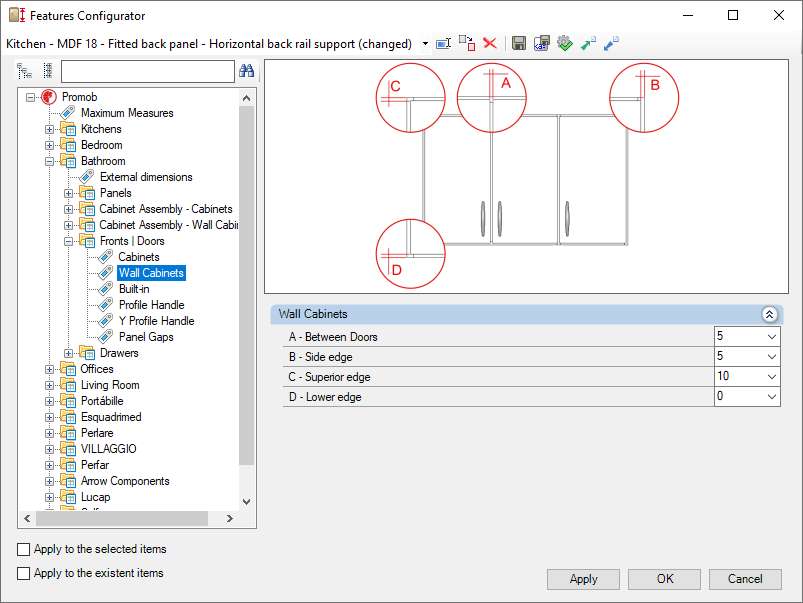

Wall Cabinets
Wall Cabinets
A – Between Doors: Set the distance between the module's doors.
B – Side edge: Sets the lateral distance between the module and the door on wall cabinets.
C – Superior edge: Sets the upper distance between the module and door in Base Cabinets.
D – Lower edge: Defines the bottom distance between the module and door in Base Cabinets.

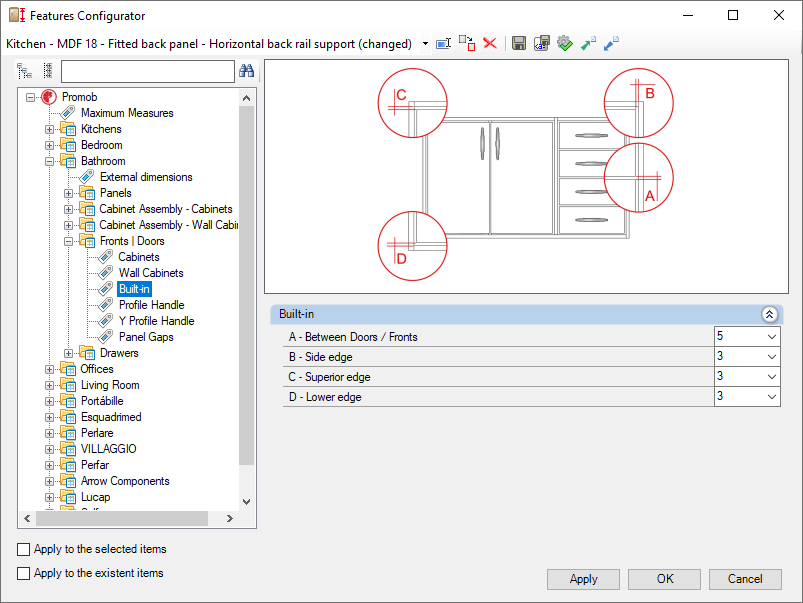

Built-in
Built-in
A – Between Doors / Fronts: Sets the distance between built-in doors on modules.
B – Side edge: Sets the lateral distance between the module and the built-in door.
C – Superior edge: Sets the upper distance between the door and the built-in door.
D – Lower edge: Sets the bottom distance between the door and the built-in door.

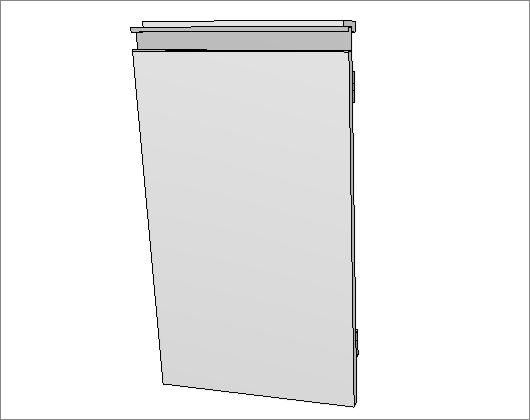

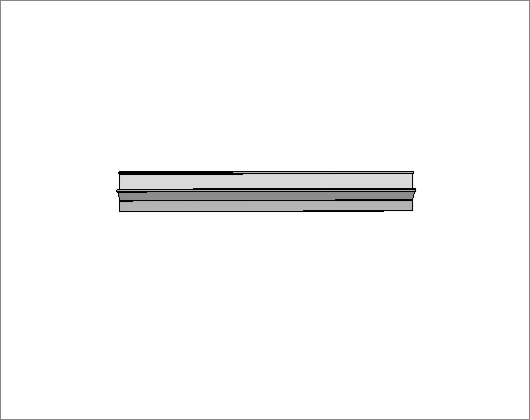

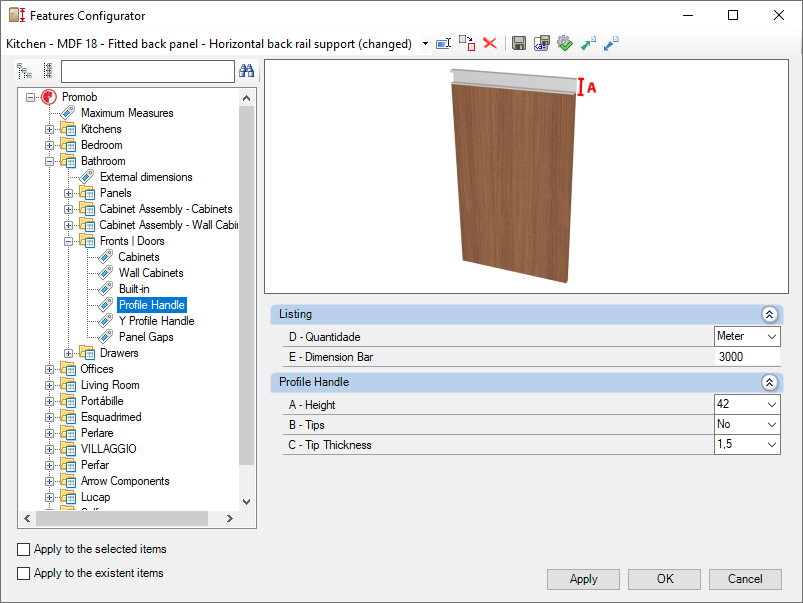

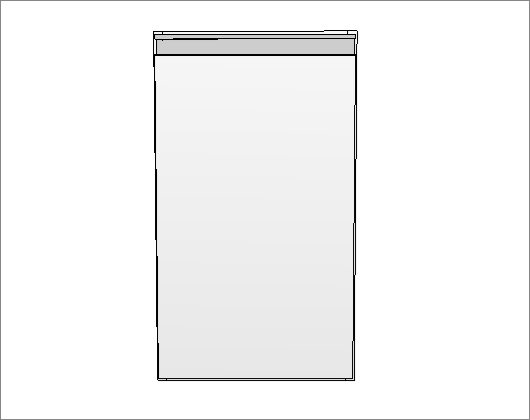

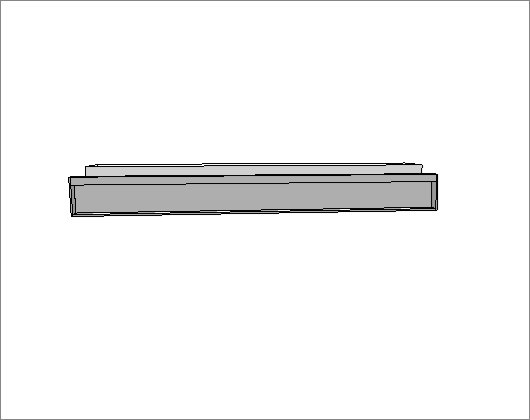

Profile Handle
Listing
D – Quantity: Sets profile handle calculation.
E – Dimension Bar: Sets the length of the aluminum handle bar.

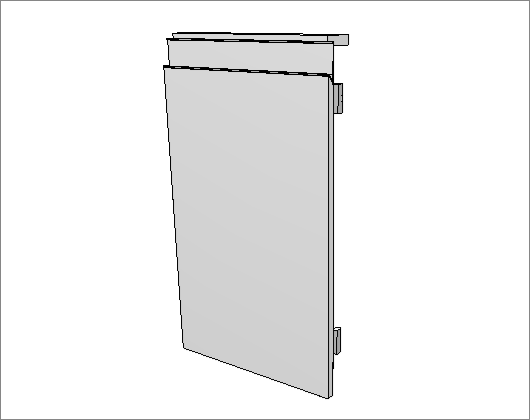

Profile Handle
A – Height: Sets the height on profile handles. Changes the height of the door.
B – Tips: Sets if the module uses back Cleats or not. If used, determines the direction of it.
C – Tip Thickness: Sets the thickness of the tip of the profile handles. Changes the width of the handle.

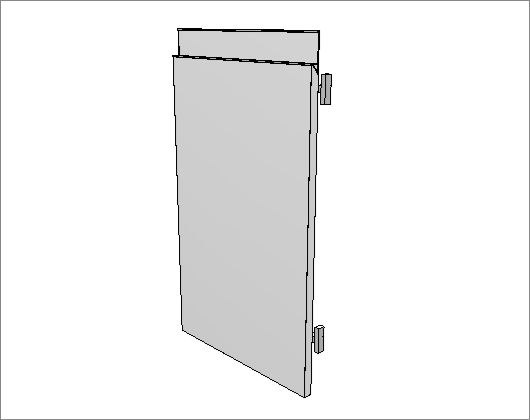

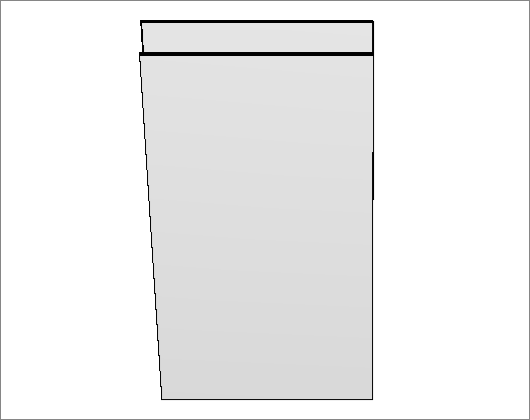

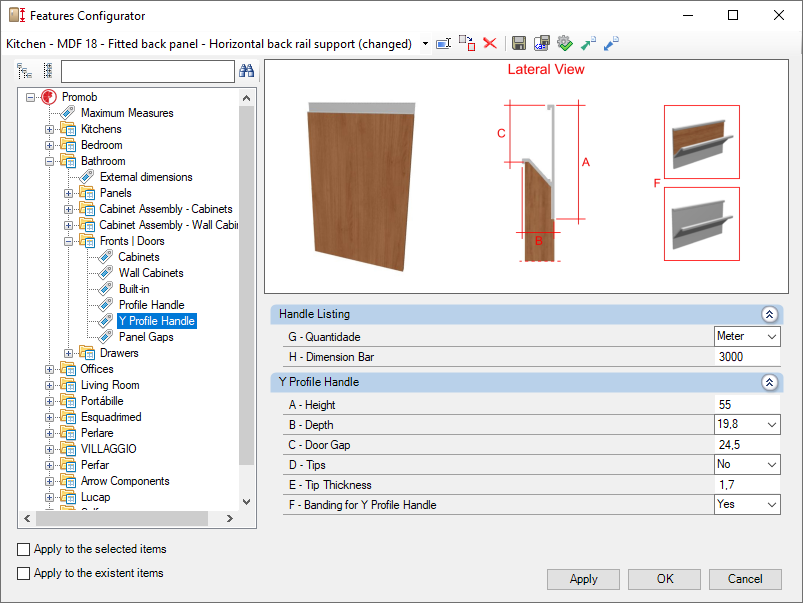

Y Profile Handle
Handle Listing
G – Quantity: Sets profile handle calculation
H – Dimension Bar: Sets the length of the profile handle bar.

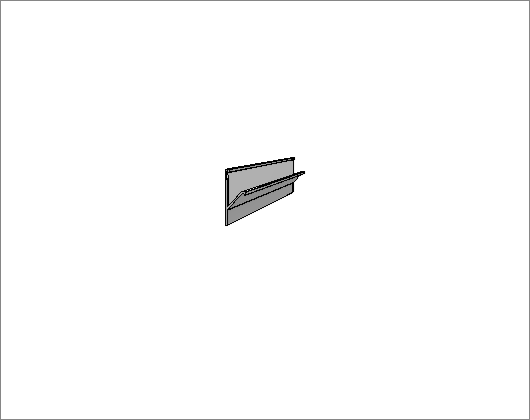

Y Profile Handle
A – Height: Set the distance between the module and the beginning of the shelf. Changes the depth of the shelf.
B – Depth: Sets the depth of the handle. It is related to the thickness of the door panel.
C – Door Gap: Set the clearance of the door panel in relation to the total height of the door.
D – Tips: Sets if the module uses back Cleats or not. If used, determines the direction of it.
E – Tip Thickness: Sets the thickness of the tip of the profile handles. Changes the width of the handle
F – Banding for Y Profile Handle: Defines whether or not to use banding in the profile. Does not generate budget.

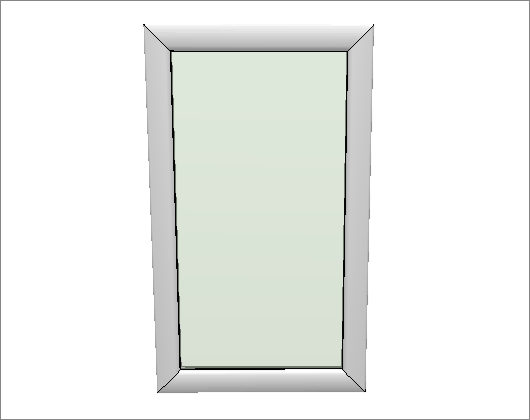

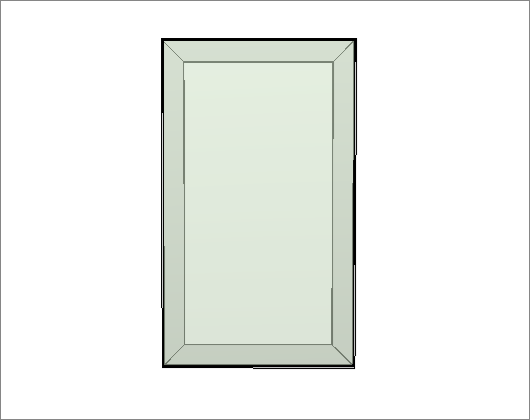

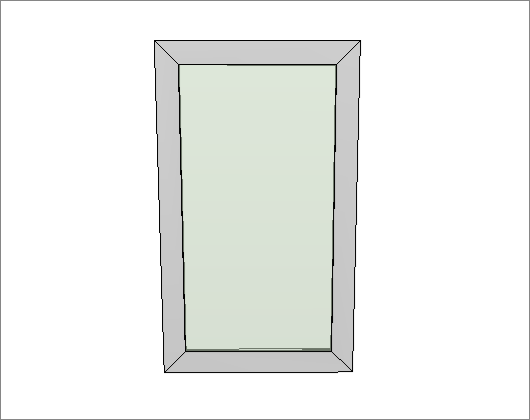

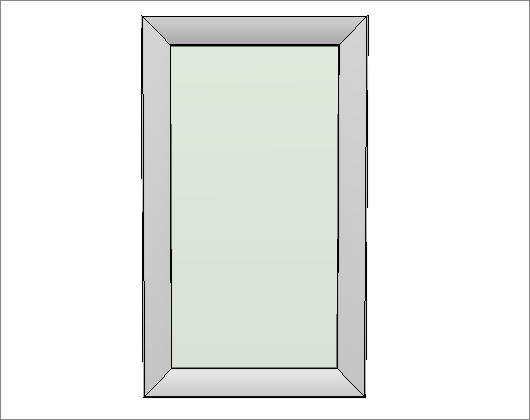

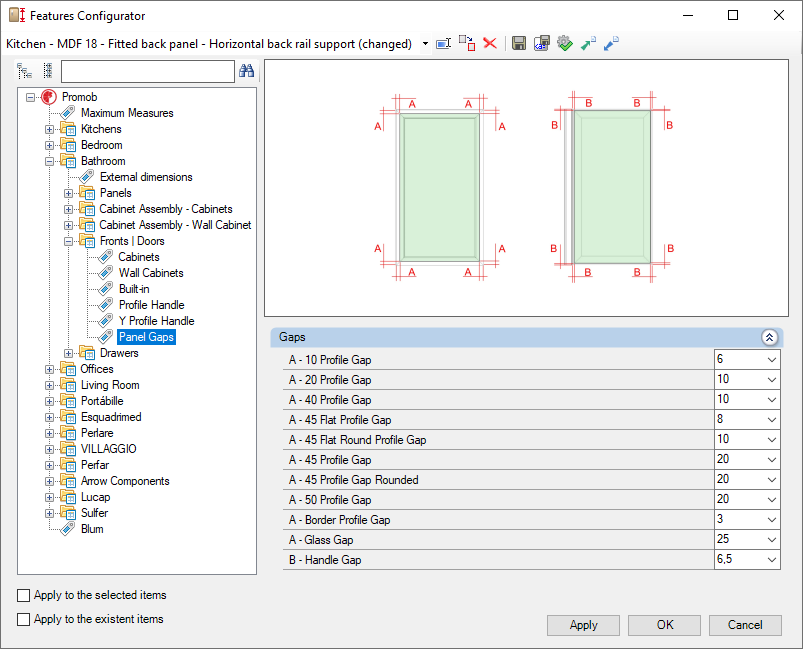

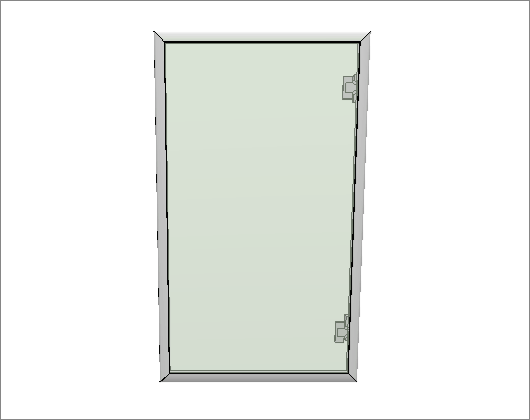

Panel Gaps
Gaps

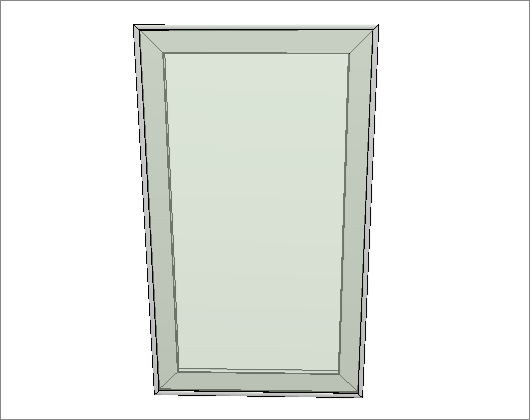

A – 10 Profile Gap: defines the 10 aluminum profile gap.
A – 20 Profile Gap: defines the 20 aluminum profile gap.
A – 40 Profile Gap: defines the 40 aluminum profile gap.

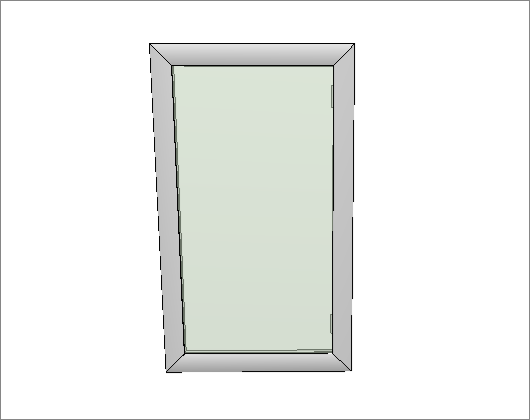

A – 45 Profile Gap: defines the 45 aluminum profile gap.
A – 45 Profile Gap Rounded: defines the 45 aluminum profile gap rounded.

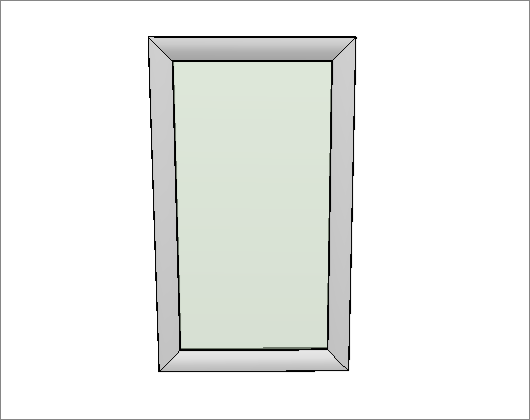

A – 45 Flat Profile Gap: defines the 45 aluminum flat profile gap.
A – 45 Flat Round Profile Gap: defines the 45 aluminum flat round profile gap.
A – 50 Profile Gap: defines the 50 aluminum profile gap.

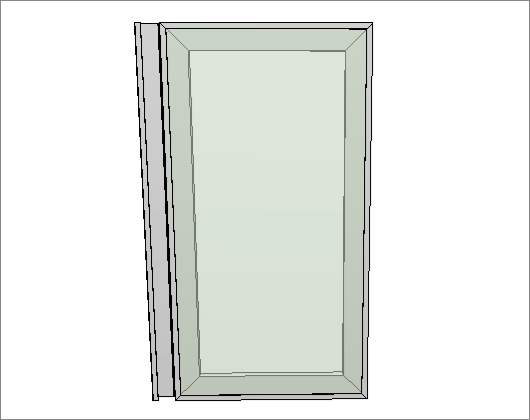

A – Border Profile Gap: defines the border aluminum profile gap.

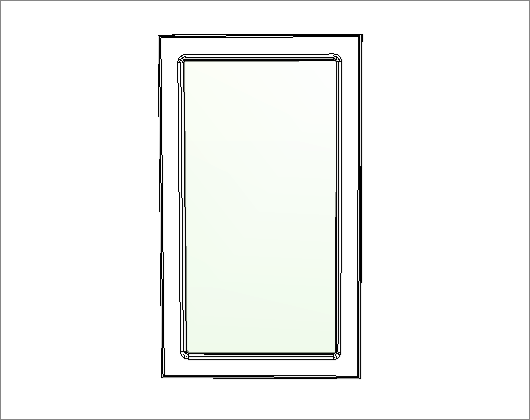

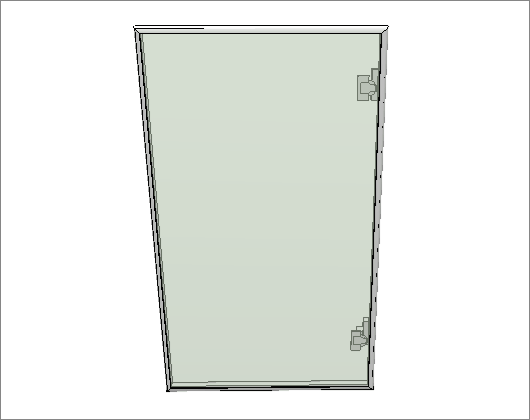

A – Glass Gap: defines the gap of the glass profile.
B – Handle Gap: defines the handle aluminum profile gap.
