Check below, the definitions of each configuration available in Features Configurator - Bathrooms - Cabinet Assembly - Wall Cabinet. If necessary, see here how to apply dimension settings.
The available configurations for the Bathrooms library top box mounting are:

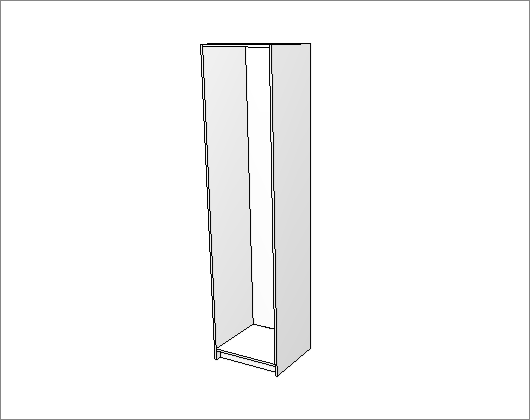

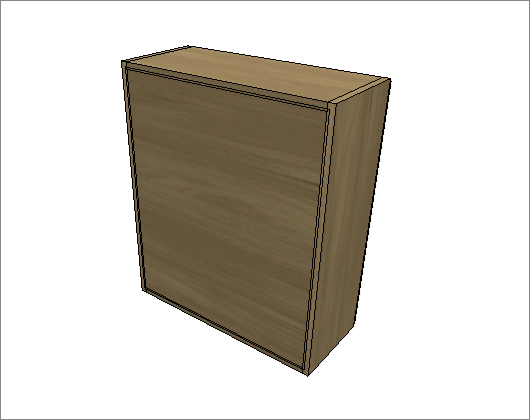

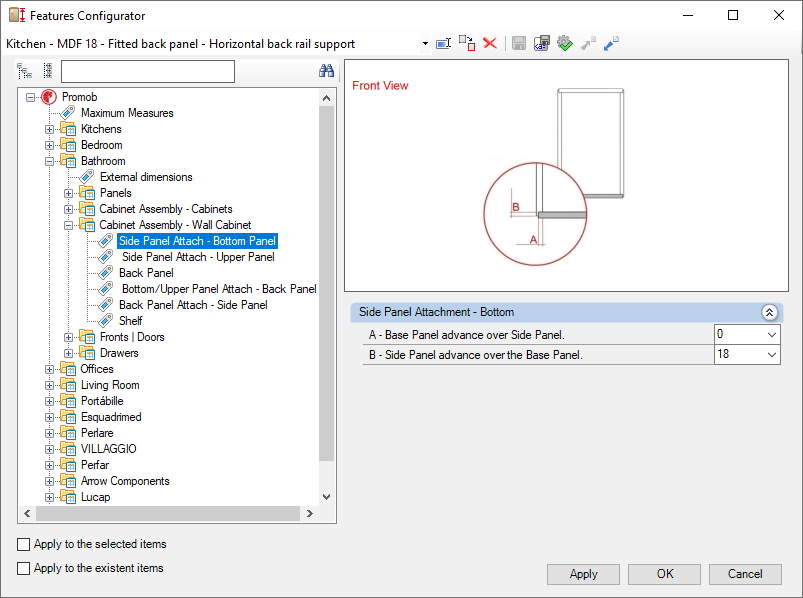

Side Panel Attach - Bottom Panel
Side Panel Attach - Upper Panel
Bottom/Upper Panel Attach - Back Panel
Back Panel Attach - Side Panel

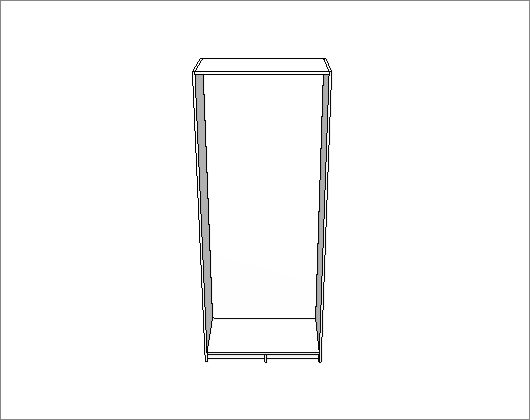

Side Panel Attach - Bottom Panel
Side Panel Attach - Bottom Panel
A – Base Panel advance over Side Panel: Sets how much the base panel advances over each of the module's side panels.
B – Side Panel advance over the Base Panel: Sets how much each Side Panel advances over the module's Base Panel.

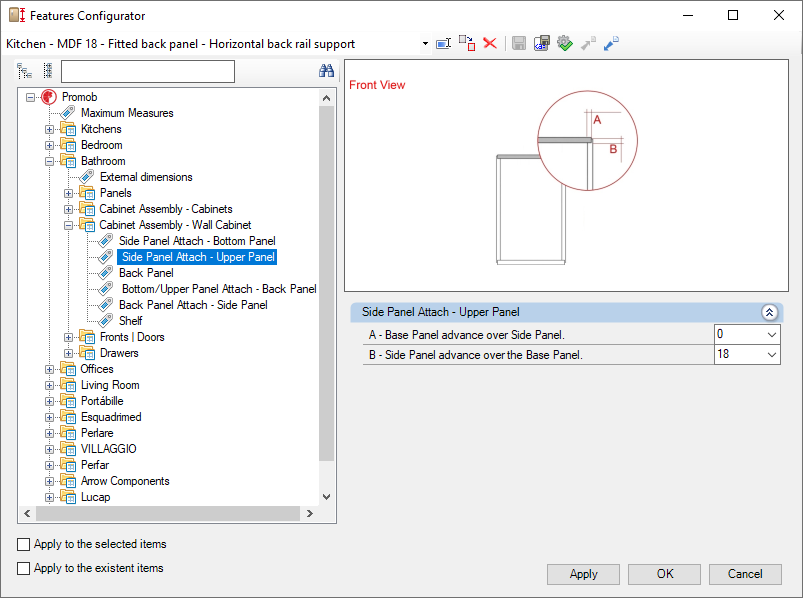

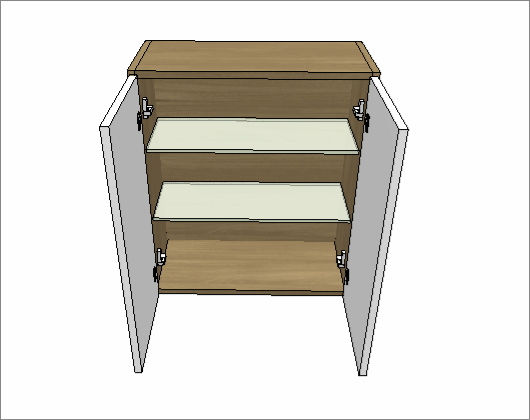

Side Panel Attach - Upper Panel
Side Panel Attach - Upper Panel
A – Base Panel advance over Side Panel: Sets how much the top panel advances over each of the module's side panels.
B – Side Panel advance over the Base Panel: Sets how much each Side Panel advances over the module's Base Panel.

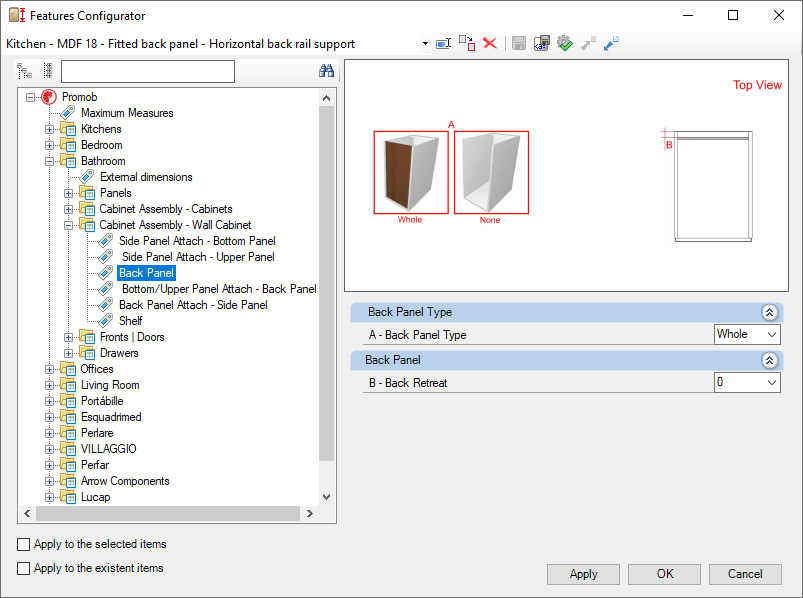

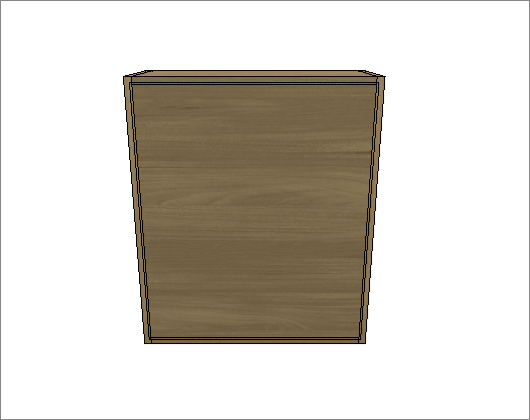

Back Panel
Back Panel Type
A – Back Panel Type: Defines the Back Panel Type to be used in the module.

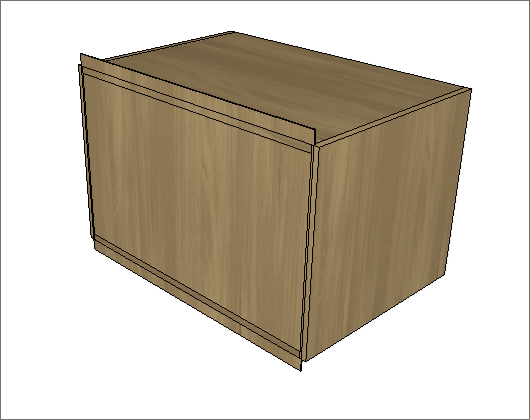

Back Panel
B – Back Retreat: Sets the displacement of the back panel on the module's depth. It applies to all types of back panel.

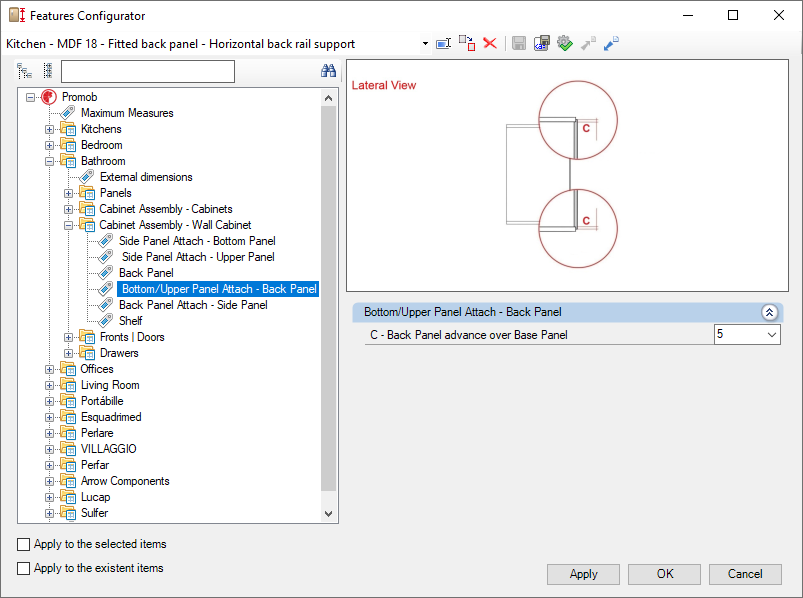

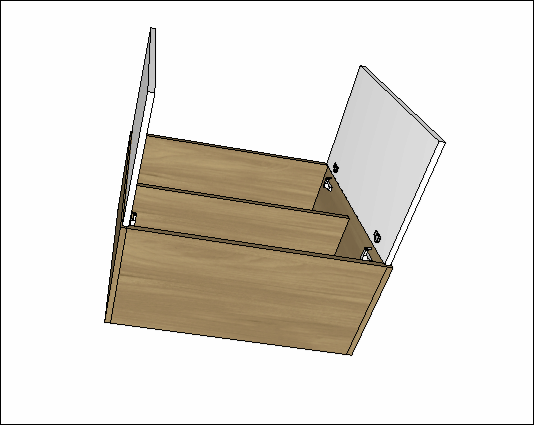

Bottom/Upper Panel Attach - Back Panel
Bottom/Upper Panel Attach - Back Panel
C – Back Panel advance over Base Panel: defines how much the back panel advances over the base panel.

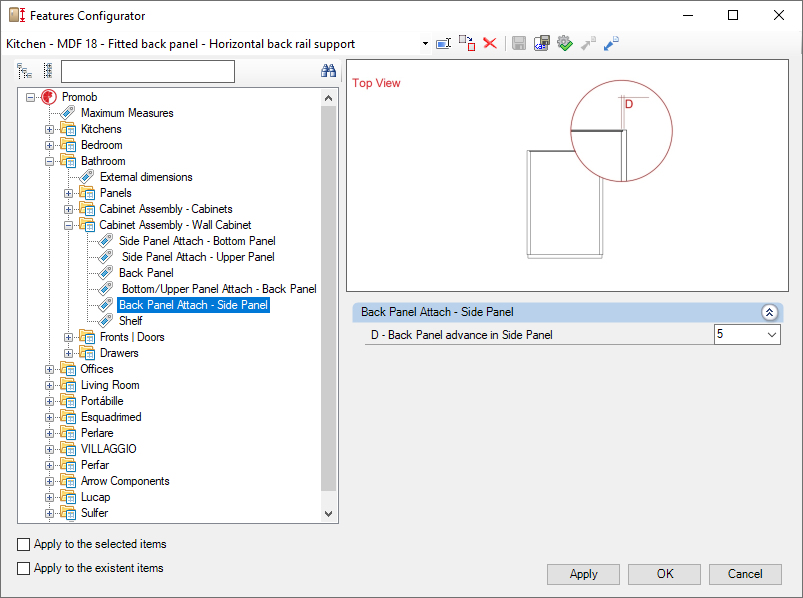

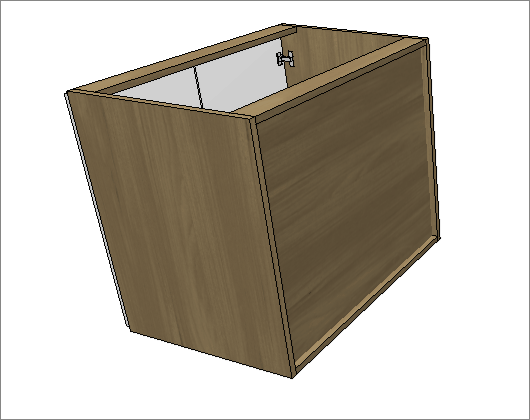

Back Panel Attach - Side Panel
Back Panel Attach - Side Panel
D – Back Panel advance in Side Panel: Sets how much the back panel advance over each of the module's side panels.

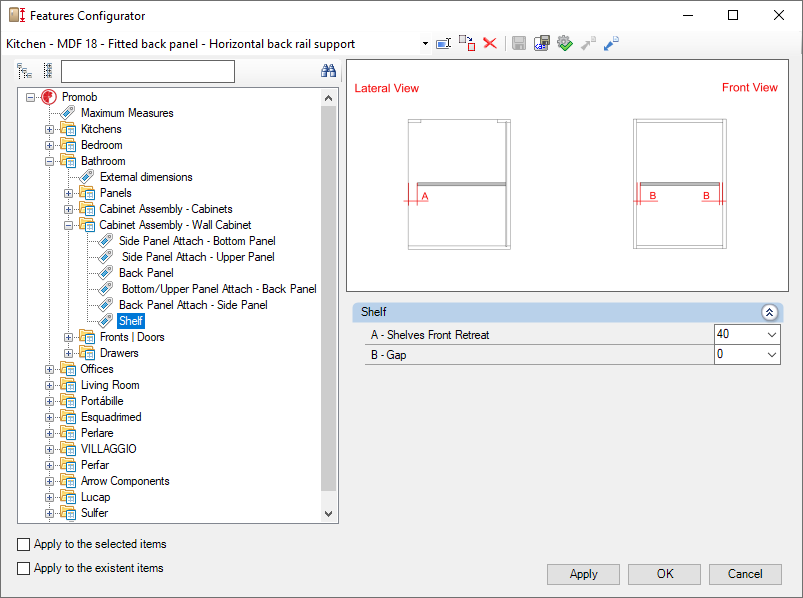

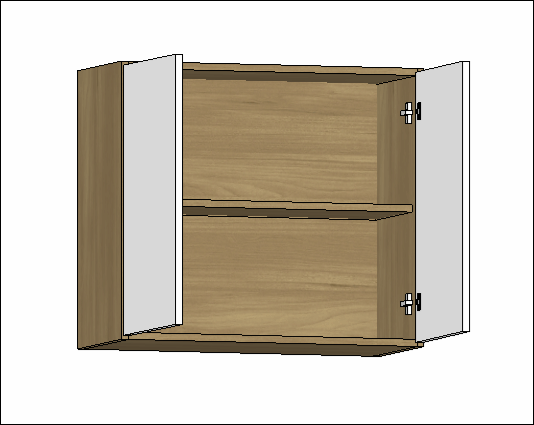

Shelf
Shelf
A – Shelves Front Retreat: Set the distance between the module and the beginning of the shelf Changes the depth of the shelf.
B – Gap: Sets the lateral spacing between the module and the shelf. Changes the width of the shelf.
