The External Dimensions - Modules settings are the measurements settings, which will be automatically displayed in the modules of the Offices group in the 3D Space. Even after the measurement configuration is established, it is possible to change the dimension in the 3D Space.

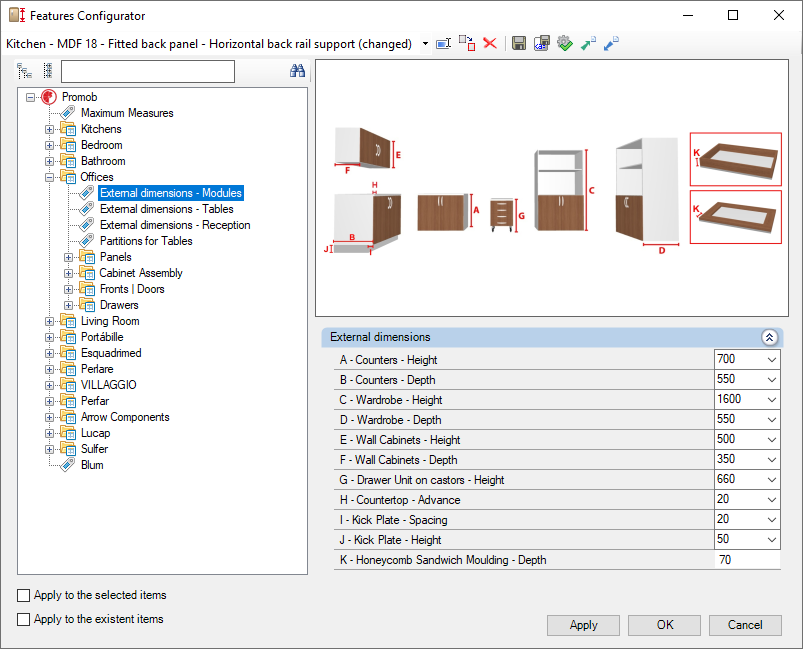

Check below the definitions of each configuration available in Features Configurator - Offices - External Dimensions - Modules. If necessary, see here how to apply dimension settings.
External dimensions
A – Counters - Height: defines the height of Office counters.
B – Counters - Depth: defines the depth of Office counters.

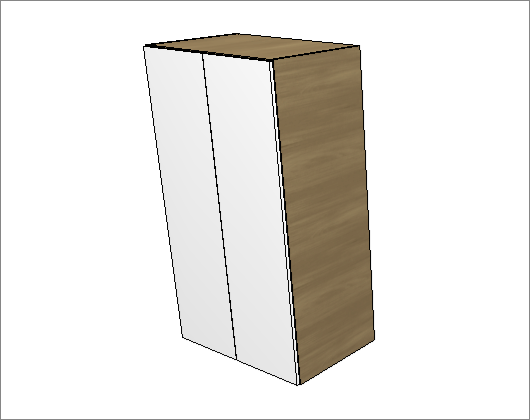

C – Wardrobe - Height: sets the height of Office wardrobes.
D – Wardrobe - Depth: defines the depth of Office wardrobes.

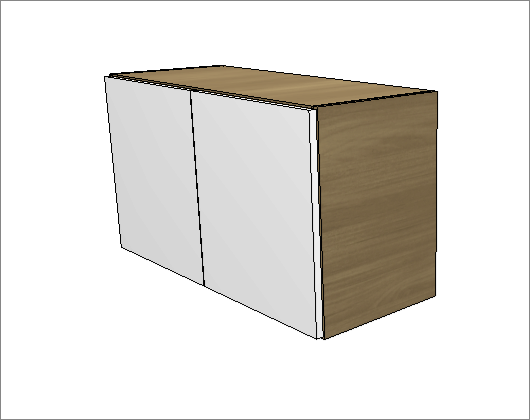

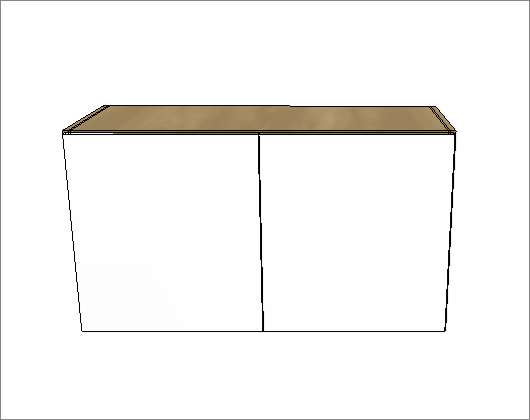

E – Wall Cabinets - Height: defines the height of the Office Wall Cabinets.
F – Wall Cabinets - Depth: defines the depth of the Office Wall Cabinets.

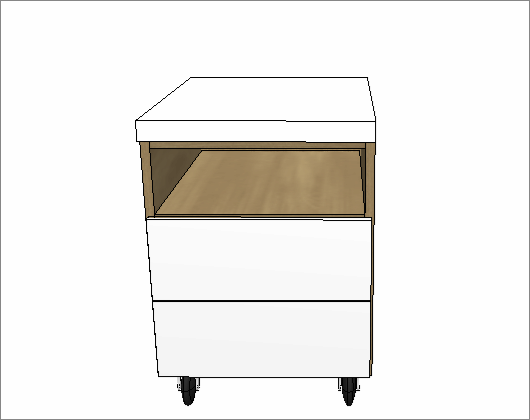

G – Drawer Unit on castors - Height: defines the height of the Drawer Unit on castors.

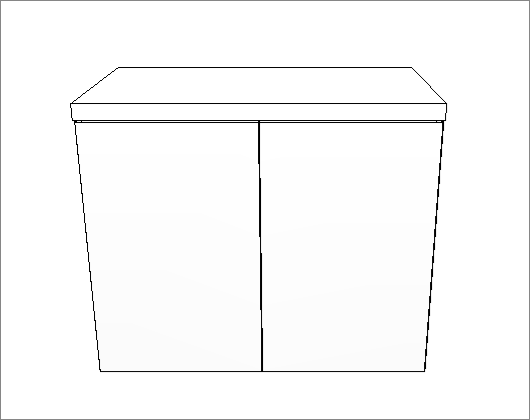

H – Countertop - Advance: defines the advance value of the countertop over the Office modules box. The depth of the countertop is changed according to the configured value.

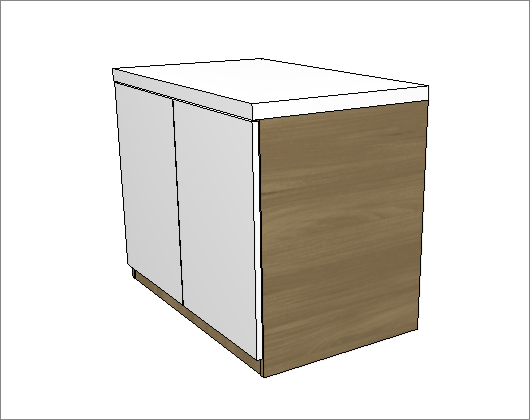

I – Kick Plate - Spacing: sets the spacing of the kick plate.
J – Kick Plate - Height: sets the height of the kick plate.

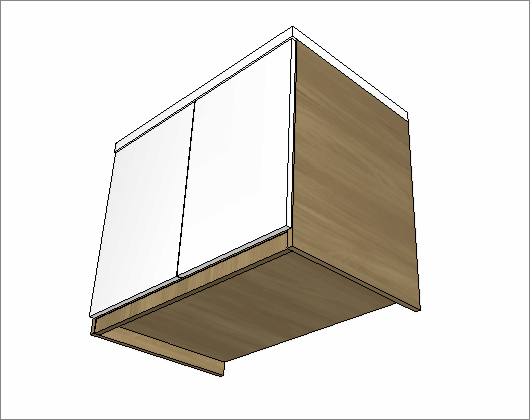

K – Honeycomb Sandwich Moulding - Depth: sets the depth of the Honeycomb Sandwich Moulding.

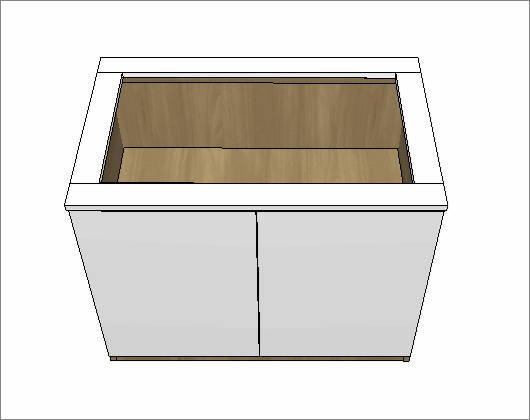

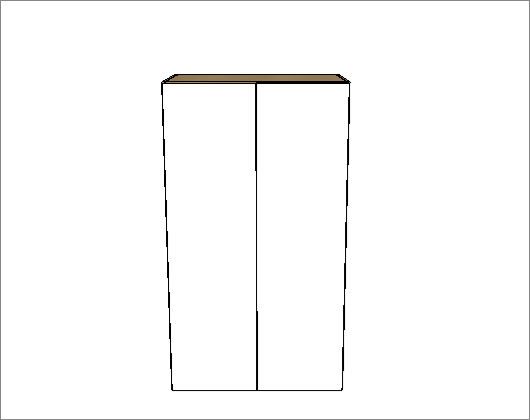

Horizontal

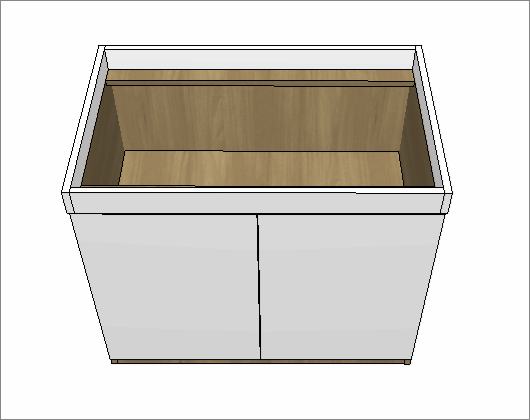

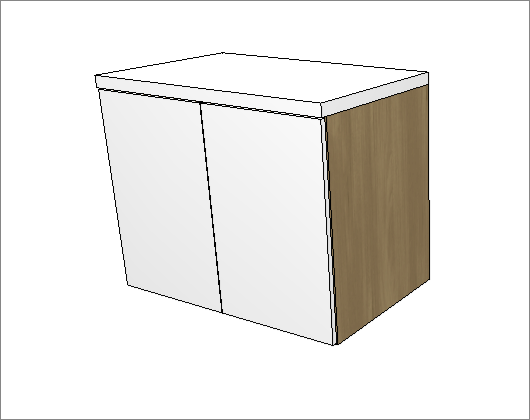

Vertical
