The External Dimensions - Tables settings are the measurements settings, which will be automatically displayed in the modules of the Offices group in the 3D Space. Even after the measurement configuration is established, it is possible to change the dimension in the 3D Space.
Check below the definitions of each configuration available in Features Configurator - Offices - External Dimensions - Tables. If necessary, see here how to apply dimension settings.

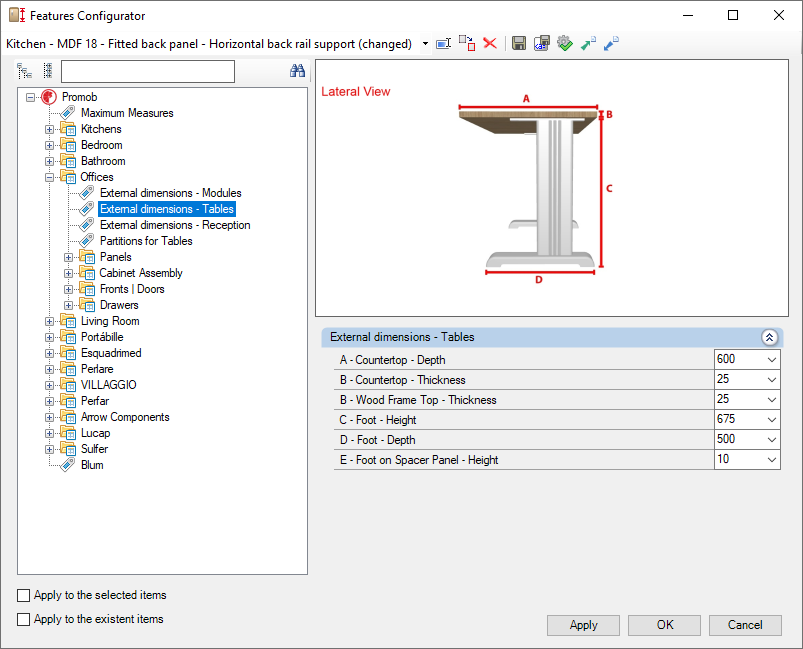

External dimensions - Tables
A – Countertop - Depth: defines the depth of the countertop of Office tables.

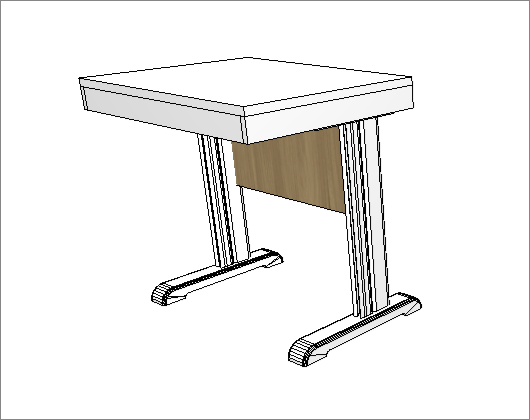

B – Countertop - Thickness: defines the thickness of the countertop of Office tables.

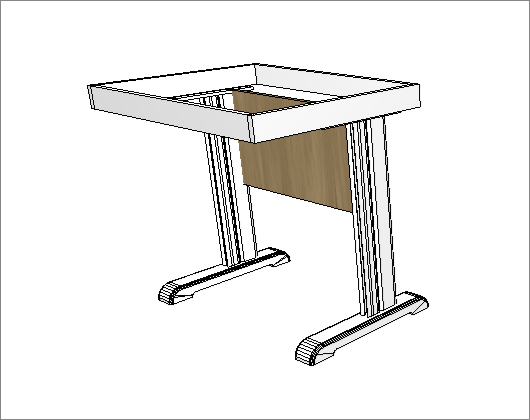

B – Wood Frame Top – Thickness: defines the thickness of the wood frame top of Office tables.

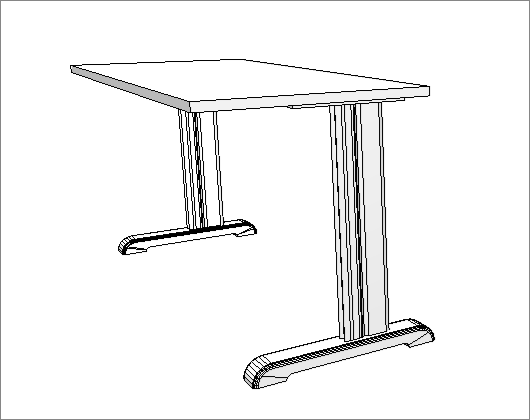

C – Foot - Height: defines the height of the feet of the Office tables.
D – Foot - Depth: defines the depth of the feet of the Office tables.

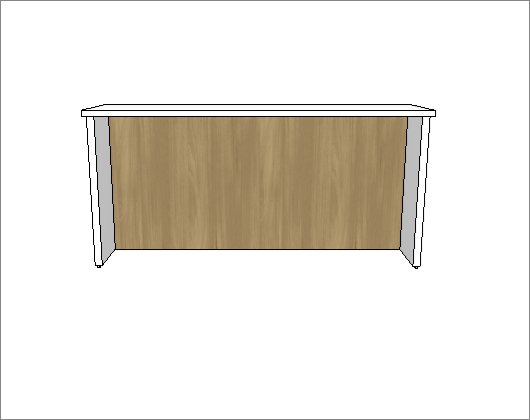

E – Foot on Spacer Panel - Height: defines the height of the foot on spacer panel.
