The External Dimensions settings are the measurements settings, which will be automatically displayed in the modules of the Living Room group in the 3D Space. Even after the measurement configuration is established, it is possible to change the dimension in the 3D Space.

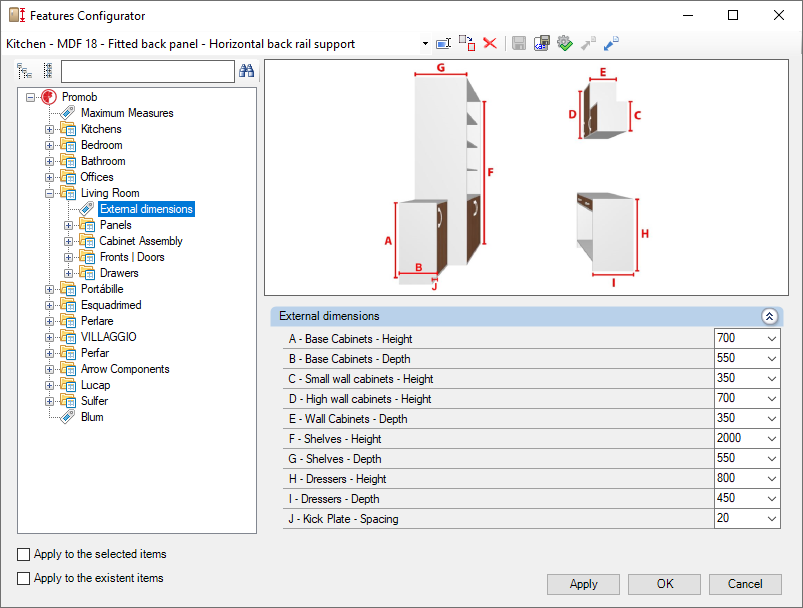

Check below the definitions of each configuration available in Features Configurator - Living Room - External Dimensions. If necessary, see how to apply dimension settings here.
External dimensions
A – Base Cabinets - Height: defines the height of the base cabinets of Living Room.
B – Base Cabinets - Depth: defines the depth of the base cabinets of Living Room.
C – Small wall cabinets - Height: defines the height of the small wall cabinets of Living Room.
D – High wall cabinets - Height: defines the height of the high wall cabinets of Living Room.
E – Wall Cabinets - Depth: defines the depth of the wall cabinets of Living Room.
F – Shelves - Height: defines the height of the shelves of Living Room.
G – Shelves - Depth: defines the depth of the shelves of Living Room.
H – Dressers - Height: defines the height of the dressers of Living Room.
I – Dressers - Depth: defines the depth of the dressers of Living Room.
J – Kick Plate - Spacing: defines the spacing of the kick plate.
