Check below, the definitions of each configuration available in Features Configurator - Rooms - Fronts | doors. If necessary, see here how to apply dimension settings.

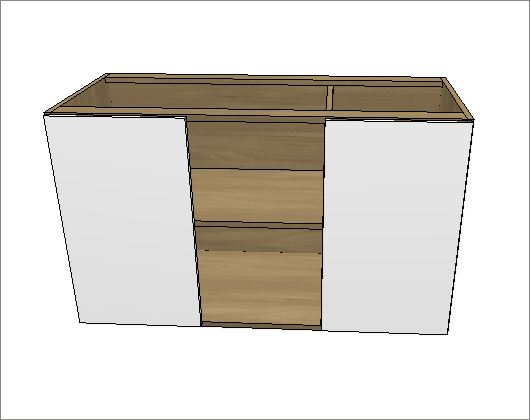

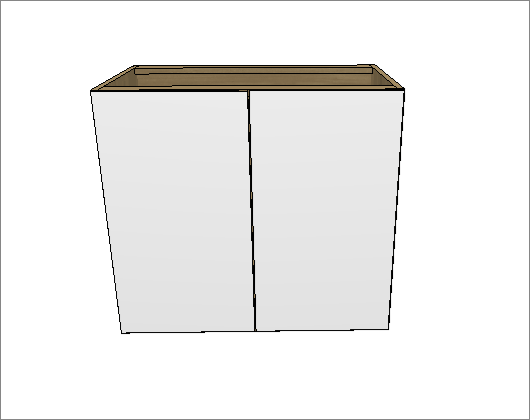

Cabinets
Cabinets

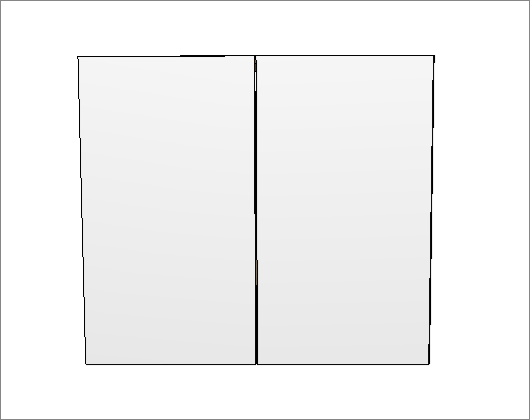

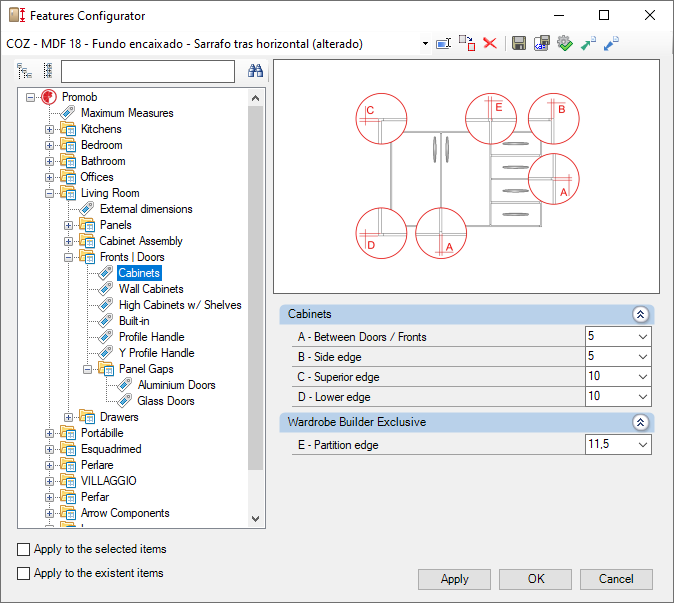

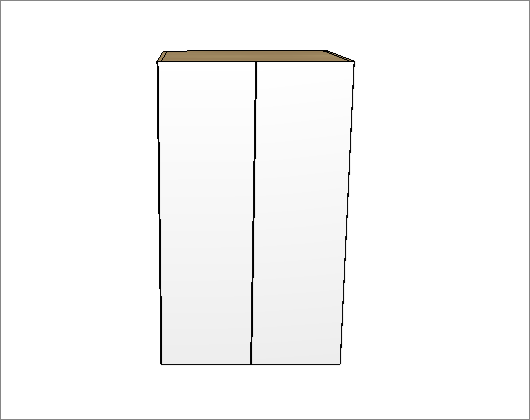

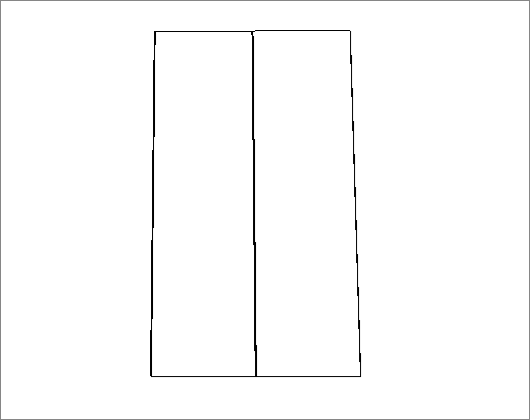

A – Between Doors / Fronts: Set the distance between the module's doors.
B – Side edge: Sets the side distance between the module and the Door for Base Cabinets.
C – Superior edge: Sets the upper distance between the module and door in Base Cabinets.
D – Lower edge: Defines the bottom distance between the module and door in Base Cabinets.
Wardrobe Builder Exclusive
E – Partition edge: Sets the distance between the door and the opposite edge of the partition.

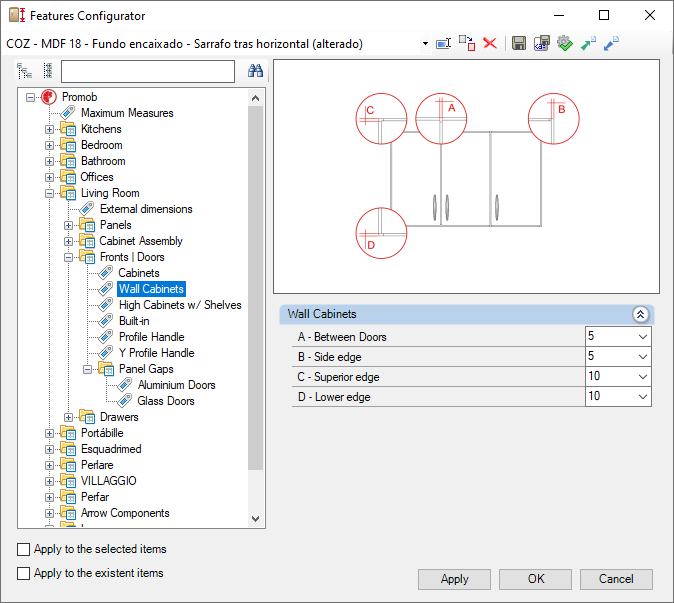

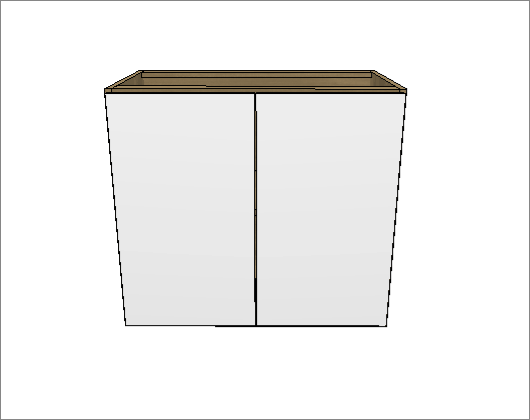

Wall Cabinets
Wall Cabinets
A – Between Doors: Set the distance between the module' doors.
B – Side edge: Sets the lateral distance between the module and the door on wall cabinets.
C – Superior edge: Sets the upper distance between the module and door in Base Cabinets.
D – Lower edge: Defines the bottom distance between the module and door in Base Cabinets.

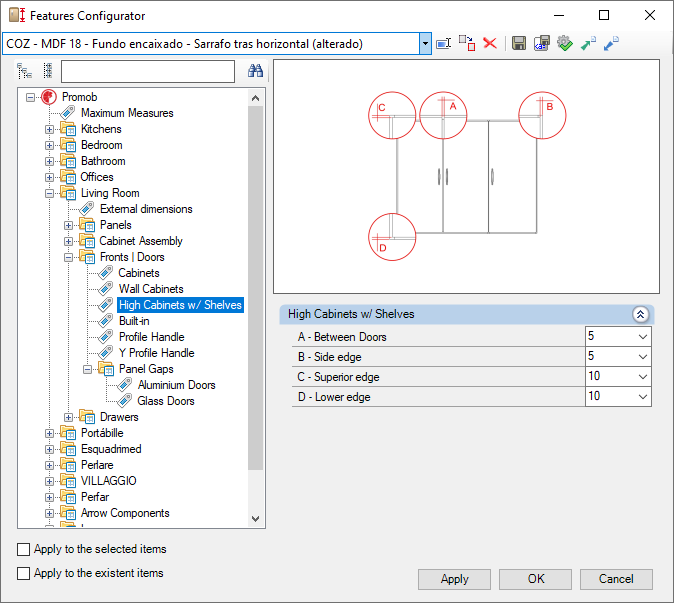

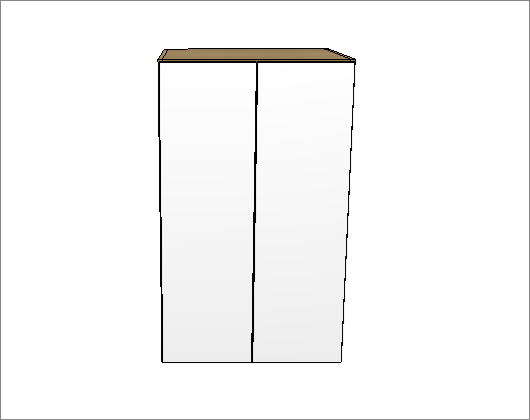

High Cabinets w/ Shelves
High Cabinets w/ Shelves
A – Between Doors: Set the distance between the module's doors.
B – Side edge: Sets the lateral distance between the door and the module on high cabinets w/ shelves.
C – Superior edge: Sets the upper distance between the door and the module on high cabinets w/ shelves.
D – Lower edge: Sets the bottom distance between the door and the module on high cabinets w/ shelves.

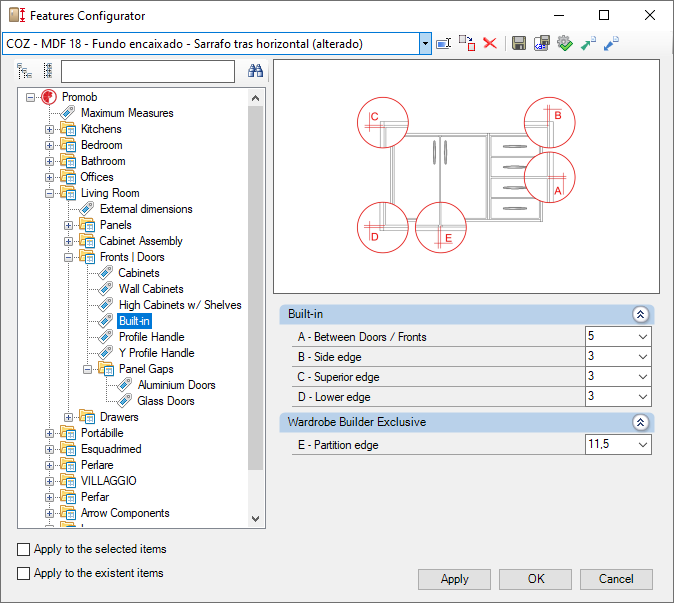

Bulit-in
Built-in
A – Between Doors / Fronts: Sets the distance between built-in doors on modules.
B – Side edge: Sets the lateral distance between the module and the built-in door.
C – Superior edge: Sets the upper distance between the door and the built-in door.
D – Lower edge: Sets the bottom distance between the door and the built-in door.
Wardrobe Builder Exclusive
E – Partition edge: Sets the distance between the built-in door and the opposed limit of thepartition

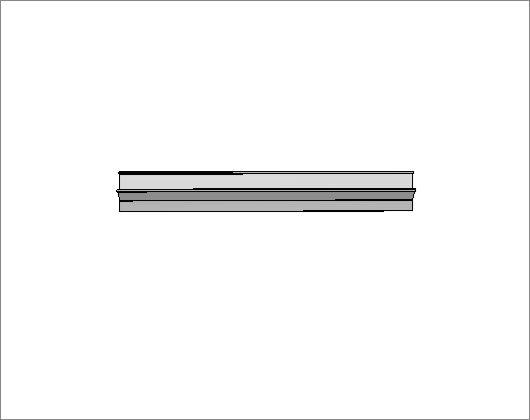

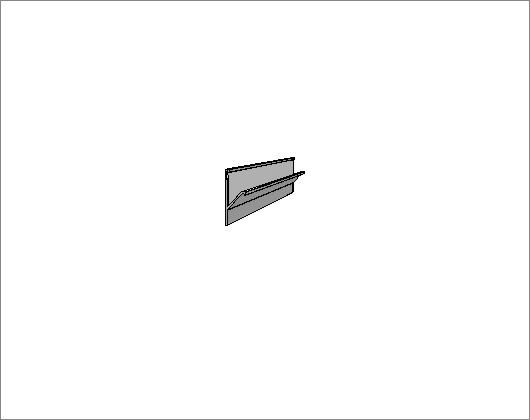

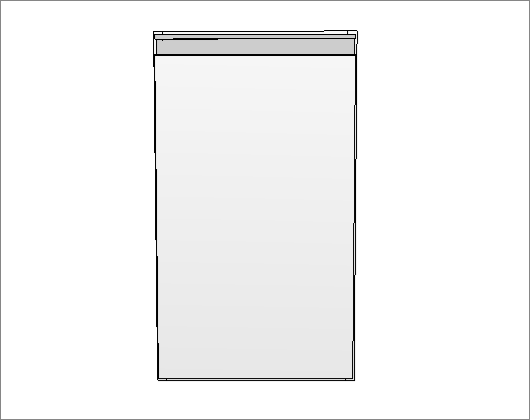

Profile Handle
Profile Handle

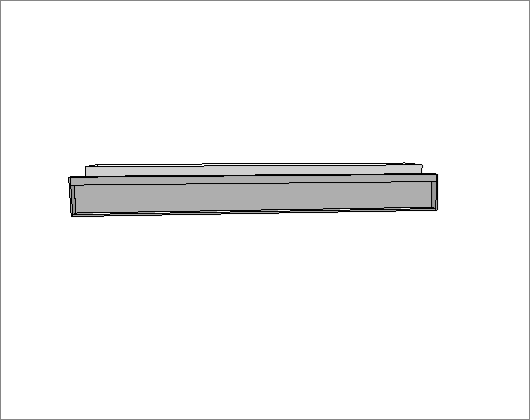

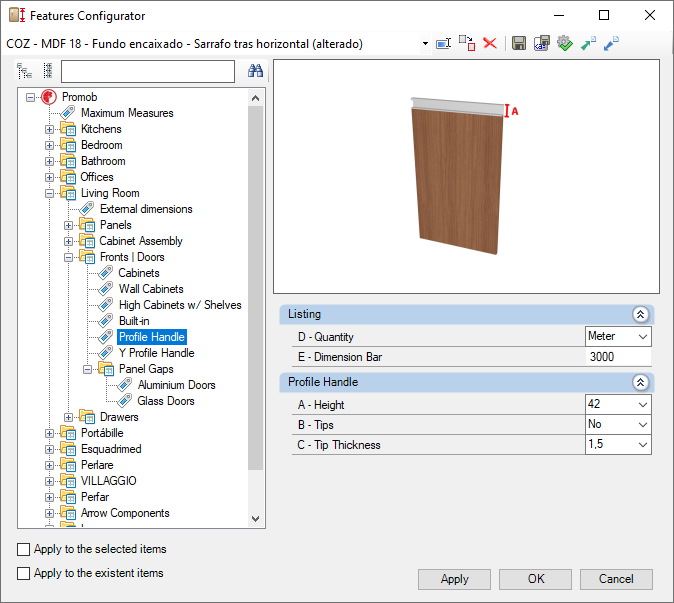

A – Height: Sets the height on profile handles. Changes the height of the door.
B – Tips: Sets if the module uses back Cleats or not. If used, determines the direction of it.
C – Tip Thickness: Sets the thickness of tip of the profile handles. Changes the width of the handle.
Listing
D – Quantity: Sets profile handle calculation.
E – Dimension Bar: Sets the length of the aluminum handle bar.

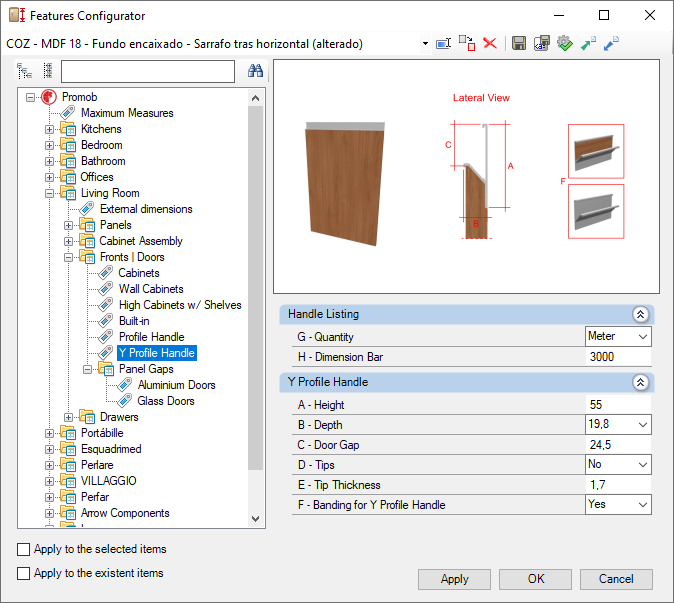

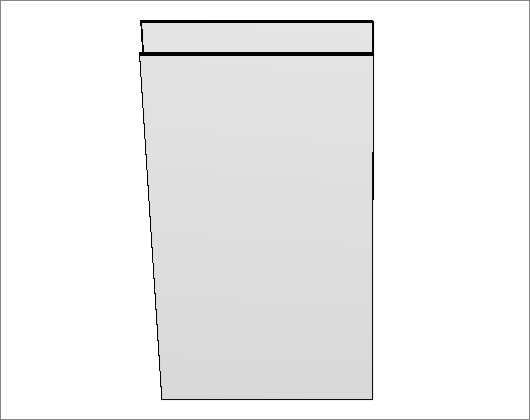

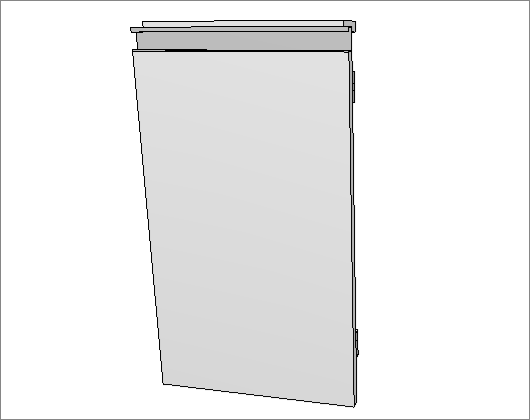

Y Profile Handle
Y Profile Handle

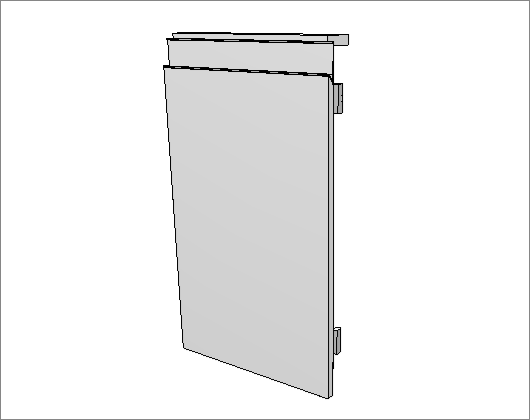

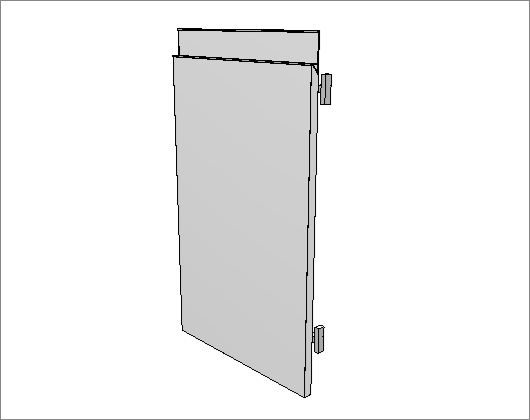

A – Height: Set the distance between the module and the beginning of the shelf. Changes the depth of the shelf.
B – Depth: Sets the depth of the handle. It is related to the thickness of the door panel.
C – Door Gap: Sets the clearance of the door panel in relation to the total height of the door.
D – Tips: Sets if the module uses back Cleats or not. If used, determines the direction of it.
E – Tip Thickness: Sets the thickness of the tip of the profile handles. Changes the width of the handle.
F – Banding for Y Profile Handle: Defines whether or not to use banding in the profile. Does not generate budget.
Handle Listing
G – Quantity: Sets profile handle calculation.
H – Dimension Bar: Sets the length of the profile handle bar.
Panel Gaps
Aluminium Doors
Gaps

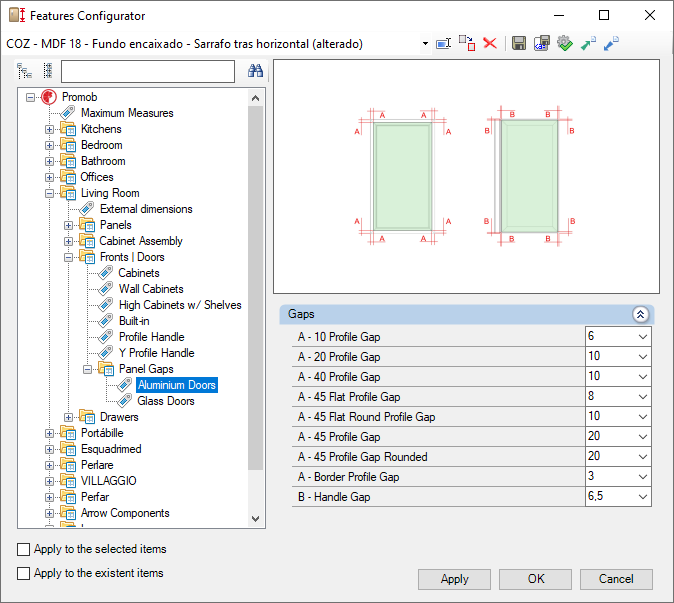

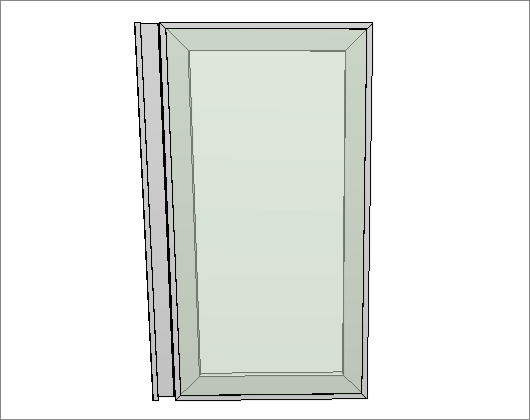

A – 10 Profile Gap: sets the aluminum profile gap to 10.
A – 20 Profile Gap: sets the aluminum profile gap to 20.
A – 40 Profile Gap: sets the aluminum profile gap to 40.
A – 45 Profile Gap: sets the aluminum profile gap to 45.

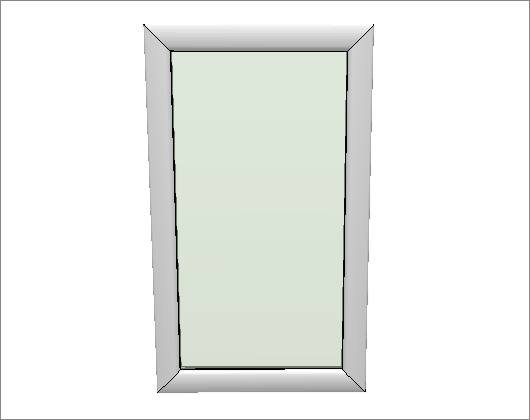

A – 45 Profile Gap Rounded: sets the aluminum profile gap rounded to 45.

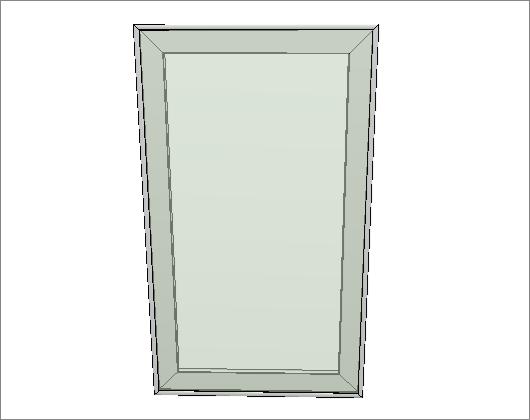

A – 45 Flat Profile Gap: sets the aluminum flat profile gap to 45.
A – 45 Flat Round Profile Gap: sets the aluminum flat round profile gap to 45.
A – Border Profile Gap: sets the aluminum border profile gap.
B – Handle Gap: sets the aluminum handle gap.

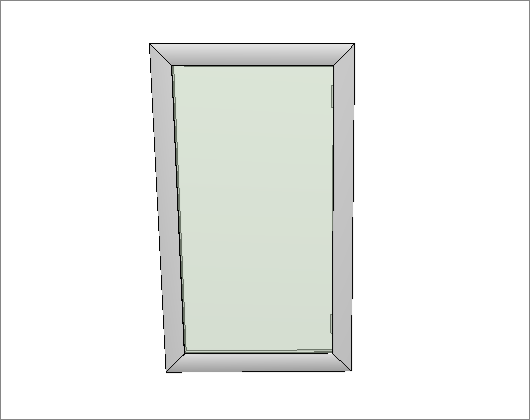

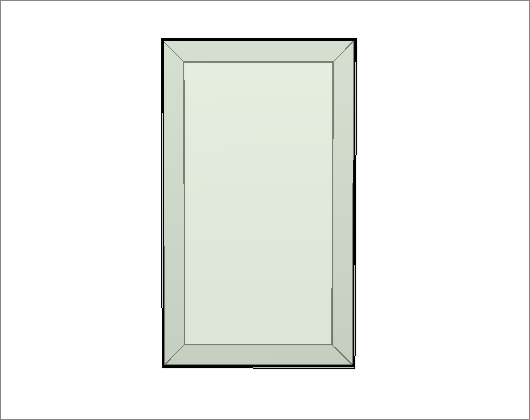

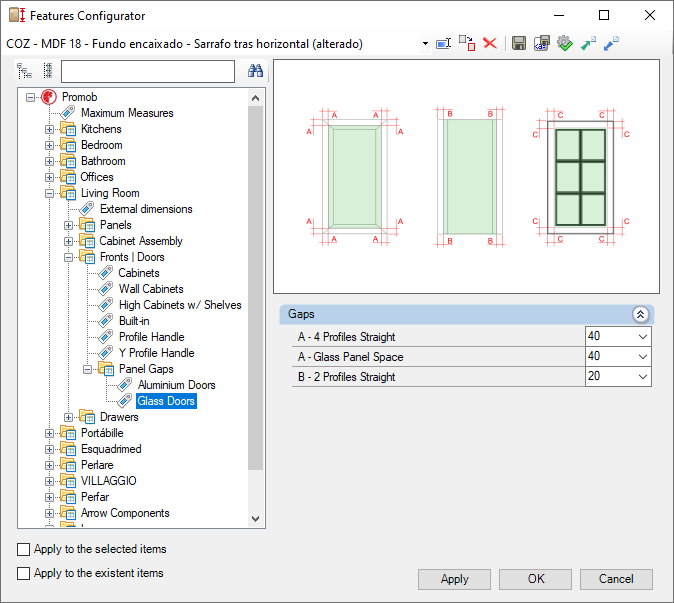

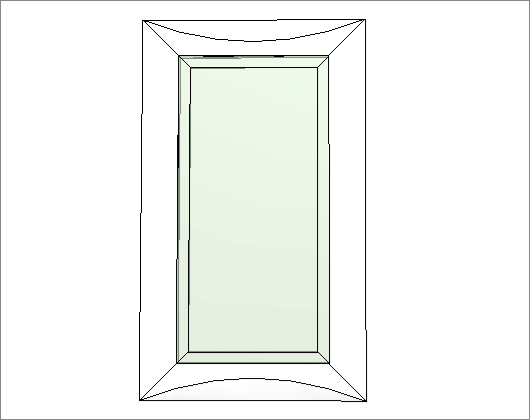

Glass Doors
Gaps

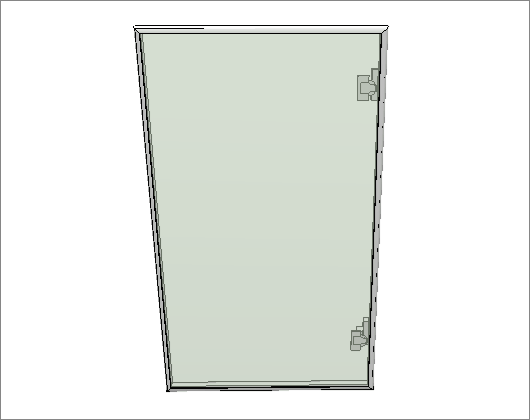

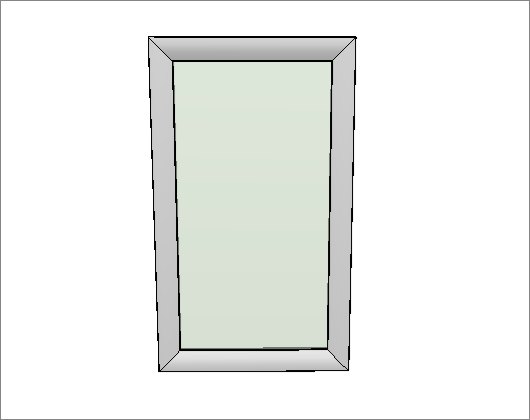

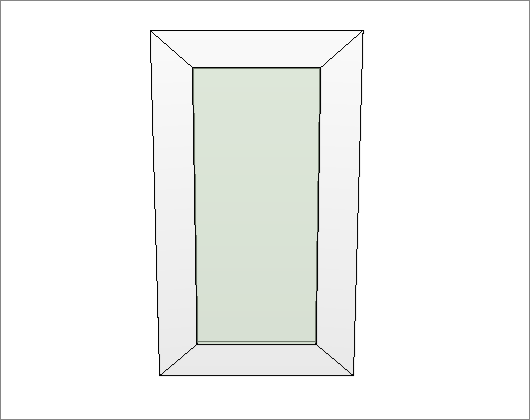

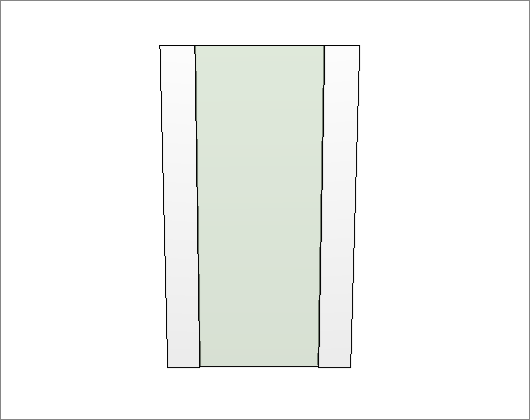

A – Glass Panel Space: sets the glass panel space.

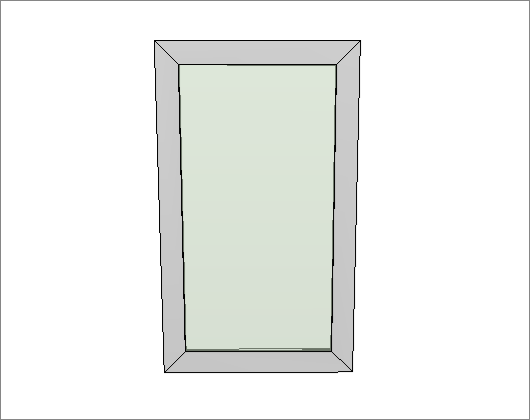

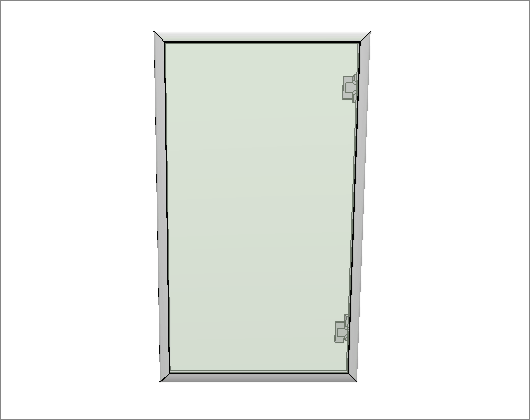

A – 4 Profiles Straight: defines the profile gap on 4 sides.
A – 2 Profiles Straight: defines the profile gap on 2 sides.
