Check below, the settings for each configuration available in the Features Configurator - Living Room - Cabinets Assembly. If necessary, see here how to apply the dimension settings.
|
Side Panel Attach - Bottom Panel Side Panel Attach - Upper Panel Bottom /Upper Panel Attach - Back Panel |

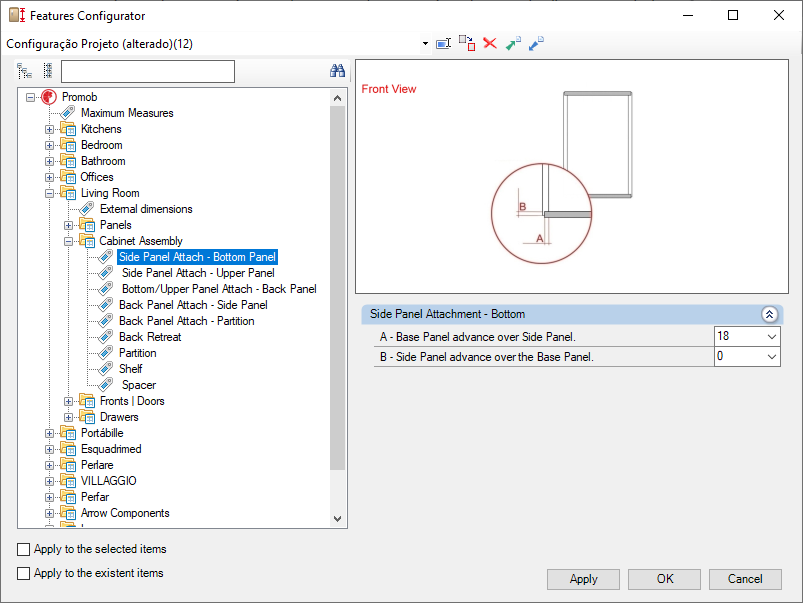

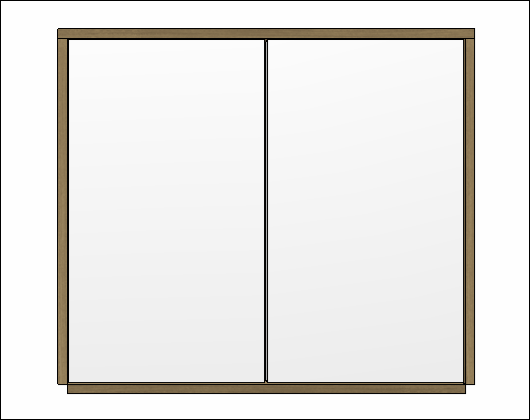

Side Panel Attach - Bottoom Panel

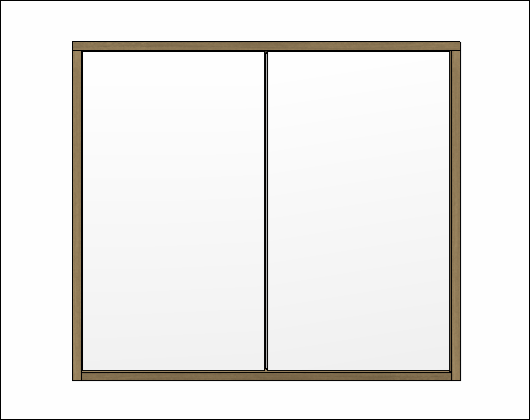

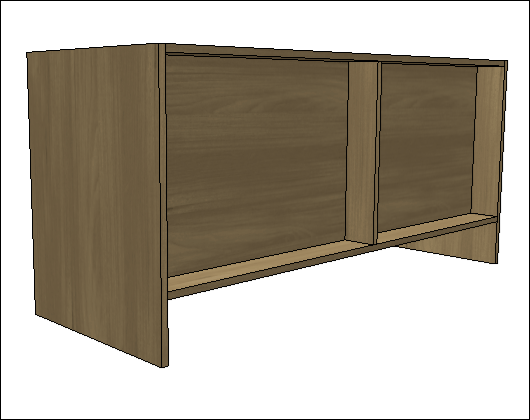

A - Base Panel advance over Side Panel: sets how much the base panel advances over each of the module's side panels.

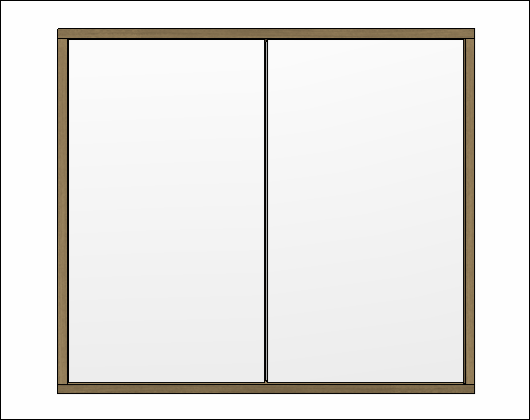

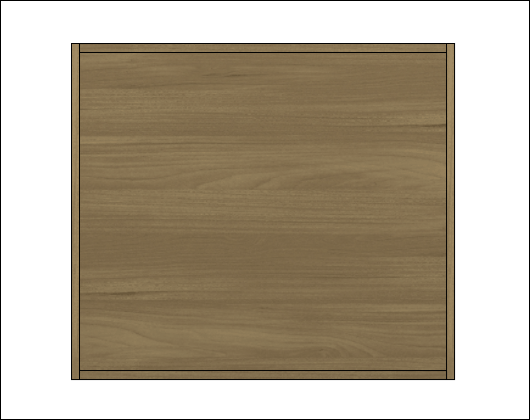

B - Side Panel advance over the Base Panel: sets how much each Side Panel advances over the module's Base Panel.

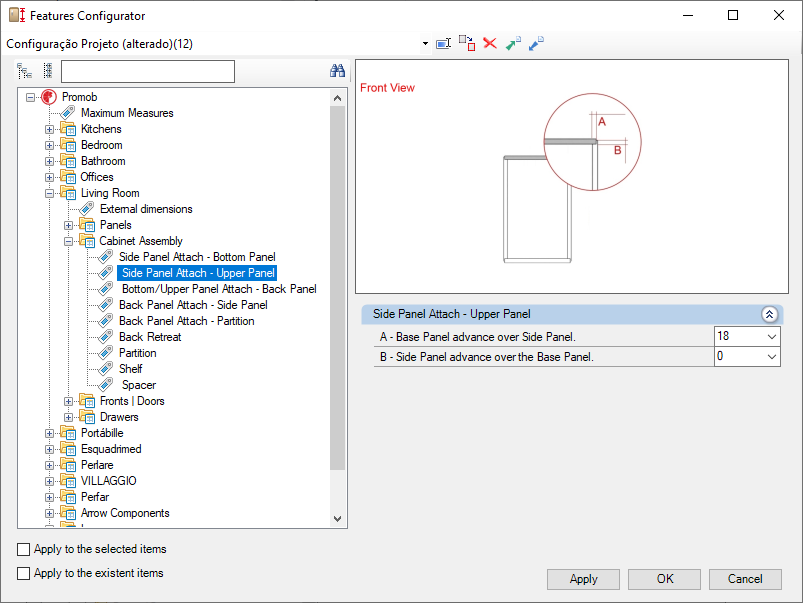

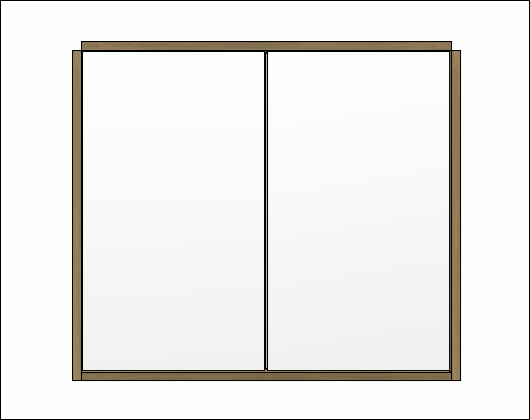

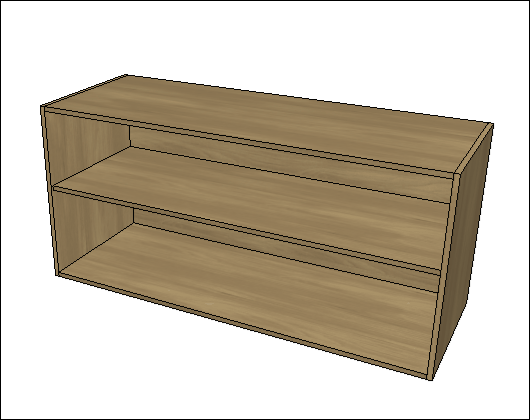

Side Panel Attach - Upper Panel
A - Base Panel advance over Side Panel: sets how much the top panel advances over each of the module's side panels.
B - Side Panel advance over the Base Panel: sets how much each Side Panel advances over the module's Base Panel.

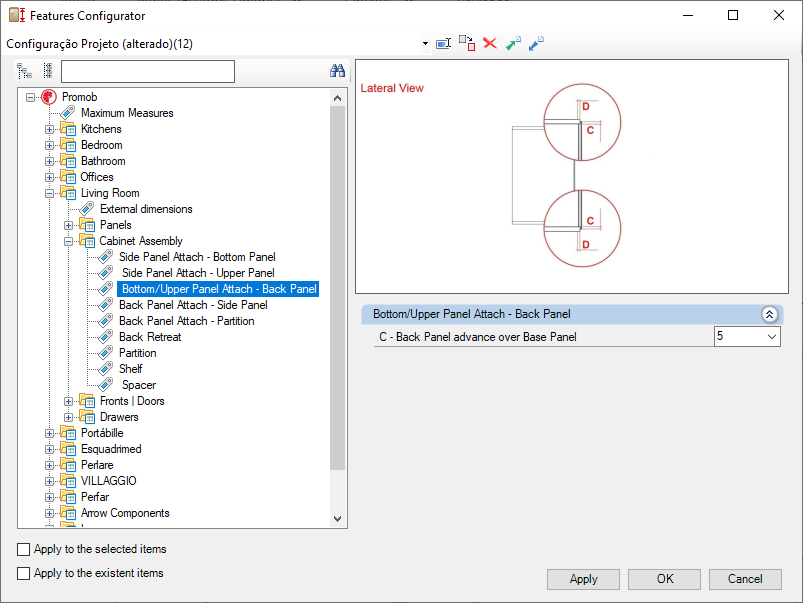

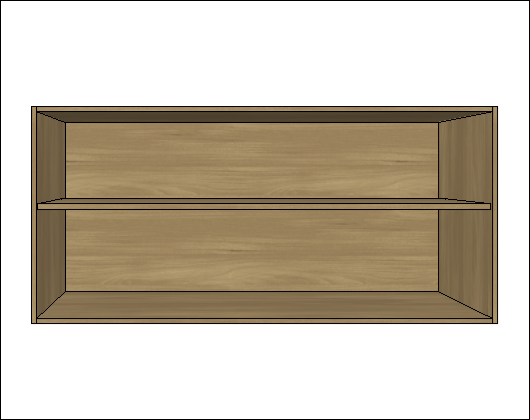

Bottom /Upper Panel Attach - Back Panel
C - Back Panel advance over Base Panel: sets how much the back panel advances over the base panel of the module.

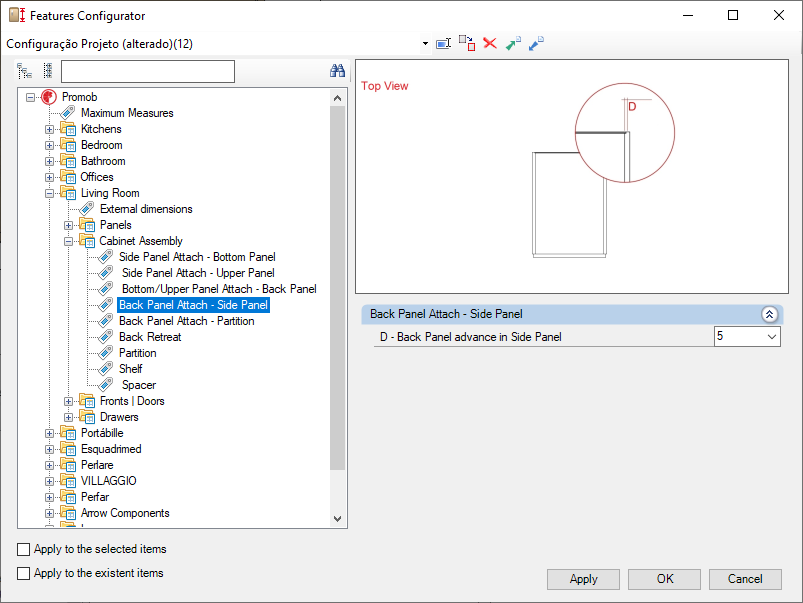

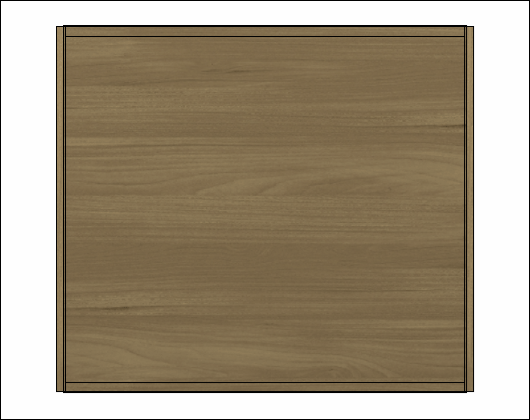

Back Panel Attach - Side Panel
D - Back Panel advance in Side Panel: sets how much the back panel advance over each of the module's side panels.

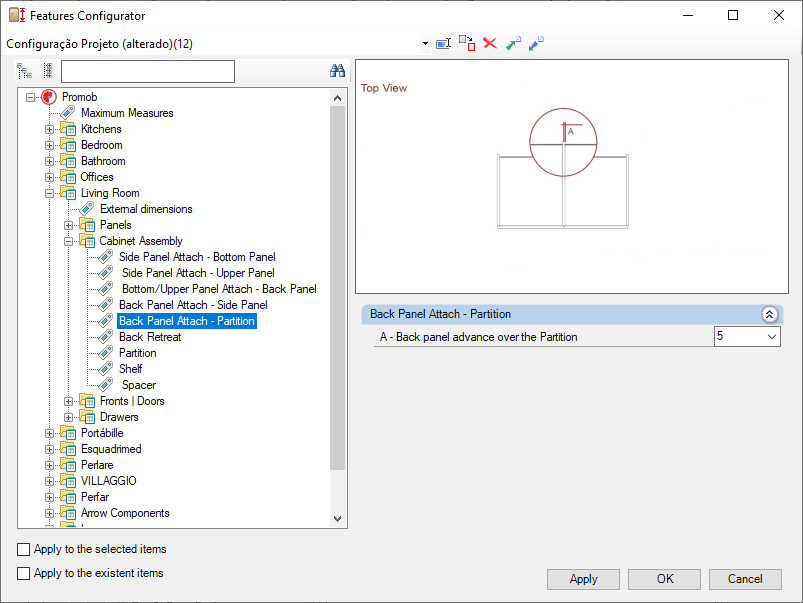

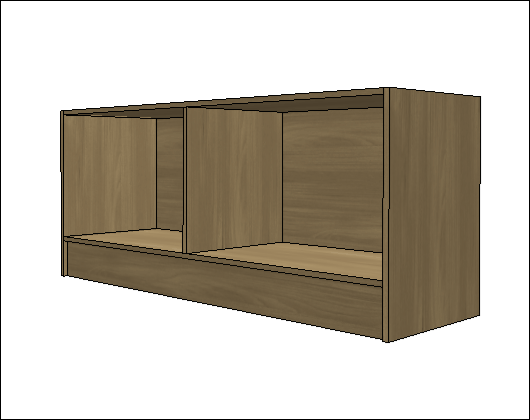

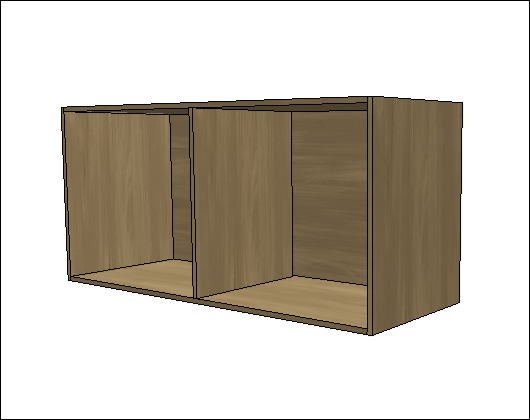

Back Panel Attach - Partition
A - Back panel advance over the Partition: sets how much the back panel advancer over the fixed partition.

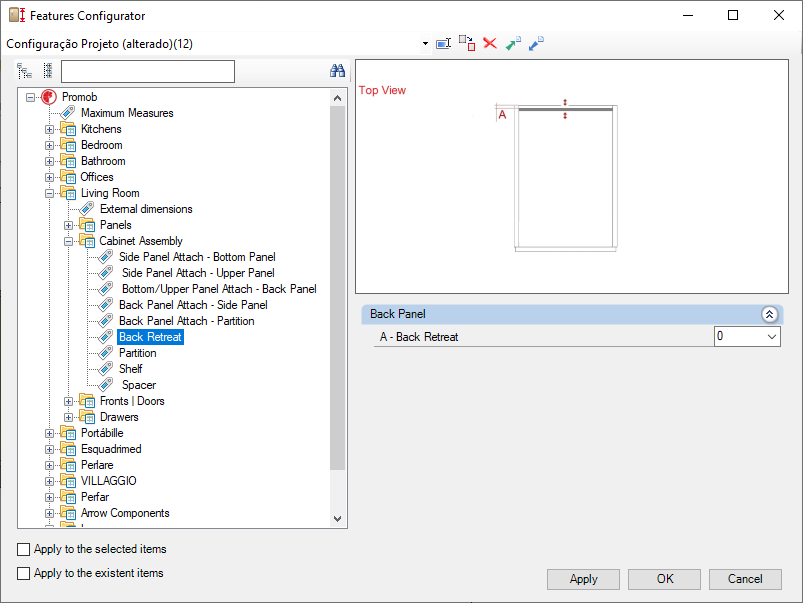

Back Retreat
Back Panel
A - Back Retreat: defines the module's back panel displacement.

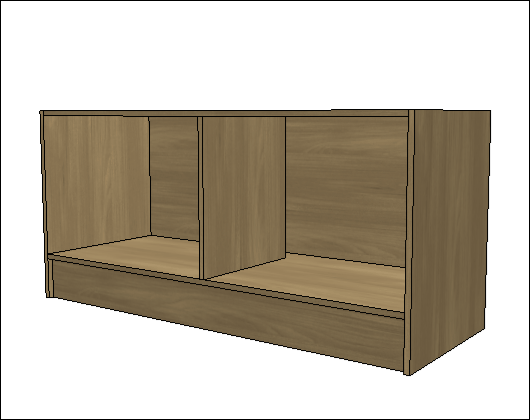

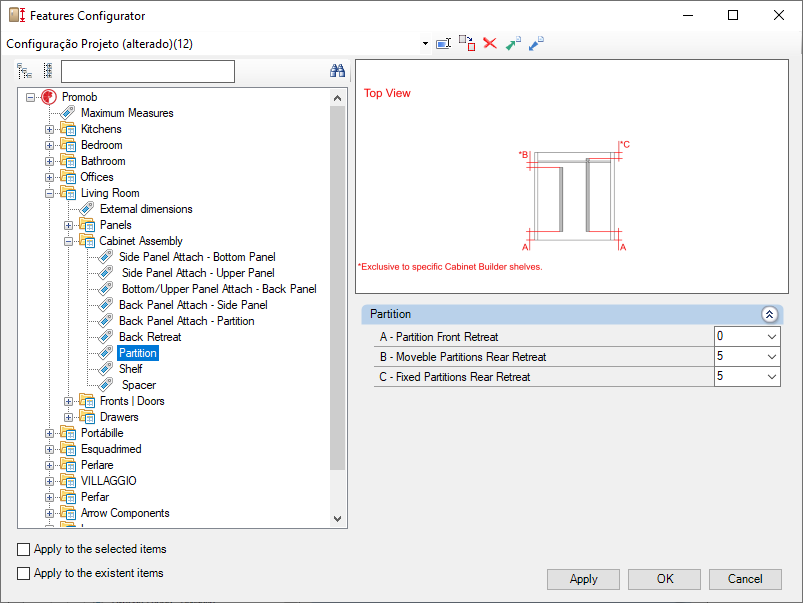

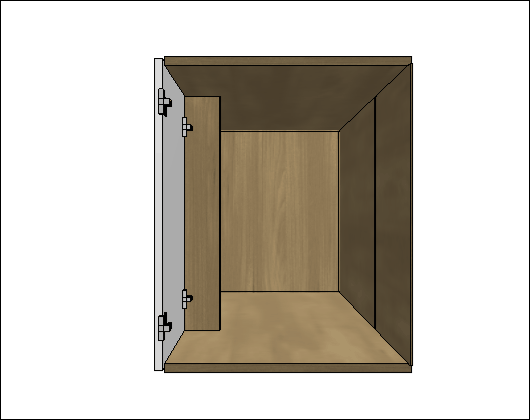

Partition
A - Partition Front Retreat: set the distance between the module and the beginning of the partition. Changes the depth of the partition.
B - Moveble Partitions Rear Retreat: sets the distance between the back pannel of the module and the end of the partition. Changes the depth of the partition.
C - Fixed Partitions Rear Retreat: set the distance between the module limit end and the end of the partition. Changes the depth of the partition.

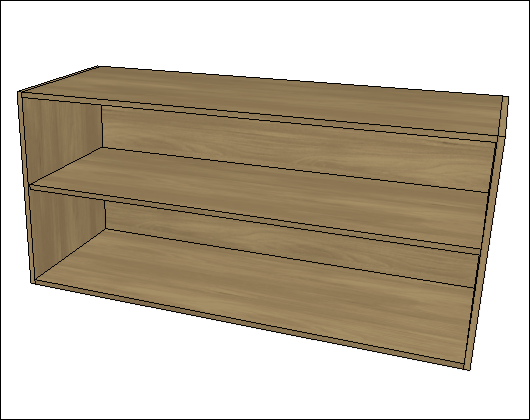

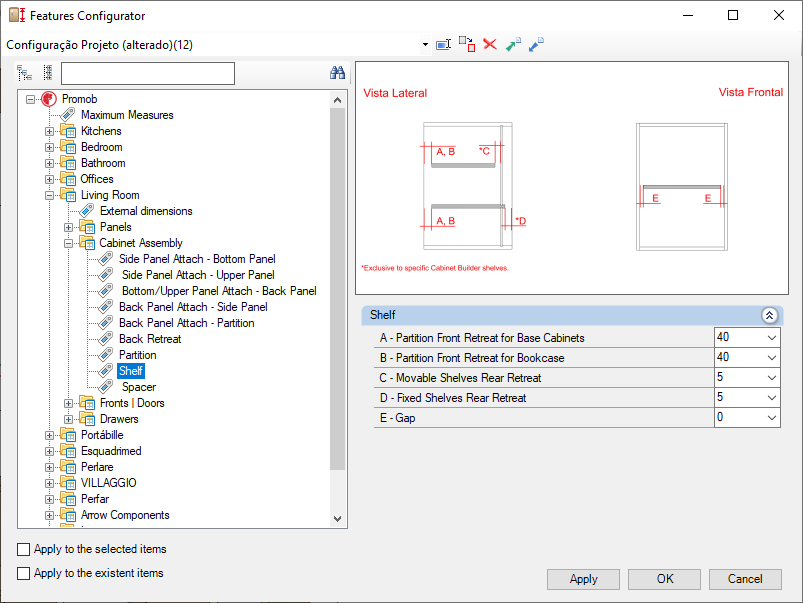

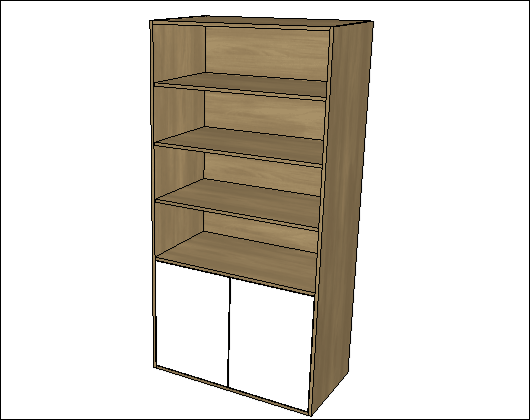

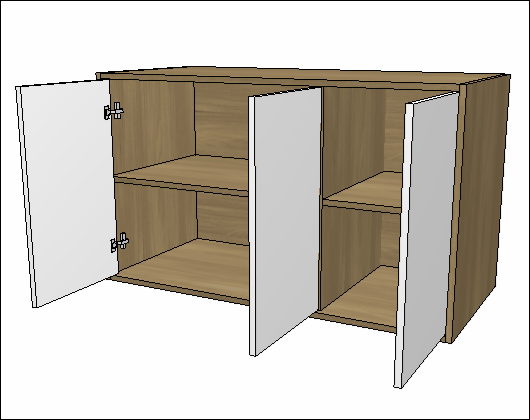

Shelf
A - Partition Front Retreat for Base Cabinets: sets the distance between the module and the beginning of the shelf. Changes the depth of the shelf.
B - Partition Front Retreat for Bookcase: sets the distance between the module and the beginning of the shelf. Changes the depth of the shelf.
C - Movable Shelves Rear Retreat: set the distance between the back panel of the module and the end of the shelf. Changes the depth of the shelf.
D - Fixed Shelves Rear Retreat: set the distance between the module limit end and the end of the shelf. Changes the depth of the shelf.
E - Gap: sets the lateral spacing between the module and the shelf. Changes the width of the shelf.

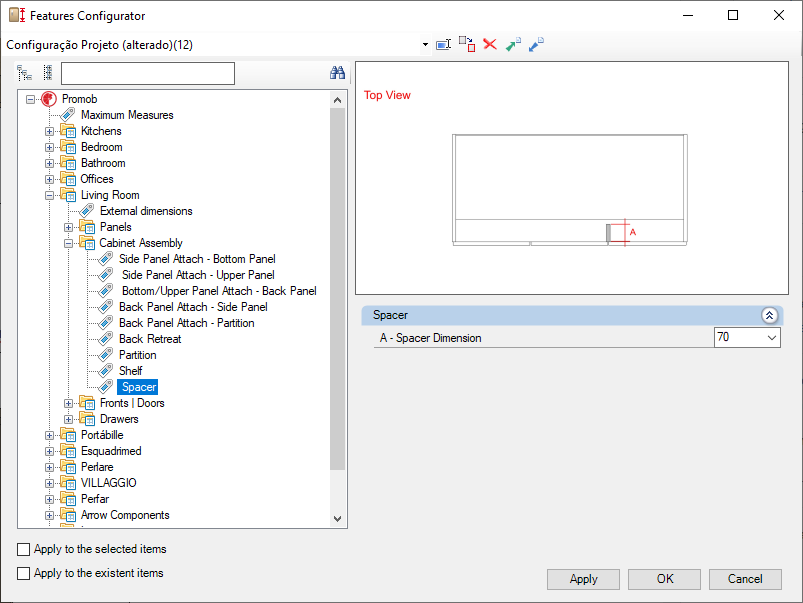

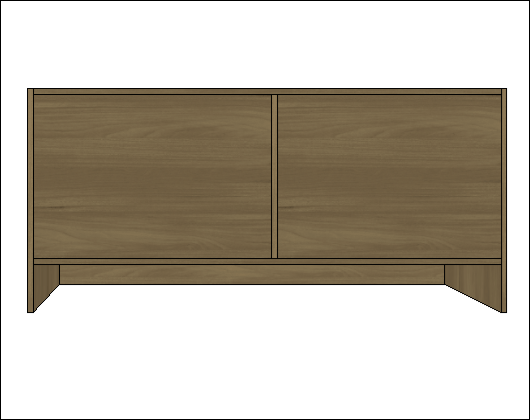

Spacer
A - Spacer Dimension: sets the spacer dimension.
