In certain cases, the rendering of inverted glass doors may be rendered incorrectly. This happens because, as the entity is inverted, the rendering occurs as if it were from the opposite side of the piece, generating the incorrect rendering.
To correct these situations, the DoubleSided attribute was created. If you do not have this attribute already registered in your Catalog, it is necessary to register it.
To register the DoubleSided attribute
DoubleSided attribute definitions
To register the DoubleSided attribute
1. Access the Registry - System - Attributes menu
2. Within entity.attributes, select the Design group.
3. Click New - Create Attribute.

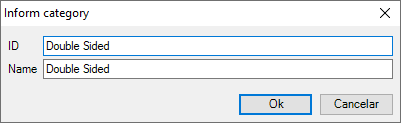

4. In the displayed window, define:
- ID: DoubleSided
-
Name: DoubleSided

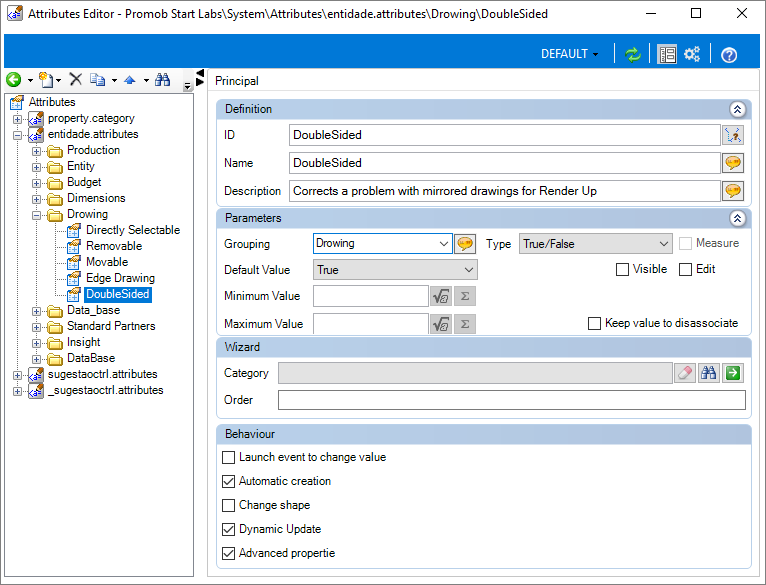

5. In the entity attribute record, define:
- Description: Corrects a problem with mirrored drawings for Render Up.
- Grouping: Drawing
- Type: True / False
- Default value: True
- Keep the Automatic creation, Dynamic update, and Advanced Property checkboxes checked.
IMPORTANT: All other attribute registration options, not mentioned, must remain unchecked.
6. After registering, click on the Refresh icon to apply the changes and then restart Promob.
DoubleSided attribute definitions.
This attribute corrects problems in rendering drawings by the Render Up Plugin.
With False / False value, the mirrored drawings will be rendered correctly by the plugin.
No cadastro deste atributo, sua configuração padrão define que o mesmo é criado automaticamente (de forma oculta) para todas entidades (propriedade Criação Automática) e com valor padrão Verdadeiro (True), ou seja, o atributo é aplicado em todos módulos automaticamente, sendo necessário aplicar este atributo com valor False (Falso) para que a renderização de itens espelhados pelo Render Up seja correta.
EXAMPLE:
Utilizado em itens transparentes.

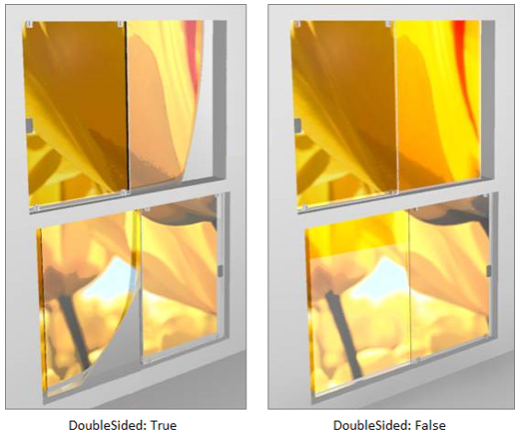

Nas imagens abaixo, à esquerda é possível perceber que com o atributo DoubleSided - True, ao renderizar os vidros, são exibidos defeitos nos cantos inferiores. Já à direita, com o atributo DoubleSided - False, ao renderizar os vidros, estes são renderizados corretamente.
To apply the attribute, click here and see how to proceed.
