IMPORTANT: All dimensions entered in the Builder tab will be uploaded to the Builder documentation (Technical Drawing).
To register the dimension in the drawing:
1. Click on Register - Modules.
2. Select the desired composition.

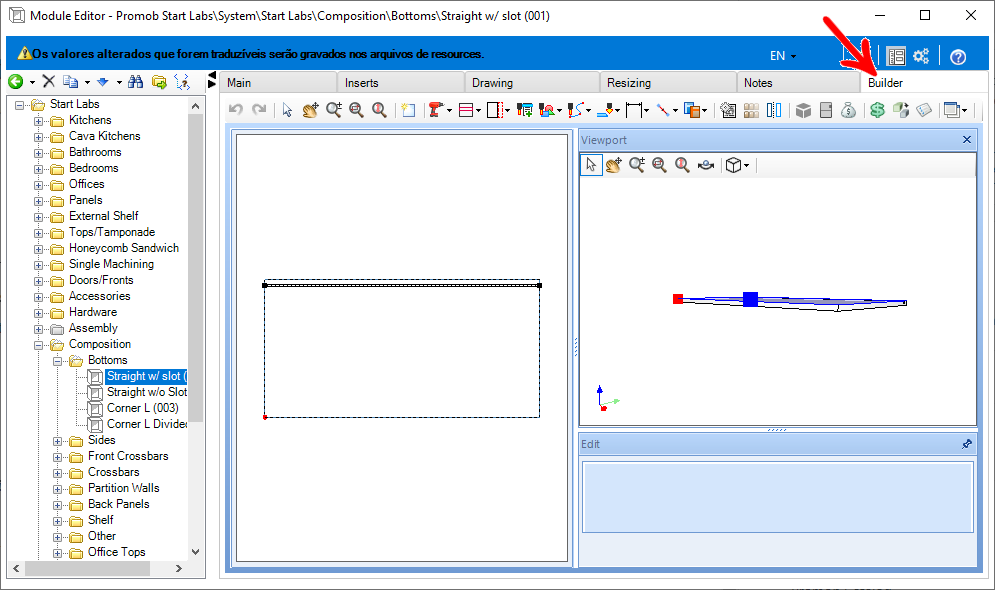

3. Go to the Builder tab.

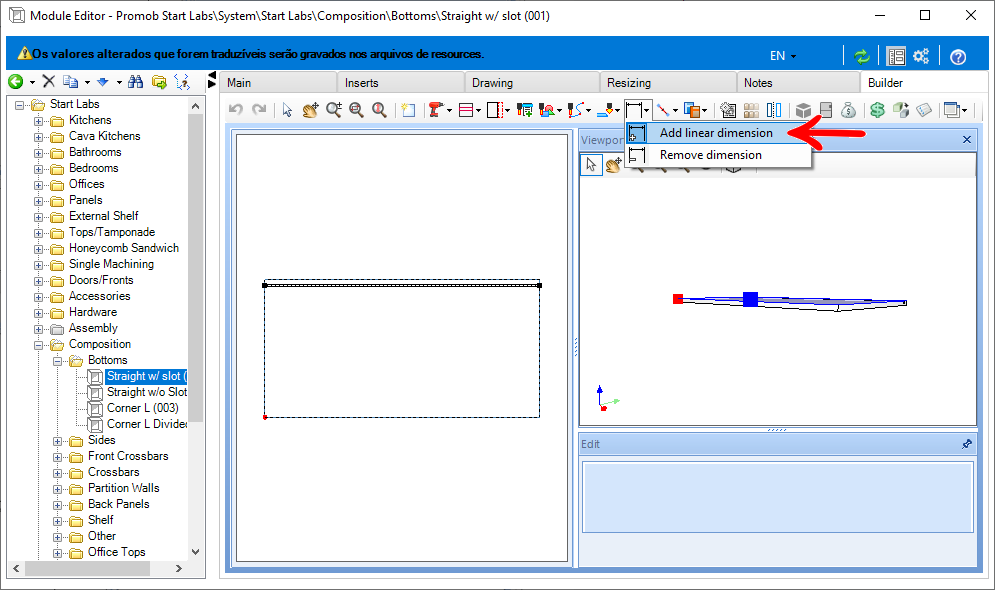

4. Select Add Linear Dimension:

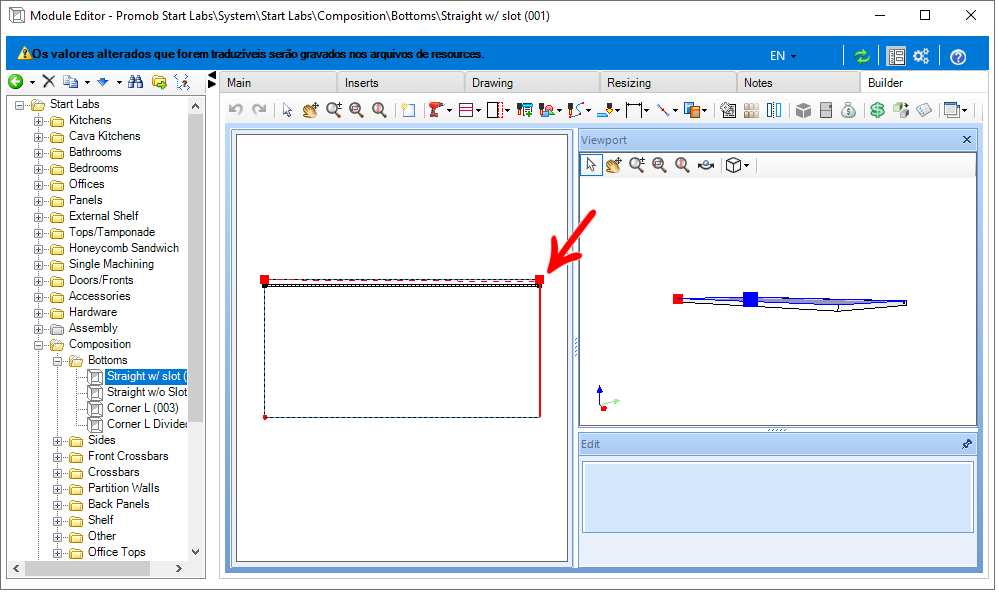

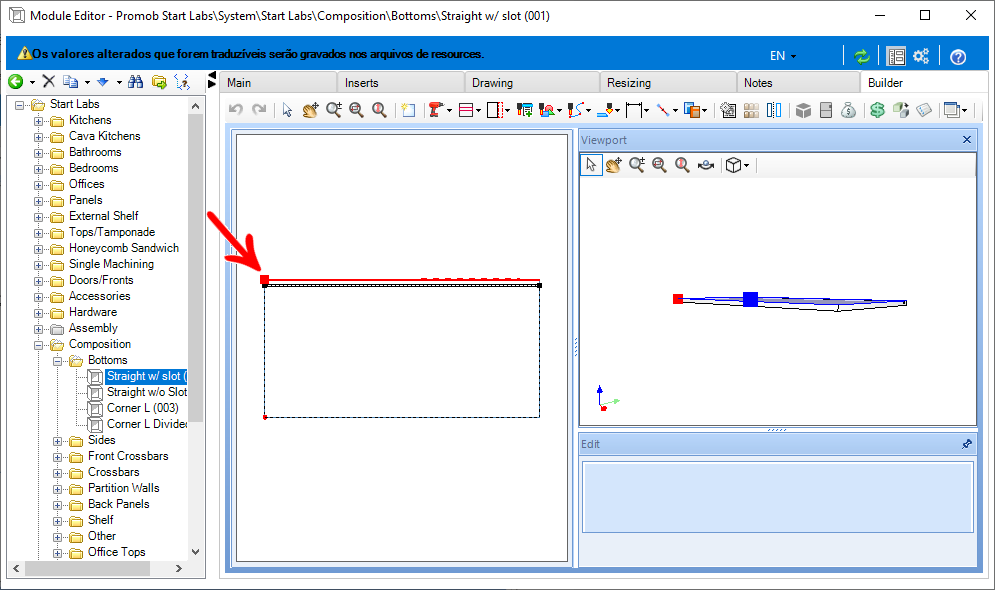

5. Click on the starting point of the dimension, and drag the mouse cursor to the end point of the dimension.

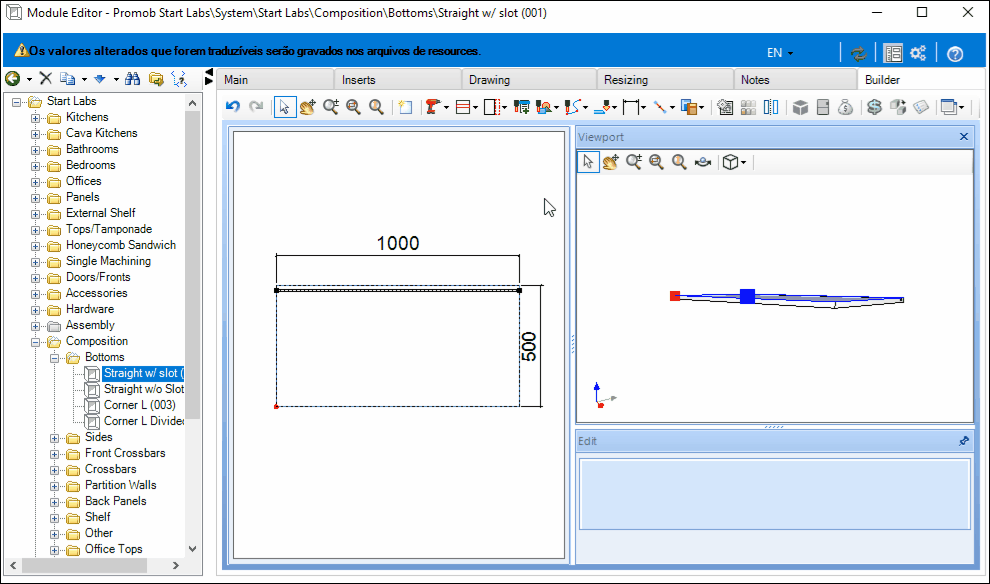

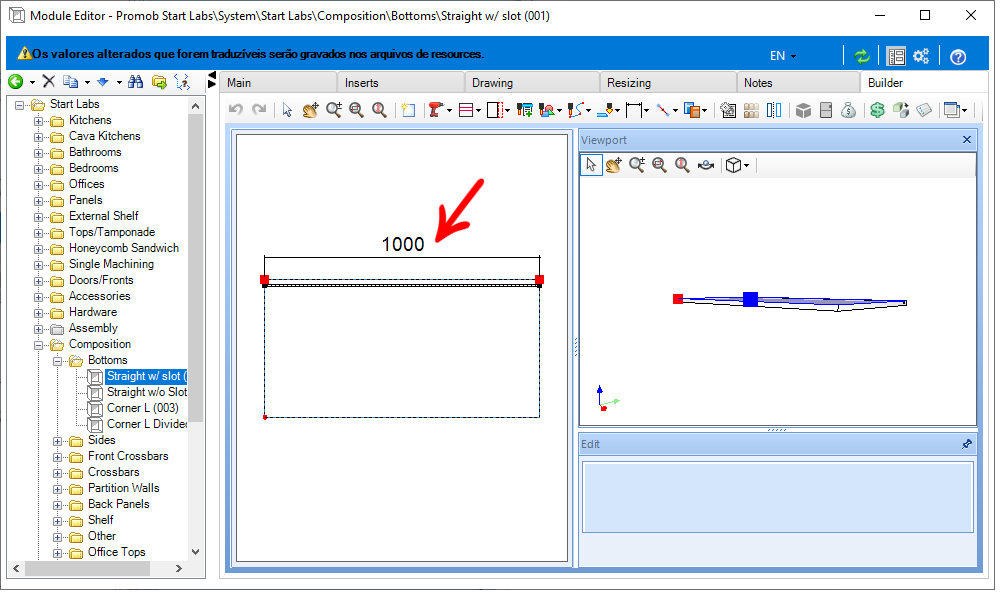

6. Drag the mouse to position the dimension on the drawing.

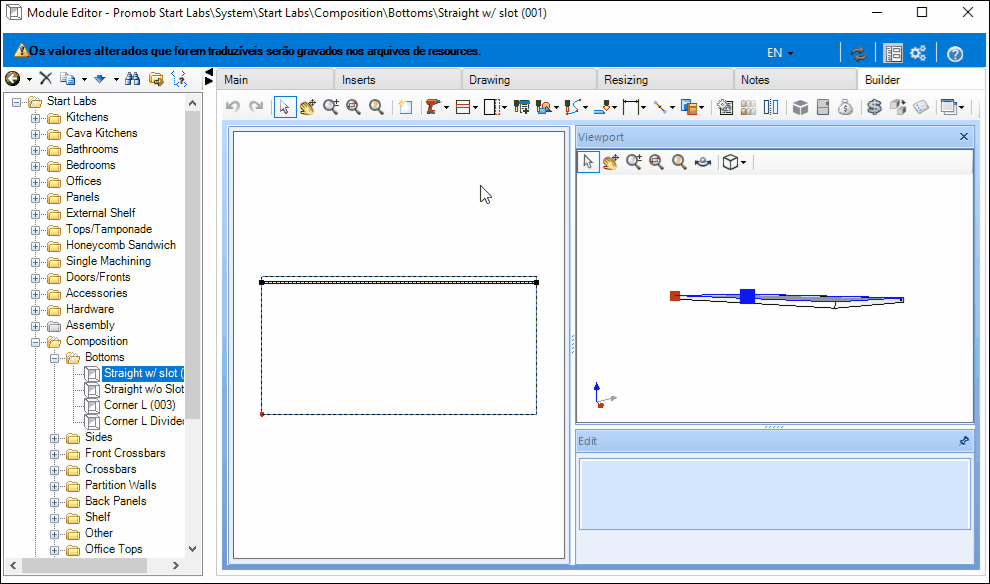

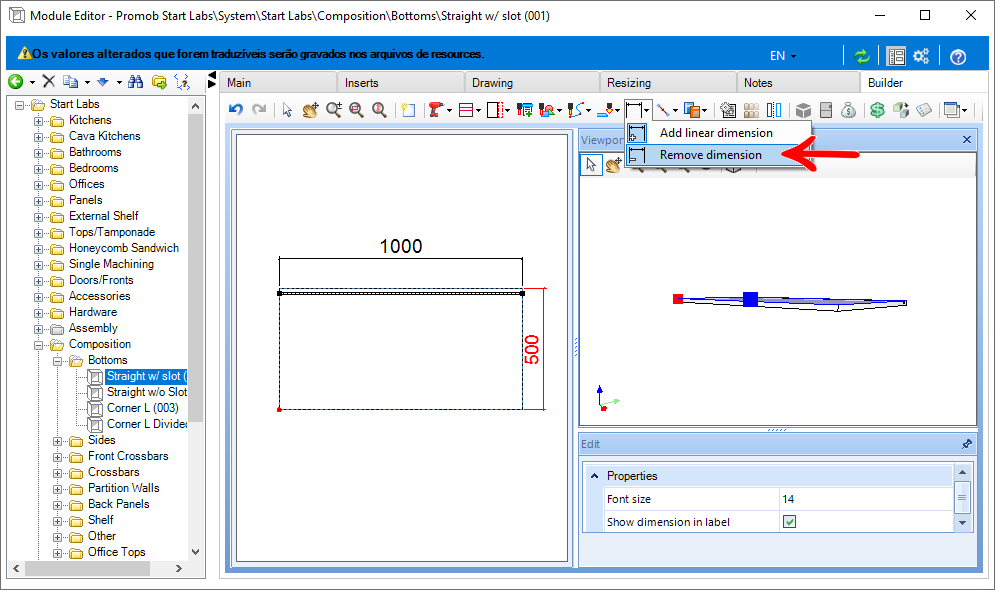

7. To remove dimensions from the drawing, select Remove Dimension and click on the dimension you want to remove.
