To register a round geometry in the Promob Catalog, perform the following procedures:

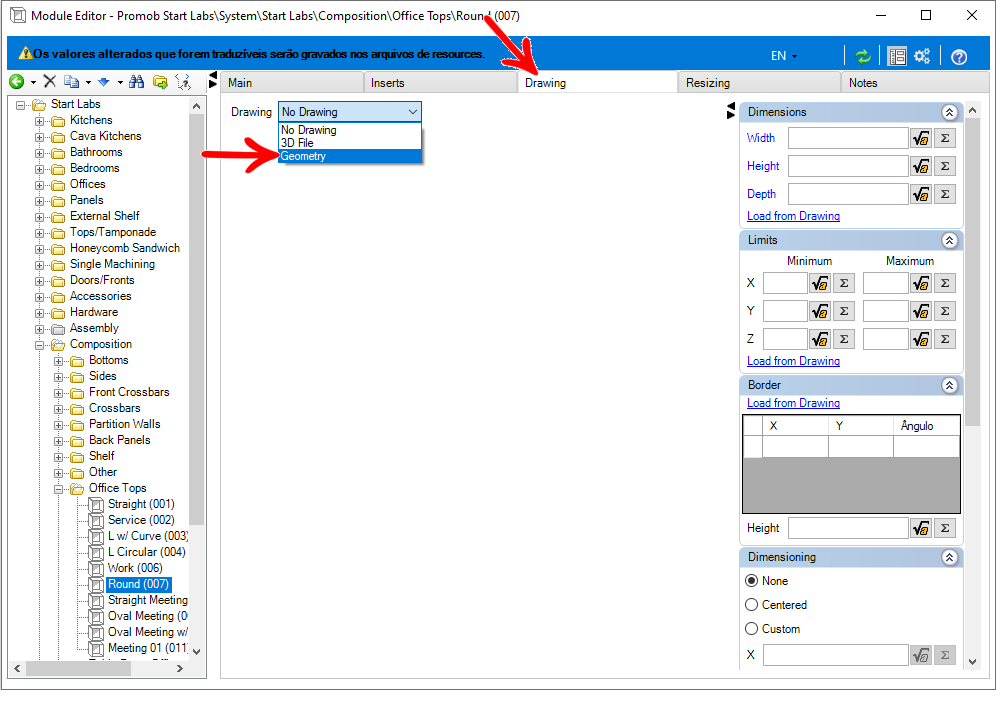

1. In the register of the item where you want to register the round geometry, access the Drawing tab and click on Add a new geometry.

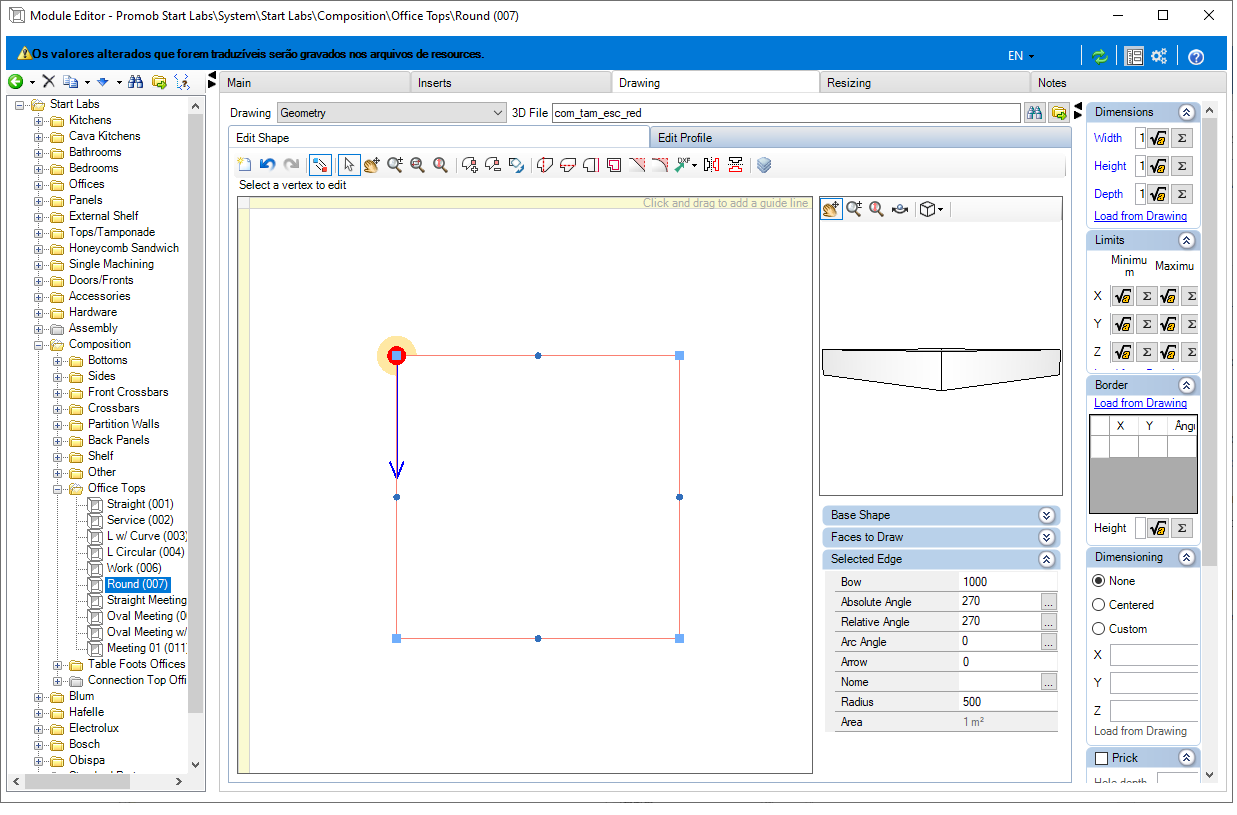

2. When adding the design, a square geometry is included, as shown in the image below:

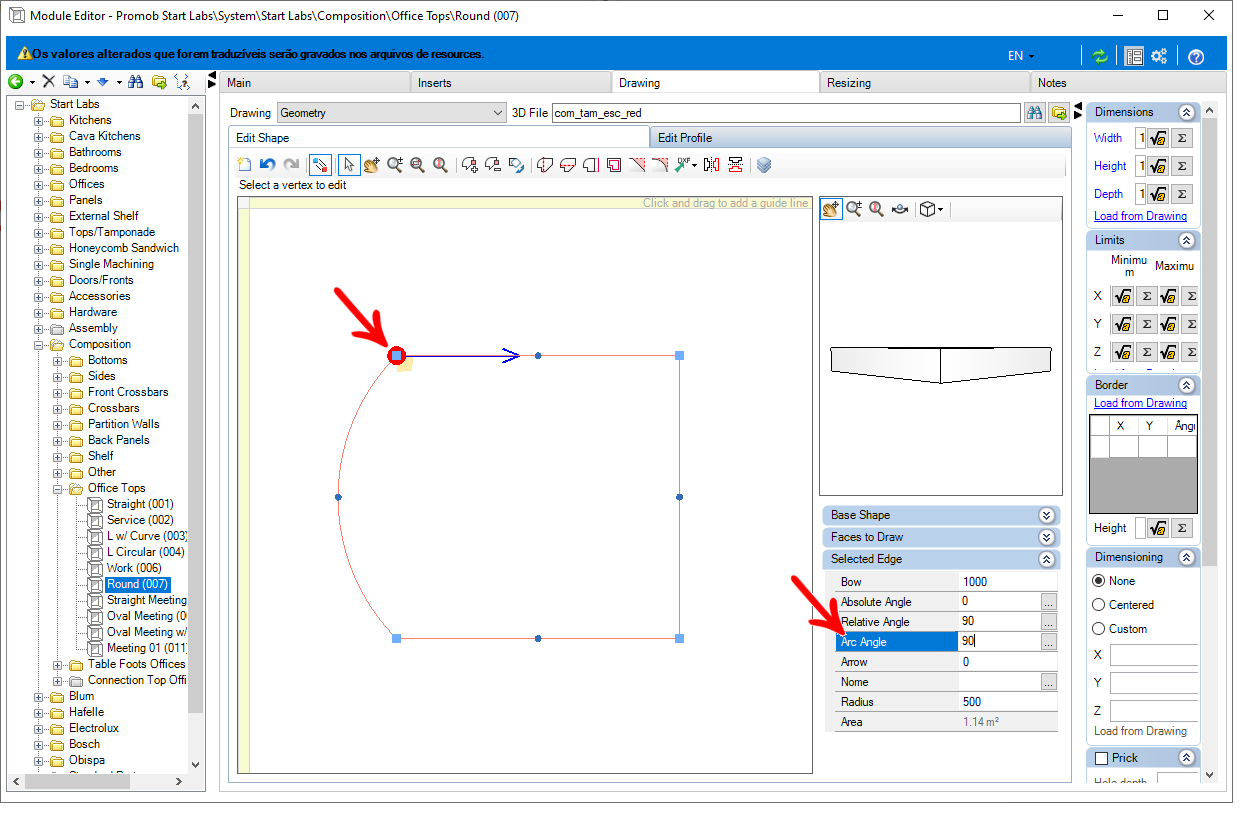

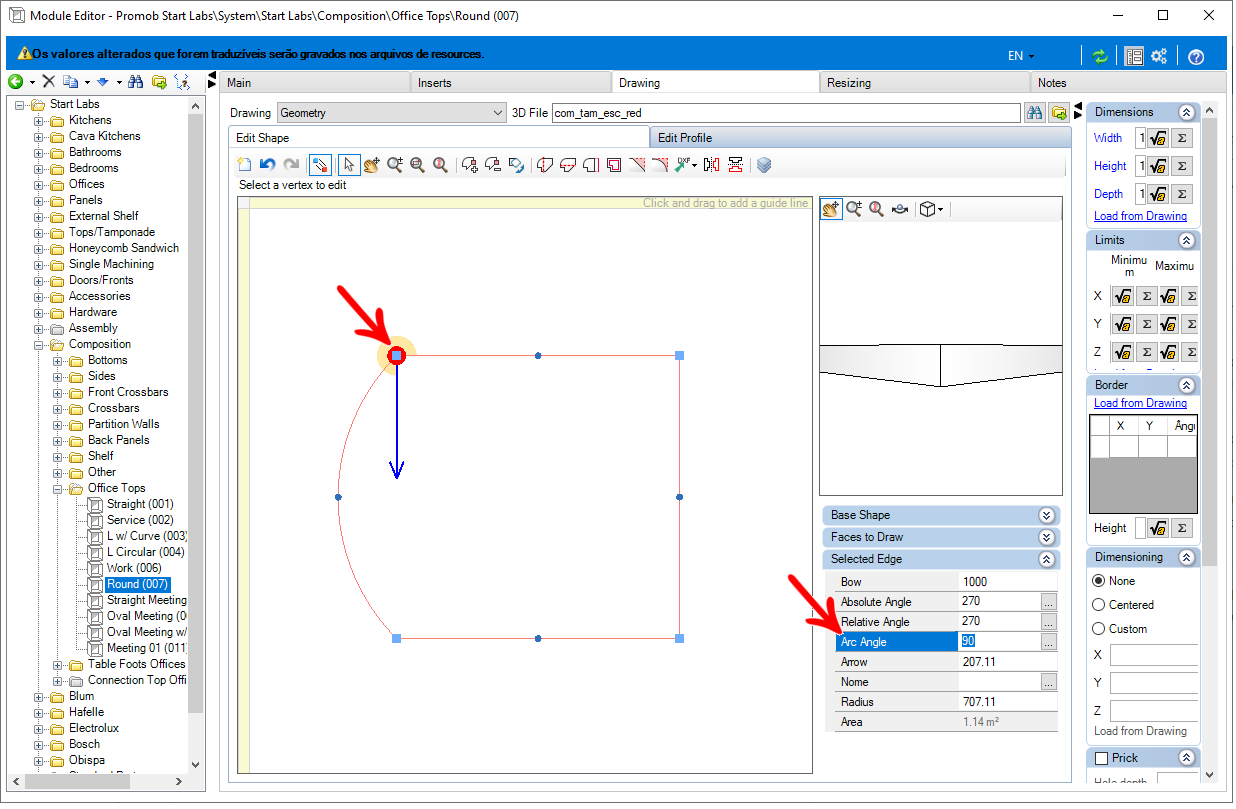

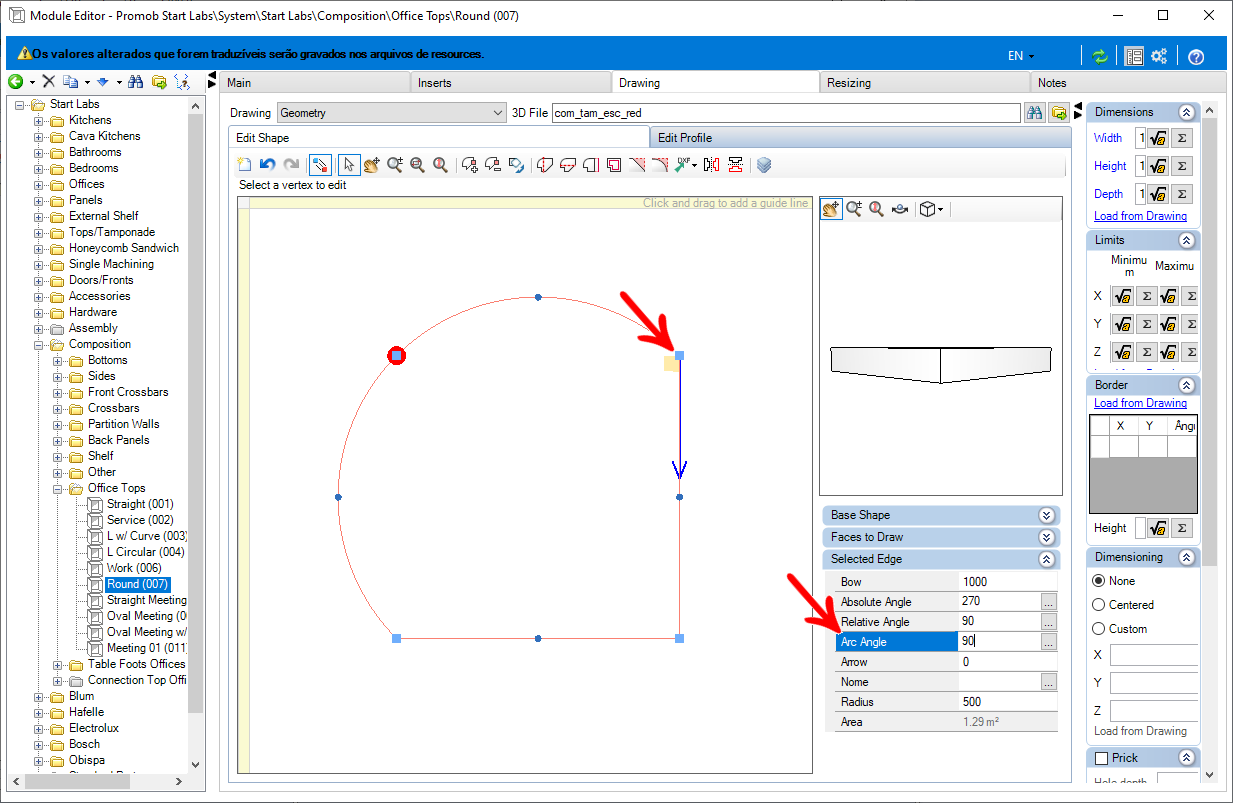

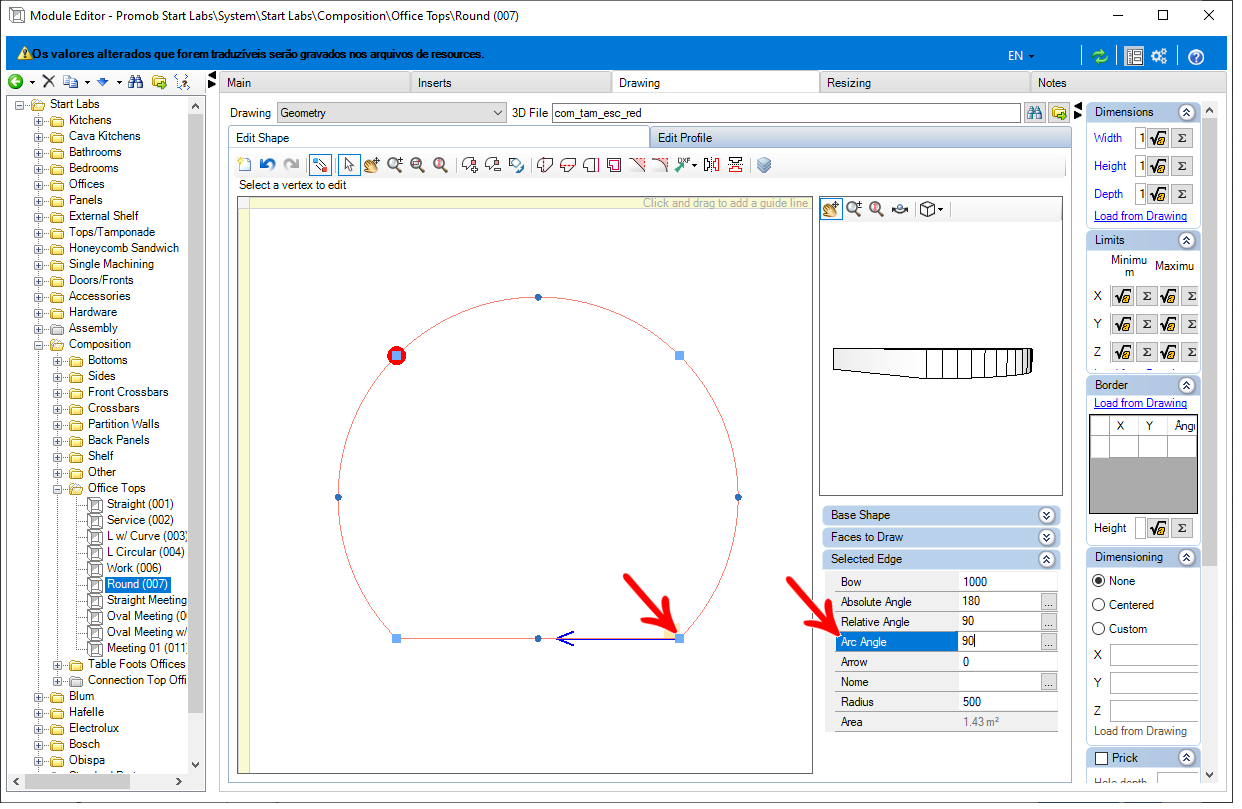

3. Click on each chord in the drawing and in the Arc Angle menu, change the arc angle to 90, as shown in the images below:

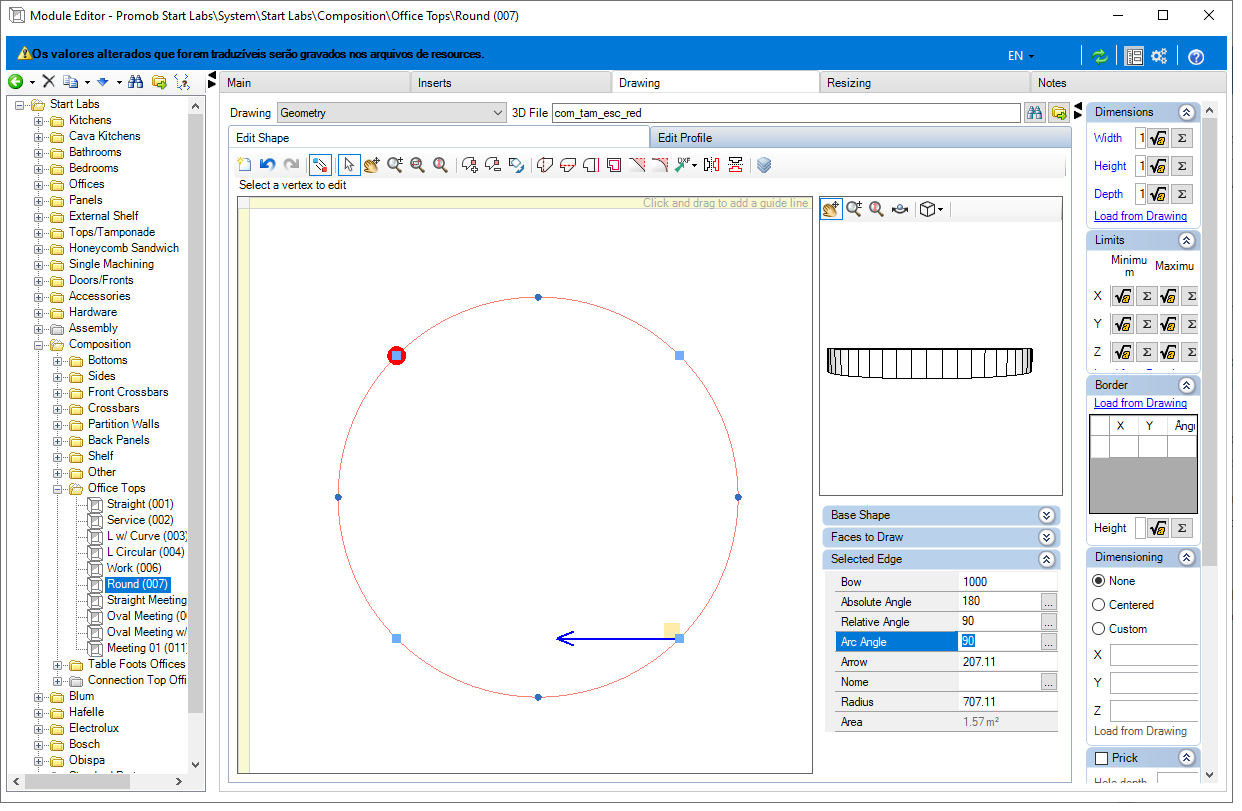

Using the entered values, the geometry is displayed perfectly in a circle shape.
