Concurrents can be registered when two or more inserts of the same item cannot be inserted at the same time.
It is possible to register two types of concurrents: By position or between items.
Below are procedures related to concurrents:

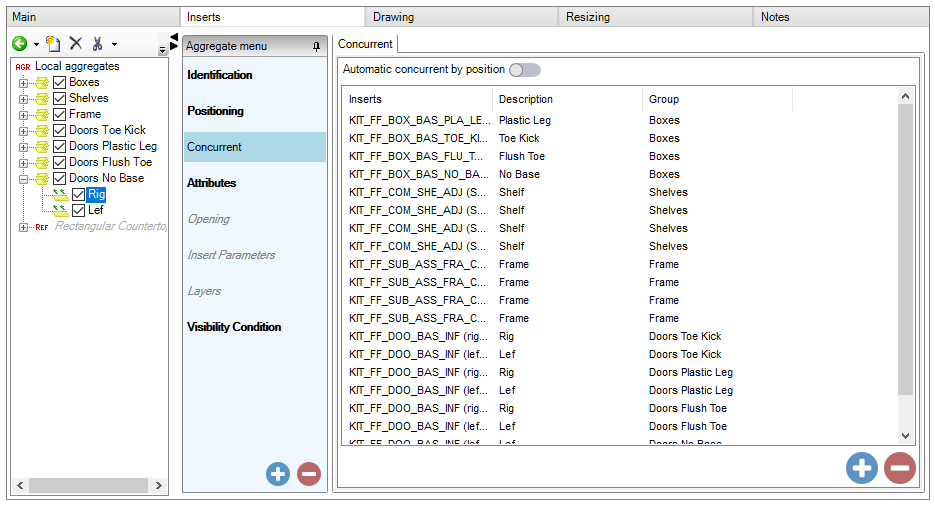

Register Concurrents by Position
1. Access the Registry - Modules menu.
2. Select the desired module through the Navigation Tree and access the Inserts tab.
3. Select the insert you want to compete for position and access the Concurrent option. If this option is not available, click the + option at the bottom of the screen and select the Concurrent option.

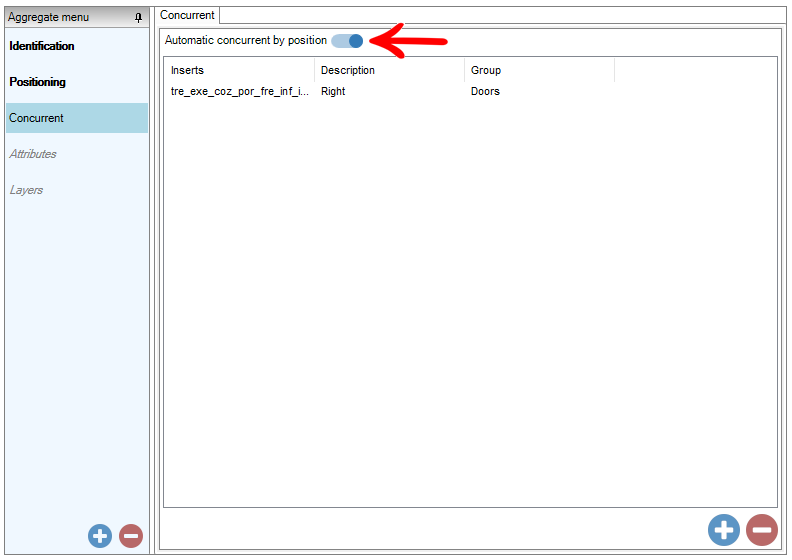

4. Check the option Automatic concurrent for position.
5. After applying the concurrent, click on the Refresh icon in the header.

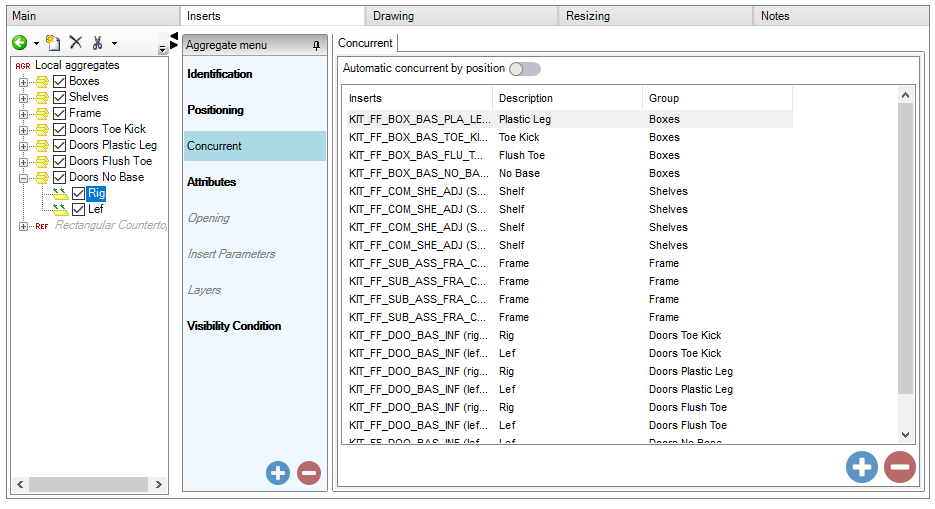

Register Concurrents between Ítems
1. Access the Registry - Modules menu.
2. Select the desired module through the Navigation Tree and access the Inserts tab.

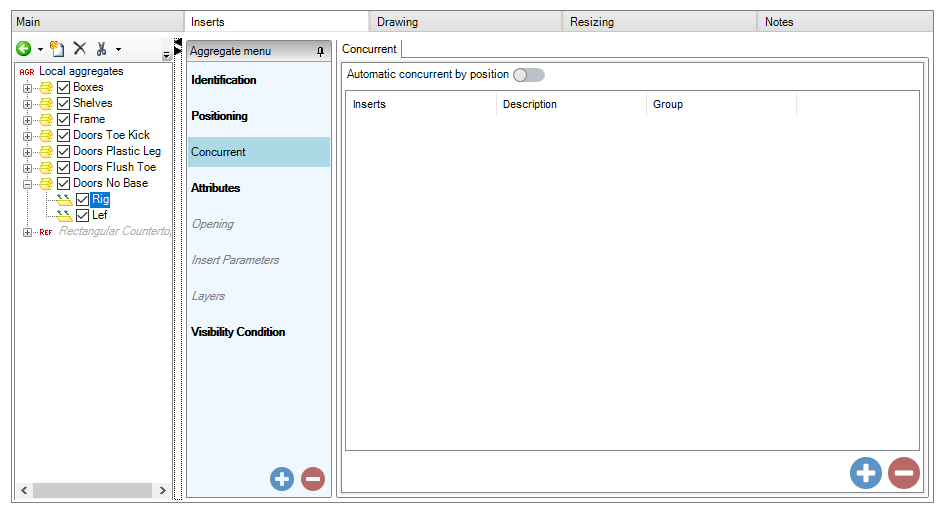

3. Select the insert you want to apply concurrent and access the Concurrent tab.

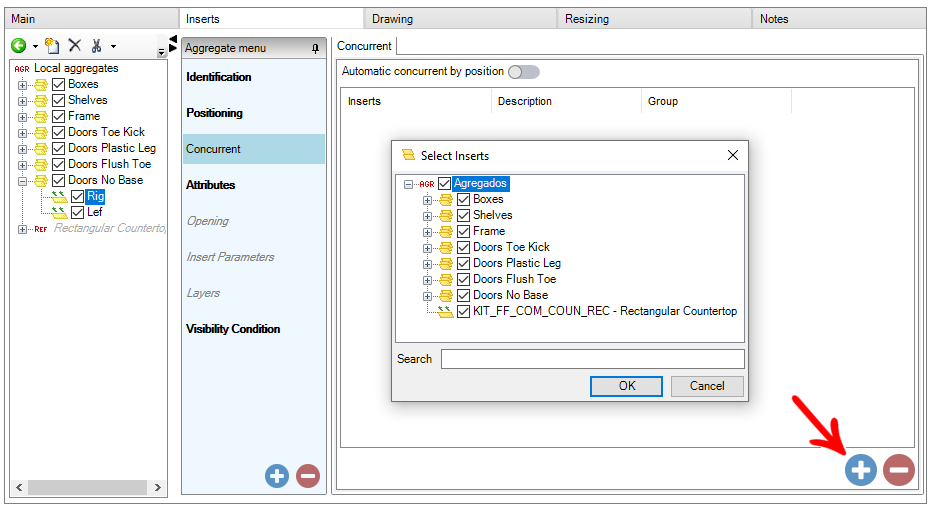

4. Click in to add concurrent, select the inserts you want the insert to compete with and click OK.

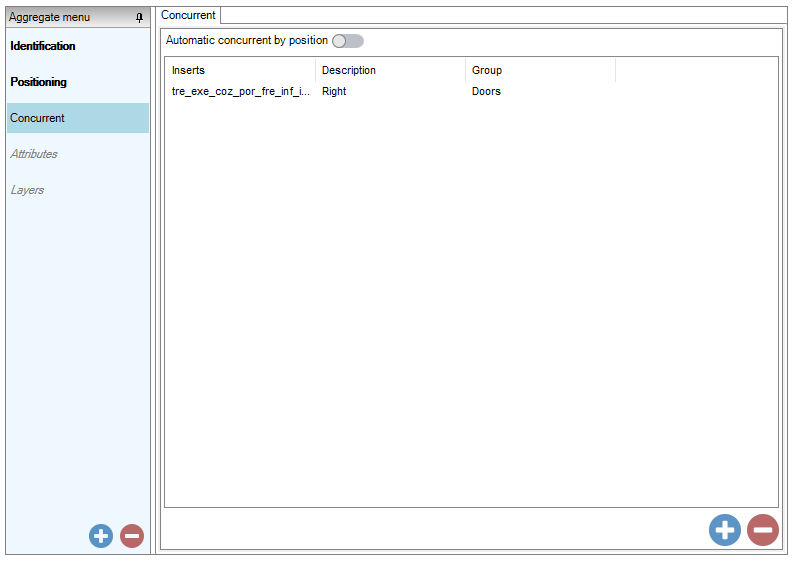

5. The concurrent will be listed.
6. After applying the concurrent, click on the Refresh icon in the header.
Remove Concurrents
1. Access the Registry - Modules menu.
2. Select the desired module through the Navigation Tree and access the Inserts tab.
3. Select the insert from which you want to remove the concurrent and access the Concurrent tab.

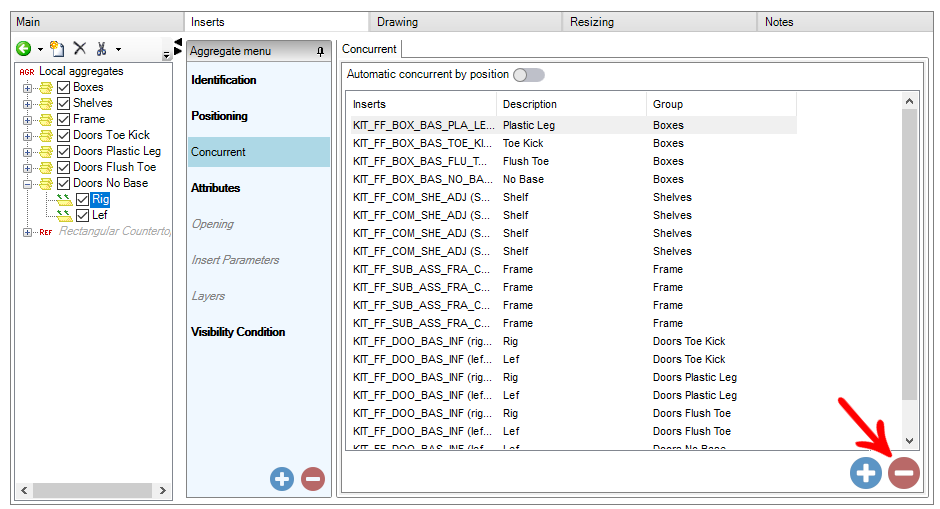

4. Select the concurrent you want to remove and click to remove concurrent.
5. After removing the desired concurrents, click on the Refresh icon in the header.
