This attribute allows the detailed contour of the meshes to be displayed in the drawing in the design when the fill mode displays lines.
With True value, the contour lines of the meshes are displayed in the drawing when inserted in the design.
When registering this attribute, its default configuration defines that it is created automatically (in a hidden way) for all entities (Automatic Creation property) with a default value of False, that is, the attribute is applied in all modules defining that the contours of the meshes are not displayed for the modules. If it is necessary to define that the contours must be displayed, it is necessary to apply the attribute in the module to change its value to True.
Example:
Decorate, wire, upholstery items, as they have great detail in the drawings.

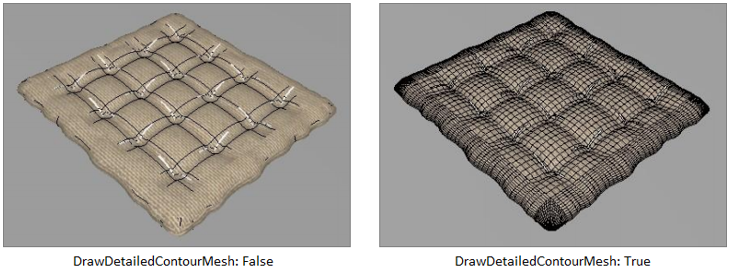

Through the images below, it is possible to notice, on the left, that the cushion has the attribute DrawDetailedContourMesh with a value of False or not even applied (due to the default value - False), therefore, it does not display the mesh detailing lines. On the right, with the attribute DrawDetailedContourMesh with a value of True, the pad will now display the detail lines of the meshes.
To apply the attribute, click here and see how to proceed.
