When you access the Promob to be customized through the Promob Catalog, the system opens the Promob environment. The home screen and data screen can be accessed using the navigation buttons.
All the tools required for project development can be found on Promob's main screen. This screen is totally flexible, because in it the resources are presented according to the action being performed and according to the preference of each user. The main screen for using the catalog has the same characteristics as the Promob Studio, Lite or Start screen. The only and main difference is the Registration menu in the main menu.

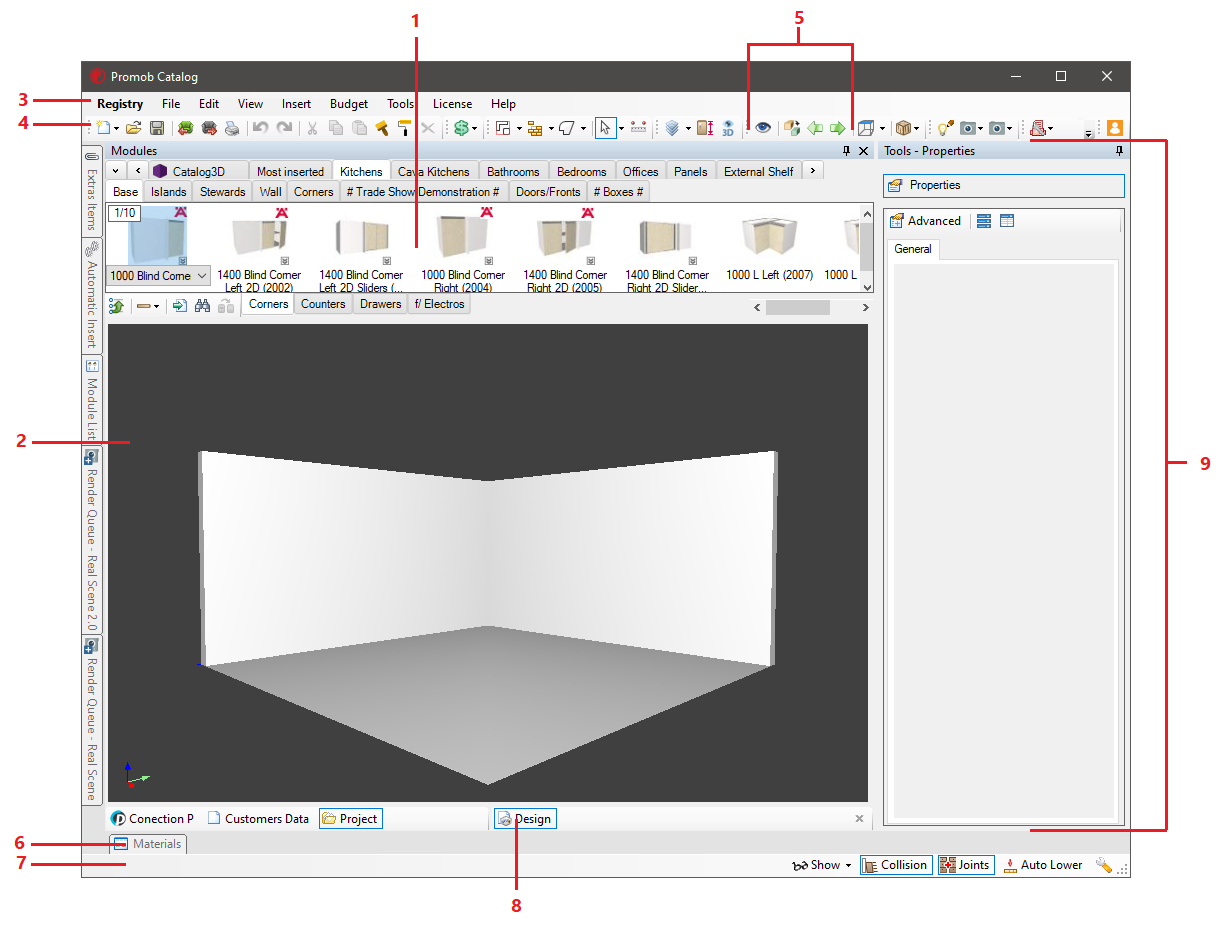

Below is a schematic showing the Promob Catalog screen:
| Window | Function |
|
1. Modulation Bar |
It contains all the lines that make up the system's modulation library. The modulation lines are hierarchically divided for easy access and may vary according to the Promob used. |
| 2. 3D environment | Place where the project is developed. Initially formed by two walls and the floor, which can be modified later. |
| 3. Main Menu | Maintains all the tools and options of the program. The main tools are also found in the form of icons on the top toolbar. |
| 4. Top toolbar | It provides the main Promob tools in icon form. |
| 5. Preview Bar | Contains the project visualization tools. |
| 6. Screens | Allows you to navigate between home screens, data screens and the 3D environment. |
| 7. Status Bar | Displays information about the selected item in the 3D environment. |
| 8. Document Bar | It maintains all the documents that make up the project. The documents are considered to be: 3D environment, renderings, prints, budgets, and listings. |
| 9. Tool Panel | Shows all the tools and properties available for the selected item. It is a dynamic panel, which changes according to the selection made in the environment. |
