Available from 1.60.0.1 version of Builder Parts Plugin
The dimension register will be displayed on the technical drawing and/or on the label image. To register the dimension, follow the procedures below:

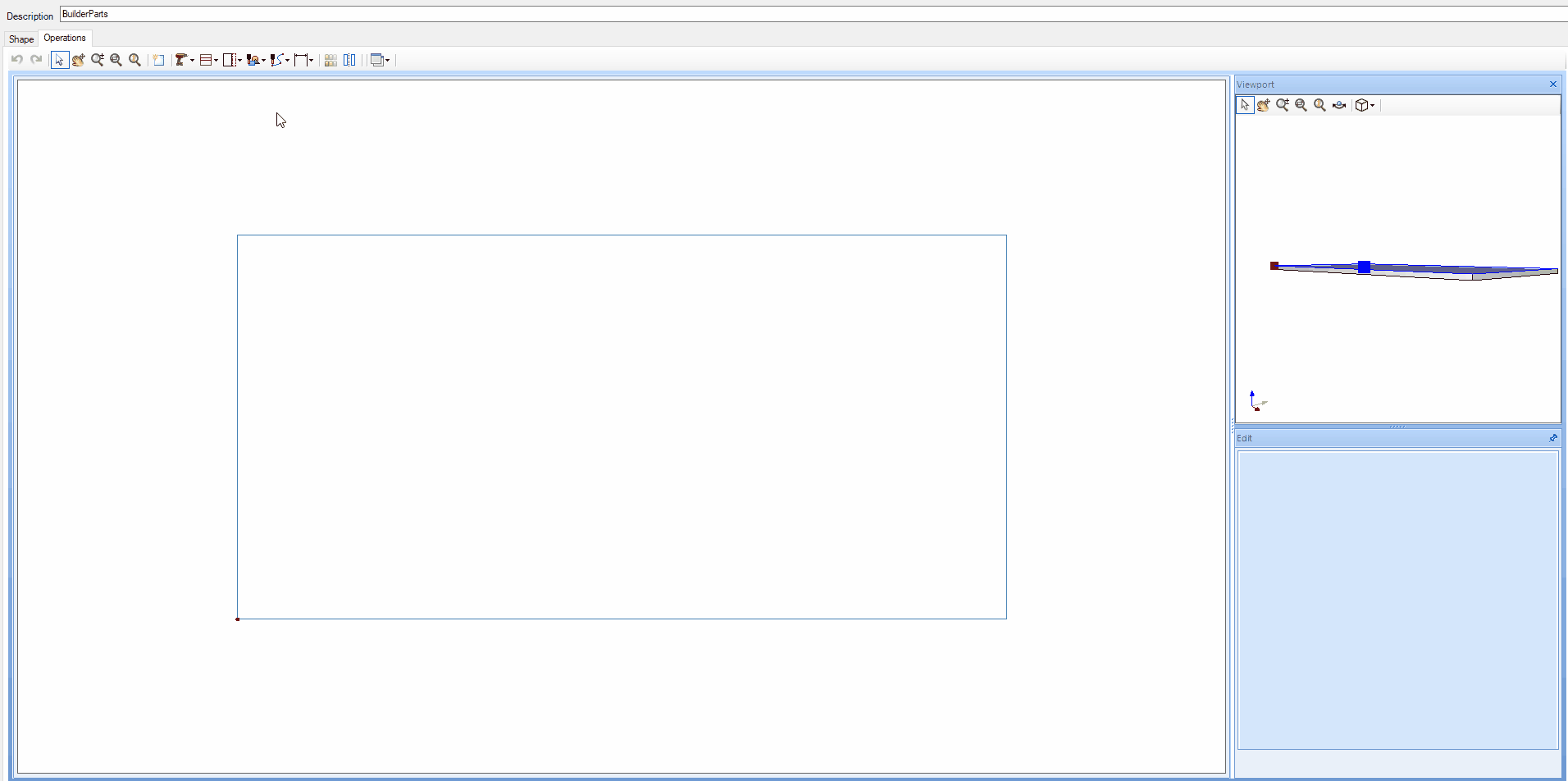

1. In the operations tab, click on the dimension icon and after, select the option add linear dimension.

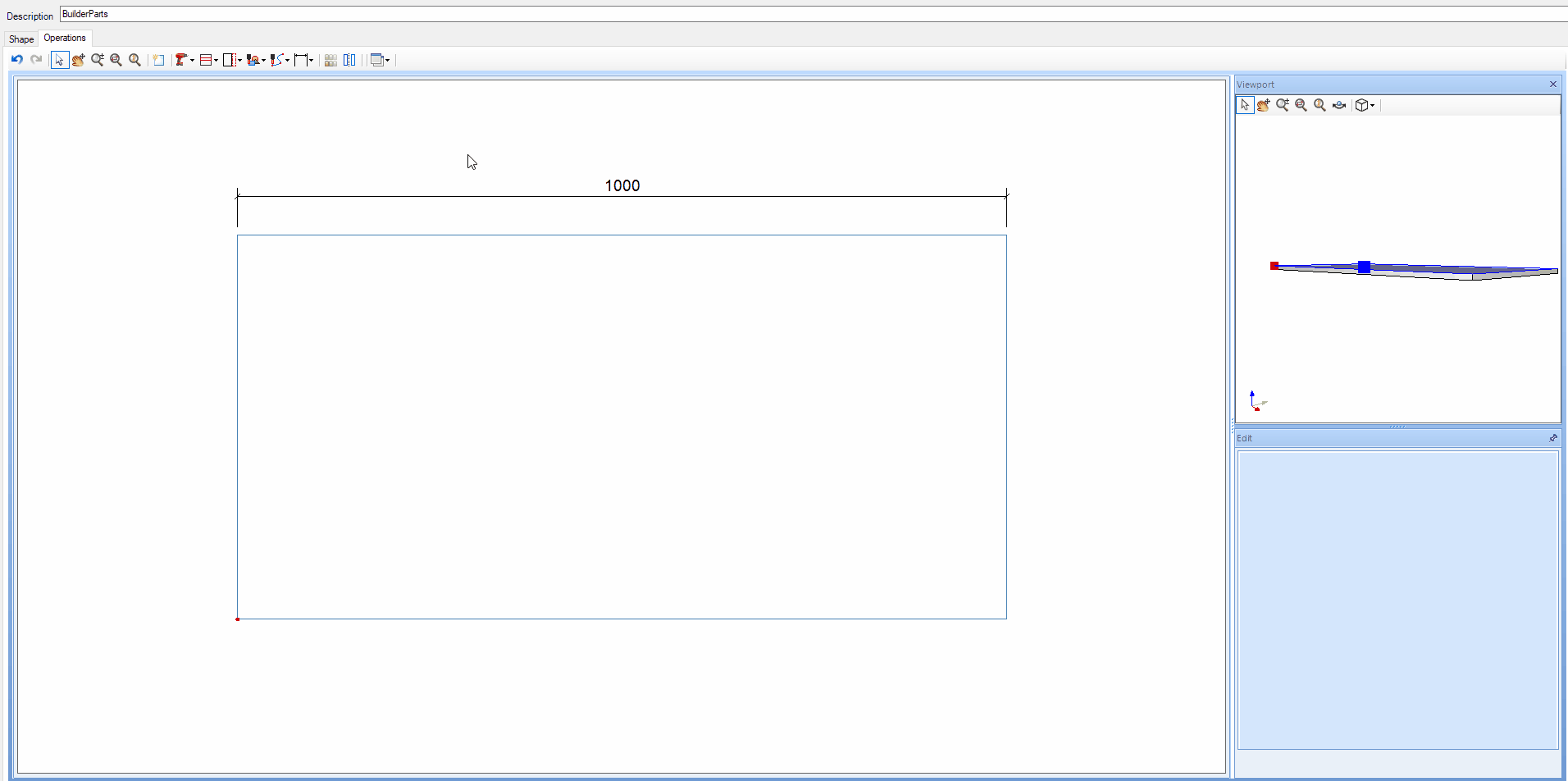

2. Click on the edge you want to create a dimension and drag the mouse up or down to place the dimension.
3. In the dimension editor it is possible to apply two configurations:
Font size: where you can choose the font size of the dimension
Show label dimension: if checked, the value of the label dimension will be shown in the label image.
To remove the dimension, follow the procedures below:
1. In the operations tab, click on the dimension icon and after, select the option to remove dimension.
2. Select with the mouse the dimension you want to delete and click with the mouse.
