Available from 1.60.0.1 version of Builder Parts Plugin
The mirror function is available only for drill and slot operations, as shown in the procedures below:
Mirror drills

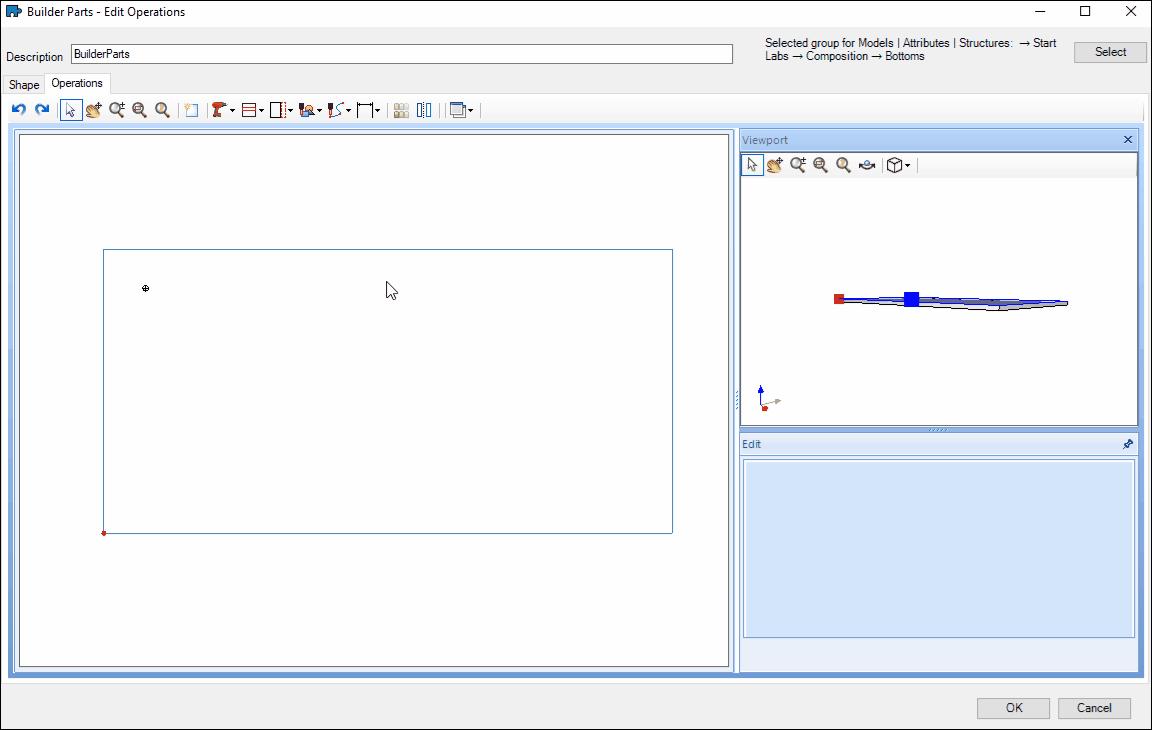

1. With the drills registered in the part, click mirror.
2. Select the drill you want to mirror and select the mirror axis and click mirror.
3. Drill mirroring can be performed in three ways, on the X, Y or XY axes.

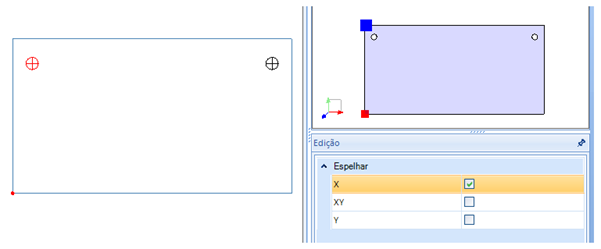

X axis mirroring: if the selected option is X, a hole will be generated at the same point in X and the value of Y will be mirrored.

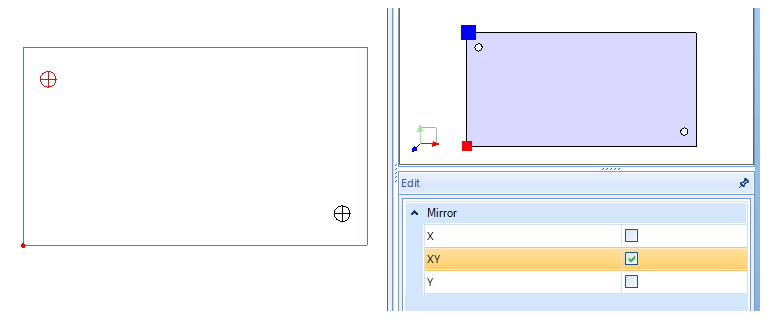

XY axis mirroring: If the selected option is XY, a hole will be generated mirroring the value of X and Y

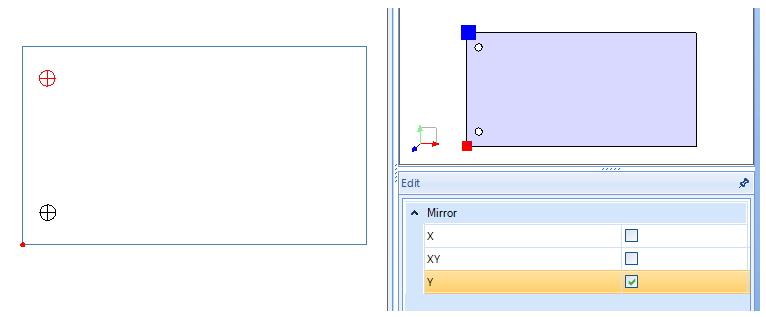

Y axis mirroring: If the selected option is Y, a hole will be generated at the same point in Y and the X value will be mirrored.
Mirror Slot

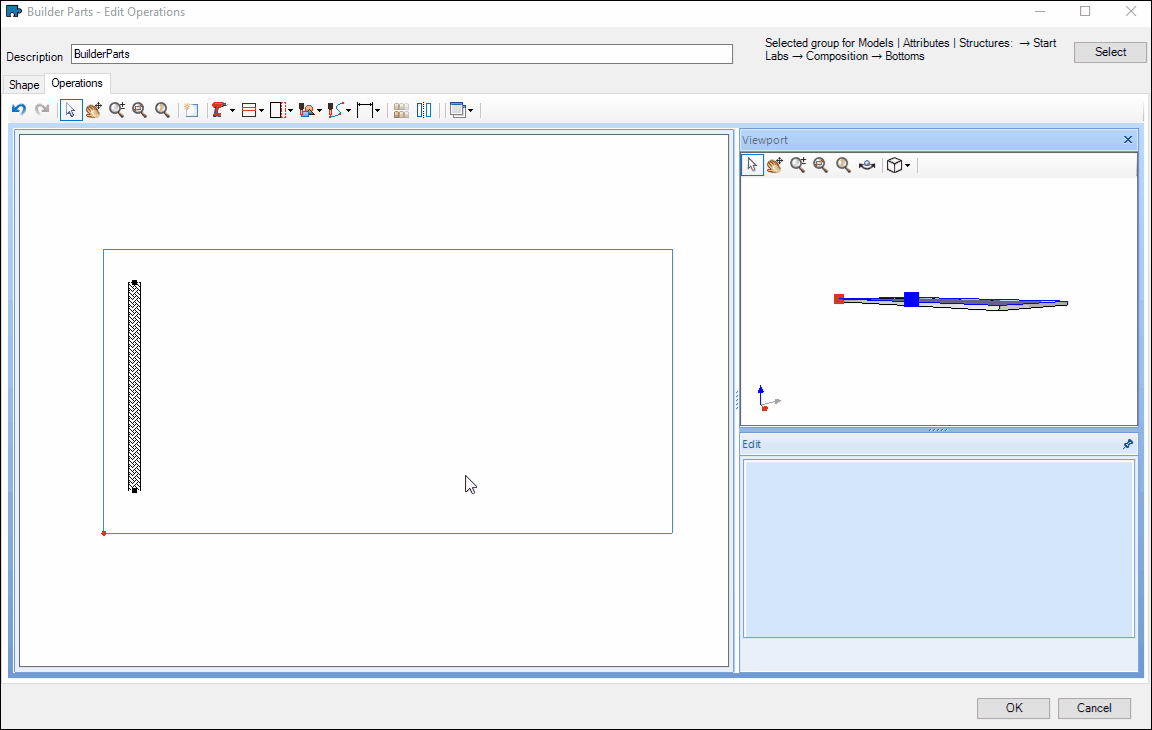

1. With the slot registered in the parte, click in mirror.
2. Select the slot you want to mirror and select the mirror axis and click mirror.
3. Slot mirroring can be performed in two ways, depending on the slot position.

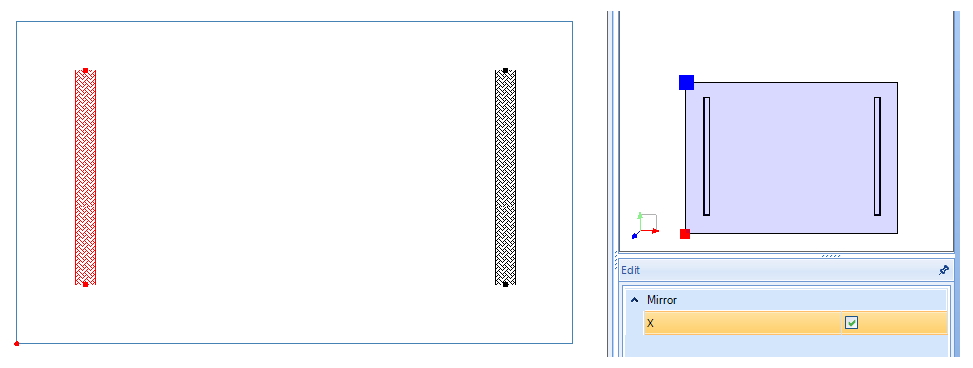

Vertical slot: X axis mirroring

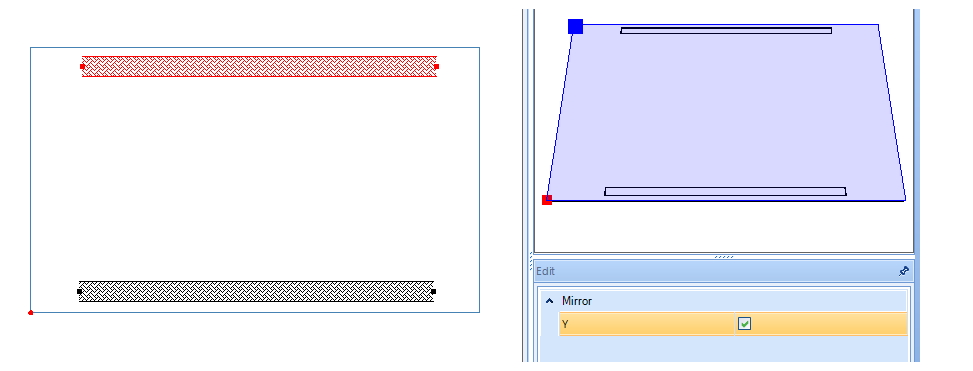

Horizontal slot: Y axis mirroring
