The External Dimensions settings are the measurements settings, which will be automatically displayed in the modules of the Kitchens group in the 3D Space. Even after the measurement configuration is established, it is possible to change the dimension in the 3D Space.

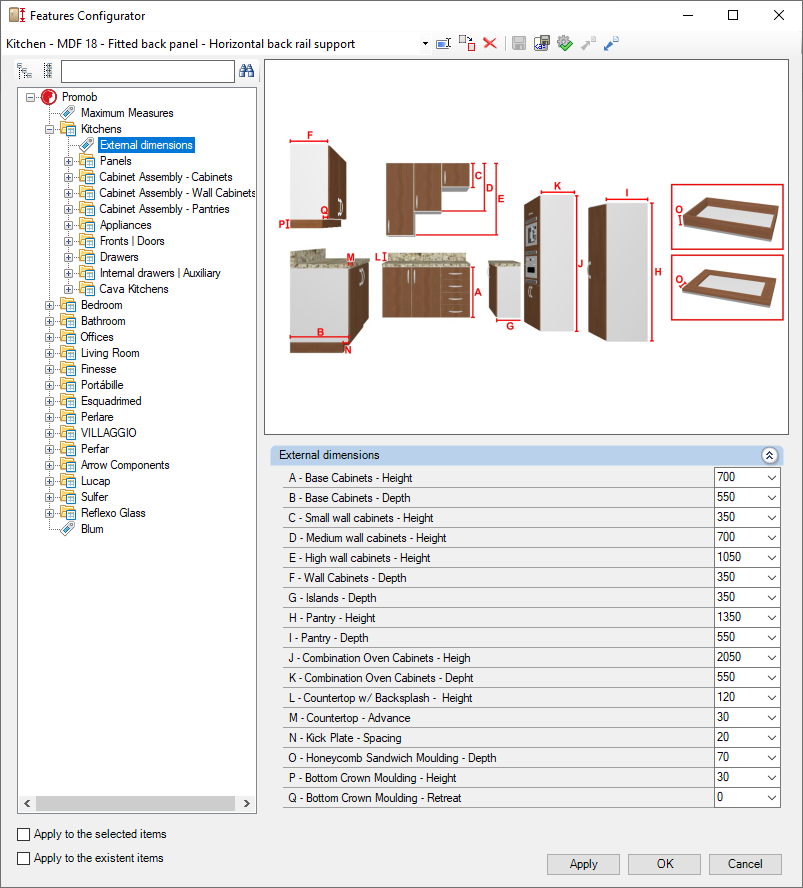

Check below the definitions of each configuration available in Features Configurator - Kitchen - External Dimensions. If necessary, see how to apply dimension settings here.
A – Base Cabinets - Height: Defines the height of the base cabinets of Kitchens.
B – Base Cabinets – Depth: Defines the depth of the base cabinets of Kitchens.

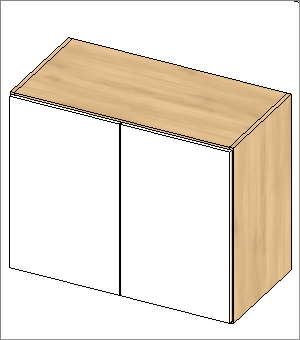

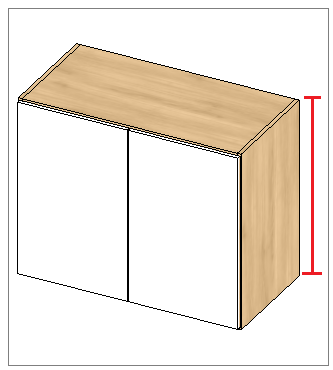

C – Small wall cabinets – Height: Sets the height of the Small wall cabinets of Kitchens.
D – Medium wall cabinets – Height: Defines the height of the Medium wall cabinets of Kitchens.
E – High wall cabinets – Height: Defines the height of the High wall cabinets of Kitchens.

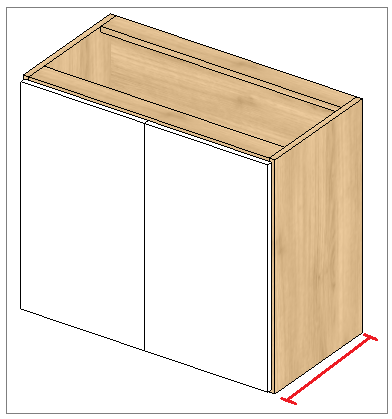

F – Wall Cabinets – Depth: Defines the depth of the Wall Cabinets of Kitchens.
G – Islands – Depth: Defines the depth of the Kitchen islands.
H – Pantry – Height: Defines the height of the Kitchens pantry.
I – Pantry– Depth: Defines the depth of the Kitchens pantry.
J – Combination Oven Cabinets - Height: Defines the height of Kitchen Combination Oven Cabinets.
K – Combination Oven Cabinets - Depth: Defines the depth of Kitchen Combination Oven Cabinets.

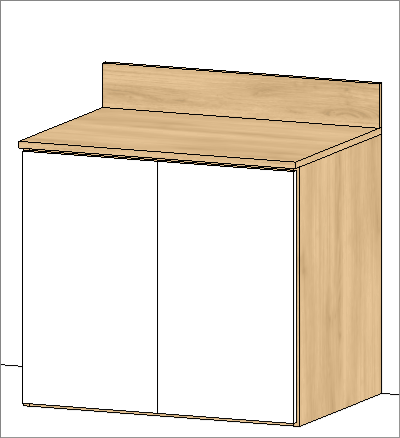

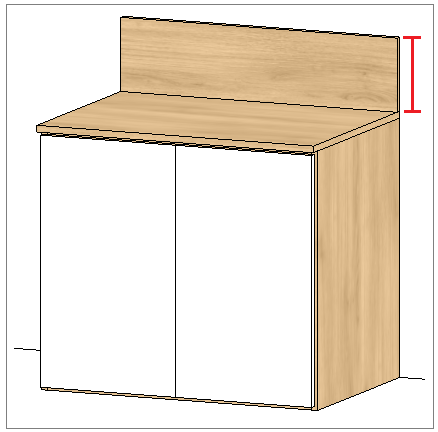

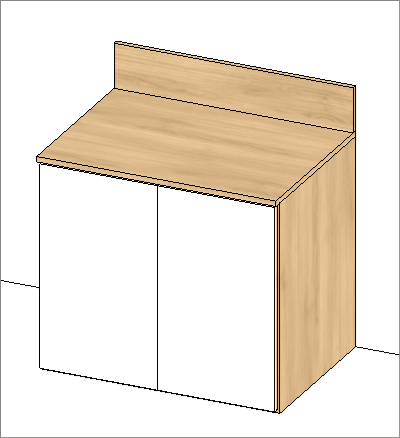

L - Countertop w/ Backsplash - Height: Defines the height of the Countertop w/ Backsplash of the Kitchen modules.

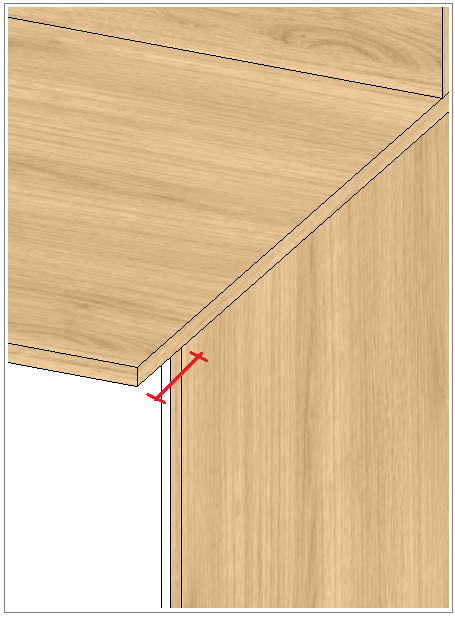

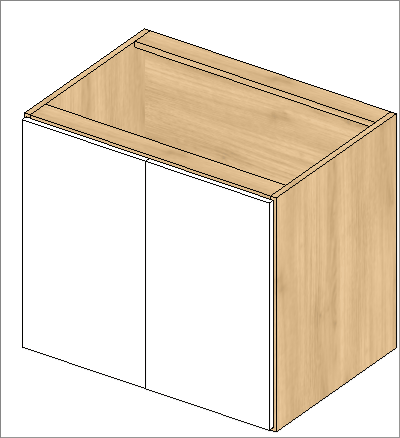

M – Countertop – Advance: Defines the advance value of the countertop over the box of the Kitchen modules. The depth of the countertop is changed according to the configured value.

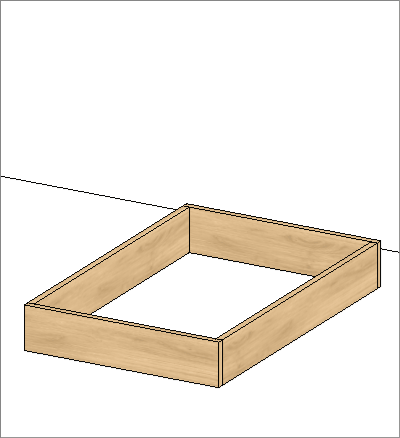

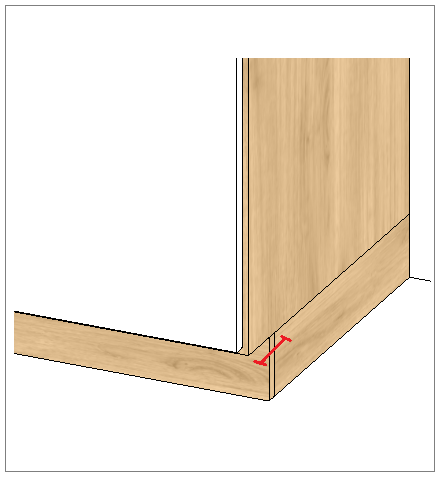

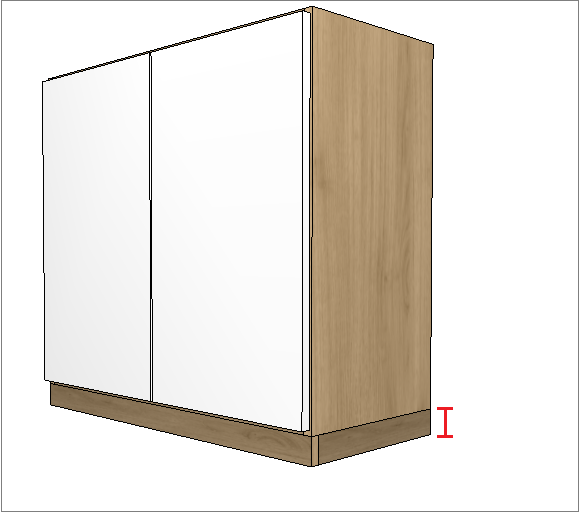

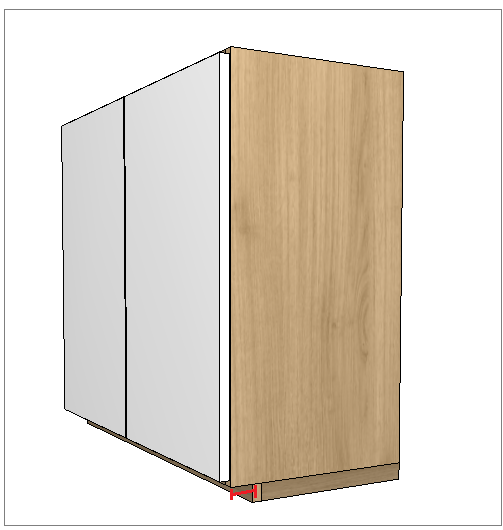

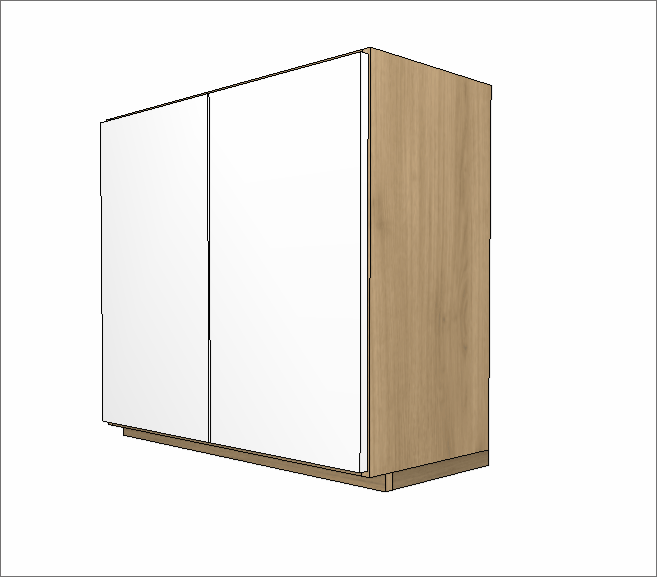

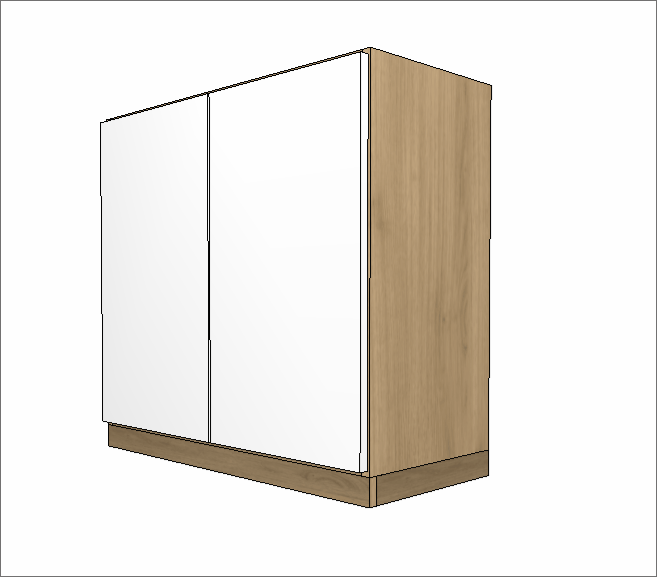

N – Kick Plate – Spacing: Defines the spacing of the kitchen kick plates.

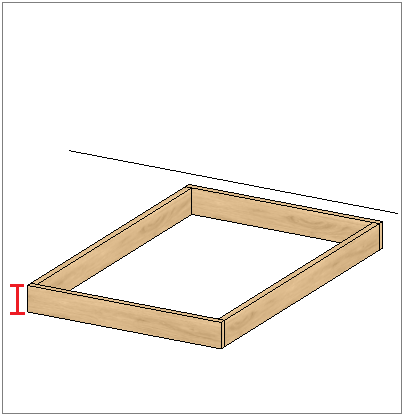

O – Honeycomb Sandwich Moulding – Depth: Sets the depth of the Honeycomb Sandwich Moulding.
P – Bottom Crown Moulding – Height: Defines the height of the bottom crown moulding of the top modules of Kitchens.
Q – Bottom Crown Moulding – Retreat: Defines the retreat of the bottom crown moulding of the top modules of Kitchens.
