Check below, the definitions of each configuration available in Features Configurator - Kitchens - Fronts | doors. If necessary, see here how to apply dimension settings.
Cabinets

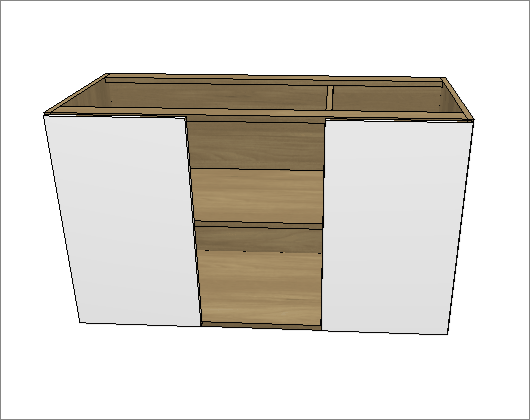

Check below the settings for the kitchen library cabinets:
Cabinets

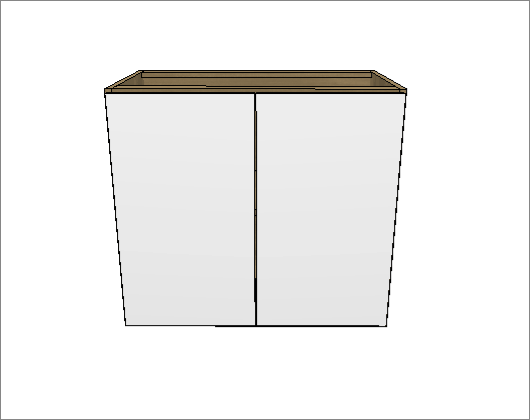

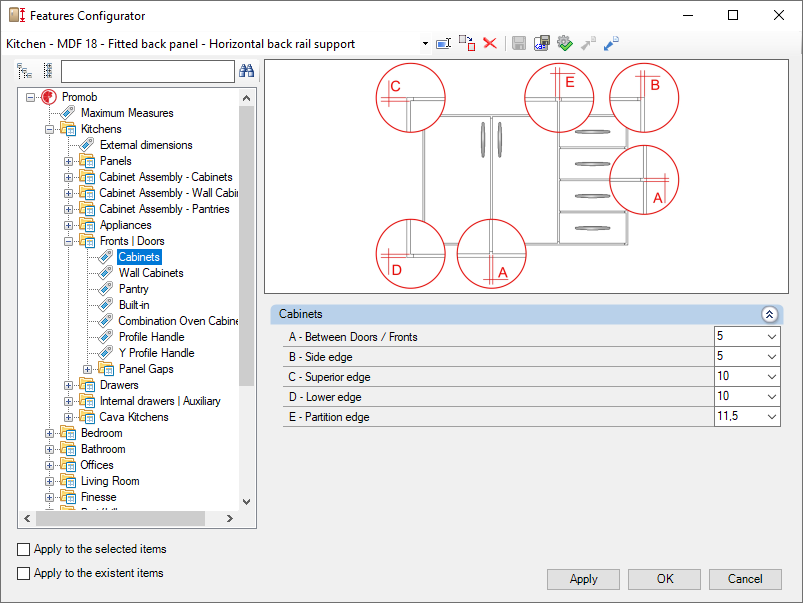

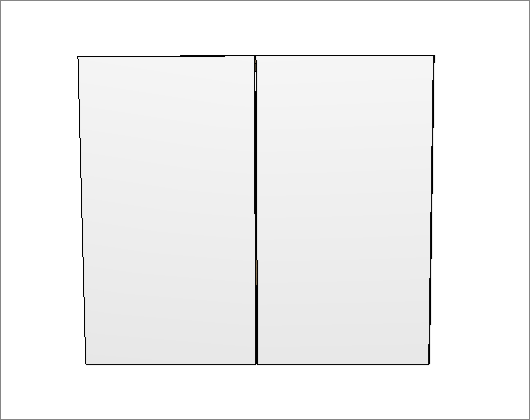

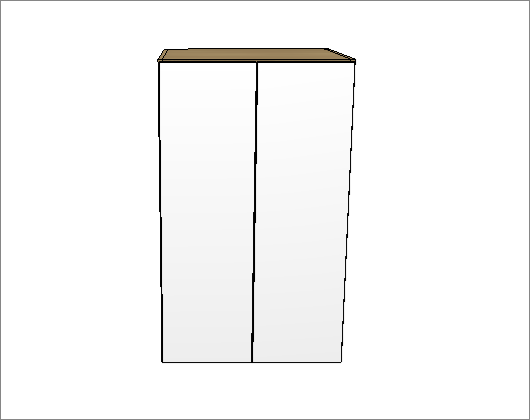

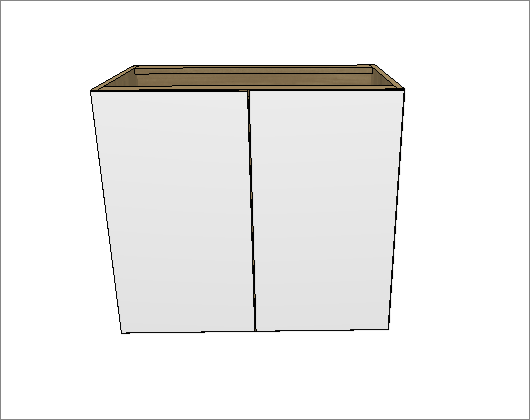

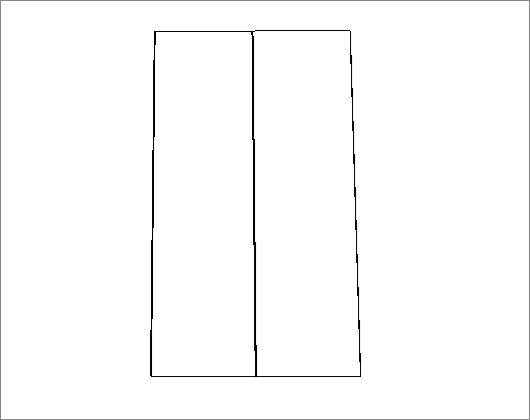

A – Between Doors / Fronts: set the distance between the module's doors.
B – Side Edge: set the side distance between the module and the Door for Base Cabinets.
C – Superior Edge: sets the upper distance between the module and door in Base Cabinets.
D – Lower Edge: defines the bottom distance between the module and door in Base Cabinets.
E – Partition Edge: sets the distance between the door and the opposite edge of the partition.
Wall Cabinets
Check the settings for the wall cabinets of the Kitchens library below:
Wall Cabinets

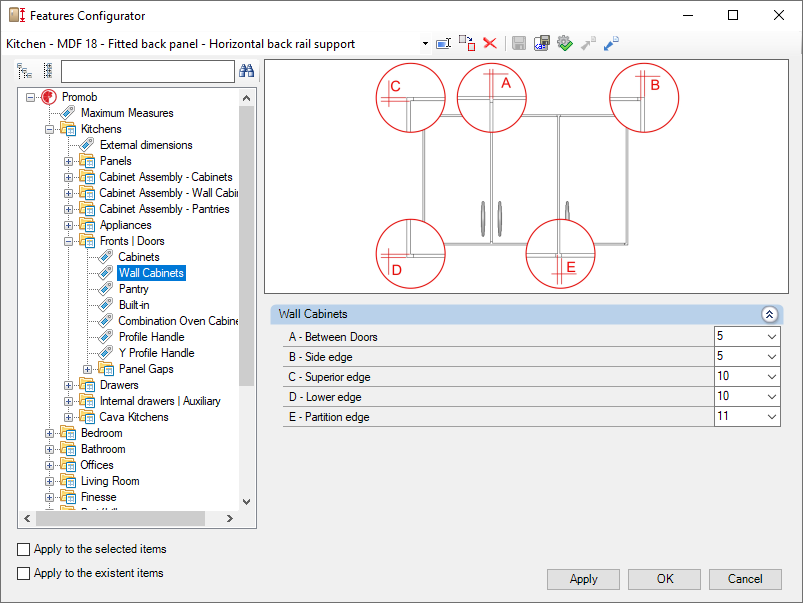

A – Between Doors: set the distance between the module's doors.
B – Side Edge: set the lateral distance between the module and the Door on Wall Cabinets.
C – Superior Edge: sets the upper distance between the module and door in Base Cabinets.
D – Lower Edge: defines the bottom distance between the module and door in Base Cabinets.
E – Partition Edge: sets the distance between the door and the opposite edge of the partition.

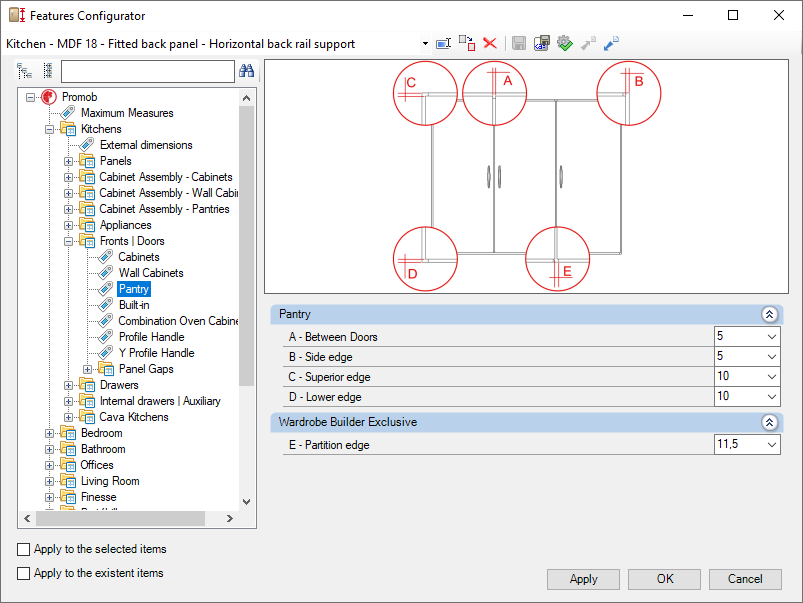

Pantry

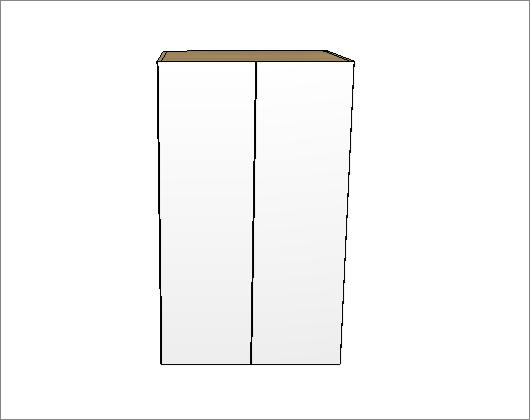

Check below the settings for the pantries of the Kitchens library:
Pantry

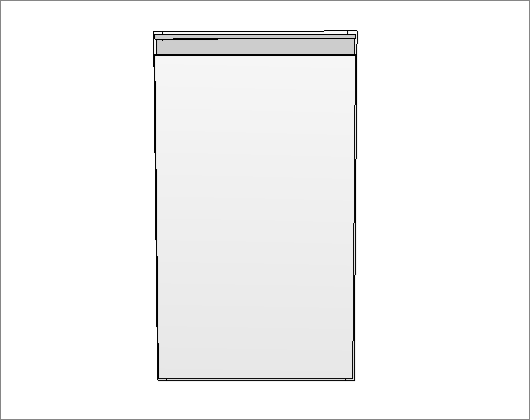

A – Between Doors: set the distance between the doors on Pantries.
B – Side Edge: defines the lateral distance between the module and the Door on Pantries.
C – Superior Edge: defines the upper distance between the module and door in Base Cabinets.
D – Lower Edge: defines the lower distance between the module and the door on Pantries.
Wardrobe Builder Exclusive
E – Partition Edge: sets the distance between the door and the opposite edge of the partition.
Built-in
Check the settings for the built-in Kitchens library below:
Built-in

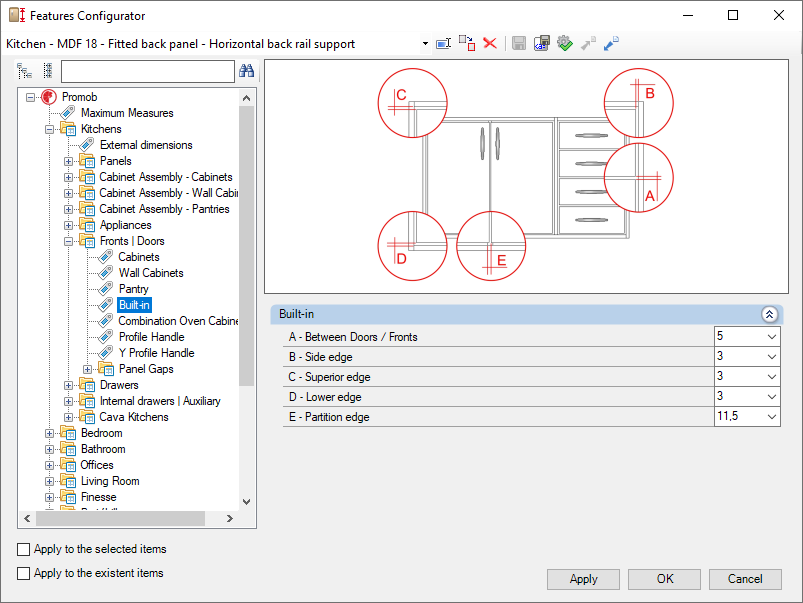

A – Between Doors/Fronts: set the distance between built-in doors on modules.
B – Side Edge: sets the lateral distance between the module and the built-in door.
C – Superior Edge: sets the upper distance between the door and the built-in door.
D – Lower Edge: sets the bottom distance between the door and the built-in door.
E – Partition Edge: sets the distance between the built-in door and the opposed limit of the partition.

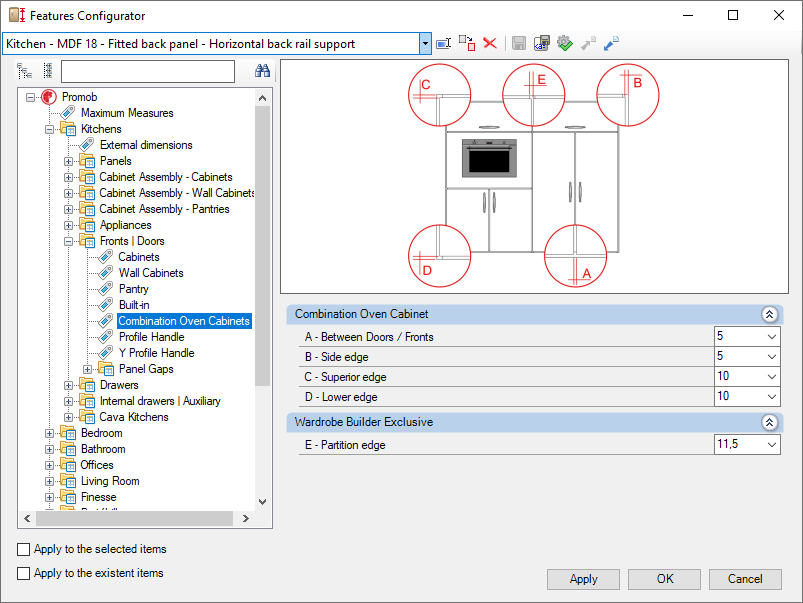

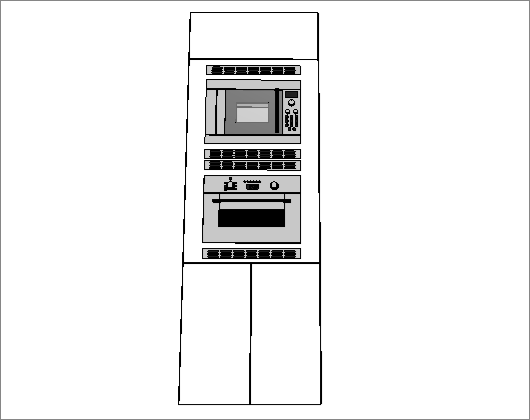

Combination Oven Cabinets
Check the settings for the Combination Oven Cabinets of the Kitchens library below:
Combination Oven Cabinets

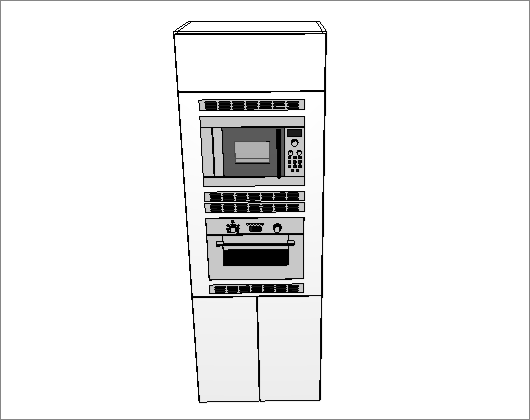

A – Between Doors/Fronts: sets the distance between the doors or panels in the Combination Oven Cabinet modules.
B – Side Edge: sets the distance between the side of the module and Combination Oven Cabinets modules panel.
C – Superior Edge: sets the greater distance between module and panel Combination Oven Cabinets modules.
D – Lower Edge: defines the lower distance between the module and panel Combination Oven Cabinets modules.
Wardrobe Builder Exclusive
E – Partition Edge: sets the distance between the panel and the opposed limit of the partition.

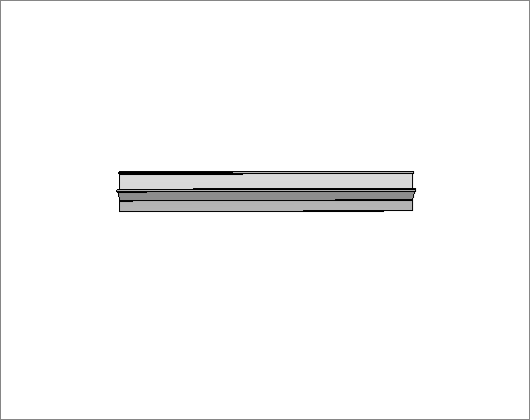

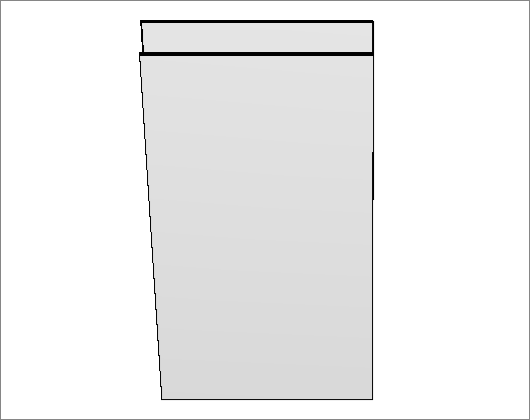

Profile Handle

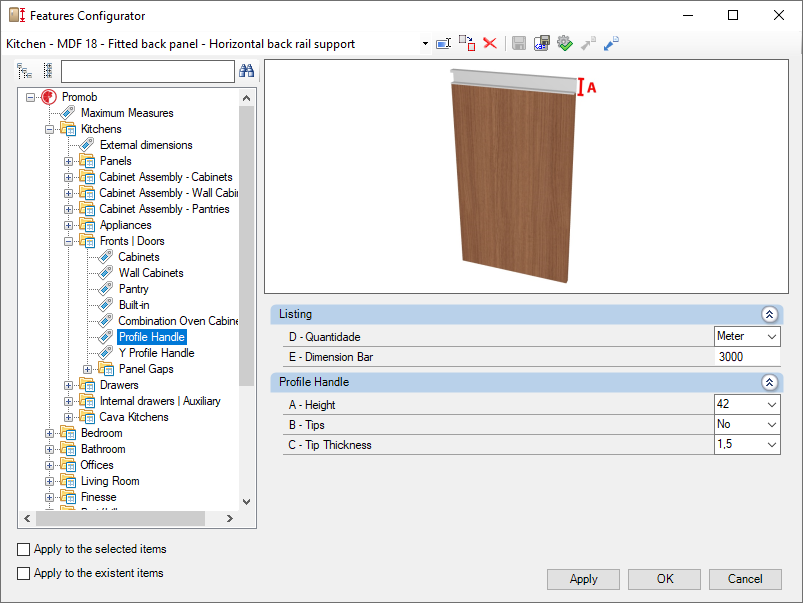

Check the settings for the Profile Handle of the Kitchens library below:
Profile Handle

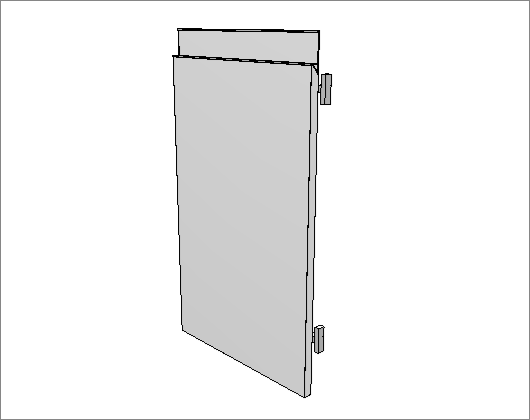

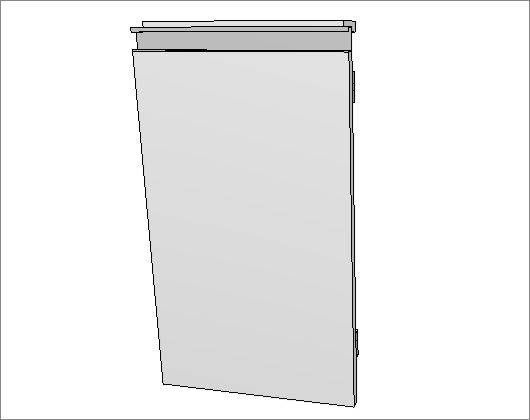

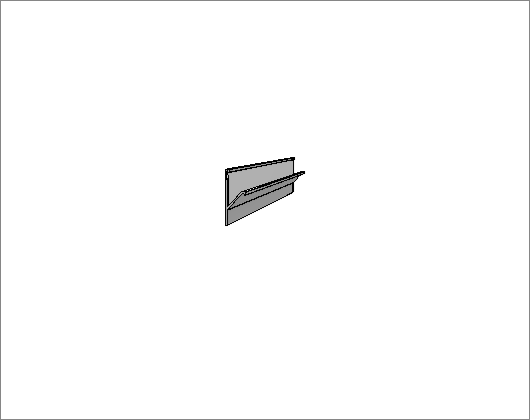

A – Height: sets the height of the profile handles. Changes the height of the door.
B – Tips: sets if the module uses back Cleats or not. If used, determines the direction of it.
C – Tip Thickness: sets the thickness of the tip of the profile handles. Changes the width of the handle.
Listing
D – Quantity: sets profile handle calculation
E – Dimension Bar: sets the length of the aluminum handle bar.

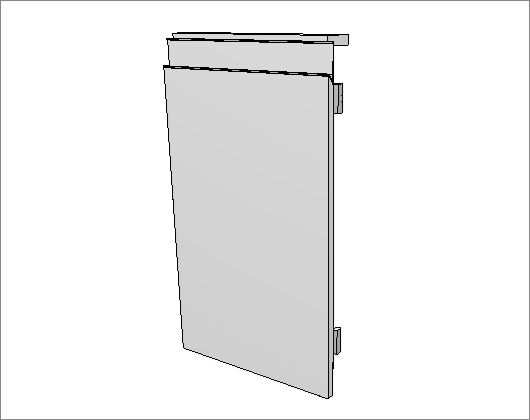

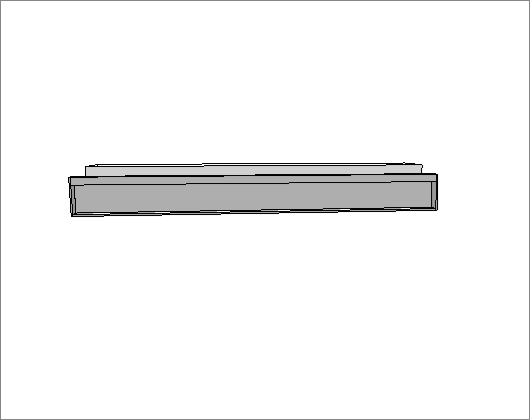

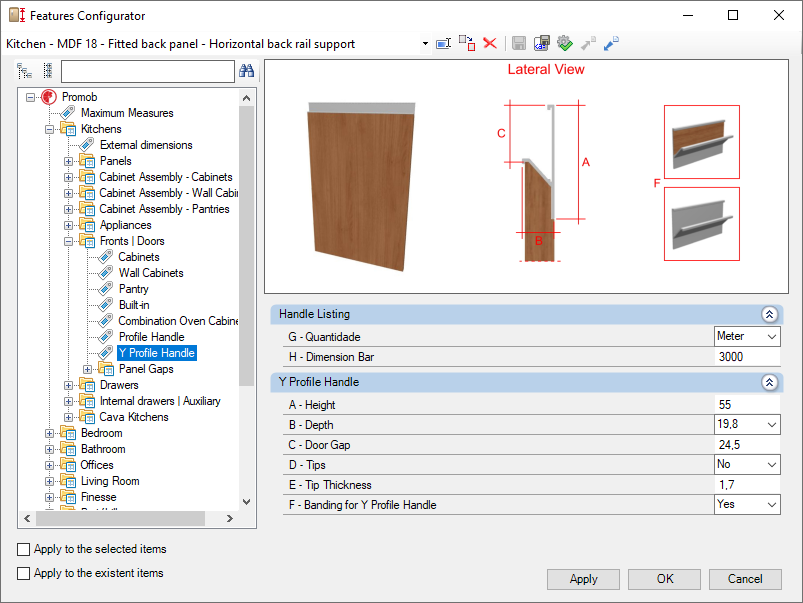

Y Profile Handle
Check the settings for the Y Profile Handle of the Kitchens library below:
Y Profile Handle
A – Height: sets the distance between the module and the beginning of the shelf. Changes the depth of the shelf.
B – Depth: sets the depth of the handle. It is related to the thickness of the door panel.
C – Door Gap: sets the clearance of the door panel in relation to the total height of the door.
D – Tips: sets if the module uses back Cleats or not. If used, determines the direction of it.
E – Tip Thickness: sets the thickness of the tip of the profile handles. Changes the width of the handle.
F – Banding for Y Profile Handle: defines whether to use banding in the profile or not. Does not generate budget.
Handle Listing
D – Quantity: sets profile handle calculation.
E – Dimension Bar: sets the length of the aluminum handle bar.
Panel Gaps

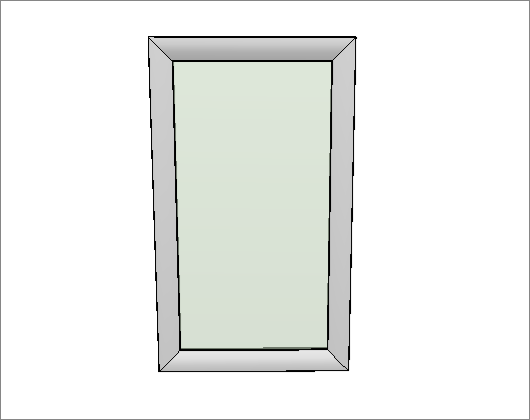

Aluminum Doors

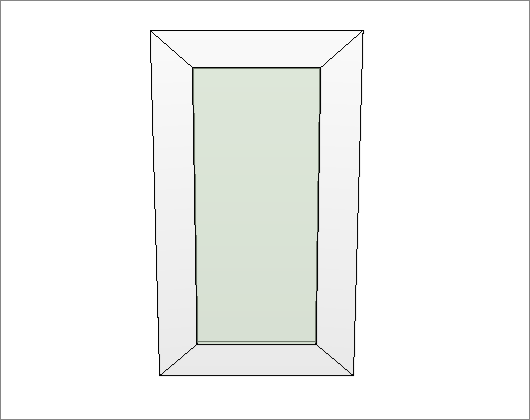

Check below the settings for the aluminum doors of the Kitchens library:

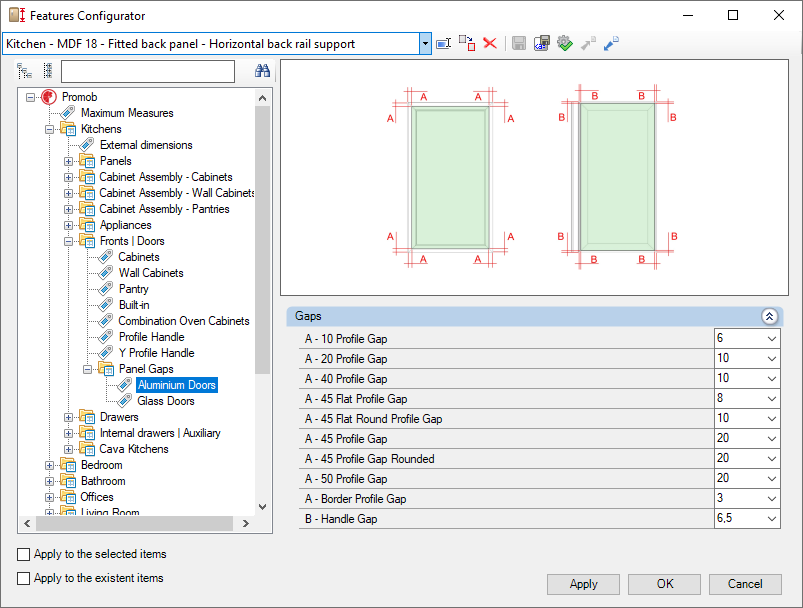

Gaps
A – 10 Profile Gap: defines the 10 aluminum profile gap.
A – 20 Profile Gap: defines the 20 aluminum profile gap.
A – 40 Profile Gap: defines the 40 aluminum profile gap.
A – 45 Profile Gap: defines the 45 aluminum profile gap.

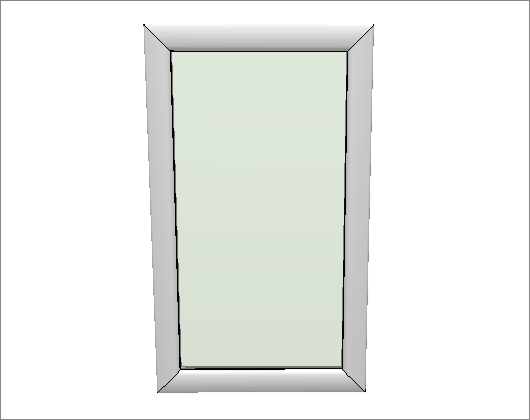

A – 45 Profile Gap Rounded: defines the 45 aluminum profile gap rounded.
A – 45 Flat Profile Gap: defines the 45 aluminum flat profile gap.
A – 45 Flat Round Profile Gap: defines the 45 aluminum flat round profile gap.
A – 50 Profile Gap: defines the 50 aluminum profile gap.
A – Border Profile Gap: defines the border aluminum profile gap.
B – Handle Gap: defines the handle aluminum profile gap.

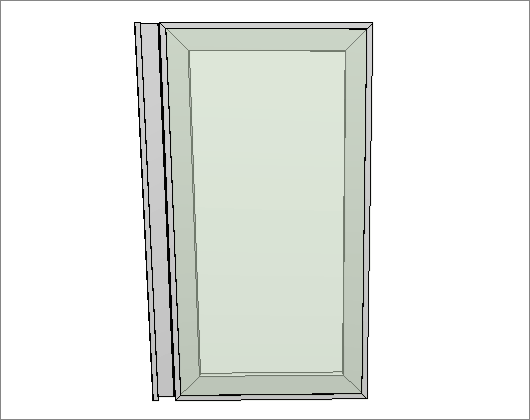

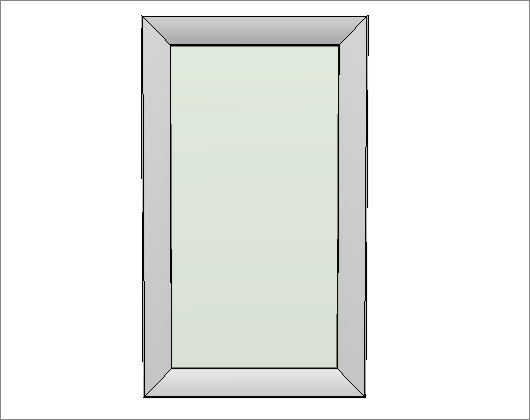

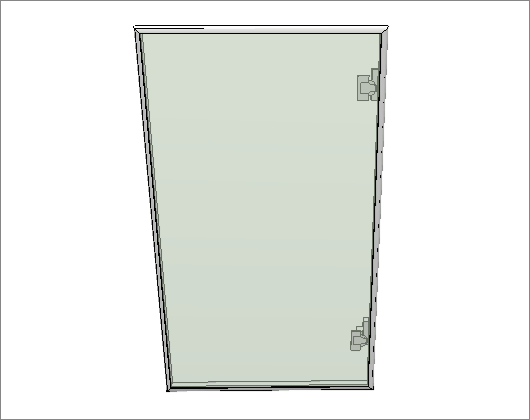

Glass Doors

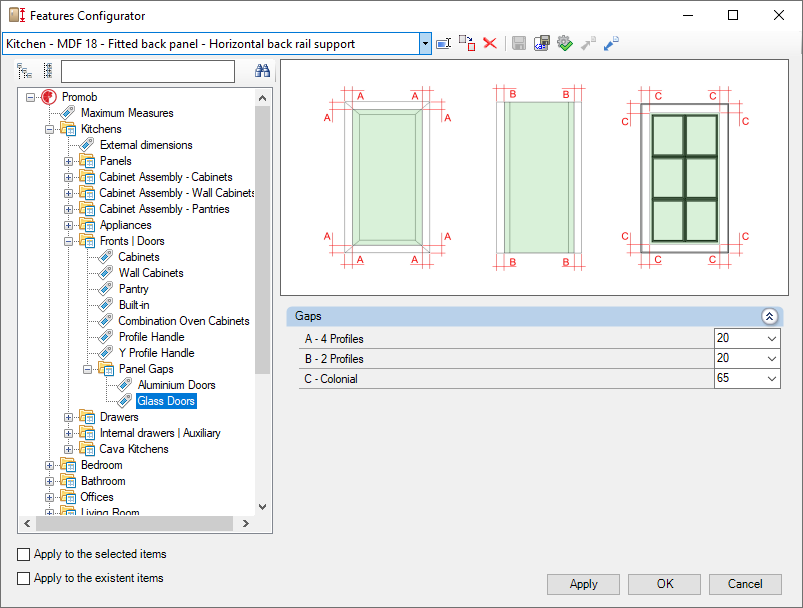

Check below the settings for the glass doors of the Kitchens library:
Gaps

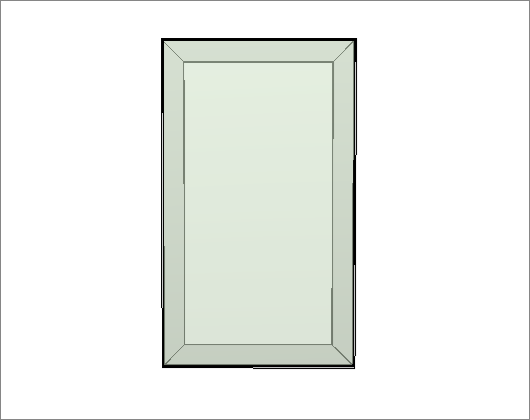

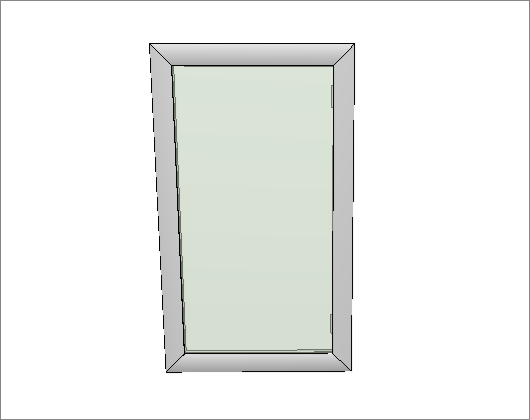

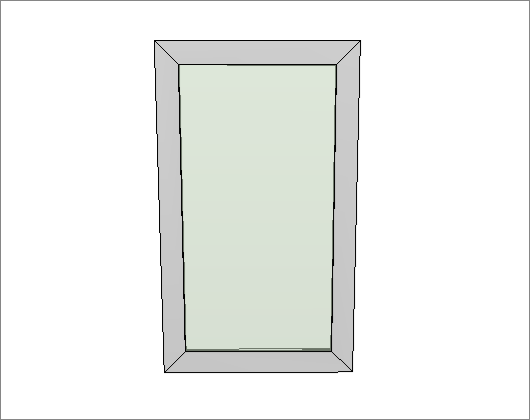

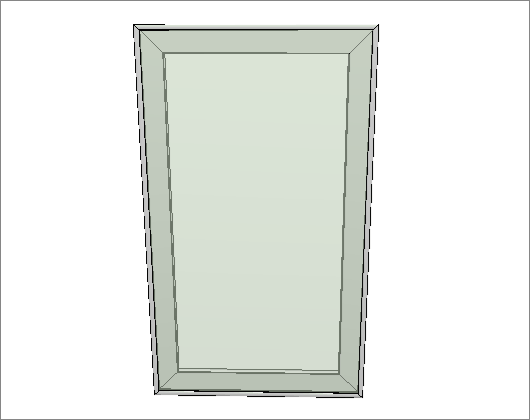

A – 4 Profiles: defines the profile gap on 4 sides.

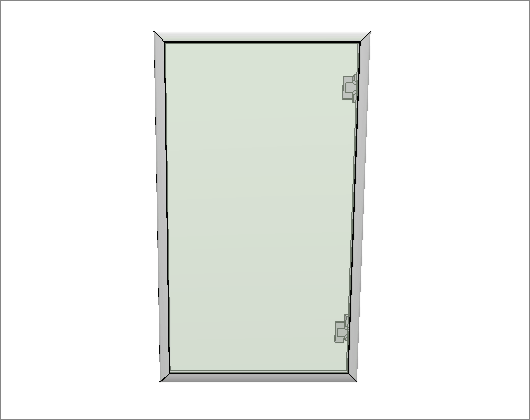

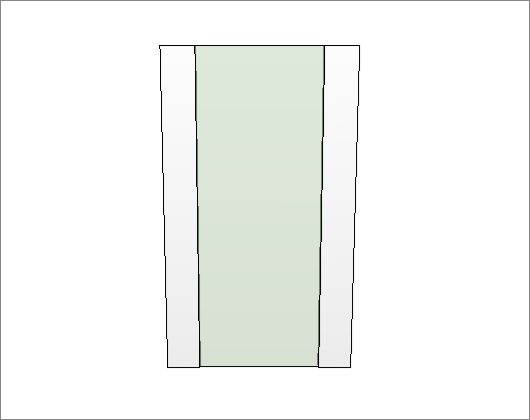

B – 2 Profiles: sets the profile gap on the 2 sides.

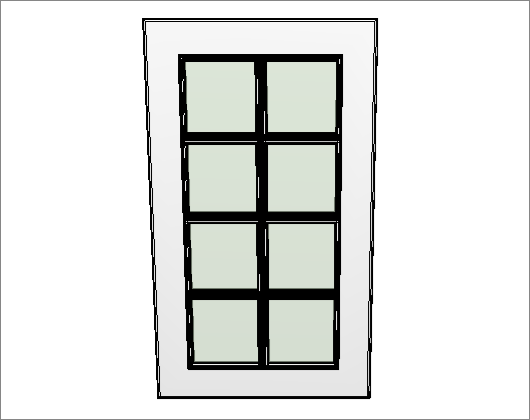

C – Colonial: sets the clearance of the glass. Internal sleepers are not considered.
