This article will cover the following topics:
How to view the opening direction of the doors
How to invert the opening side of the doors
How to view the opening direction of the doors
This function designs the opening direction of the room's doors and windows onto the floor. In addition, it is possible to identify the space needed to open the door, preventing modules from being placed too close together and facilitating the visualization in the floor plan documentation.
To view the opening direction of the doors:

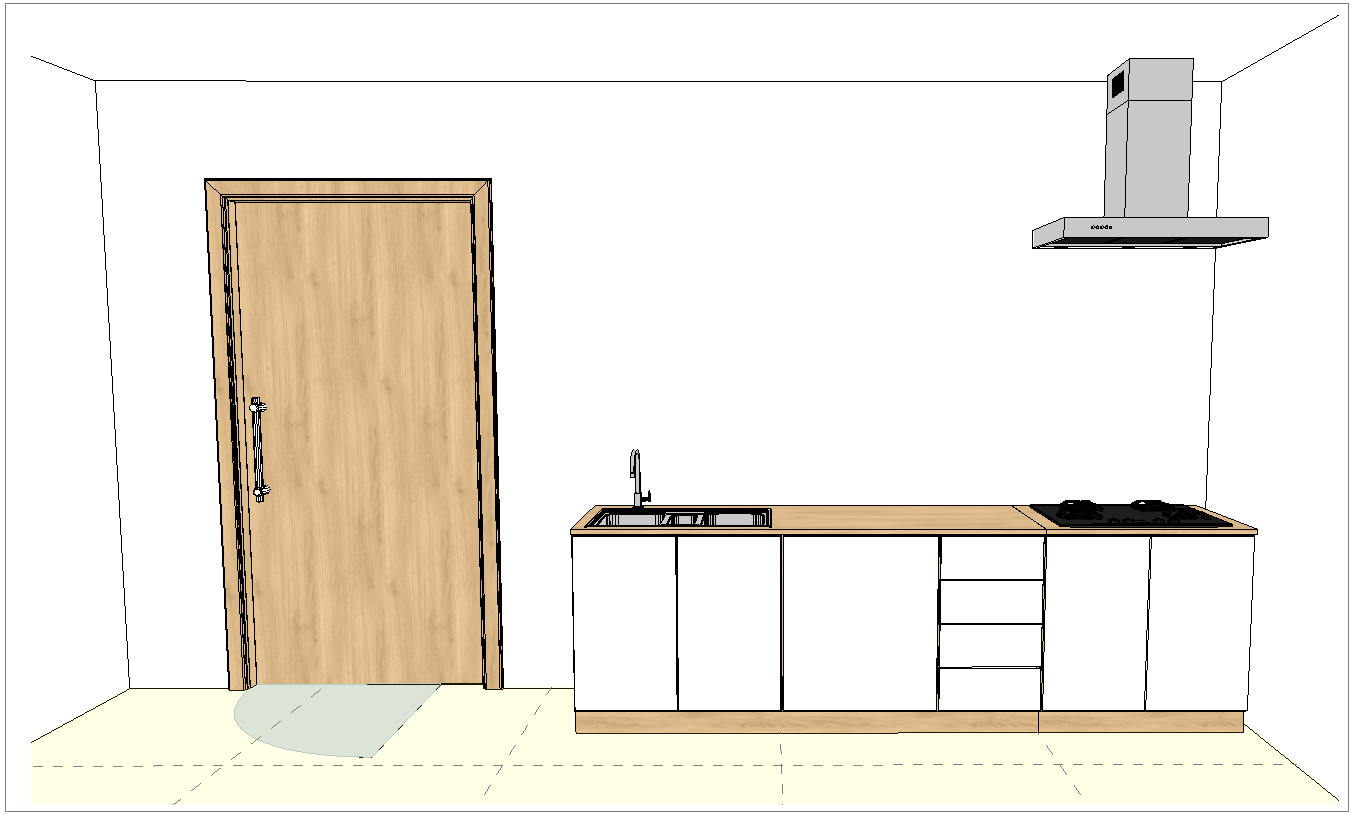

1. After inserting the door into the space, observe the opening projection on the floor;

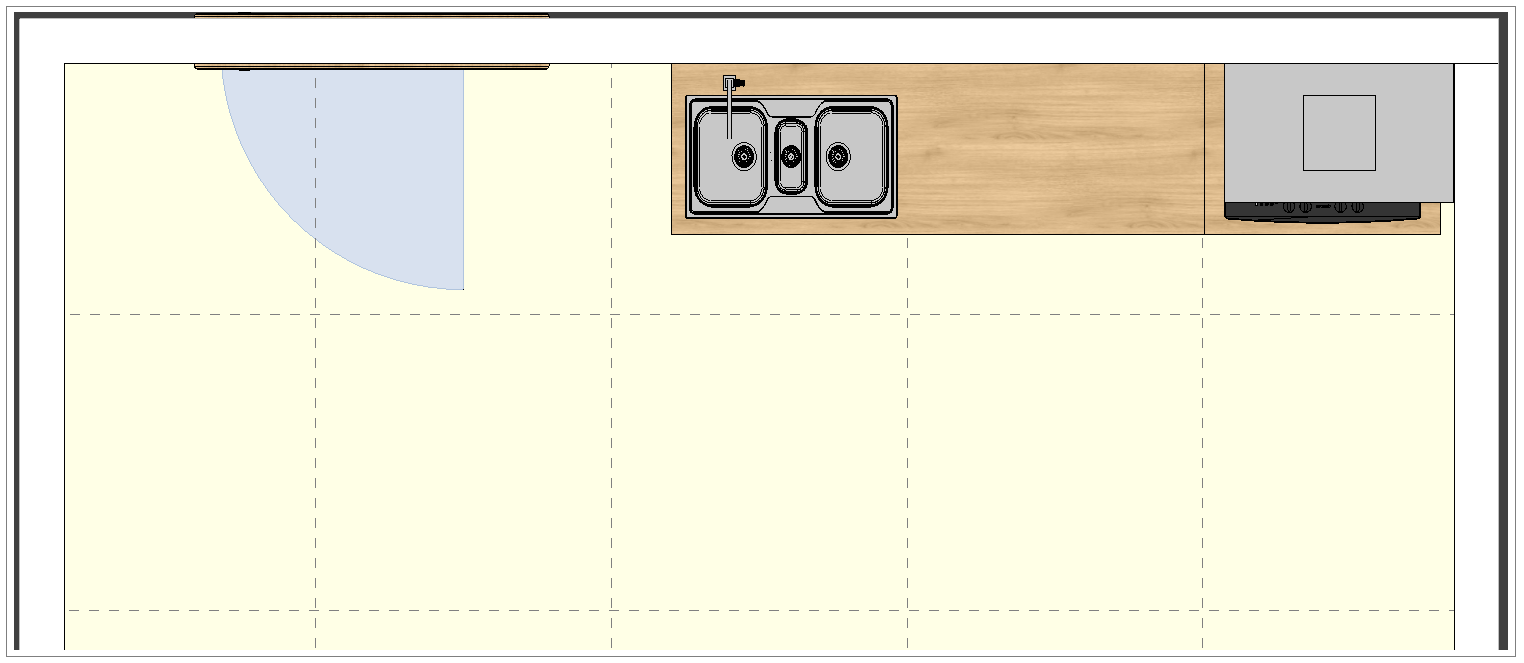

2. The projection of the door opening can also be seen in the ground plan;
3. If you want to disable this option, just turn off the Passages layer.
How to invert the opening side of the doors
The doors of the Decore library, after being inserted in the design space, can have their opening side inverted. To reverse the opening side of the door:

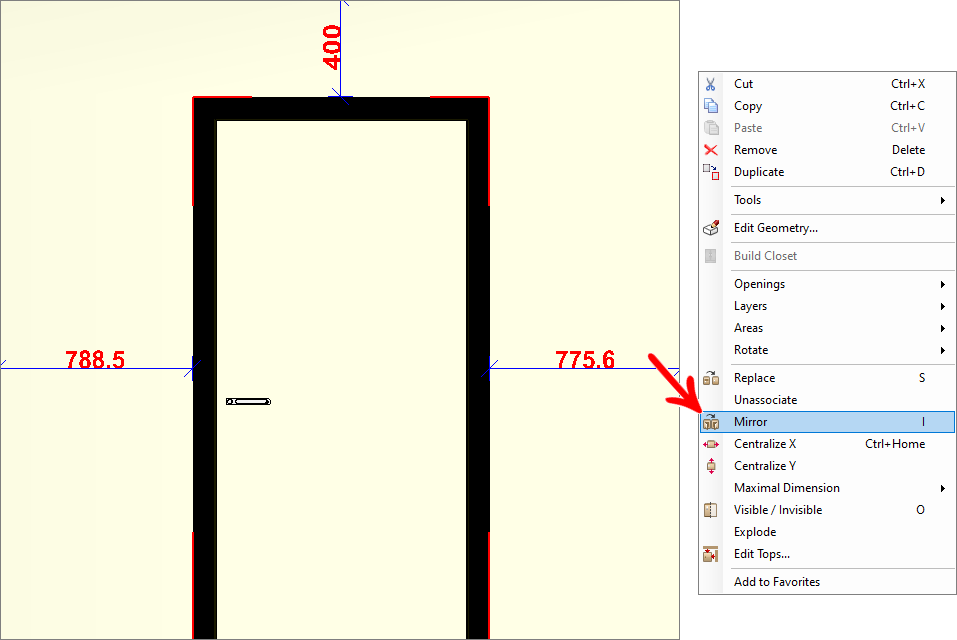

1. Select the port after inserting it into the environment. Press the i hotkey or right-click on the door and select the Mirror option.
