Check below, the definitions of each configuration available in Features Configurator - Kitchens - Internal Drawers | auxiliaries. If necessary, see here how to apply dimension settings.
Side Panel Attach - Front Face
Gaps

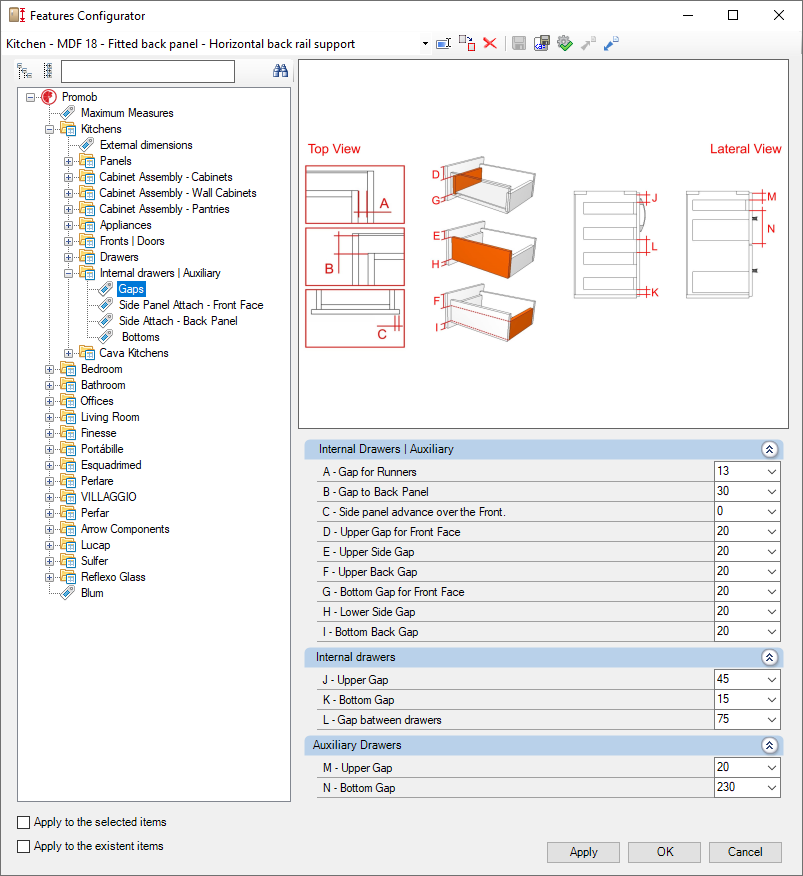

Check the settings for the gaps of the Kitchens library below:
Internal Drawers | Auxiliary
A – Gap for Runners: Sets the lateral spacing between the side panel of the drawer and the side panel of the module. Changes the width of the drawer.
B – Gap to Back Panel: Sets the distance between the back panel of the drawer and the module back panel. Changes the depth of the drawer.
C – Side panel advance over the Front: Sets the advance of the Front over each side panel of the drawer. Changes the width of the Front in the internal drawer.
D – Upper Gap for Front Face: Set the distance between the upper end of the drawer's front and Front Face of the drawer. Changes the height of the Front Face of the drawer.
E – Upper Side Gap: Set the distance between the upper side of the drawer's front and the side of the module. Changes the height of the side panel of the drawer.
F – Upper back Gap: Set the distance between the upper edge of the drawer front and the rear panel of the drawer. Changes the height of the back panel of the drawer box.
G – Bottom Gap for Front Face: Set the distance between the lower end of the drawer's front and Front Face of the drawer. Changes the height of the Front Face of the drawer.
H – Lower Side Gap: Set the distance between the end of the drawer's front and side panel of the module. Changes the height of the side panel of the drawer.
I – Bottom Back Gap: Set the distance between the lower front end of the drawer and the rear panel of the drawer. Changes the height of the back panel of the drawer box.

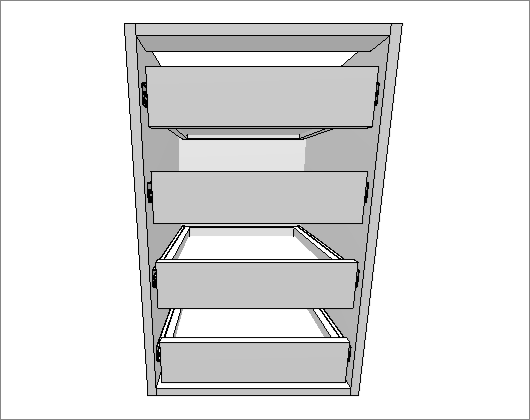

Internal drawers
J – Upper Gap: Sets the distance between the bottom of the Cleats and the drawer.
K – Bottom Gap: Set the distance between the bottom part of the structural panel and the bottom drawer.
L – Gap between drawers: Sets the distance between the drawer's fronts.

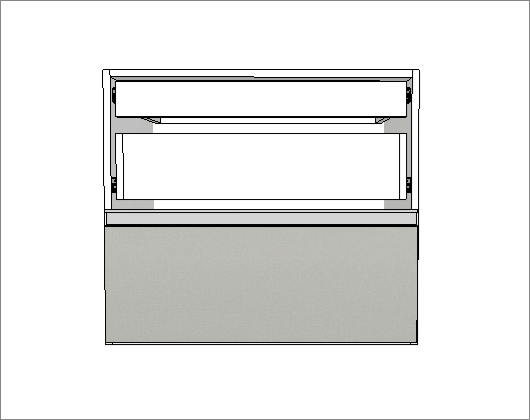

Auxiliary Drawers
M – Upper Gap: Sets the top gap between the drawer and the front.
N – Bottom Gap: Set the distance between the bottom part of the structural panel and the bottom drawer.

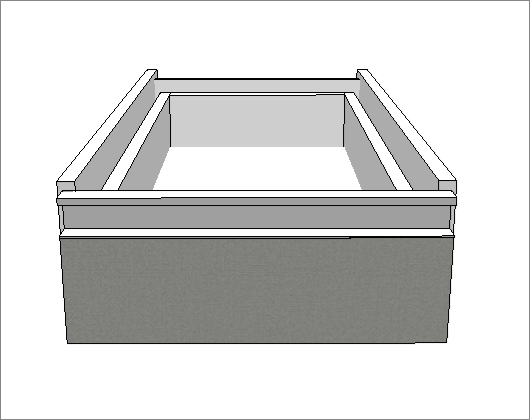

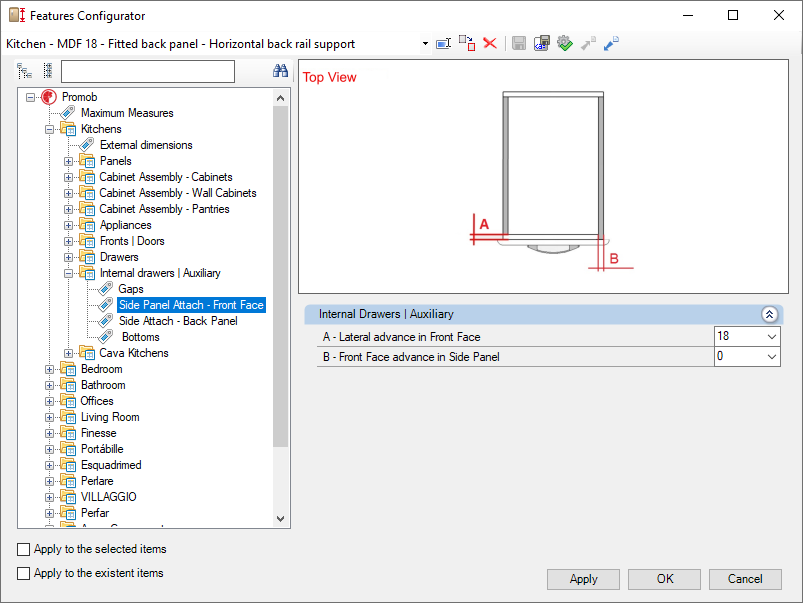

Side Panel Attach - Front Face
Check the settings for the Side Panel Attach - Front Face of the Kitchens library below:
Internal Drawers | Auxiliary

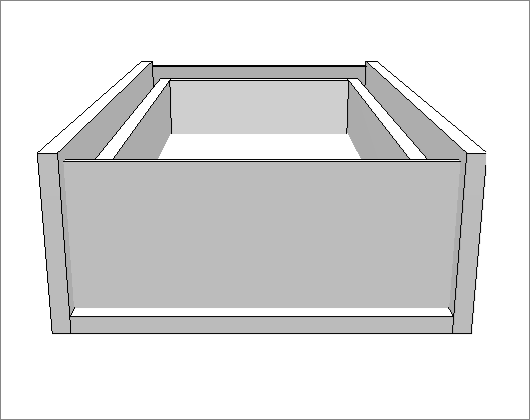

A – Lateral advance in Front Face: Define how much the side panel advances in the drawer's Front Face.
B – Front Face advance in Side Panel: Defines how much the Front Face advances in the Side Panel.

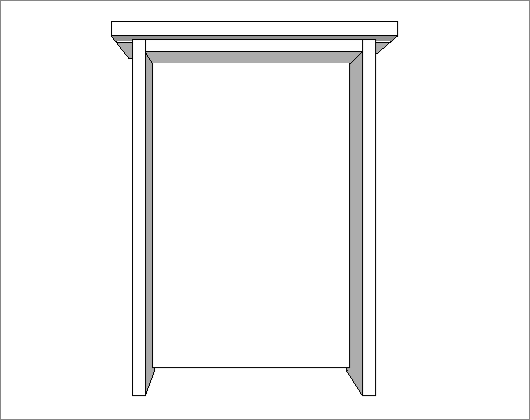

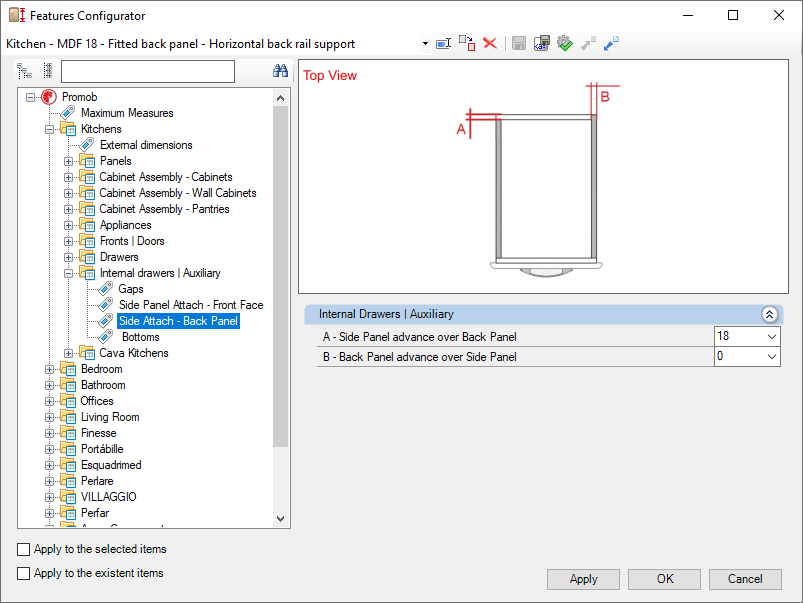

Side Attach - Back Panel
Check the settings for the Side Attach - Back Panel of the Kitchens library below:
Internal Drawers | Auxiliary

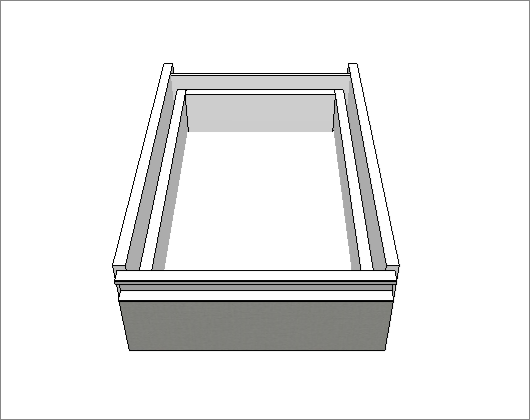

A – Side Panel advance over Back Panel: Defines how much the Side Panel advances over the Back Panel of the drawer.
B – Back Panel advance over Side Panel: Defines how much the Back Panel advances over te Side Panel of the drawer.

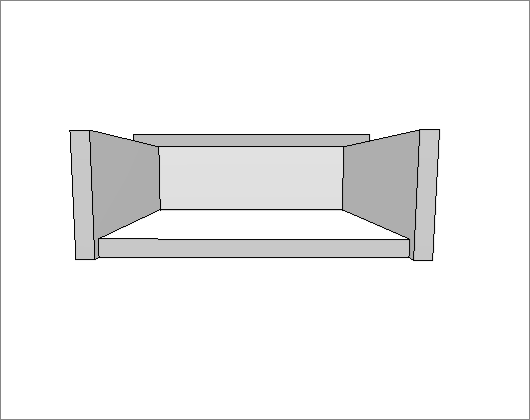

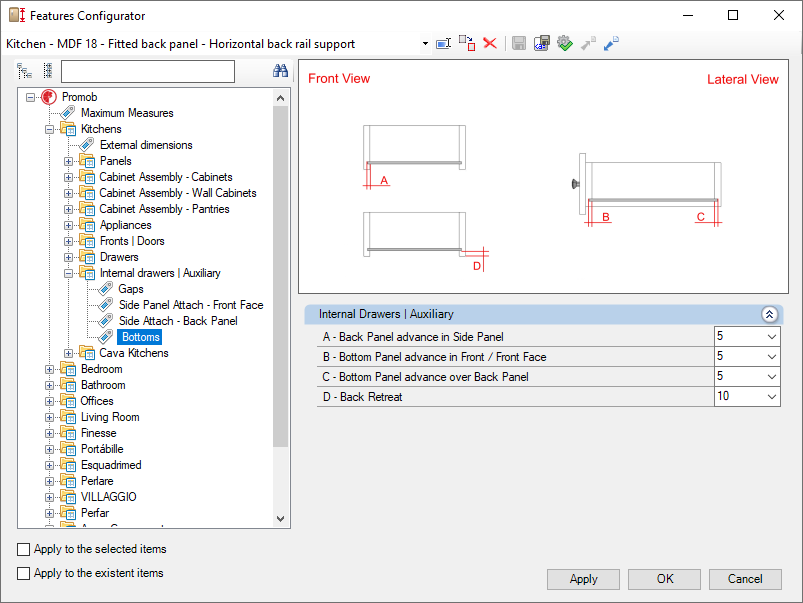

Bottoms

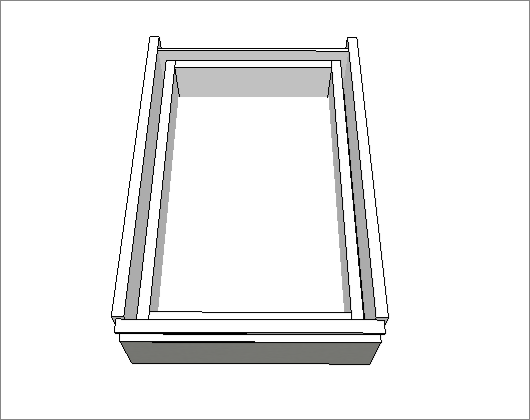

Check the settings for the Bottoms of the Kitchens library below:
Internal Drawers | Auxiliary

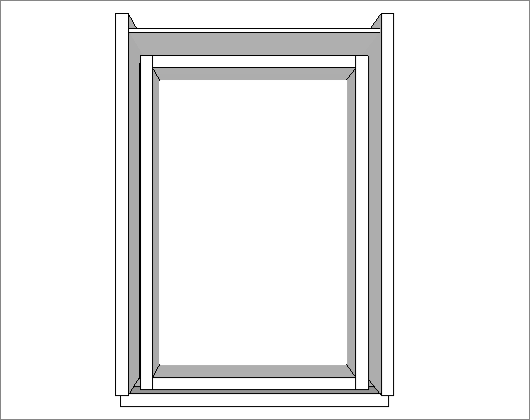

A – Back Panel advance in Side Panel: Defines how much the Back Panel advances in Side Panel on each side of the drawer.
B – Bottom Panel advance in Front / Front Face: Defines how much the Bottom Panel advances in the Front Face of the drawer.
C – Bottom Panel advance over Back Panel: Defines how much the Bottom Panel advances on the back of the drawer.
D – Back Retreat: Sets the displacement value of the bottom of the drawer.
