Check below, the settings of each configuration available in Features Configurator - Kitchens - Cava Kitchens. If necessary, see here how to apply the dimension settings.

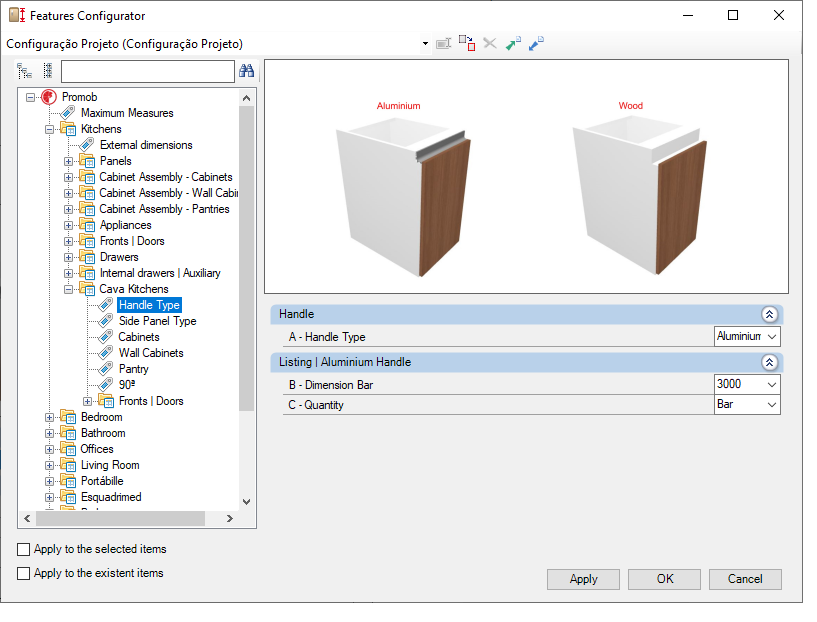

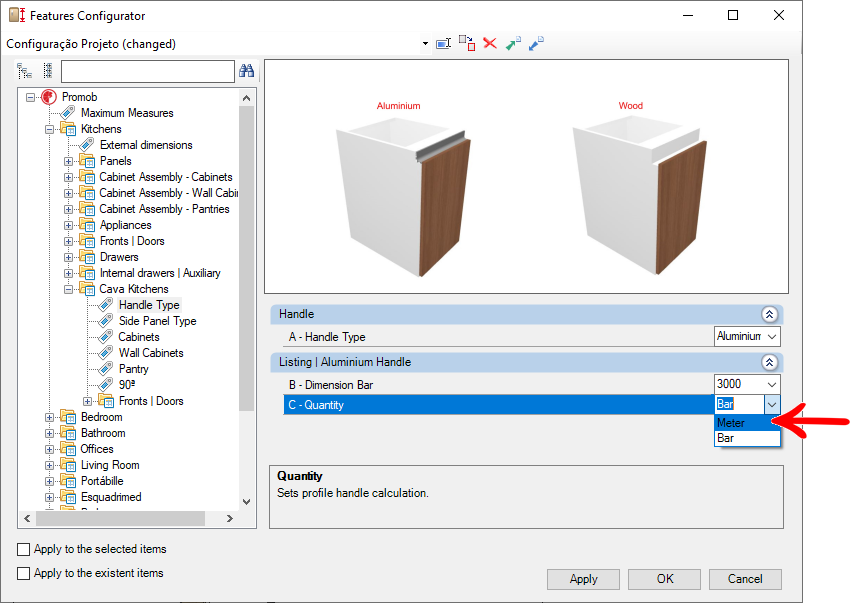

Handle Type

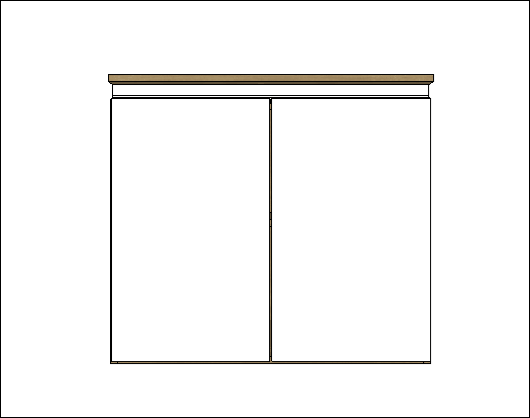

Handle
A - Handle Type: defines the type the Handle to be used.
Listing | Aluminium Handle
B - Dimension Bar: sets the length of the aluminium handle bar.
C - Quantity: sets profile handle calculation.

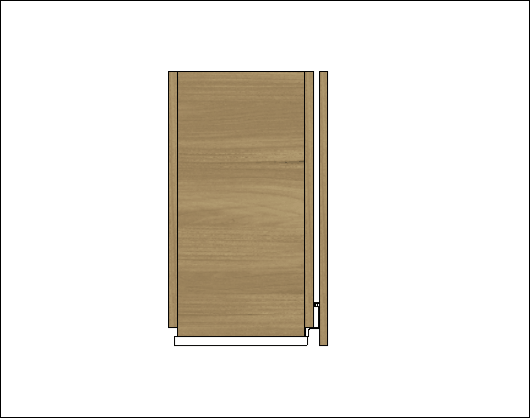

Side Panel Type

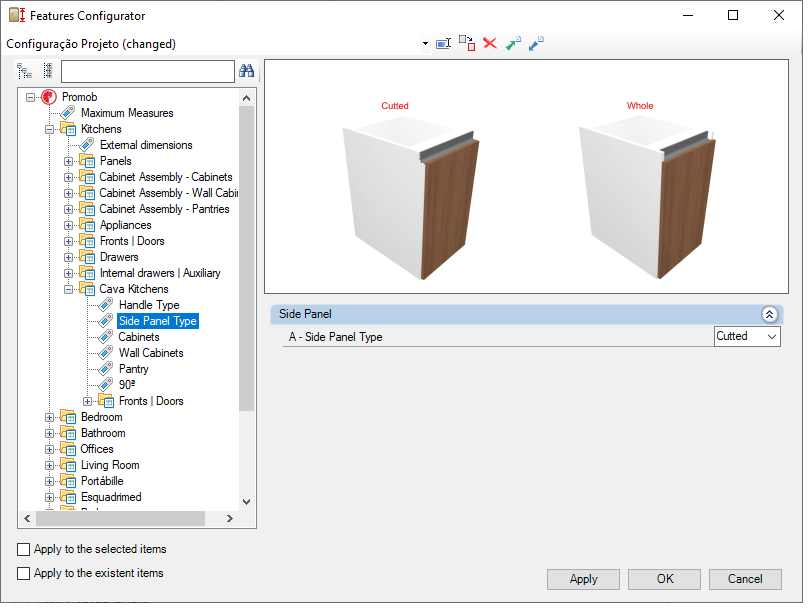

Side Panel

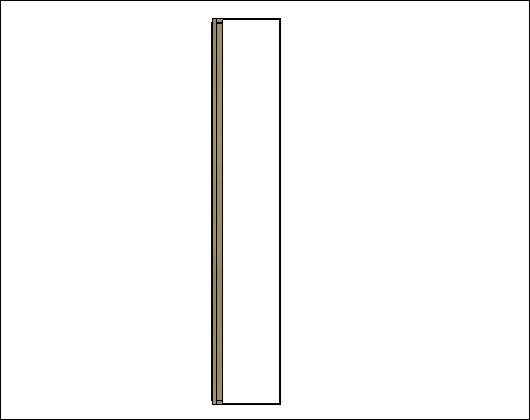

A - Side Panel Type: defines the type on the handle to be used.

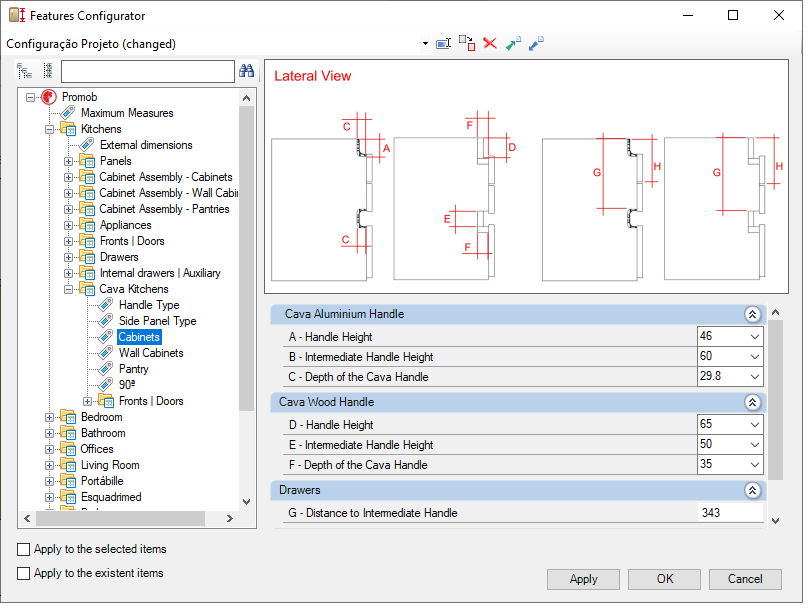

Cabinets

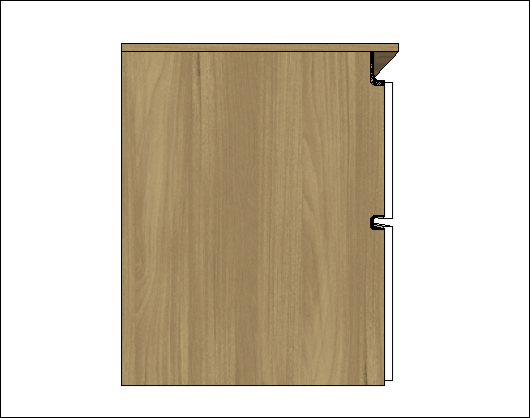

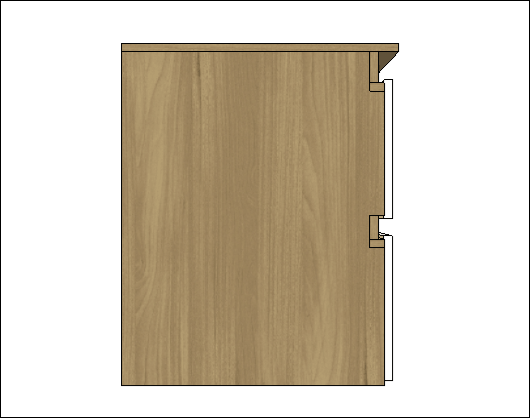

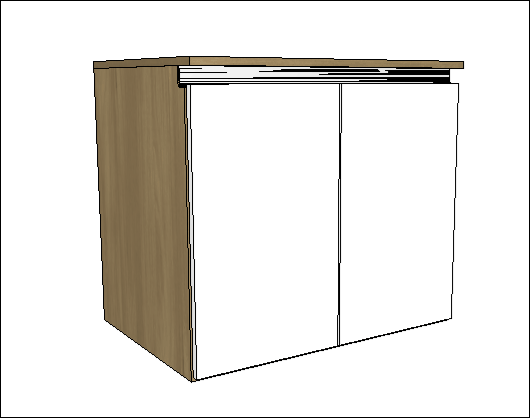

Cava Aluminium Handle
A - Handle Height: set the distance between the module and the beginning of the shelf. Changes the depth of the self.
B - Intermediate Handle Height: set the height of the Intermediate.
C - Depth of the Cava Handle: sets the depth of the Cava Handle.

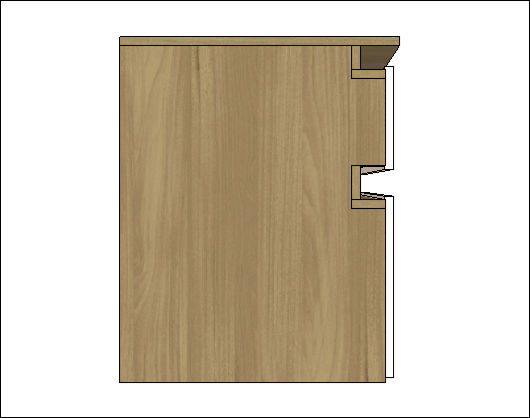

Cava Wood Handle
D - Handle Height: set the distance between the module and the beginning of the shelf. Changes the depth of the shelf.
E - Intermediate Handle Height: sets the height of the Intermediate Handle.
F - Depth of the Cava Handle: sets the depth of the Cava Handle.

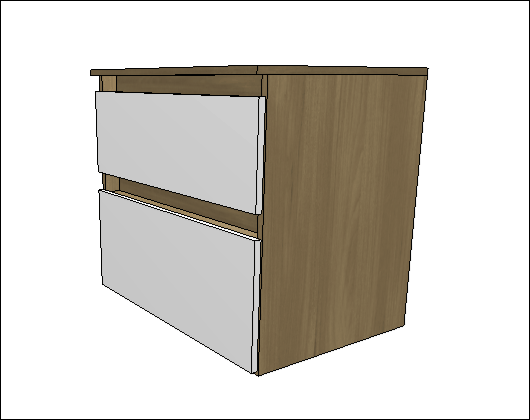

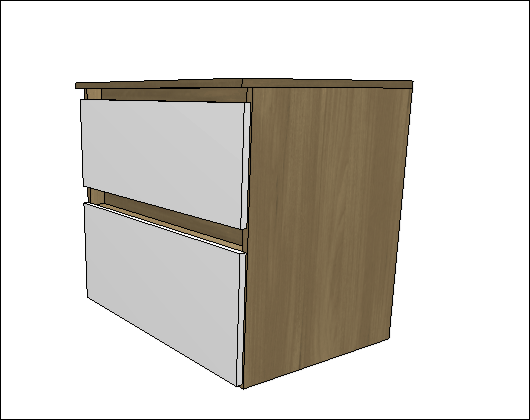

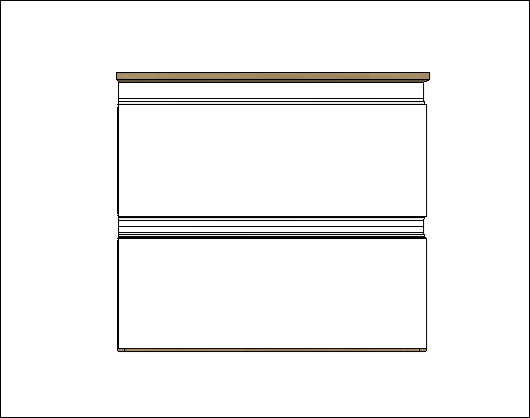

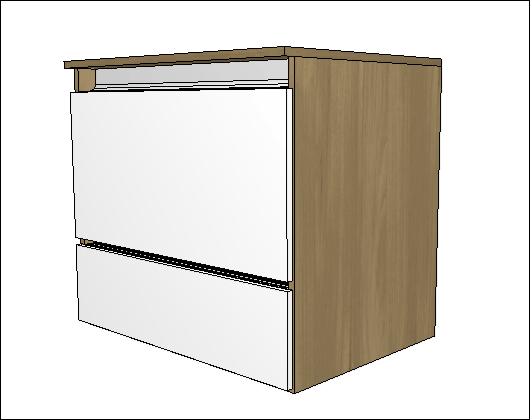

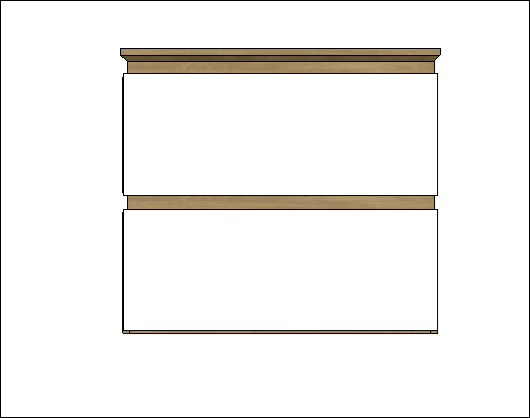

Drawers
G - Distance to Intermediate Handle: set the distance between the height of the module to the Intermediate Handle.
Module 1D + 2TD
H - 1ª Drawer Height: sets the height betwrrn the base of the first drawer to top of module.

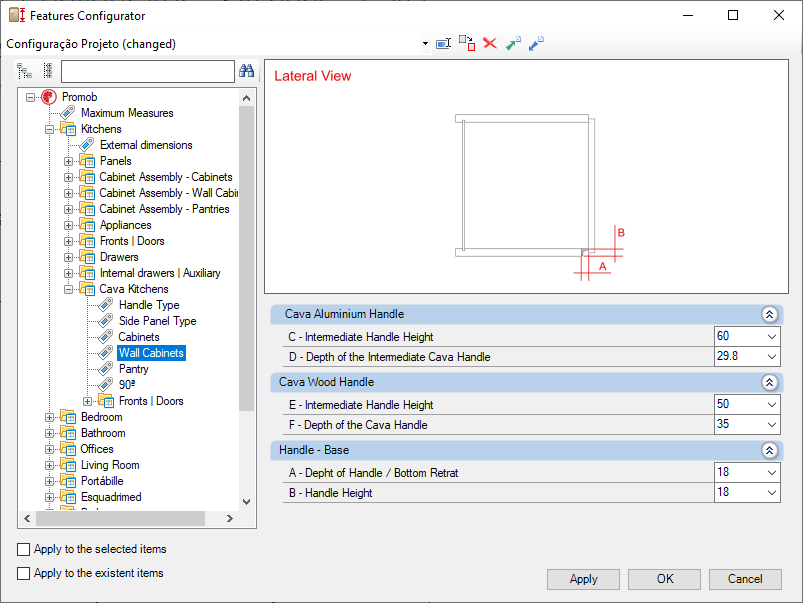

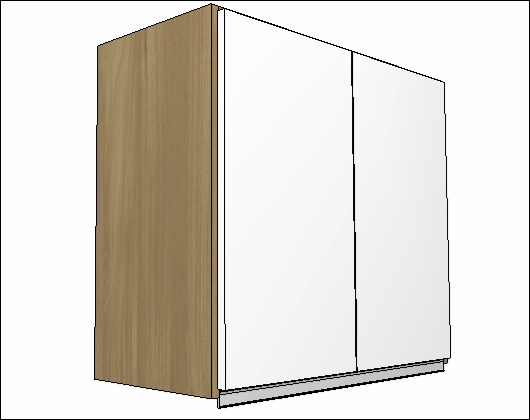

Wall Cabinets
Cava Aluminium Handle
C - Intermediate Height: sets the height of the Intermediate Handle.
D - Depth of the Intermediate Cava Handle: sets the depth of the Cava Handle.
Cava Wood Handle
E - Intermediate Handle Height: sets the height of the Intermediate Handle.
F - Depth of the Cava Handle: sets the depht of the Cava Handle.

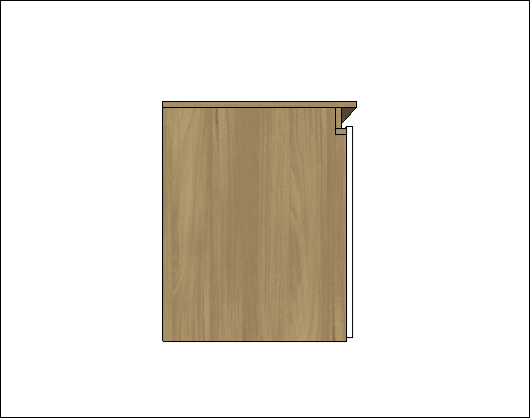

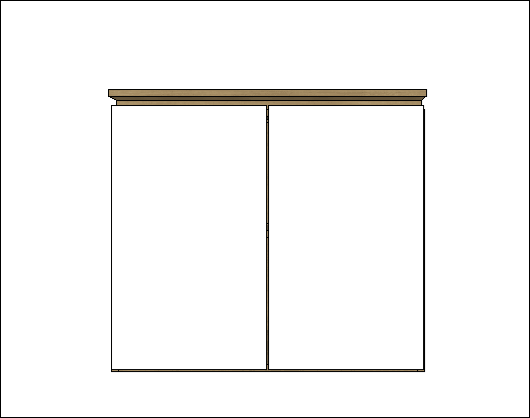

Handle - Base
A - Depht of Handle / Bottom Retrat: sets the depht of the Handle when Aluminium Handle is used os sets the Retreat of the Base when Wood Handle is used.
B - Handle Height: set the distance between the module and the beginning of the self. Changes the depth of the self.

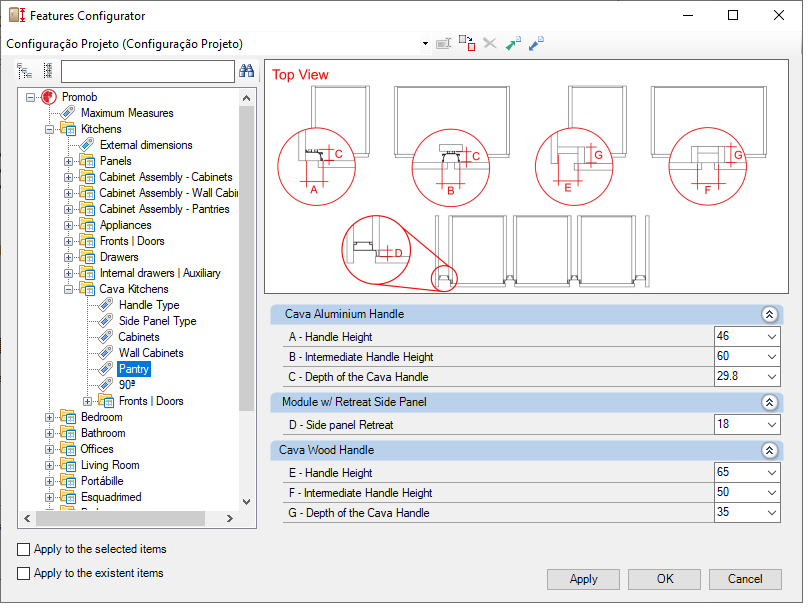

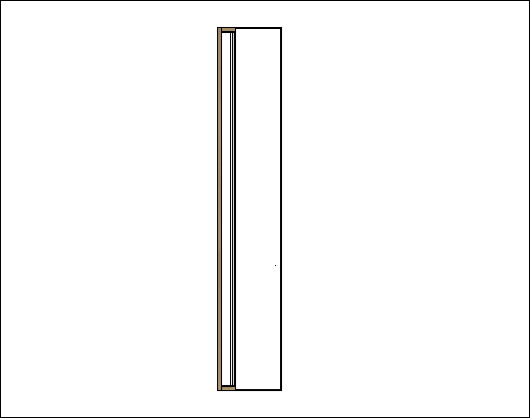

Pantry
Cava Aluminium Handle
A - Handle Height: set the distance between the module and beginning of the shelf. Changes the depht of the shelf.
B - Intermediate Handle Height: sets the height of the Intermediate Handle.
C - Depht of the Cava Handle: sets the depht of the Cava Handle.

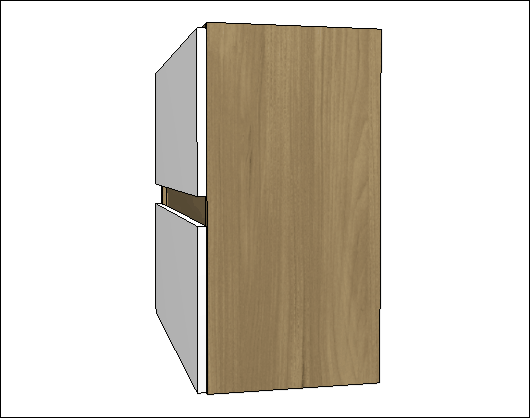

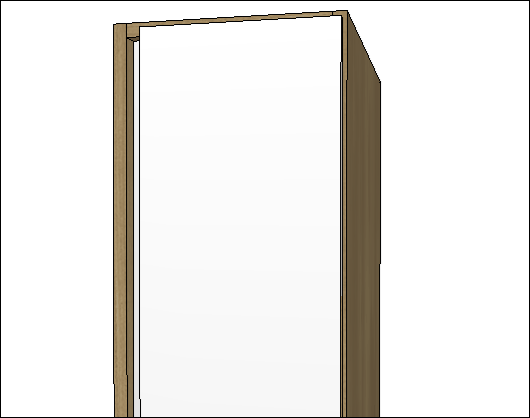

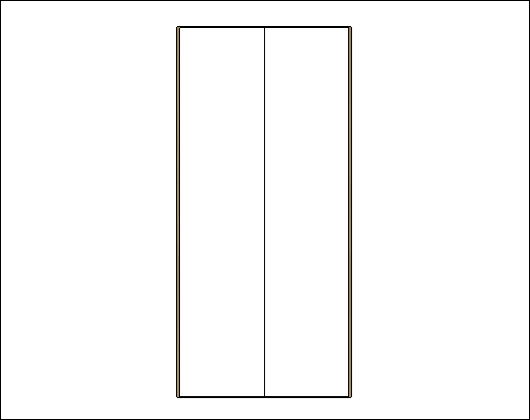

Module w/ Retreat Side Panel
D - Side panel Retreat: sets the depht of the Cava Handle.
Cava Wood Handle
E - Handle Height: set the distance between the module and the beginning of the shelf. changes the depht of the shelf.

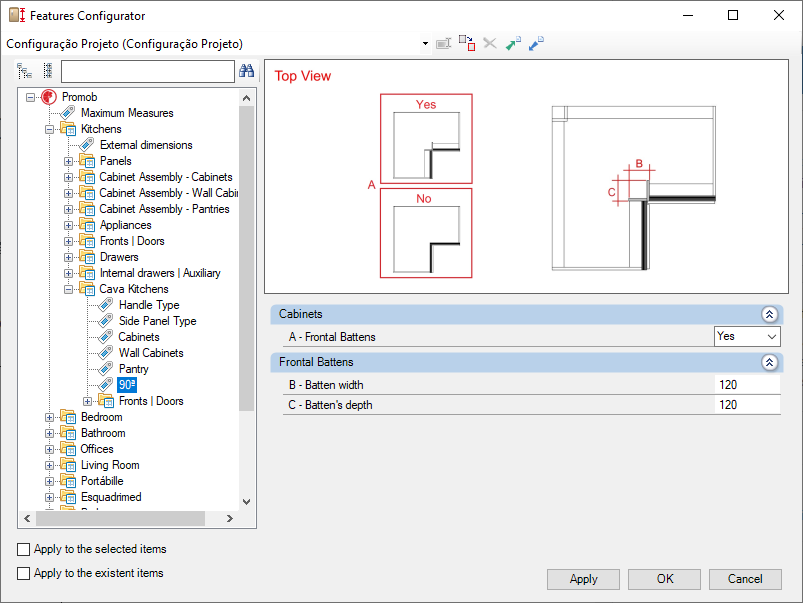

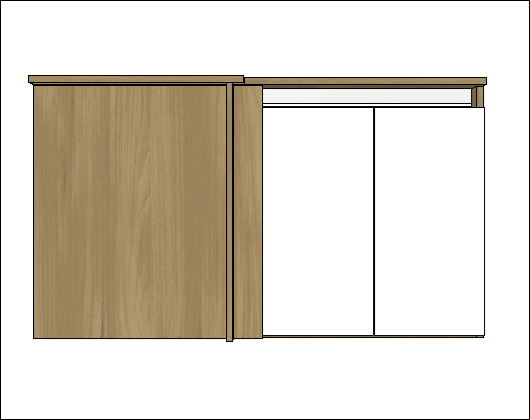

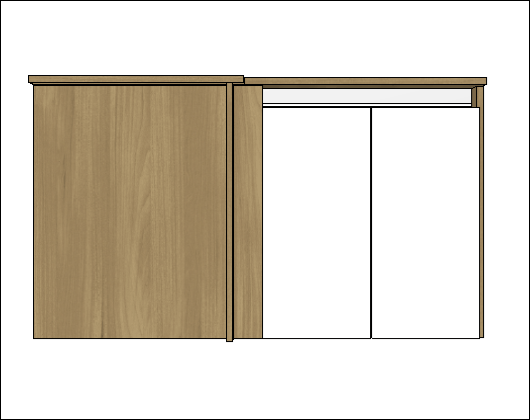

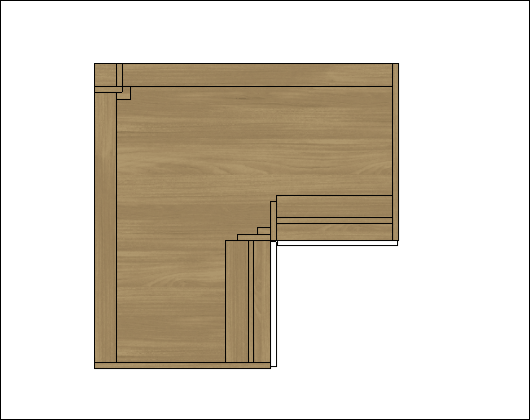

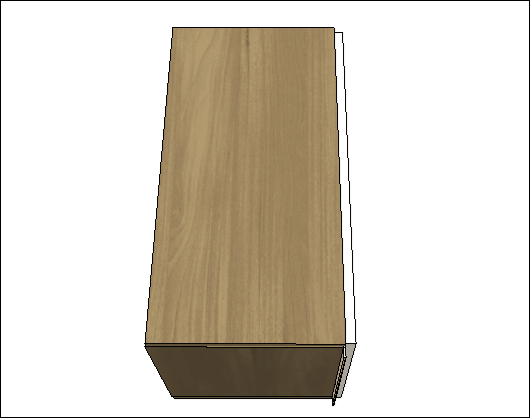

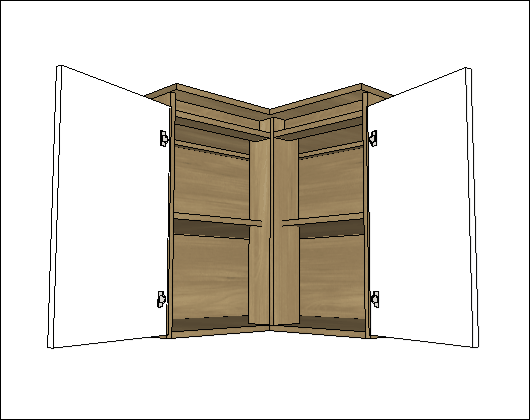

90ª
Cabinets
A - Frontal Battens: sets the frontal batten use.
Frontal Battens
B - Batten width: sets the width of the batten.
C - Batten's depth: sets the depht of the batten.

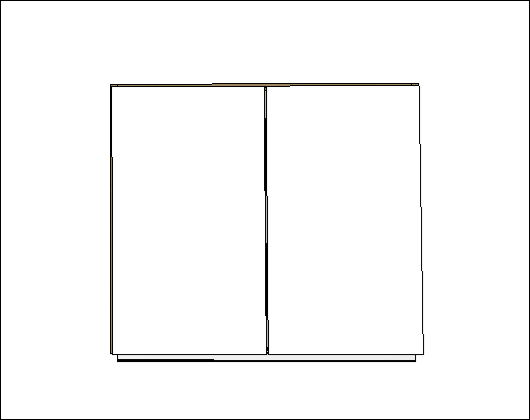

Fronts | Doors

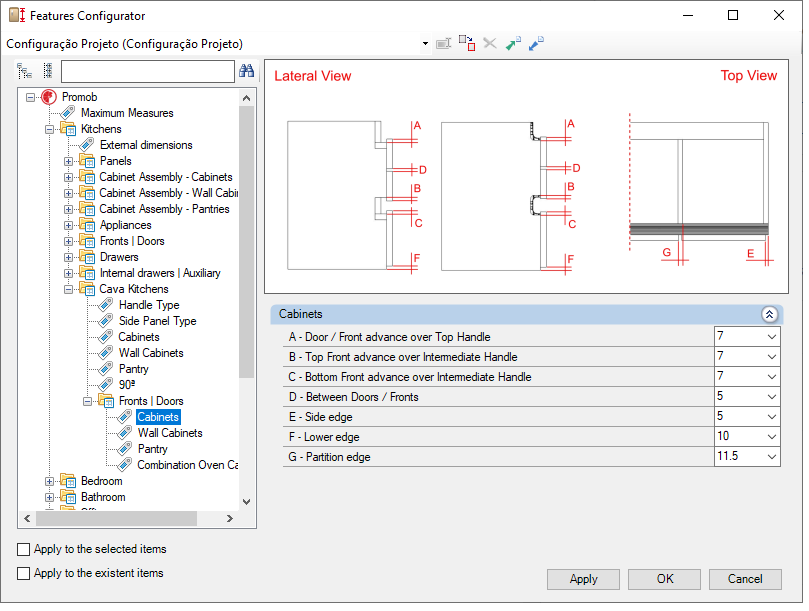

Cabinets
A - Door/Front advance over Top Handle: sets the advance of the door/front over the Top Handle.
B - Top Front advance over Intermediate Handle: sets the advance of the front over the Intermediate Handle.
C - Bottom Front advance over Intermediate Handle: sets the advance of the bottom front over the Intermediate Handle.
D- Between the Doors/Front: set the distance between the module's doors.
E - Side Edge: sets the side distance between the module and the Door for Base Cabinets.
F - Lower Edge: defines the bottom distance between the module and door in Base Cabinets.
G - Partition Edge: sets the distance between the door and the opposite edge of the partition.

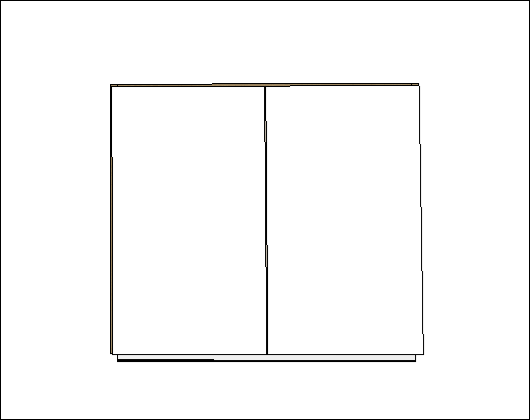

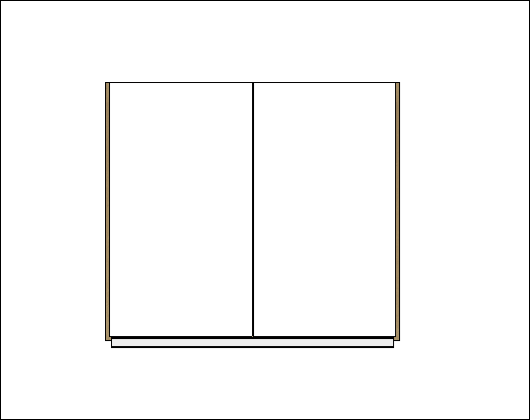

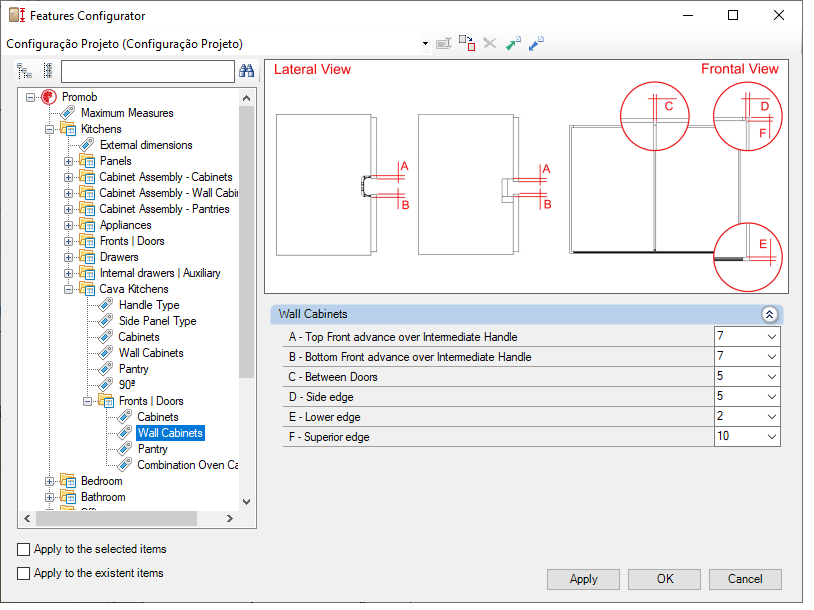

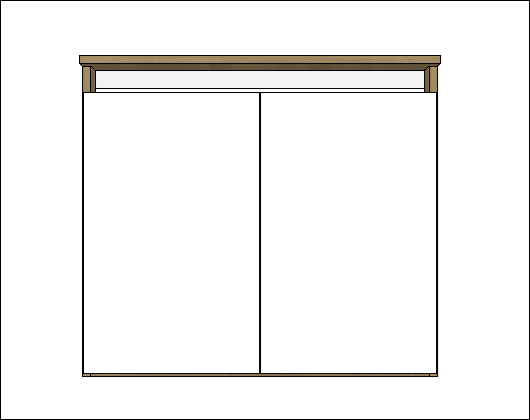

Wall Cabinets
Wall Cabinets
A - Top Front advance over Intermediate Handle: sets the advance of the front over the Intermediate Handle.
B - Bottom Front advance over Intermediate Handle: sets the advance of the bottom front over the Intermediate Handle.
C - Between Doors: sets the distance between the module's doors.
D - Side Edge: sets the lateral distance between the module and the door on wall cabinets.
E - Lower Edge: defines the bottom distance between the module and door in Base Cabinets.
F - Superior Edge: sets the upper distance between the module and door in Base Cabinets.

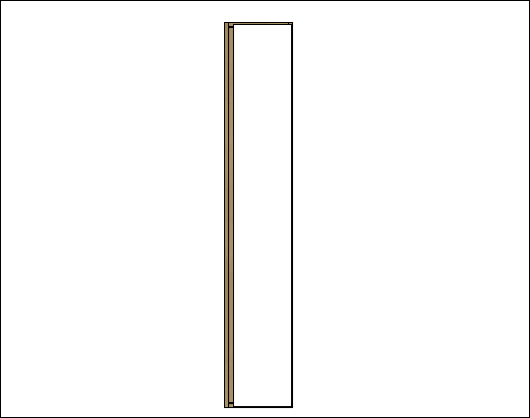

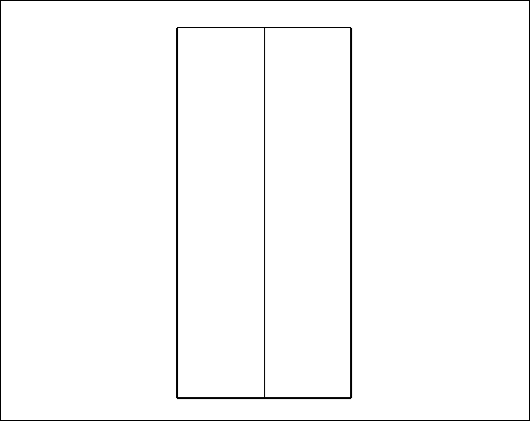

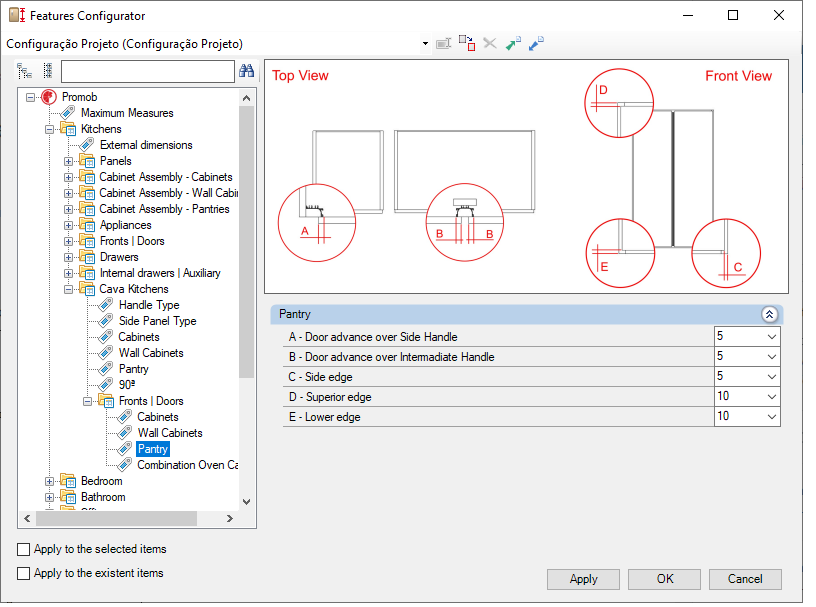

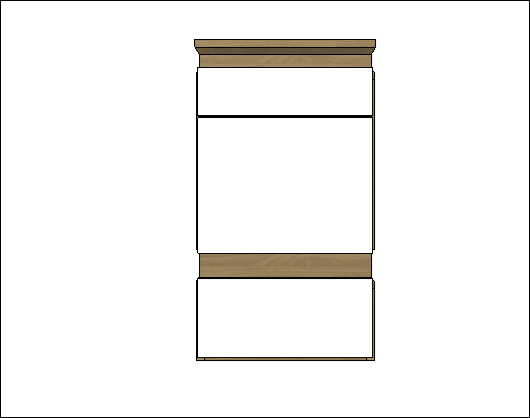

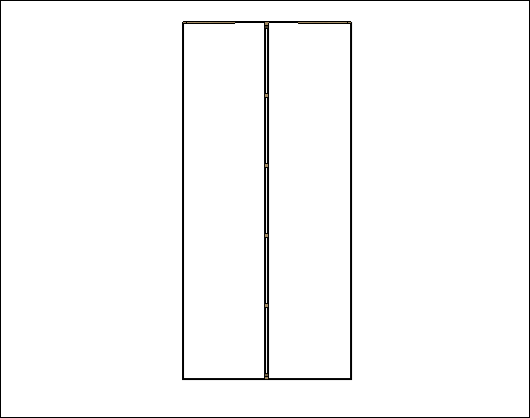

Pantry
A - Door advance over Side Handle: sets the advance of the door over the Lateral Handle.
B - Door advance over Intermediate Handle: sets the advance of the door over the Intermeadite Handle.
C - Side Edge: defines the lateral distance between the module and the door on Pantries.
D - Superior Edge: defines the upper distance between the module and the door on Pantries.
E - Lower Edge: defines the lower distance between the module and the door on Pantries.

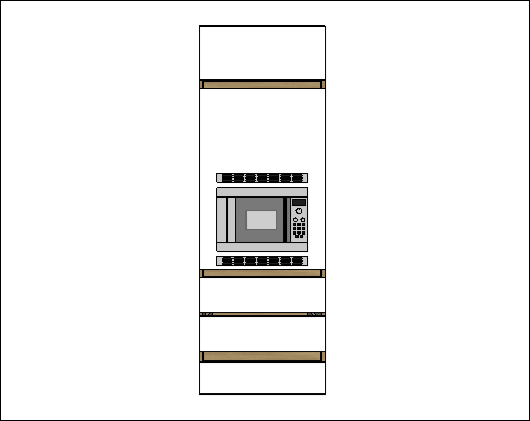

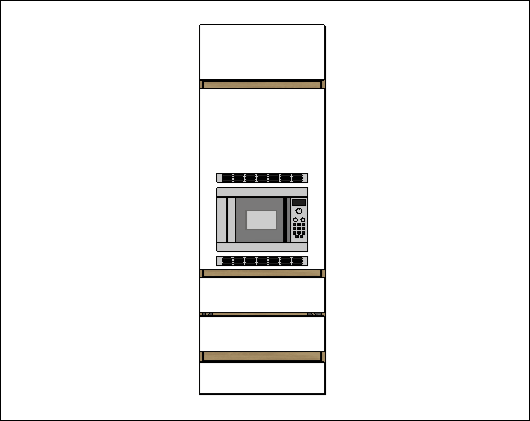

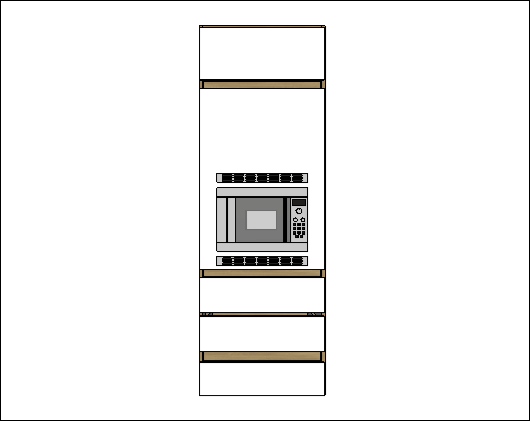

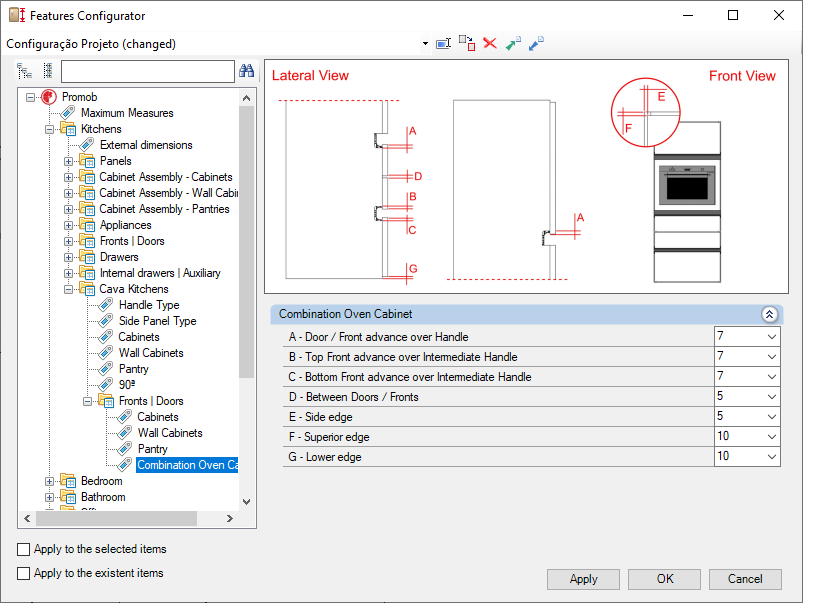

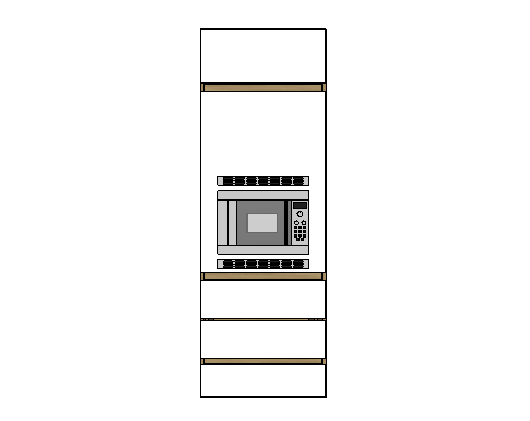

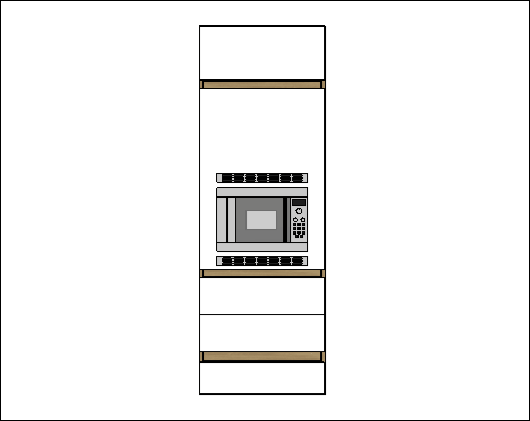

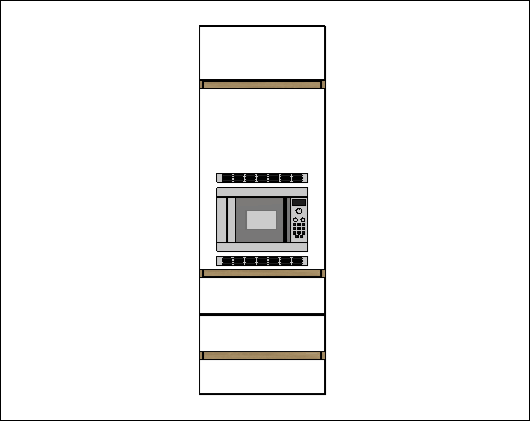

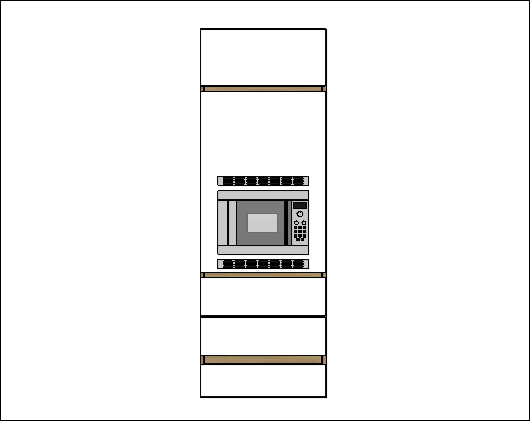

Combination Oven Cabinet
A - Door/Front advance over Handle: sets the advance of the door over the Handle.
B - Top Front advance over Intermediate Handle: sets the advance of the top front over the Intermediate Handle.
C - Bottom Front advance over Intermediate Handle: sets the advance of the bottom front over the Intermediate Handle.
D - Between Doors/Fronts: sets the distance between the doors or panels in the Combination Oven Cabinets modules.
E - Side Edge: sets the distance between the side of the module and Combination Oven Cabinets modules panels.
F - Superior Edge: sets the greater distance between module and panel Combination Oven Cabinets modules.
G - Lower Edge: defines the lower distance between the module and panel Combination Oven Cabinets modules.
