The External Dimensions settings are the measurements settings, which will be automatically displayed in the modules of the Bedrooms group in the 3D Space. Even after the measurement configuration is established, it is possible to change the dimension in the 3D Space.

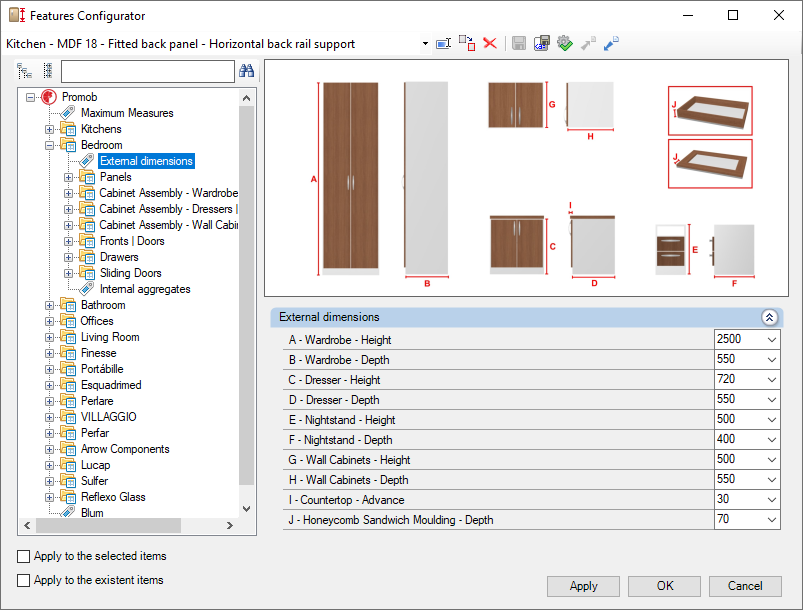

Check below the definitions of each configuration available in Features Configurator - Bedrooms - External Dimensions. If necessary, see here how to apply dimension settings.
Check below the settings for the external dimensions of the Bedrooms library:
External dimensions

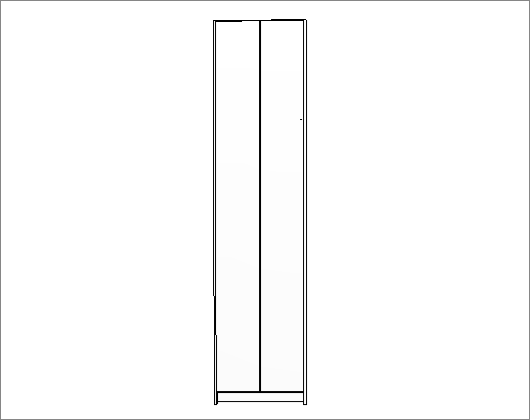

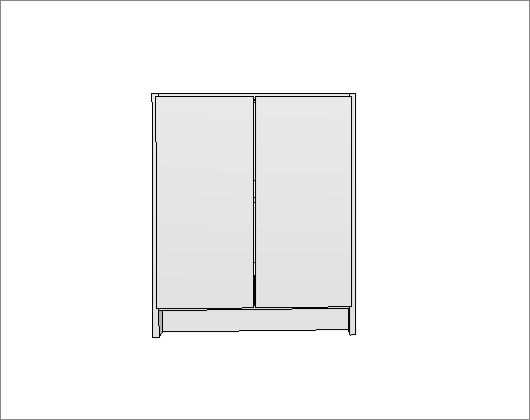

A – Wardrobe – Height: Defines the height of the bedroom wardrobes.

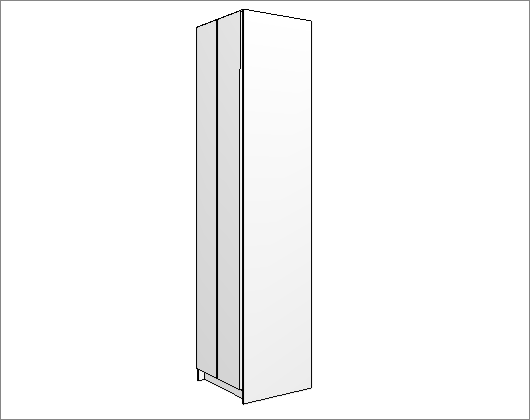

B – Wardrobe - Height: defines the depth of bedroom wardrobes.
C – Dresser – Height: Defines the height of the bedroom dressers.

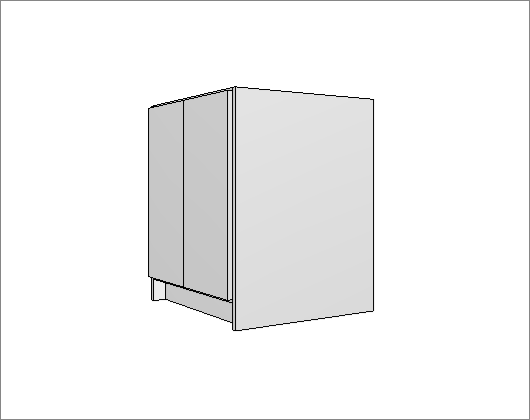

D – Dresser – Depth: Defines the depth of the bedroom dressers.

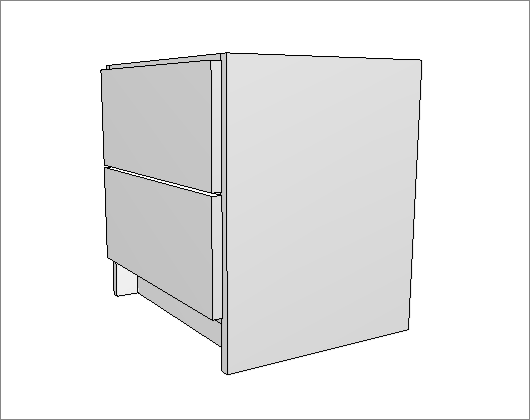

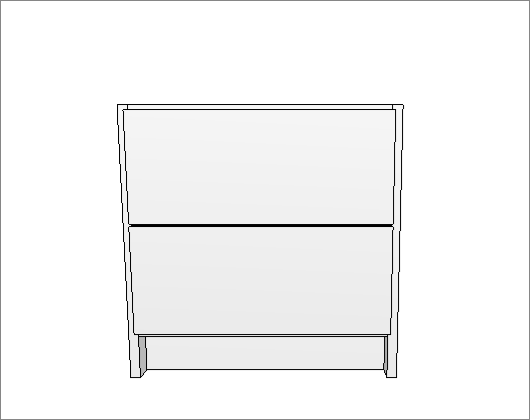

E – Nightstand – Height: Defines the height of the bedroom nightstands.
F – Nightstand - Depth: Defines the depth of the bedroom nightstands.

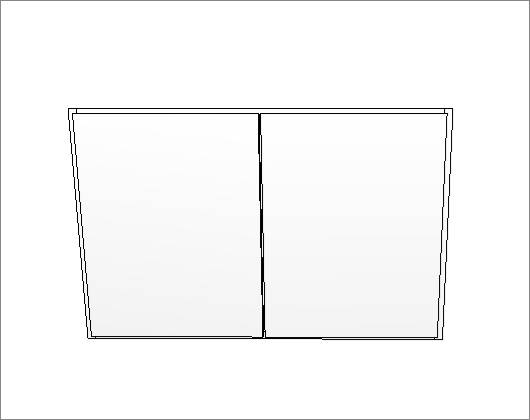

G – Wall Cabinets – Height: Defines the height of the wall cabinets of bedrooms.

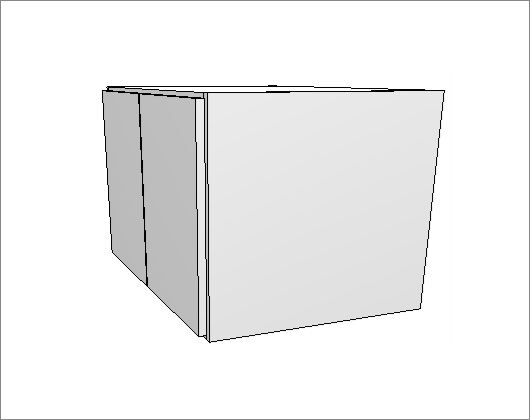

H – Wall Cabinets – Depth: Defines the depth of the wall cabinets of bedrooms.

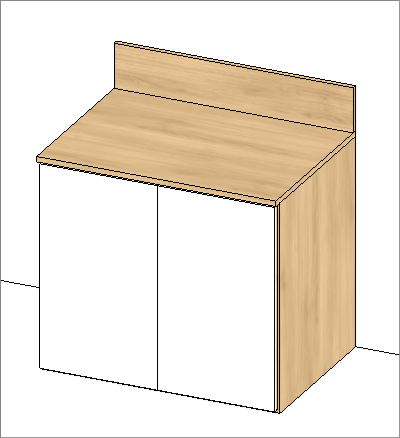

I – Countertop – Advance: Defines the advance value of the countertop over the box of the Bedrooms modules. The depth of the countertop is changed according to the configured value.
J – Honeycomb Sandwich Moulding – Depth: Defines the depth of the Honeycomb Sandwich Moulding.
