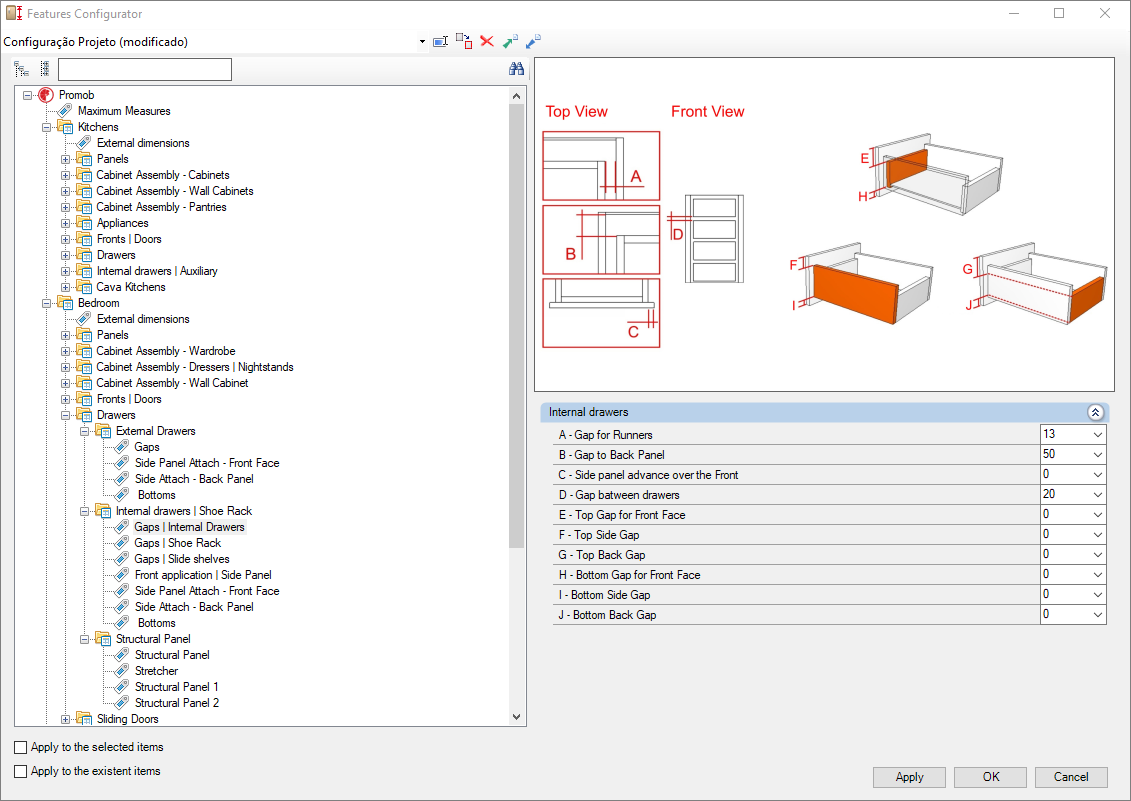

Check below the definitions of each configuration available in Features Configurator - Bedrooms - Drawers. If necessary, see here how to apply dimension settings.
|

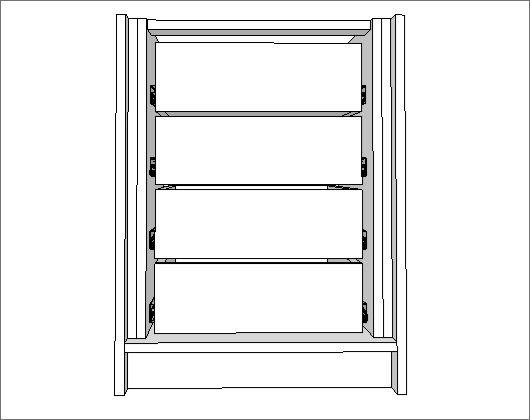

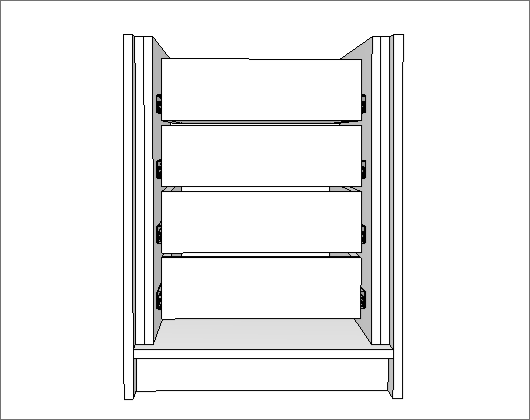

Side Panel Attach - Front Face
|
|
|
Front Application | Side Panel Side Panel Attach - Front Face
|
|

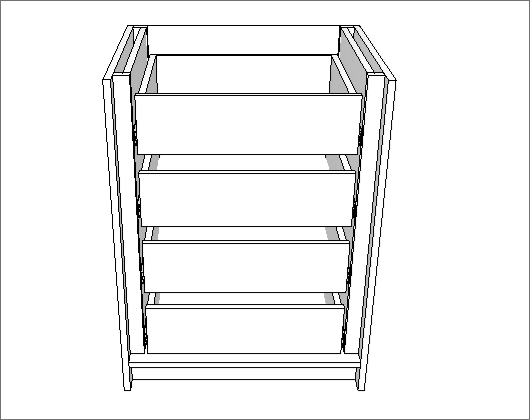

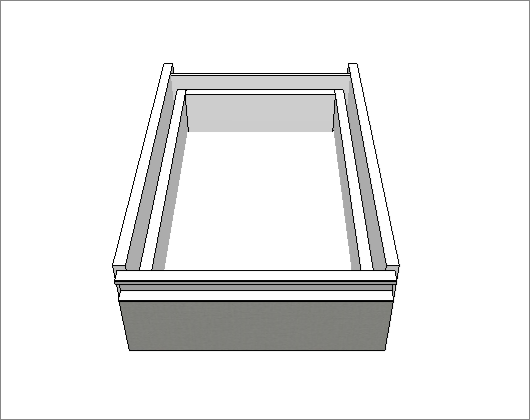

External Drawers

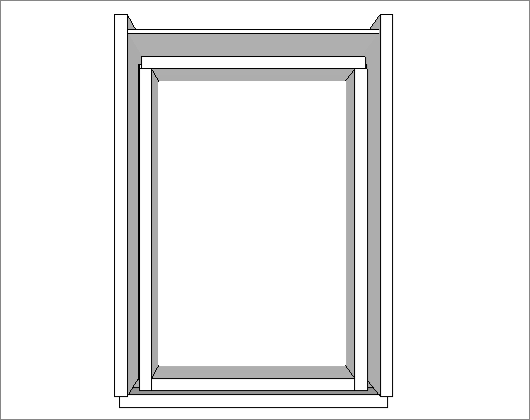

Gaps

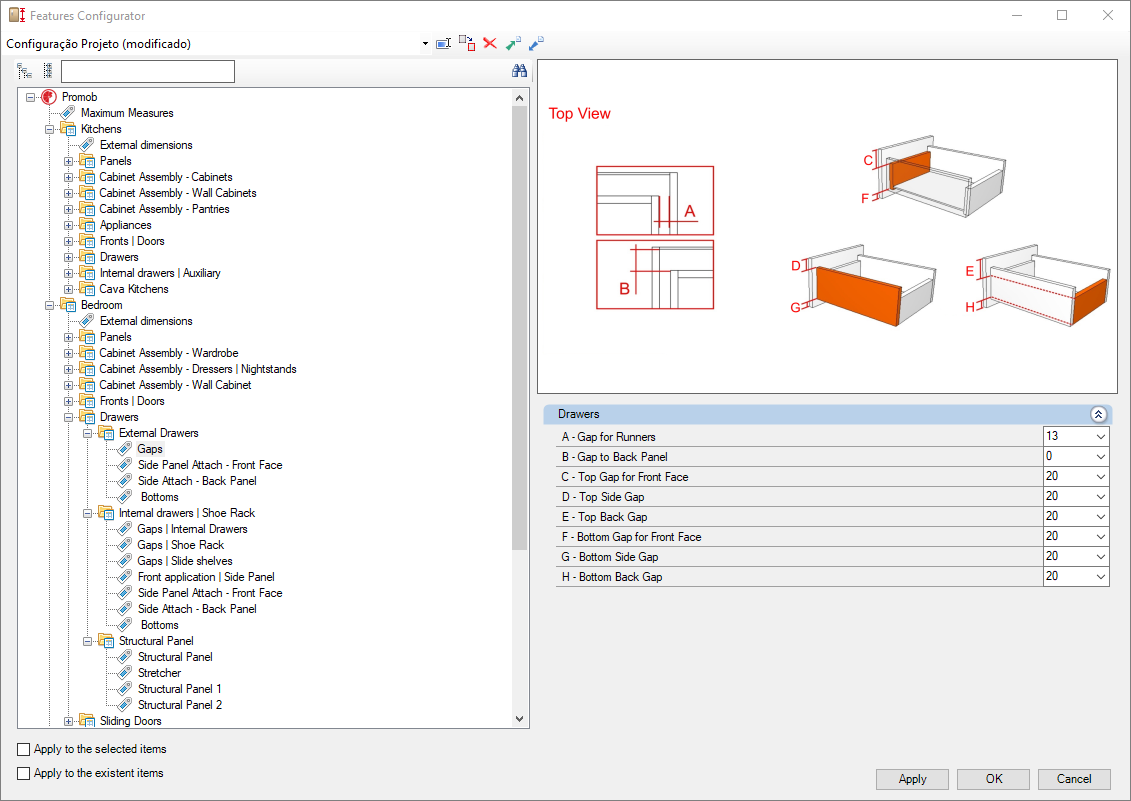

Drawers

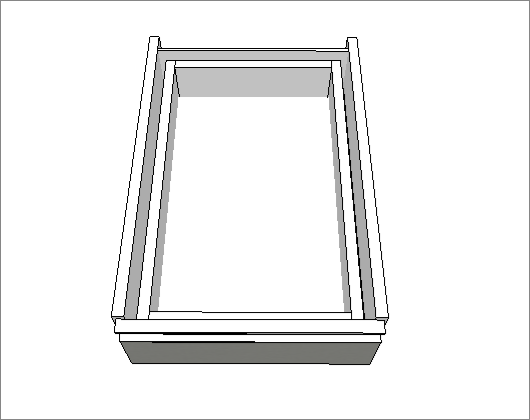

A – Gap for Runners: Defines the distance between the side of the drawer and the side of the module. Changes the width of the drawer.
B – Gap to Back Panel: sets the distance between the back panel of the drawer and the back panel of the module. Changes the drawer depth.
C – Top Gap for Front Face: Defines the distance between the upper end of the front of the drawer and the counter-front of the box. Changes the height of the back of the box.
D – Top Side Gap: Defines the distance between the top edge of the front of the drawer and the side of the box. Changes the height of the side of the drawer box.
E – Top Back Gap: Defines the distance between the top edge of the front of the drawer and the back of the box. Changes the height of the back of the drawer box.
F – Bottom Gap for Front Face: set the distance between the lower end of the drawer's front and Front Face of the drawer. Changes the height of the Front Face of the drawer.
G – Lower Side Gap: Set the distance between the end of the drawer's front and side panel of the module. Changes the height of the side panel of the drawer.
H – Bottom Back Gap: Set the distance between the lower front end of the drawer and the rear panel of the drawer. Changes the height of the back panel of the drawer box.

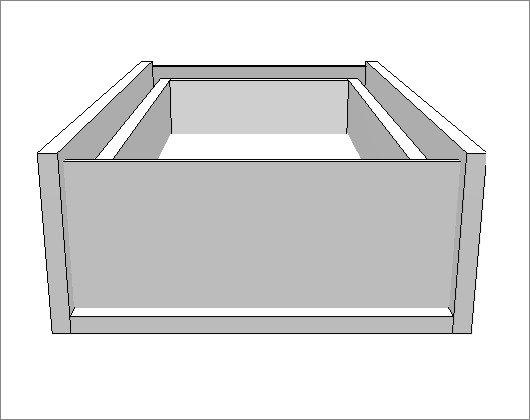

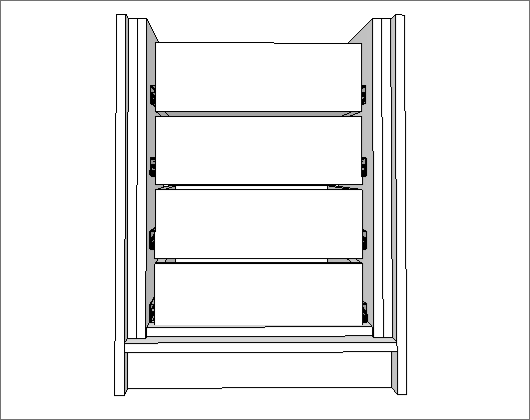

Side Panel Attach - Front Face
Drawers

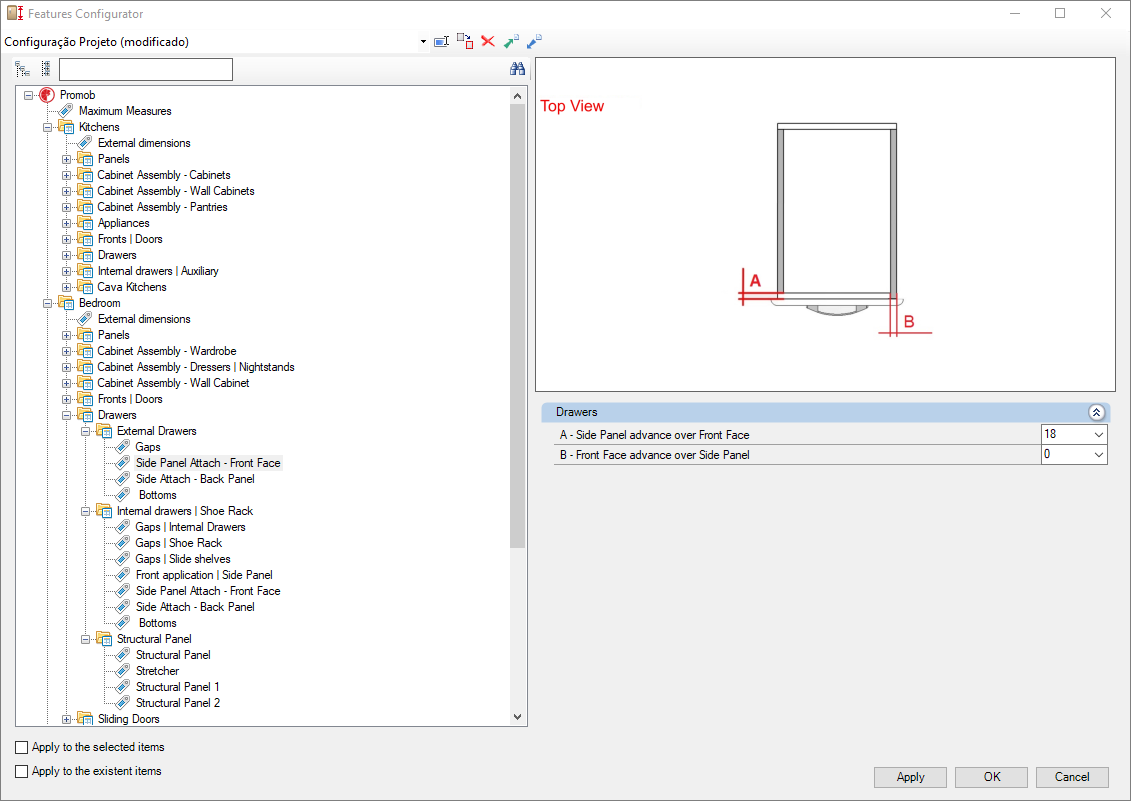

A – Lateral advance in Front Face: Define how much the side panel advances in the drawer's Front Face.
B – Front Face advance in Side Panel: Defines how much the Front Face advances in the Side Panel.

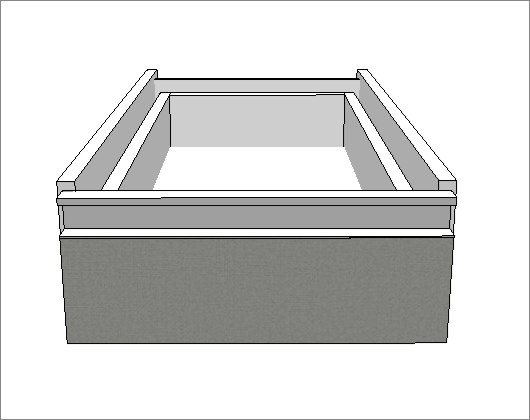

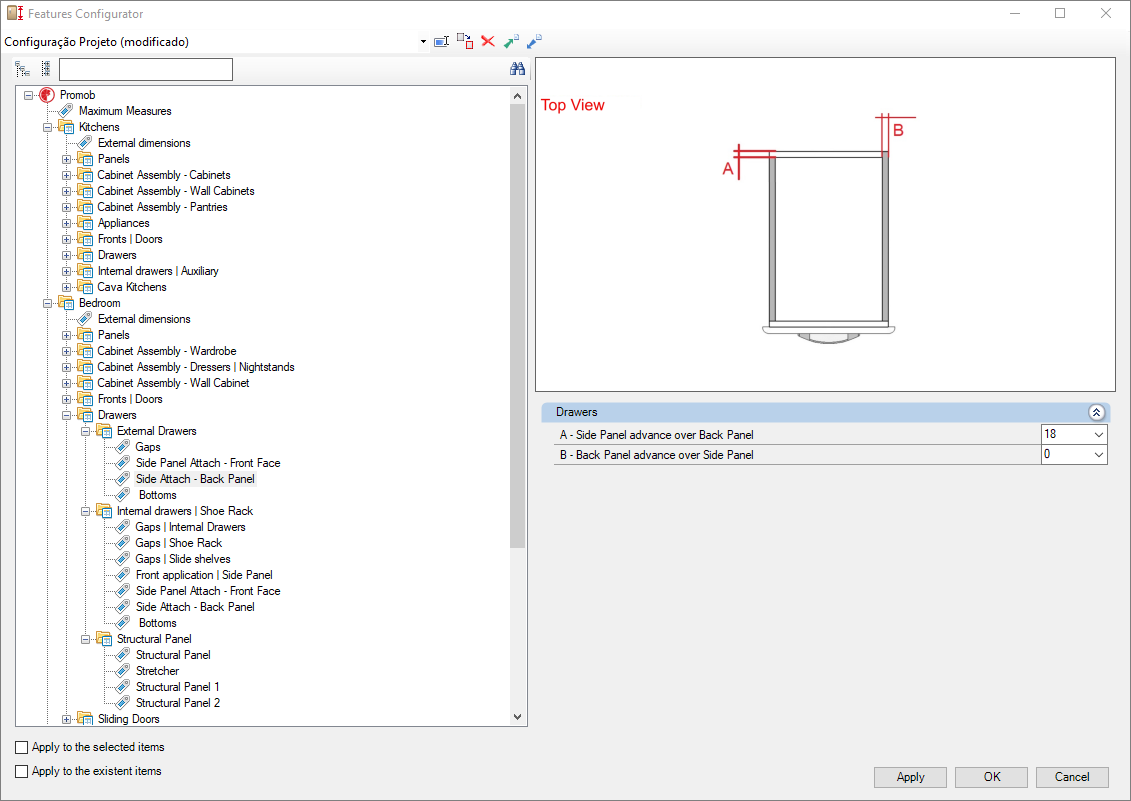

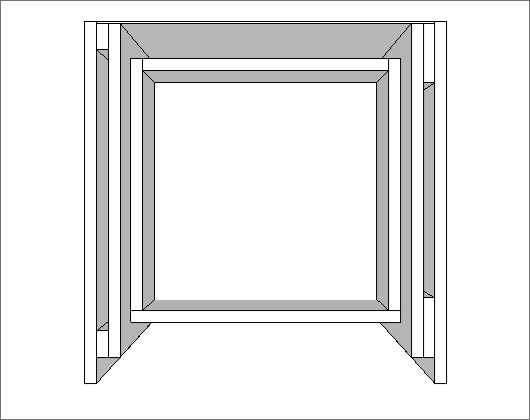

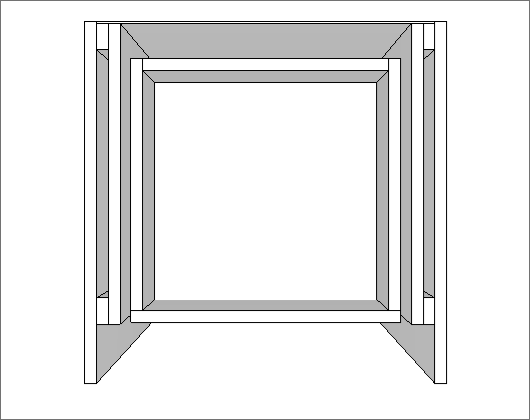

Side Attach - Back Panel
Drawers
A – Side Panel advance over Back Panel: Defines how much the Side Panel advances over the Back Panel of the drawer.
B – Back Panel advance over Side Panel: Defines how much the back Panel advances over the Side Panel of the drawer.

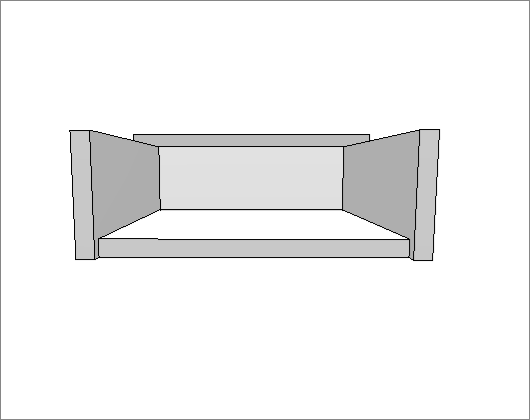

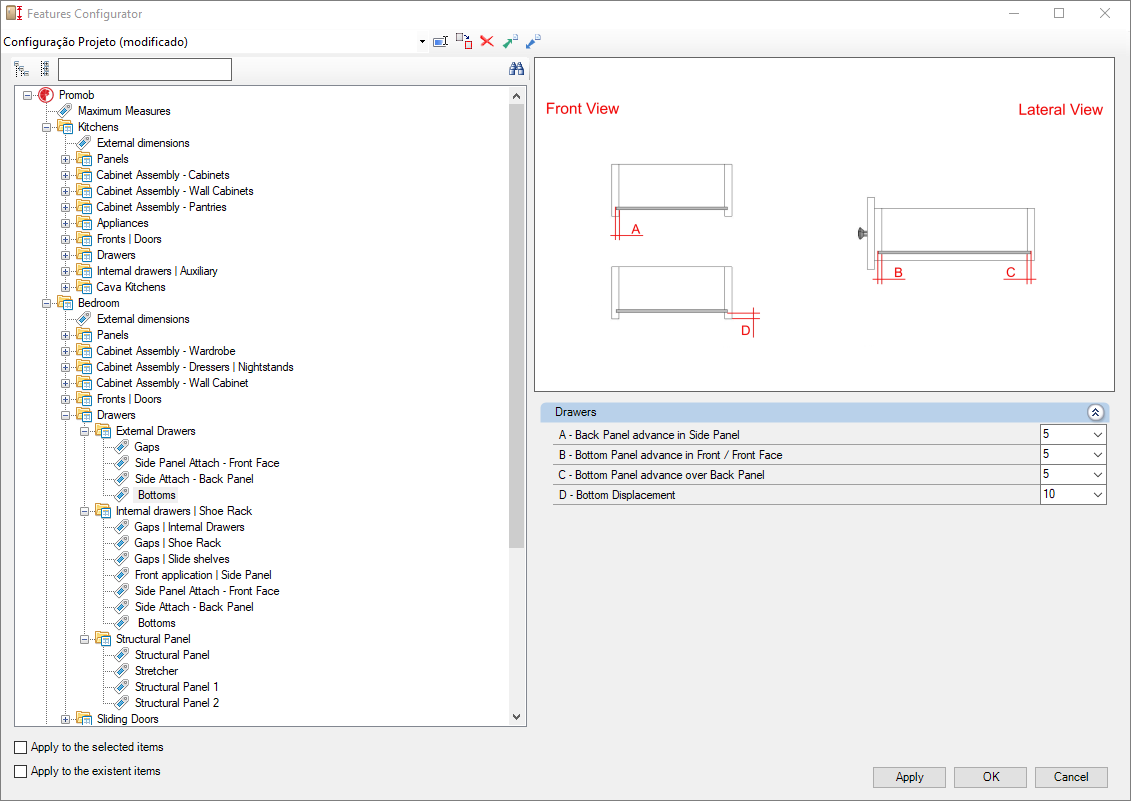

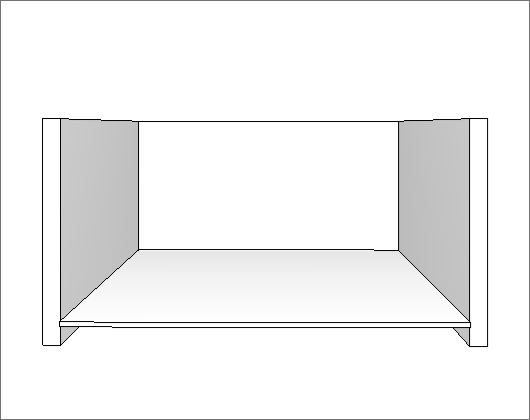

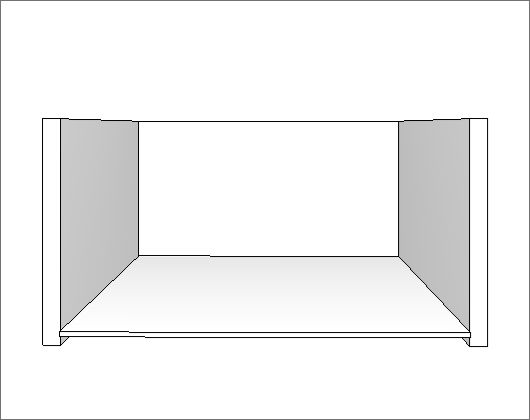

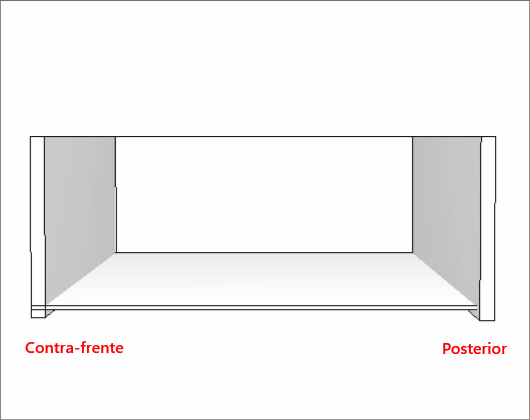

Bottoms
A – Back Panel advance in Side Panel: Defines how much the Back Panel advances in Side Panel on each side of the drawer.
B – Bottom Panel advance in Front / Front Face: defines how much the Bottom Panel advances in the Front Face of the drawer.
C – Bottom Panel advance over Back Panel: Defines how much the Bottom Panel advances on the back of the drawer.
D – Back Retreat: Sets the displacement value of the bottom of the drawer.

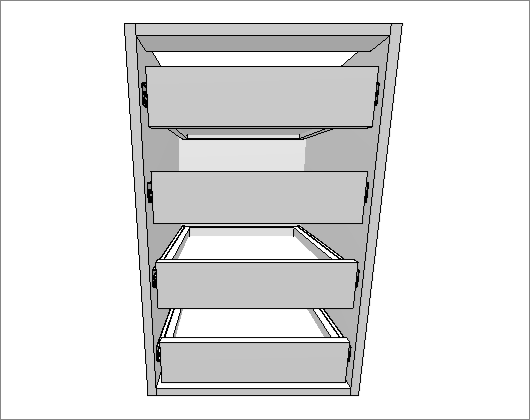

Internal Drawers | Shoe Racks

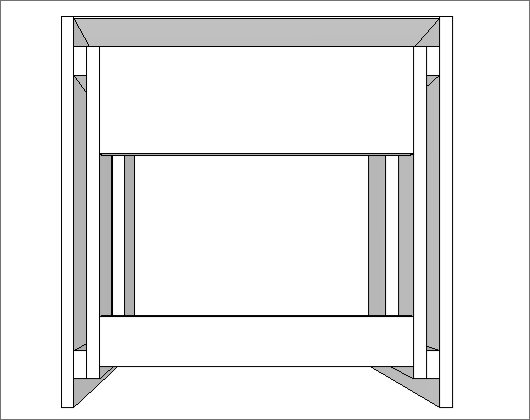

Gaps | Internal Drawers
A - Gap for Runners: Defines the distance between the drawer side and the module side. Changes the width of the drawer.
B - Gap Back to Panel: Defines the distance between the bottom of the drawer and the bottom of the module. Changes the drawer depth.
C - Side Panel Advance over th Front: Sets the advance of the Front over each side panel of the drawer. Changes the width of the front of the internal drawer.
D - Gap Between Drawers: Defines the distance between the fronts of drawers.
E - Top Gap for Front Face: Defines the distance between the top edge of the front of the drawer and the Front Face of the drawer. Changes the height of the drawer front face drawer.
F - Top Gap Side: Defines the distance between the top edge of the front of the drawer and the side of the drawer. Changes the height of the drawer side box.
G - Top Back Gap: Defines the distance between the top edge of the front of the drawer and the back of the box. Changes the height of the drawer back box.
H - Bottom Gap for Front Face: Defines the distance between the bottom edge of the front face of the drawer and the back of the box. Changes the height of the drawer front box.
I - Bottom Side Gap: Defines the distance between the bottom end of the front of the drawer and the side of the box. Changes the height of the drawer side box.
J - Bottom Back Gap: Defines the distance between the bottom edge of the front of the drawer and the back of the box. Changes the height of the drawer back box.
Gap| Shoe Rack
A - Gap for Runners: Defines the distance between the shoe rack side and the module side. Change the width of the shoe rack.
B - Gap to Back Panel: Defines the distance between the back panel of the drawer and the module back panel. Changes the depth of the drawer.
C - Side Panel advance over the Front: Defines the front feed on each side of the shoe rack. Changes width of the front of the internal drawer.
D - Gap Between Shelf on Shoe Storage Shelfs: Defines the distance between the drawer's fronts.
E - Top Gap for Front: Defines the distance between the top edge of the drawers front and the front face of the drawers. Changes the height of the drawer's front face.
F - Top Side Gap: Set the distance between the top edge of the drawer front and the side of the drawer. Changes the height of the drawer.
G - Top Back Gap: Defines the distance between the top end of the drawer's front and the side of the module. Changes the height of the side panel of the drawers.
H - Bottom Gap for Front Front: Defines the distance between the bottom edge of the drawer front and the Front Face of the drawer. Changes the height of the drawer's front face.
I - Bottom Side Gap: Defines the distance between the bottom end of the drawer's front and the side panel of the module. Changes the height of the side panel of the drawer.
J - Bottom Back Gap: Defines the distance between the bottom edge of the drawer front and the back of the drawer. Changes the height of the drawer box.

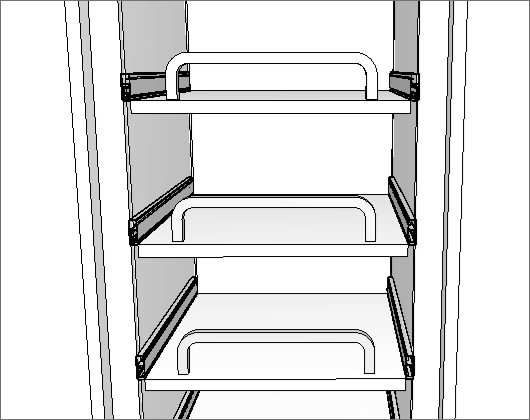

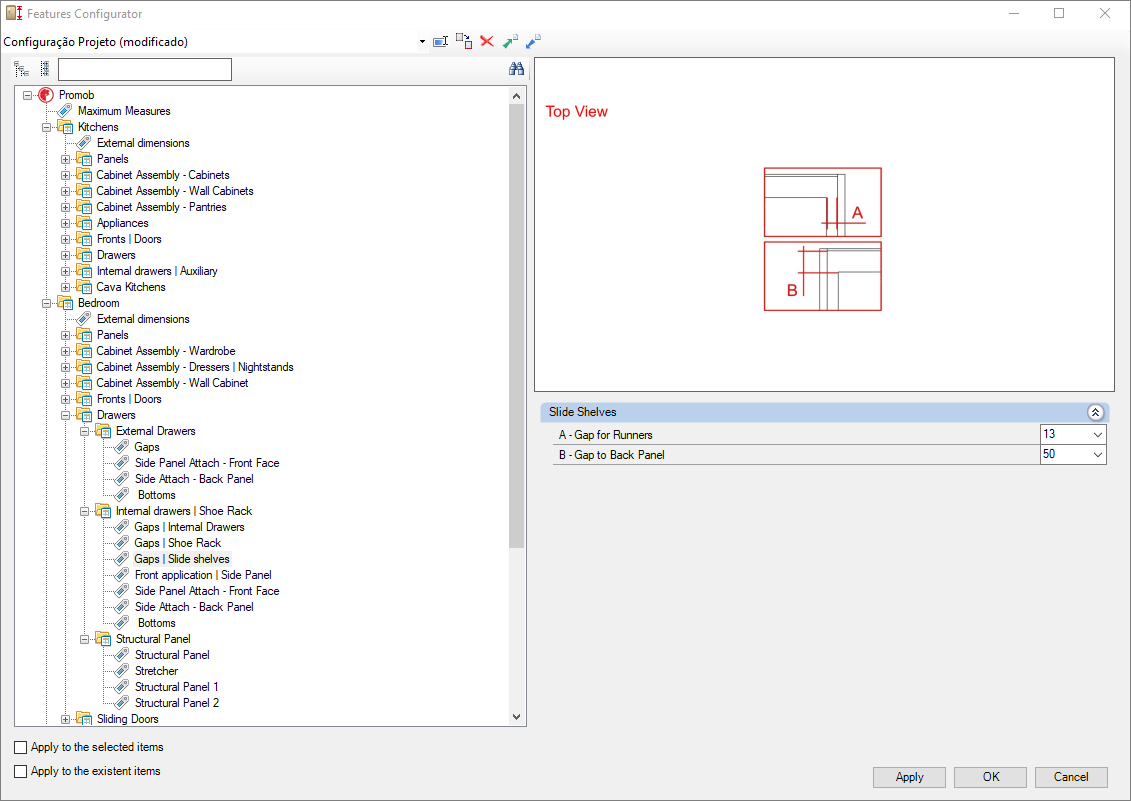

Gaps | Slide shelves
A - Gap for Runners: Defines the lateral gap of the side panel of the drawer and the side of the module. Changes the width of the drawer.
B - Gap to Back Panel: Defines the distance between the back panel and the module shelf. Changes the shelf depth.
Front application | Side Panel

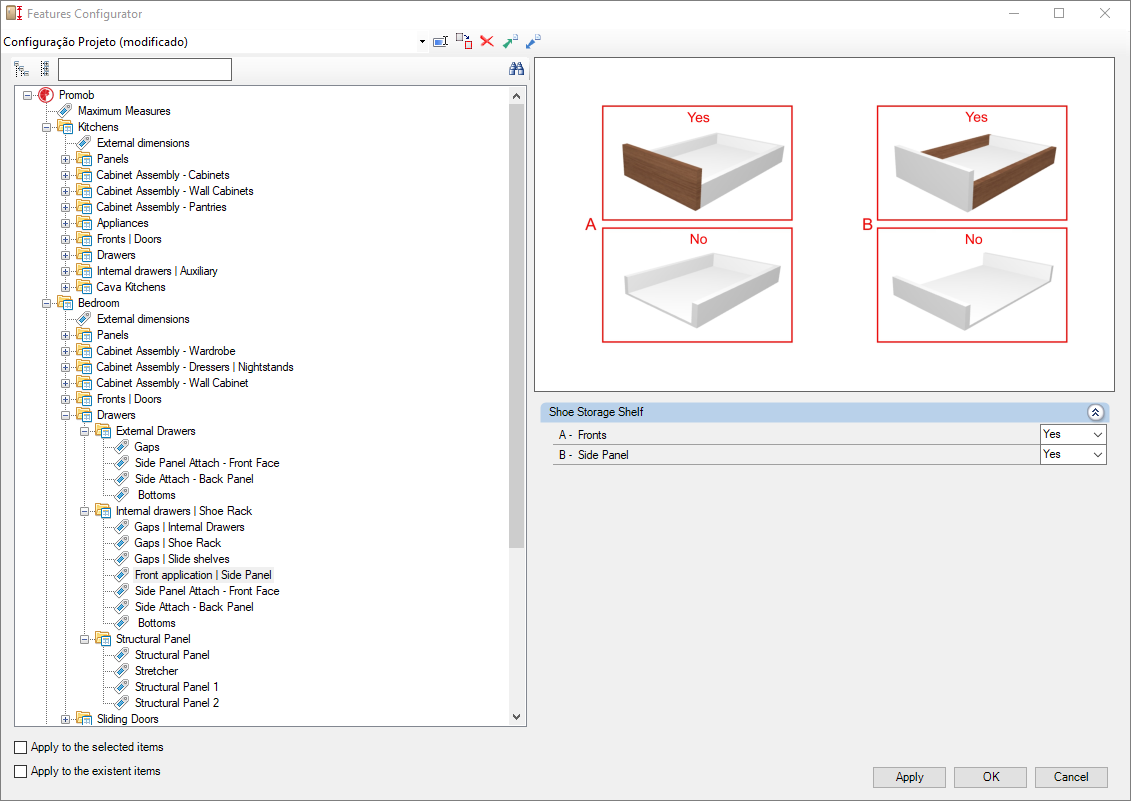

A - Fronts: Defines the use or not of the front and front face in the shoe box.
B - Side Panel: Defines the use or not of sides in the shoe box.

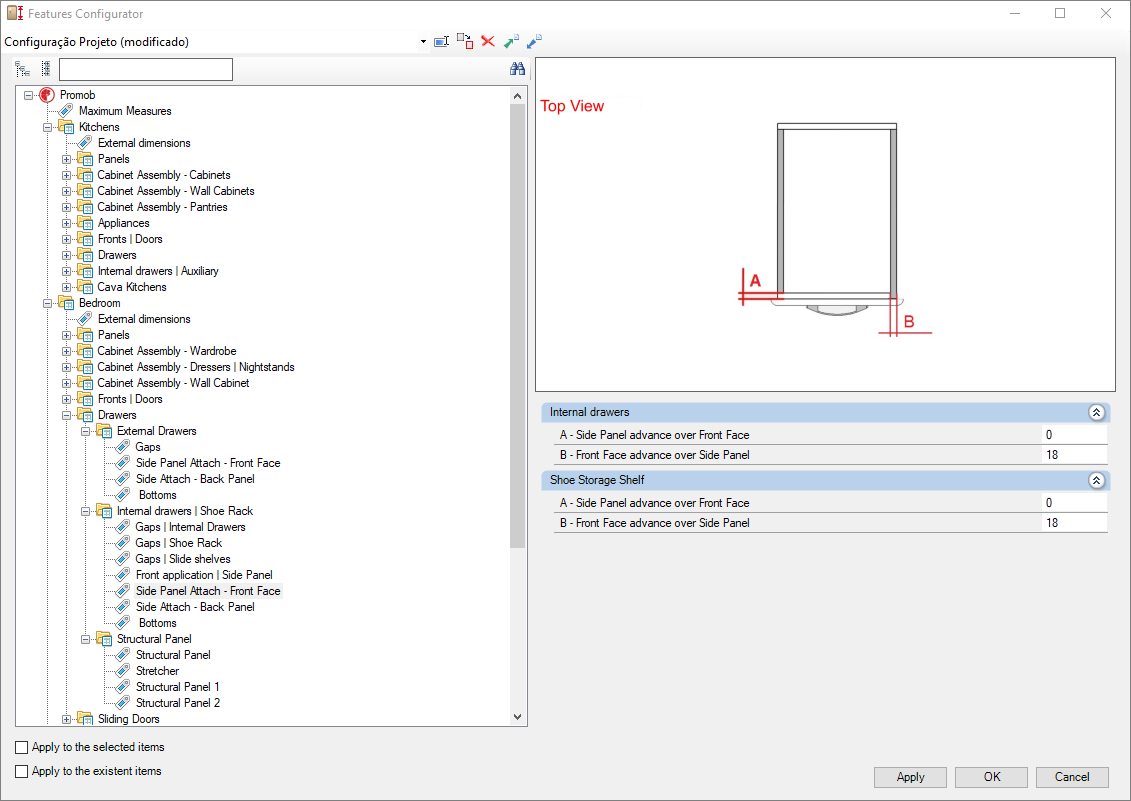

Side Panel Attach - Front Face

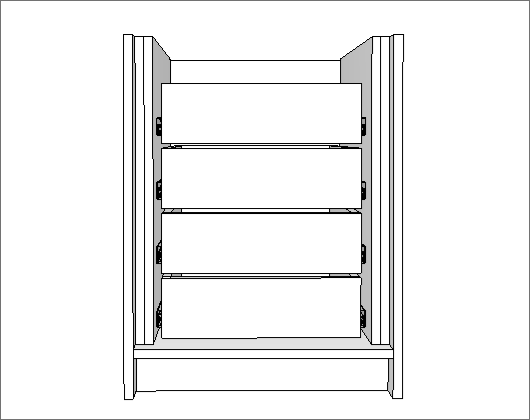

Internal Drawers
A - Side Panel Advance over Front Face: Defines how much the side advances over the front face of the internal drawer.
B - Front Face advance over Side Panel: Defines how much front face advances over the side of the internal drawer.
Shoe Storage Shelf
A - Side Panel Advance over Front Face: Defines how much the side advances over the front face of the internal drawer.
B - Advance Front Face over Side: Defines how much front face advances over the side of the internal drawer.

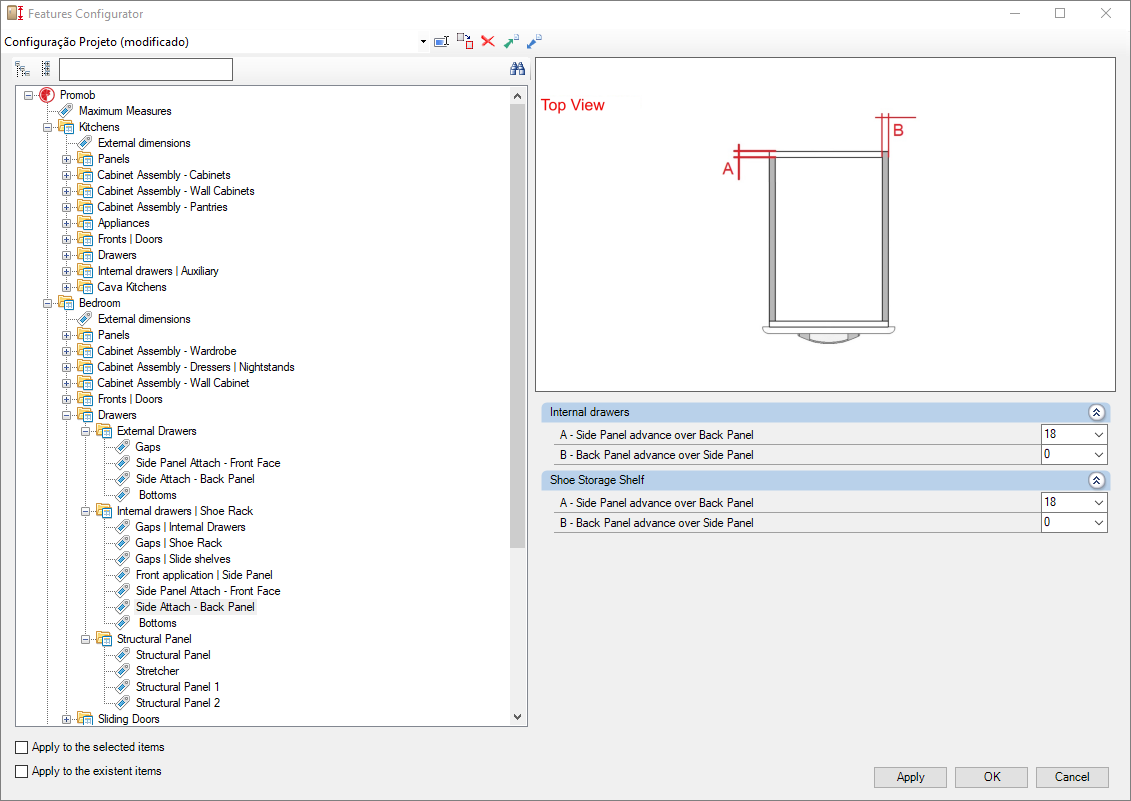

Side Attach - Back Panel
Internal Drawers
A - Side Panel Advance over Back Panel: Defines how much the side advances over the front face of the internal drawer.
B - Back Panel Advance over Side Panel: Defines how much counter front advances over the side of the internal drawer.
Shoe Storage Shelf
A - Side Panel Advance over Back Panel: Defines how much the side advances over the front face of the internal drawer.
B - Back Panel Advance over Side Panel: Defines how much front face advances over the side of the internal drawer.

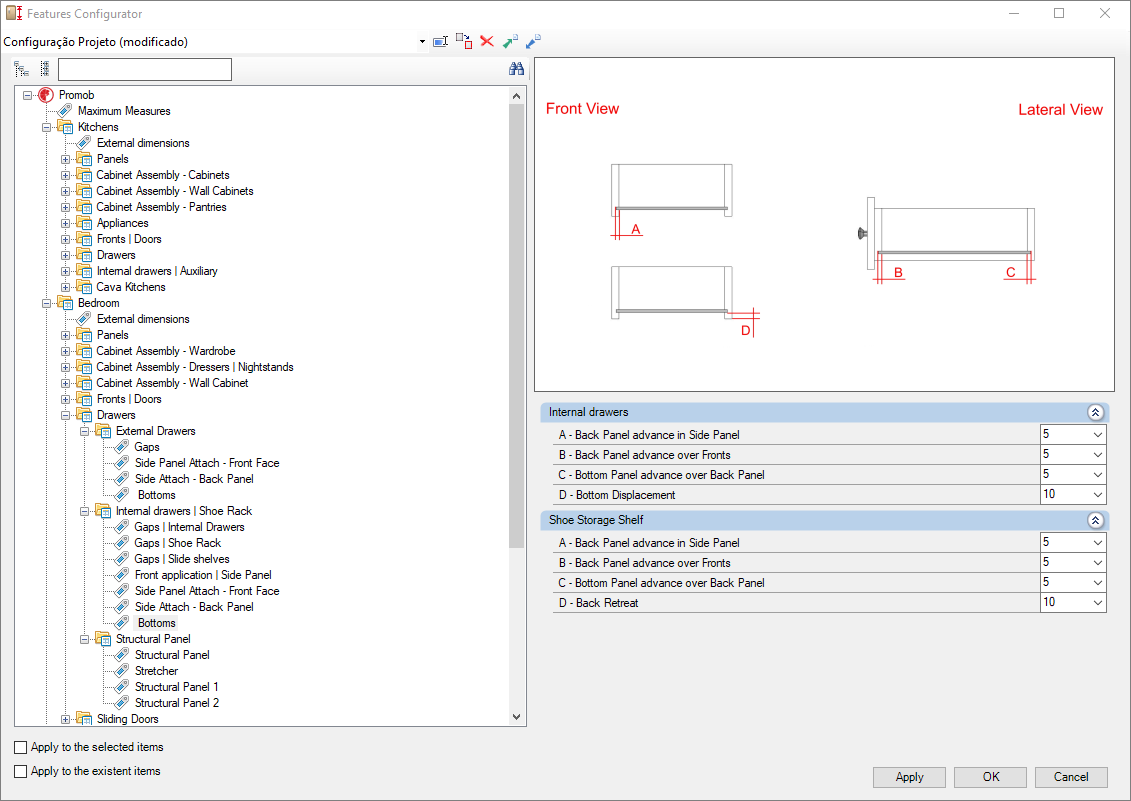

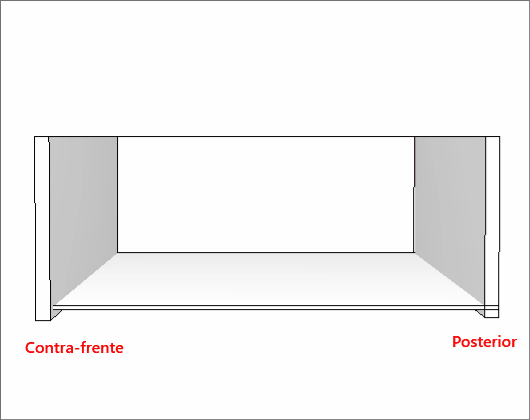

Bottoms
Internal Drawers
A - Back Panel advance over Side Panel: Defines how much the bottom advances over each side panel of the inside drawer.
B - Back Panel advance over Front Face: Defines how much the bottom advances over the front of the drawer without a front and how much there is a front defines how much it advances over it.
C - Bottom Panel advance over Back Panel: Defines how much the bottom panel advance over the back panel of the inside drawer.
D - Bottom Displacement: Defines the displacement of the bottom of the internal drawer.
Shoe Storage Shelf
A - Back Panl advance in Side Panel: Defines how much the bottom advances over each side of the internal drawer.
B - Back Panel Advance over Fronts: Defines how much the back panel advances over the front of the drawer without a front face and when there is a front face, defines how much it advances over it.
C - Bottom advance over the Back Panel: Defines how much the bottom feeds over the back panel of the internal drawer.
D - Back Retreat: Defines the displacement of the back panel of the internal drawer.

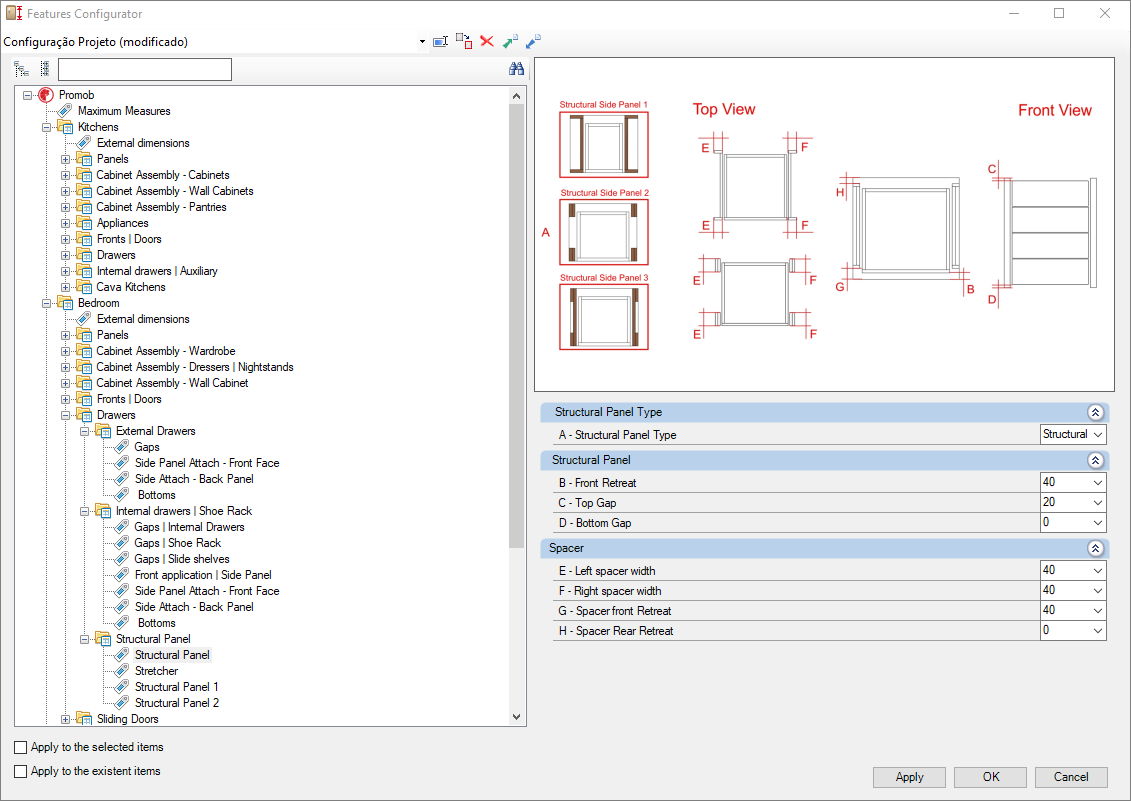

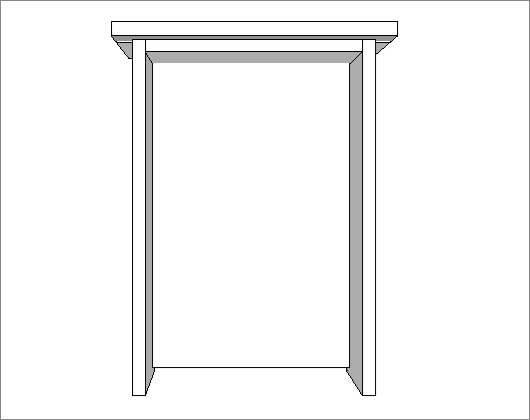

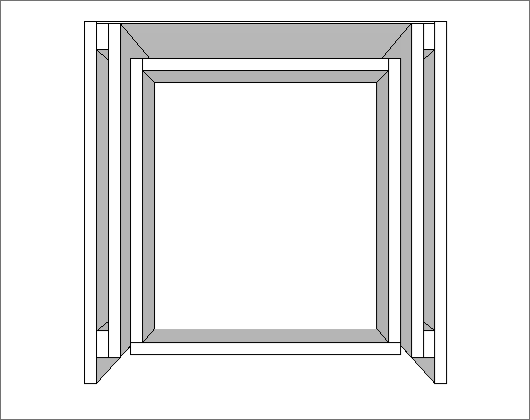

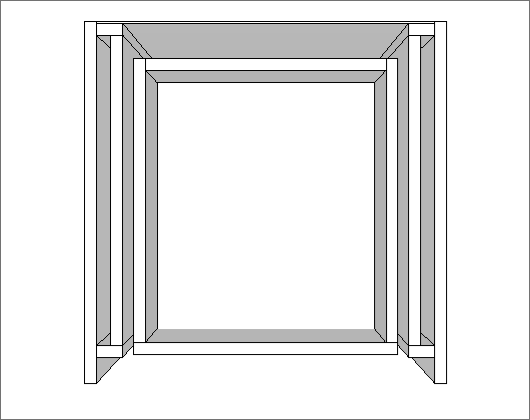

Structural Panel
Stretcher
Structural Panel Type
A - Structural Panel Type: Defines the structural type of the panel to be used.
Structural Panel:
B - Front Retreat: Defines the distance between the module and the structural panels drawers. Changes the depth of the drawers.
C - Top Gap: Defines the distance between the top base of the structural panel and the top of the drawer.
D - Bottom Gap: Defines the distance between the bottom part of the structural panel and the drawer.

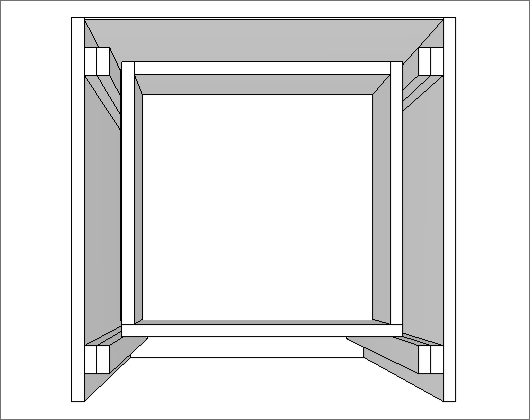

Spacer
E - Left Spacer Width: Sets the width of the left retractor.
F - Right Spacer Width: Sets the width of the right spacer.
G - Spacer Front Retreat: Defines the distance between the module and the front structure panel. Changes the depth of the side panel.
H - Spacer Rear Retreat: Defines the distance between the structure panel and the back panel. Changes the depth of the side panel.

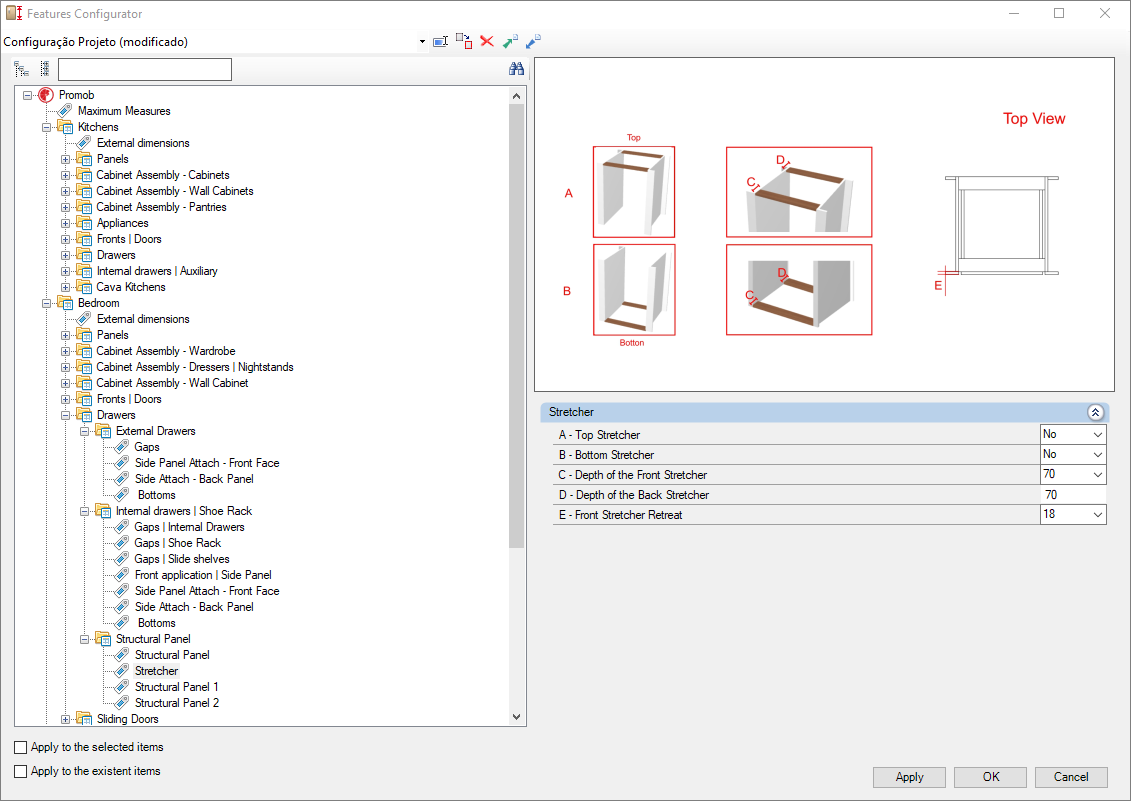

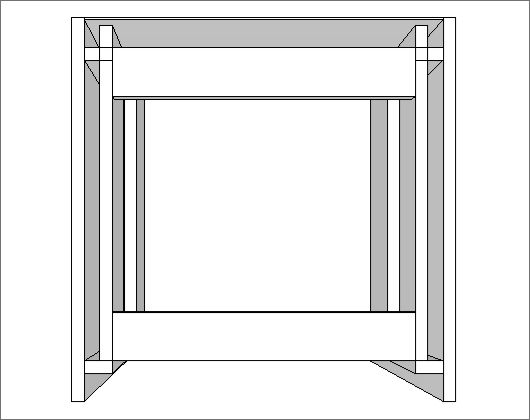

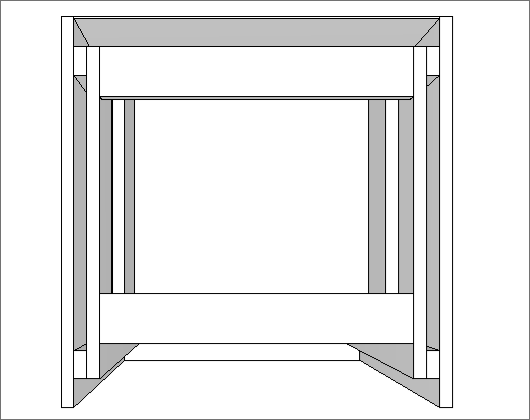

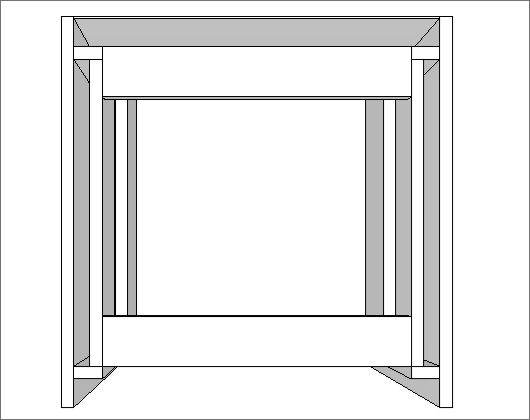

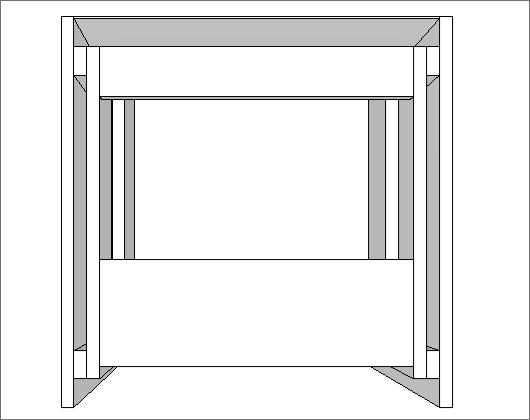

Stretcher
A - Top Stretcher: Defines whether or not to use stretches at the top of the module.
B - Bottom Stretcher: Defines whether or not to use slats at the lower base of the mullion.
C - Front Stretcher Depth: Determines the depth of the front stretcher.
D - Back Stretcher Depth: Determines the depth of the rear stretchers.
E - Front Stretcher Retreat: Determines the stretcher retreat in relation to the structural panel.

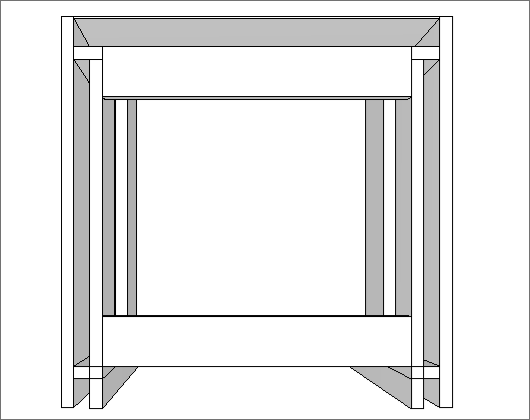

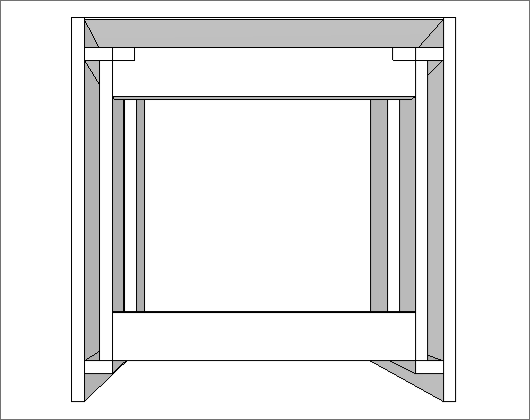

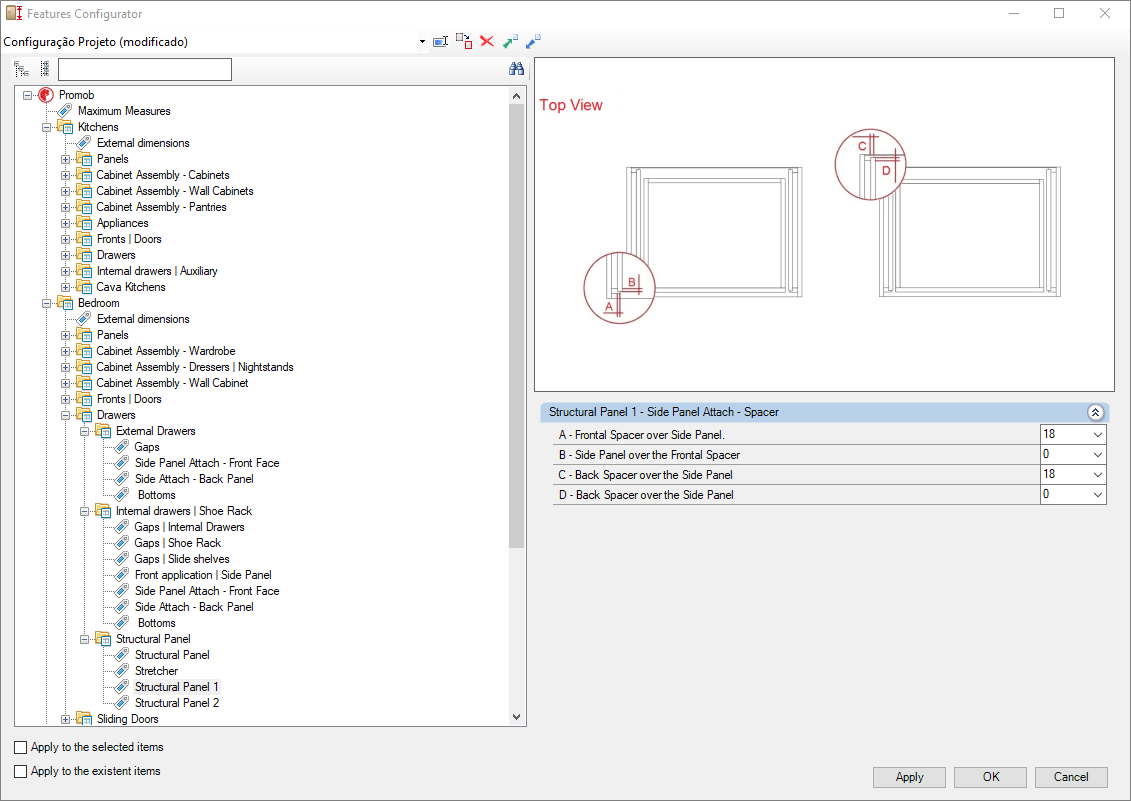

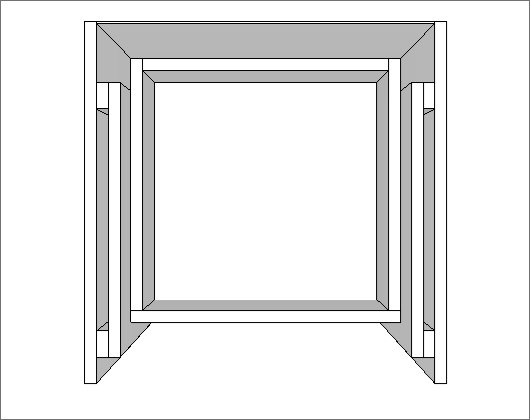

Structural Panel 1
Structural Panel 1 - Side Panel Attach - Spacer
A - Frontal Soacer over Side Panel: Defines how much the frontal spacer advances over the side panel.
B - Side Panel over Frontal Spacer: Defines how much the side panel advances over the frontal spacer.
C - Back Spacer over Side Panel: Defines how much the back spacer advances over the side panel.
D - Side Panel over Back Spacer: Defines how much the side panel advances over the back spacer.

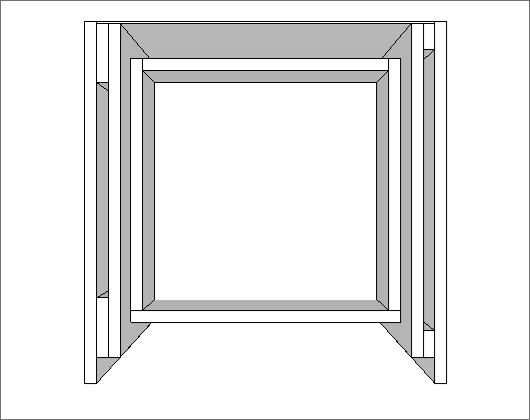

Structural Panel 2

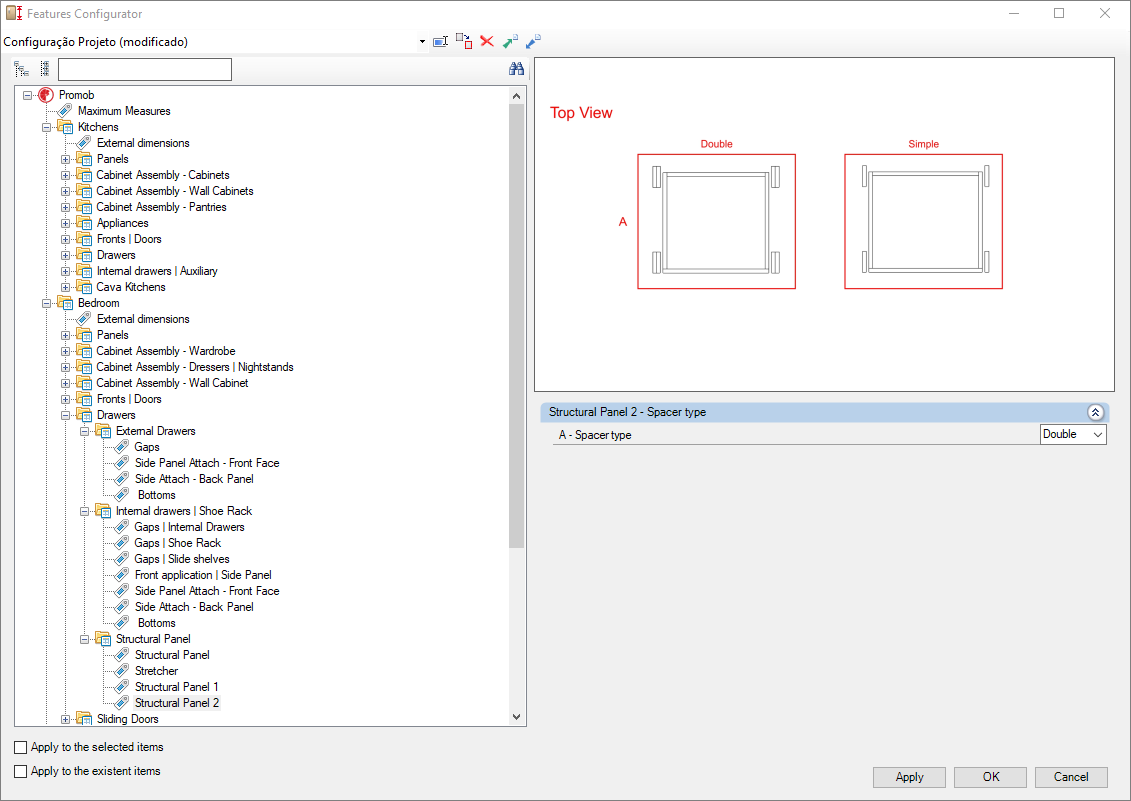

A - Spacer Type: Defines the spacer type used.
