Check below, the settings of each configuration available in the Features Configurator - Bedrooms - Fronts | Doors. If necessary, see here how to apply the dimension settings.
|
|

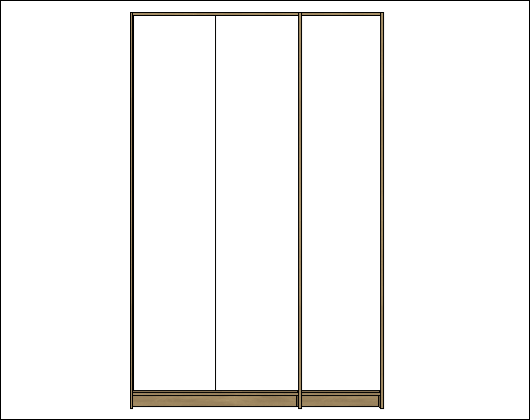

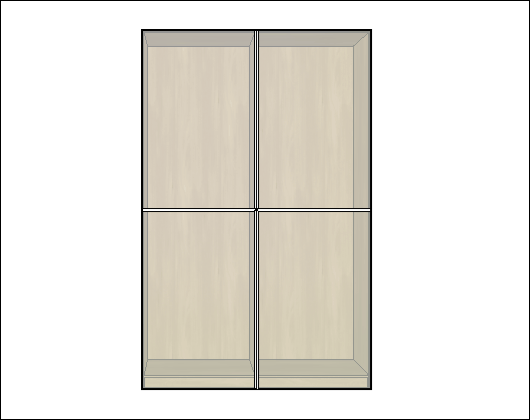

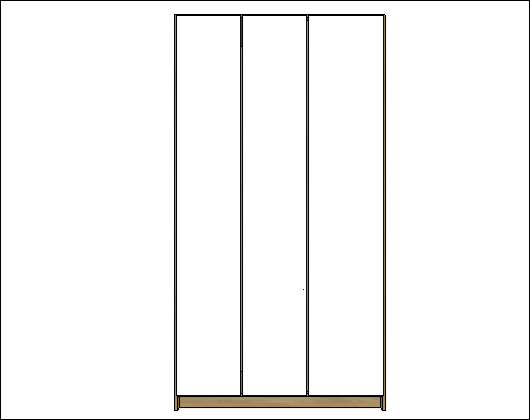

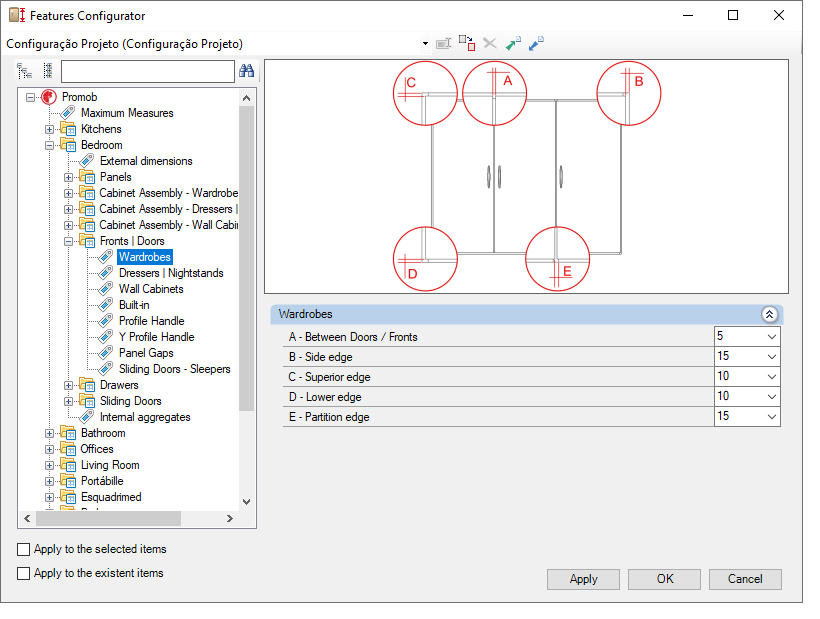

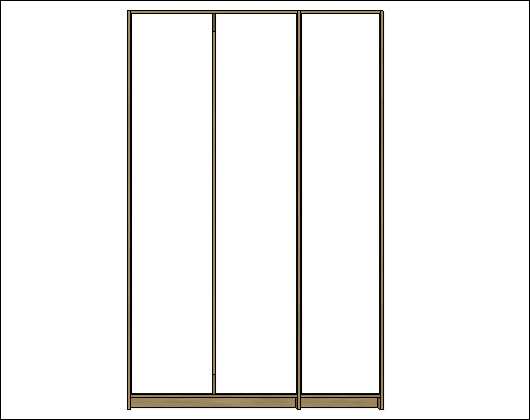

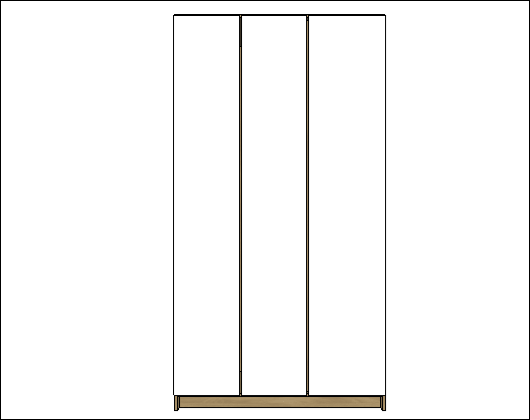

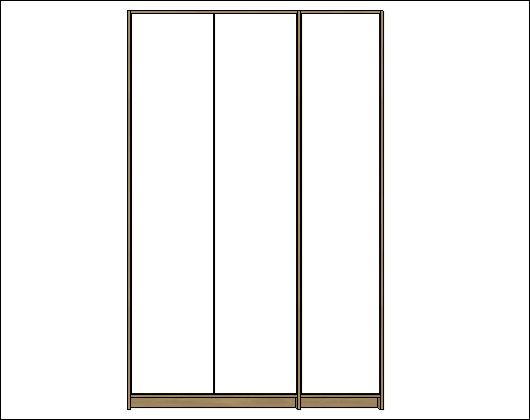

Wardrobes

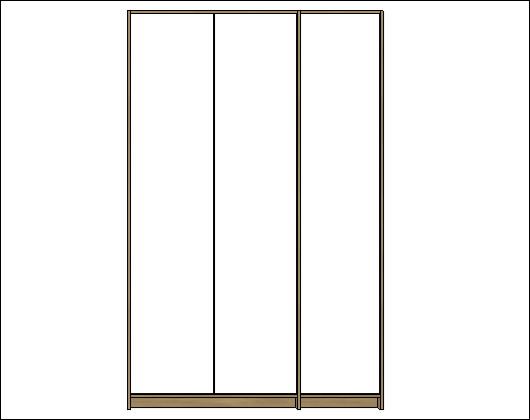

Wardrobes
A - Between Doors/Fronts: sets the spacing between the doors of the cabinets.
B - Side Edge: defines the lateral distance between the module and the doors.
C - Superior Edge: defines the upper distance between the module and the doors.
D - Lower Edge: defines the lower distance between the module and the doors.
E - Partition Edge: sets the distance between the door and the opposite edge of the partition.

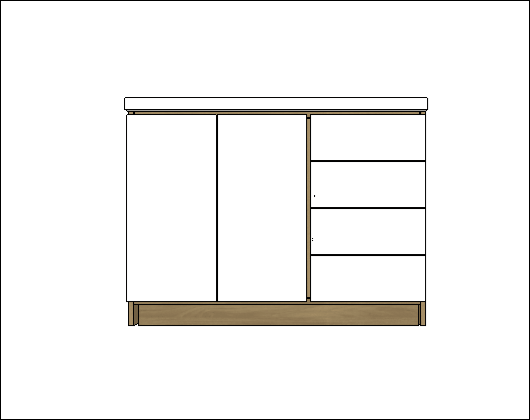

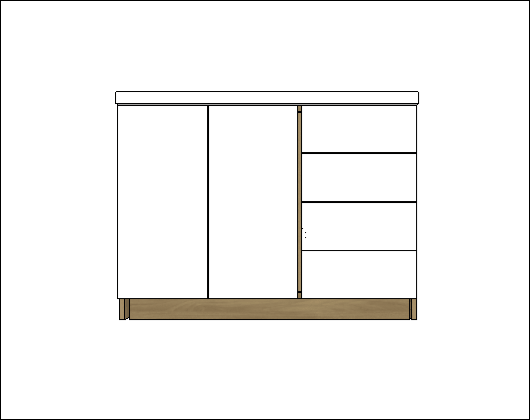

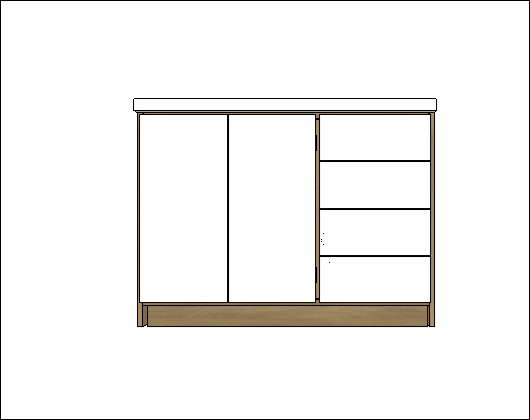

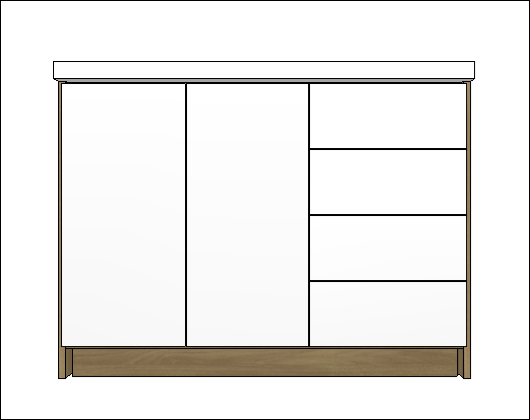

Dressers | Nightstands

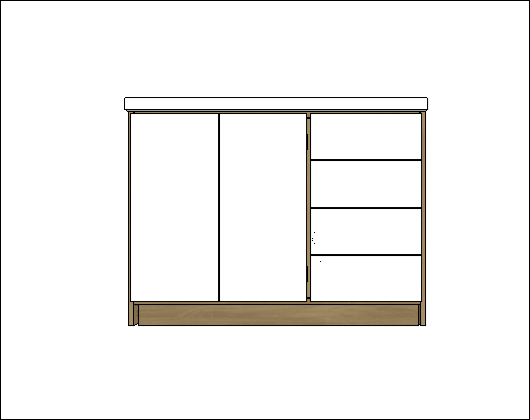

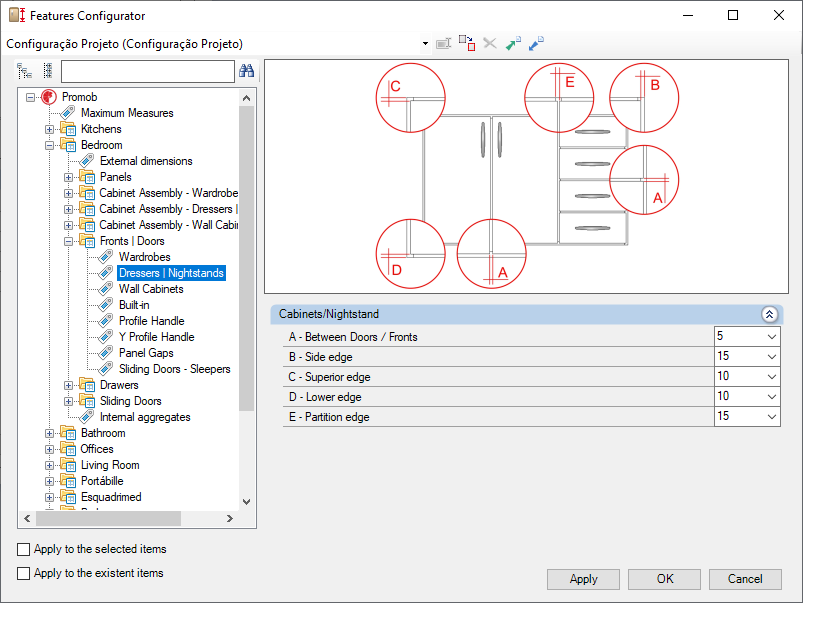

Cabinets/Nightstand
A - Between Doors/ Fronts: set the distance between doors on cabinets.
B - Side Edge: sets the lateral distance between the module and the door on cabinets.
C - Superior Edge: sets the upper distance between the module and the door on cabinets.
D - Lower Edge: sets the lower distance between the module and the door on cabinets.
E - Partition Edge: set the distance between the door and the opposite edge of the partition.

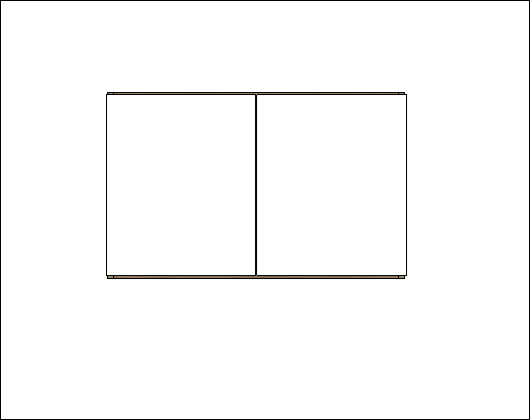

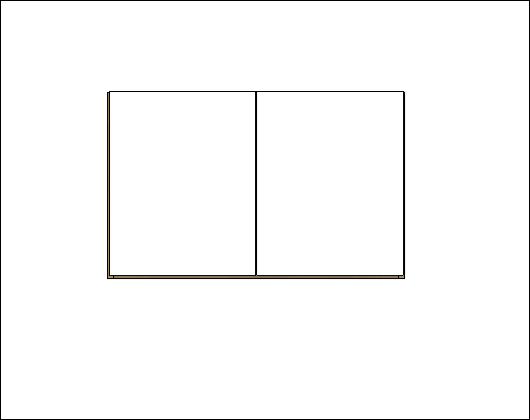

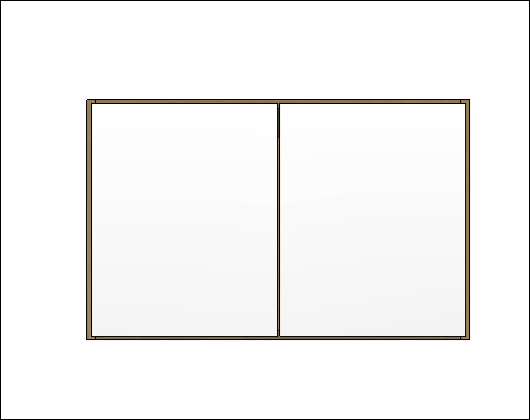

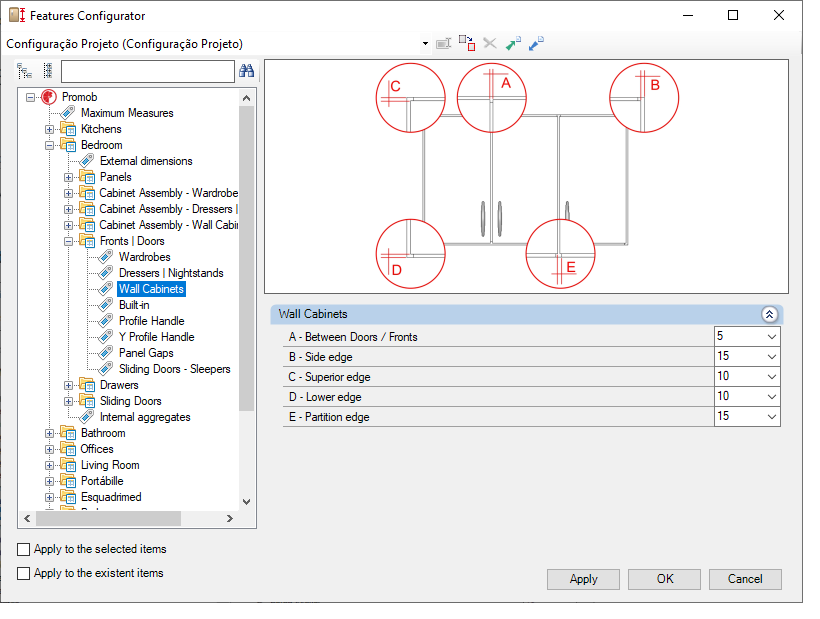

Wall Cabinets
A - Between Doors/Fronts: set the spacing between the doors of the cabinets.
B - Side Edge: defines the lateral distance between the module and the doors.
C - Superior Edge: defines the upper distance between the module and the doors.
D - Lower Edge: defines the lower distance between the module and the doors.
E - Partition Edge: defines the distance between the door and the opposite edge of the partition.

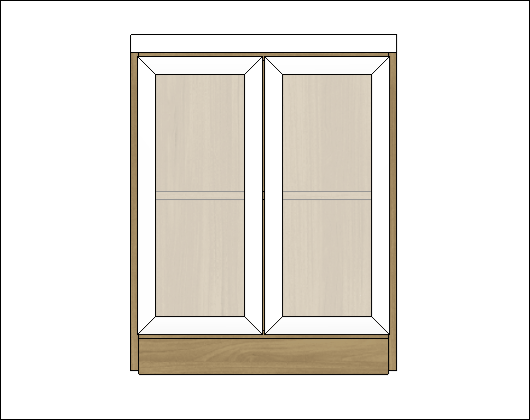

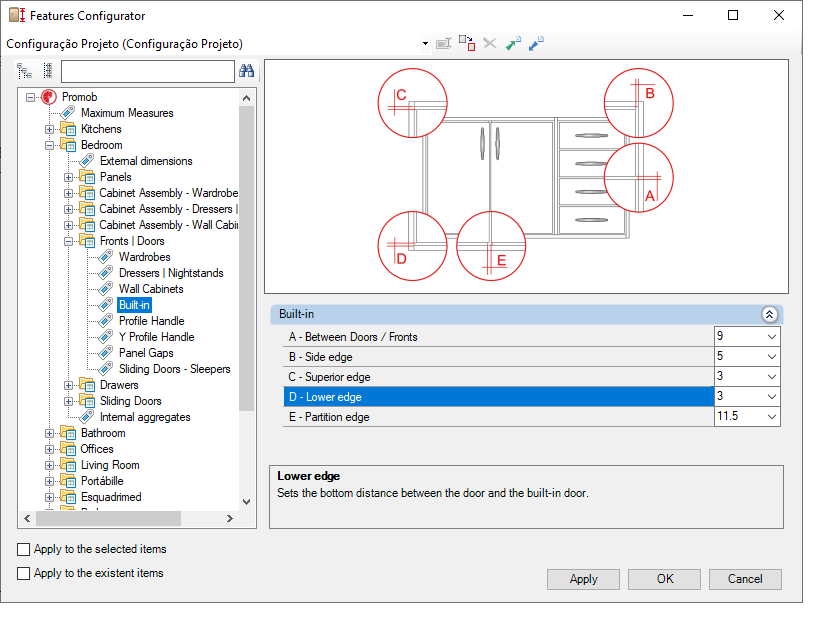

Built-in
A - Between Doors/Fronts: sets the distance between built-in doors on modules.
B - Side Edge: sets the lateral distance between the module and the built-in door.
C - Superior Edge: sets the upper distance between the door and the built-in door.
D - Lower Edge: sets the bottom distance between the door and the built-in door.
E - Partition Edge: sets the distance between the built-in door and the opposed limit of the partition.

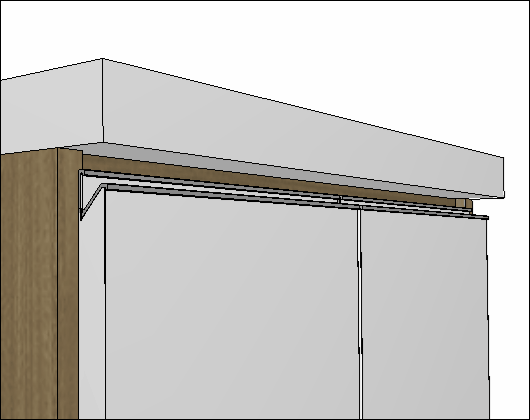

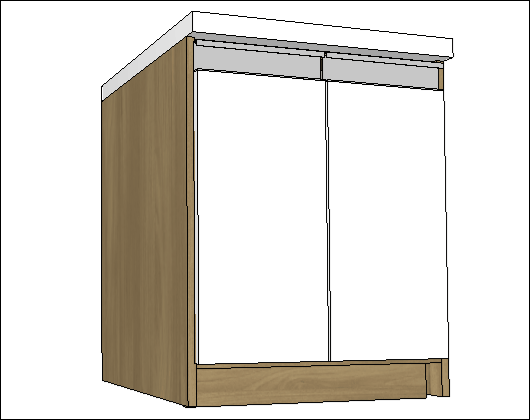

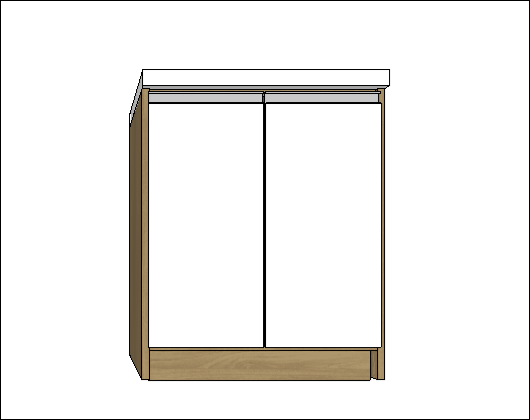

Profile Handle
Listing
D - Quantity: set profile handle calculation.
E - Dimension Bar: sets the legth of the aluminium handle bar.

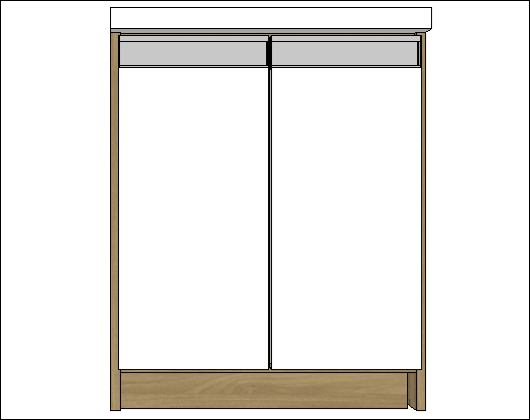

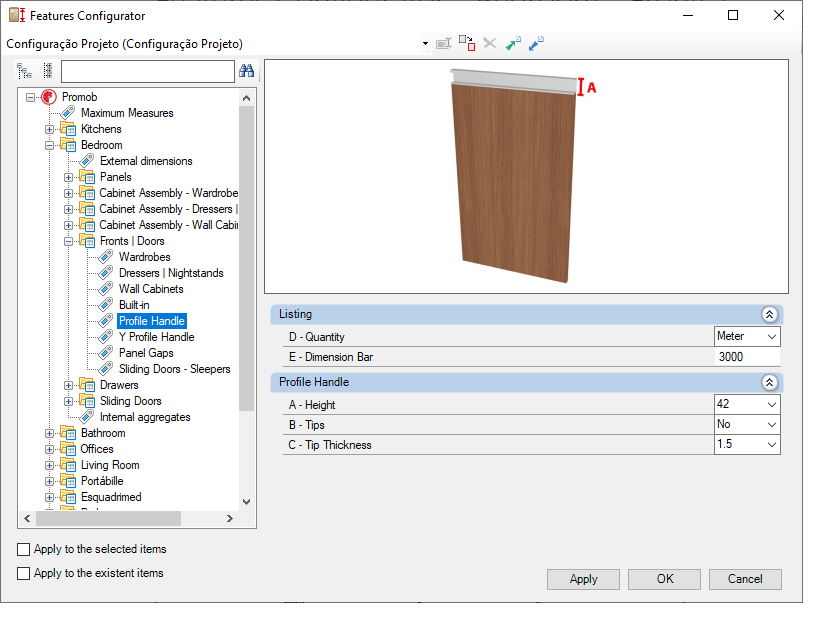

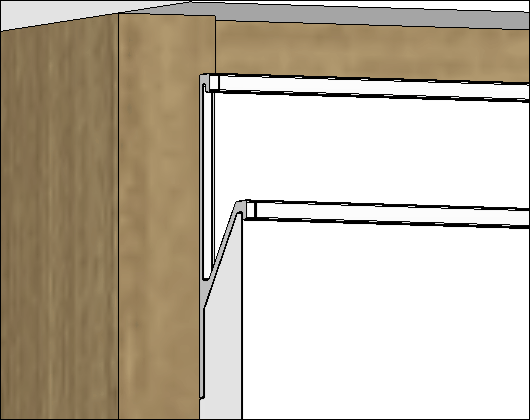

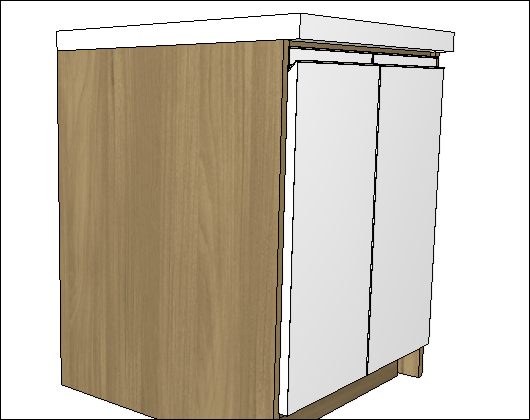

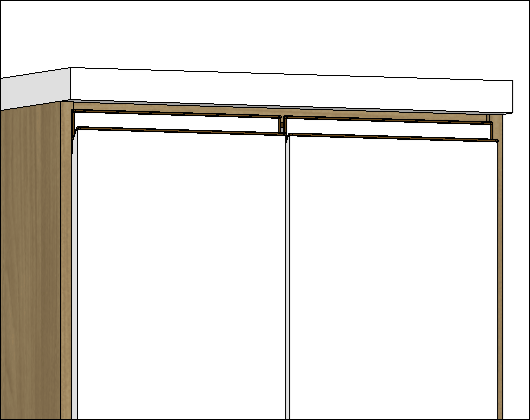

Profile Handle
A - Height: sets the height on profile handles. Changes the height of the door.
B - Tips: sets if the module uses a back cleats or not. If used , determines the direction of it.
C - Tip Thickness: sets the thickness of tip of the profile handles. Changes the width of the handle.

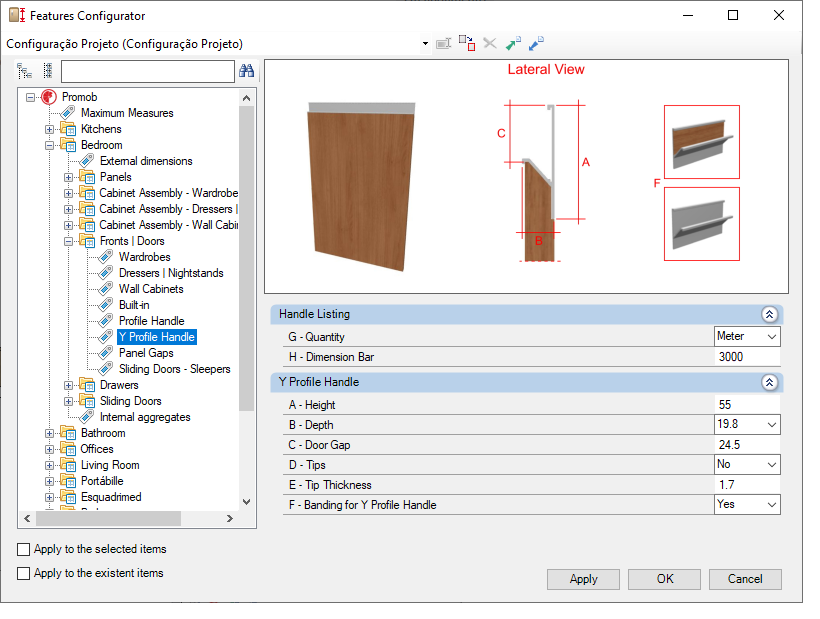

Y Profile Handle
Handle Listing
G - Quantity: sets profile handle.
H - Dimension Bar: sets the length of the profile handle bar.

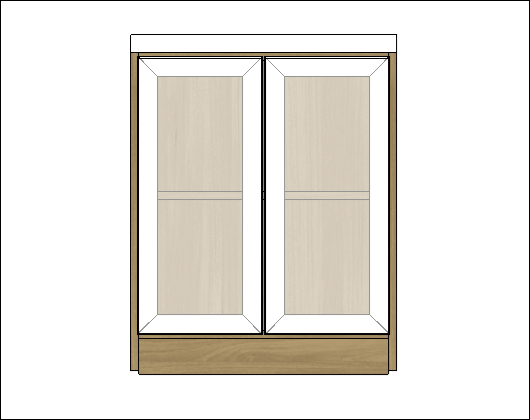

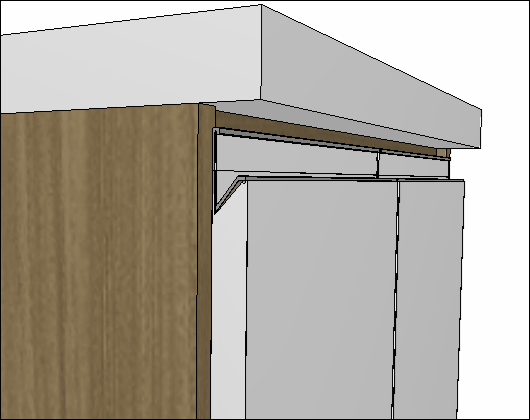

Y Profile Handle
A - Height: set the distance between the module and the beginning of the shelf.
B - Depth: sets the depth of the handle. It is related to the thickness of the door panel.
C - Door Gap: sets the clearance of the door panel in relation to the total height of the door.
D - Tips: sets ir the module uses a back cleats or not. If used, determines the direction of it.
E - Tip Thickness: sets the thickness of tip of the profile handles. Changes the width of the handle.
F - Banding for Y Profile Handle: defines whether to use banding in the profile. Does not generate budget.

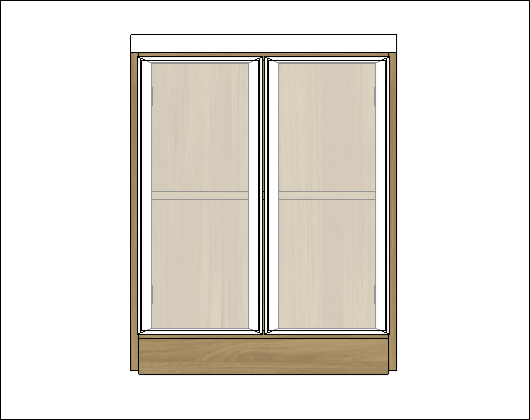

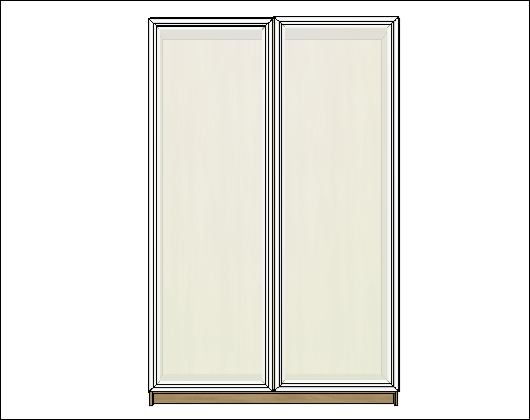

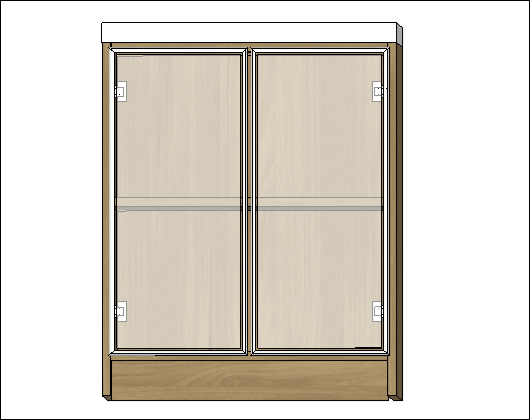

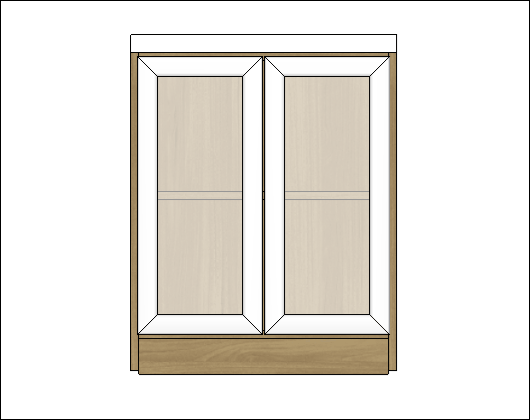

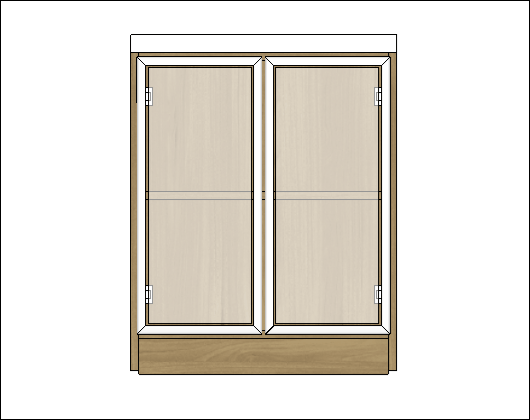

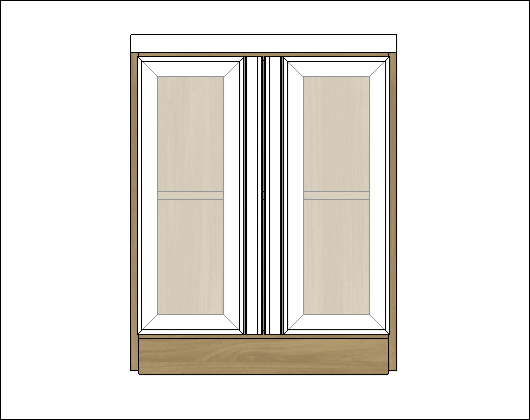

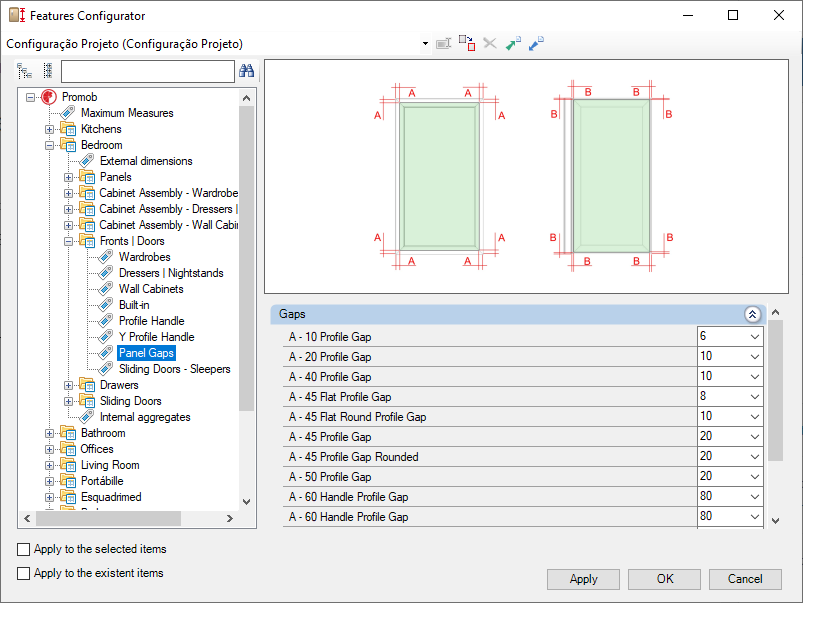

Panels Gap
Gaps

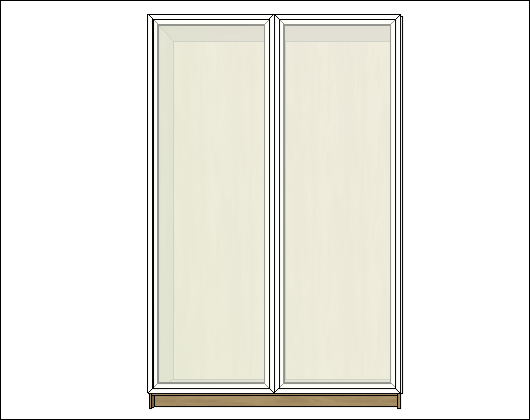

A - 10 Profile Gap:
A - 20 Profile Gap:
A - 40 Profile Gap:
A - 45 Flat Profile Gap:
A - 45 Flat Round Profile Gap:
A - 45 Profile Gap:
A - 45 Profile Gap Rounded:
A - 50 Profile Gap:
A - 60 Handle Profile Gap:
A - 60 Profile Gap:
A - Border Profile Gap:
A - Wood and glass gap:
B - Handle Gap:

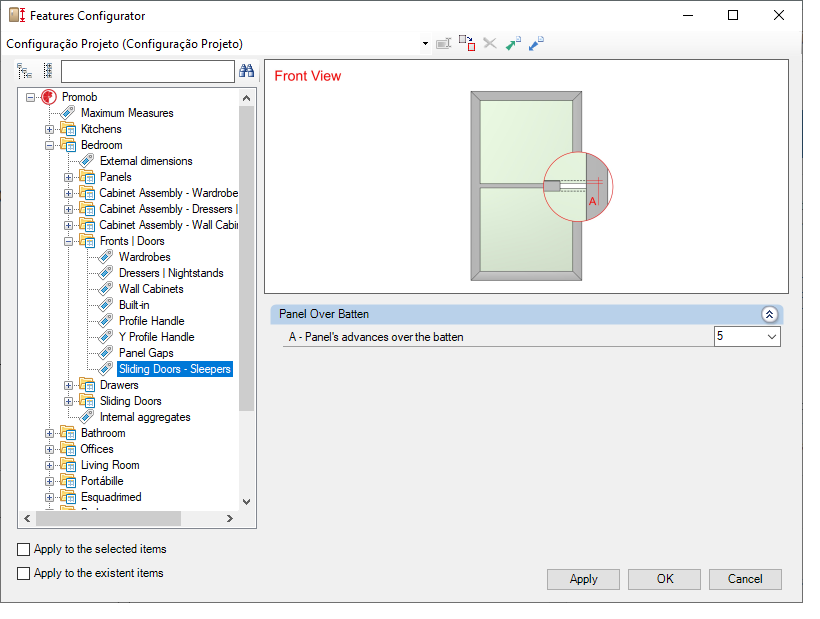

Sliding Doors - Sleepers
Panel Over Batten
A - Panel's advances over the batten: sets how much the panel advances over the sleeper.
