Check below the definitions of each configuration available in Dimensions Configurator - Bedrooms - Sliding. If necessary, see here how to apply dimension settings.

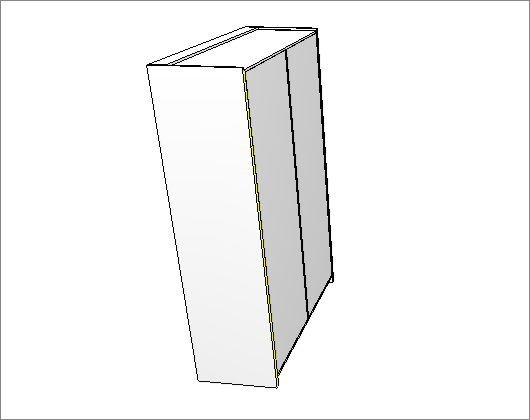

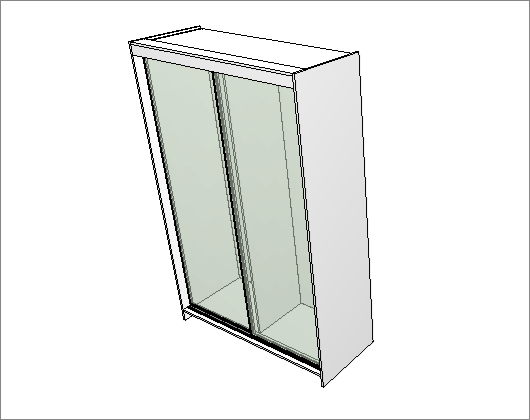

External Side Panels

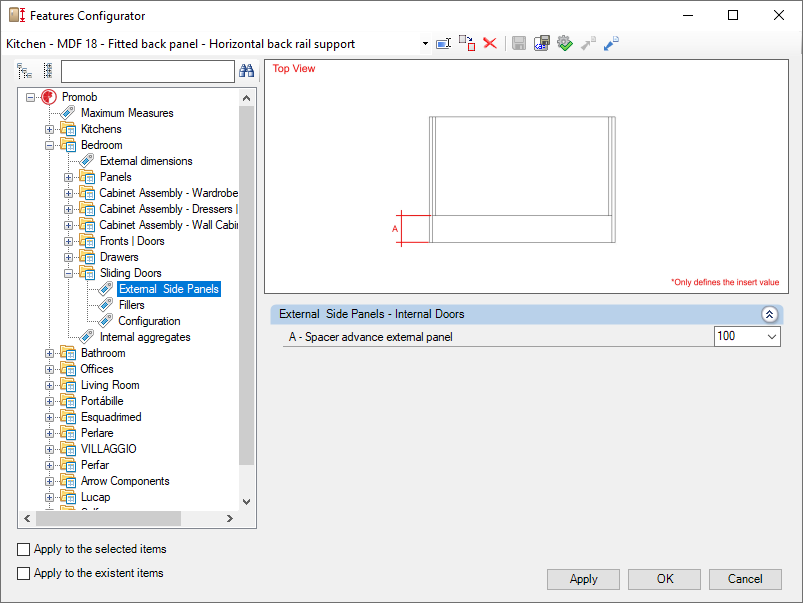

Check the settings for the External Side Panels of the Bedroom library below:

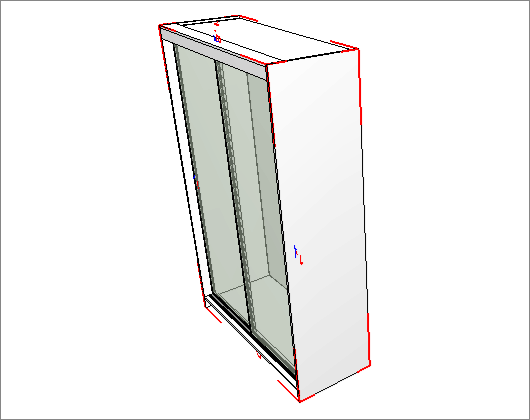

External Side Panels - Internal Doors
A – Spacer advance external panel: Sets the downgrade of the side panel.

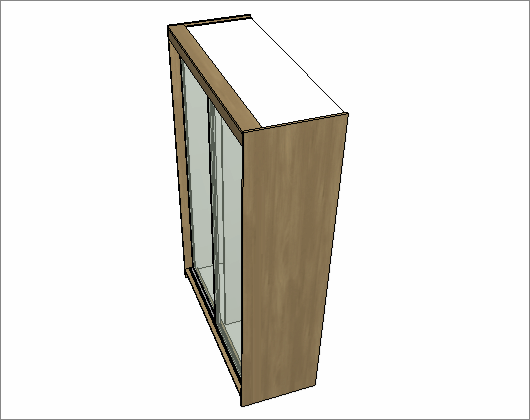

Fillers

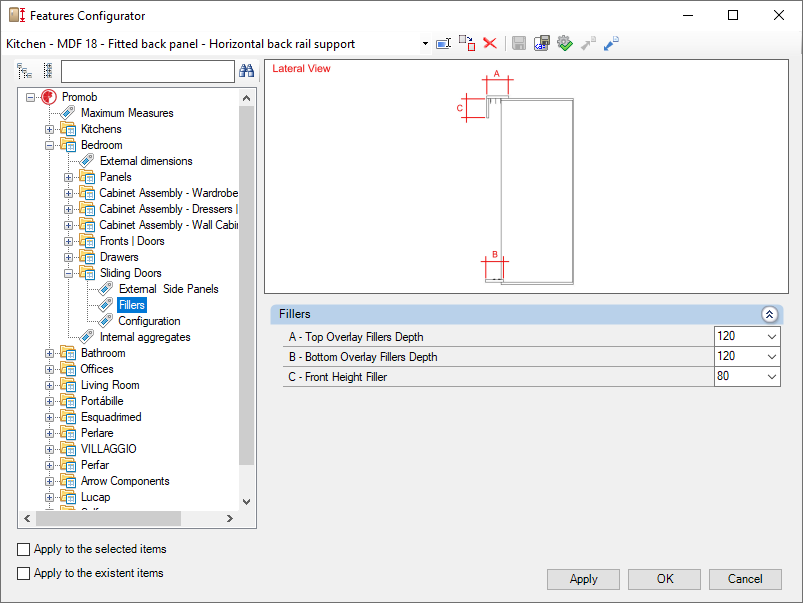

Check the settings for the Fillers of the Bedroom library below:

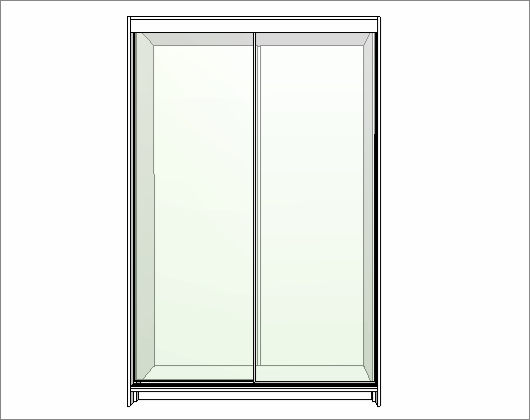

Fillers
A – Top Overlay Fillers Depth: Sets the downgrade of the side panel.
B – Bottom Overlay Fillers Depth: Sets the downgrade of the side panel.
C – Front height Filler: Sets the downgrade of the side panel.
Configuration

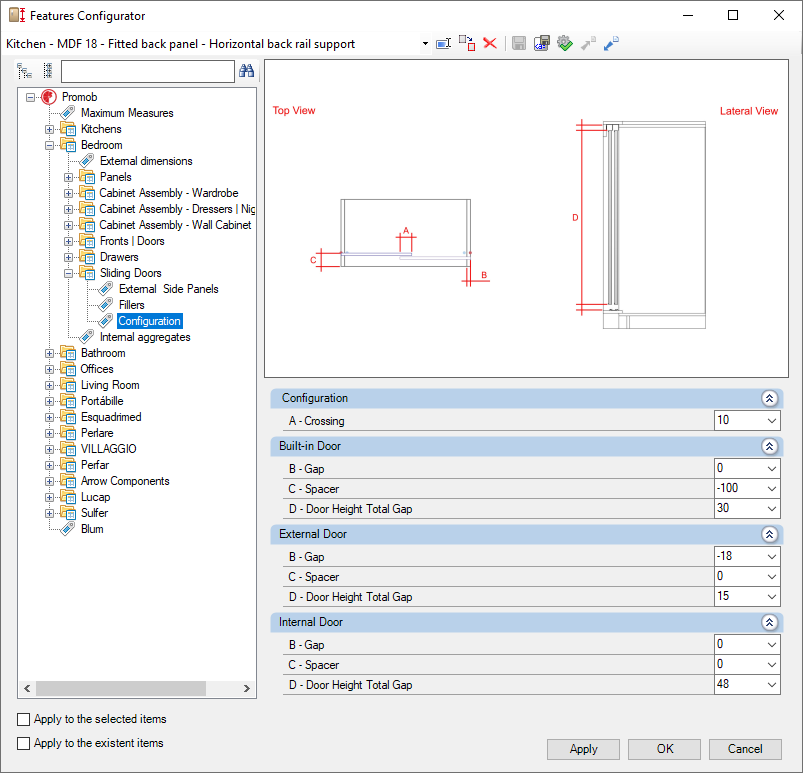

Check the settings below for the Configuration of the Bedroom library:
Configuration

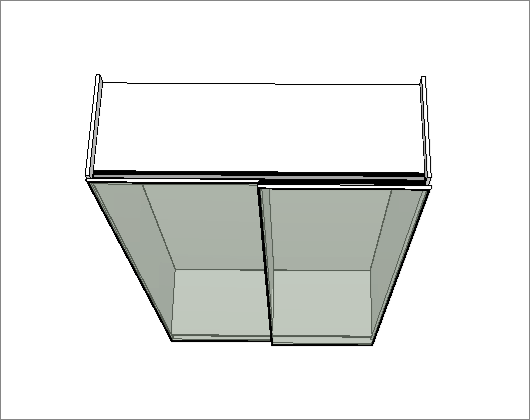

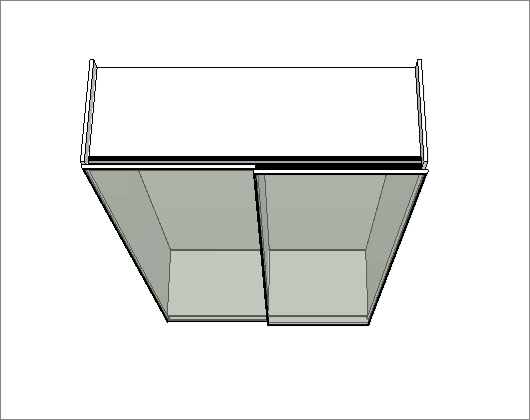

A – Crossing: Sets the overlap between the ports.

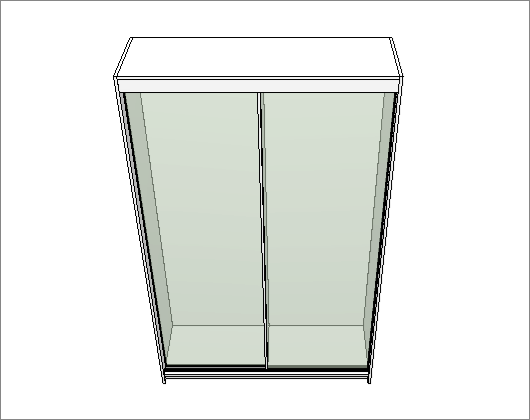

Built-in Door
B – Gap: Set the structure gap
C – Spacer: Sets the displacement of the y on the doors.
D – Door Height Total Gap: Set the total gap of the door's height relating to the closings or bases, when these do not exist.

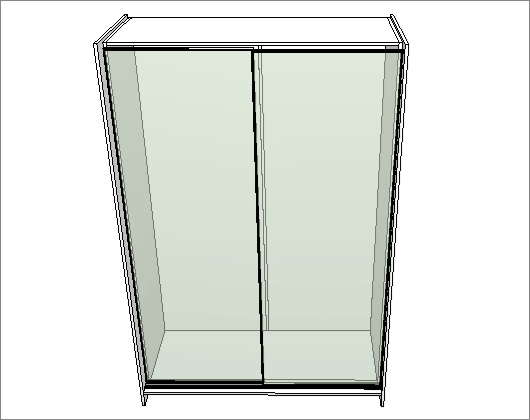

External Door
B – Gap: Set the structure gap.
C – Spacer: Sets the displacement of the y on the doors.
D – Door Height Total Gap: Set the total gap of the door's height relating to the closings or bases, when these do not exist.

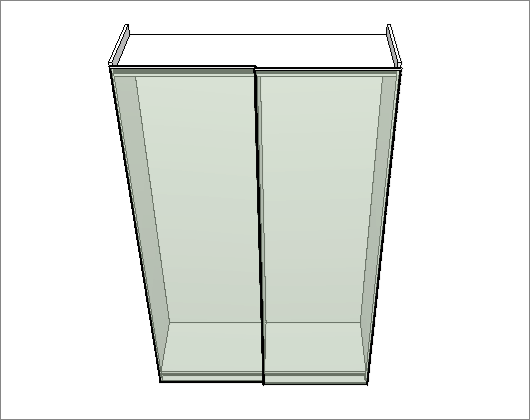

Internal Door
B – Gap: Set the structure gap.
C – Spacer: Sets the displacement to the y on the doors.
D – Door Height Total Gap: Set the total gap of the door's height relating to the closings or bases, when these do not exist.
