Check below the specifications and configurations available in the AL 1200D plugin:
Available from version: Plugin Builder 1.60.17.6

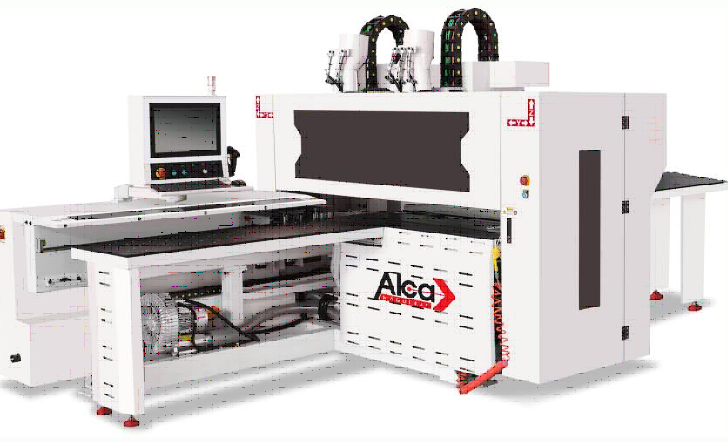

Machine Type: Centro de Usinagem CNC
Manufacturer: Alca
Generated file extension: .Mpr
Manual: manual made available by the manufacturer, click here.
Main features
- Holes
- Slot
- Machining
Settings
To check the settings on CNC Machines, click here.

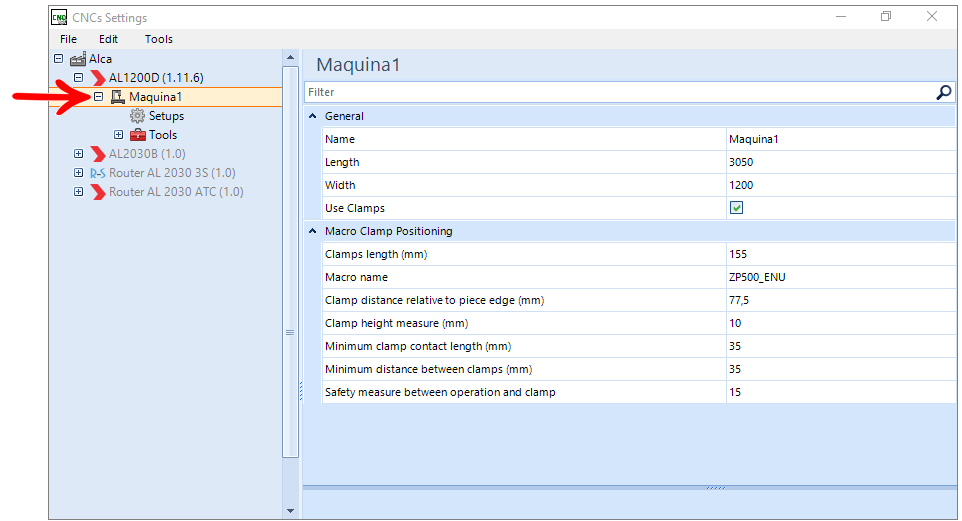

Máquina 1
General
Name: define the name for the machine.

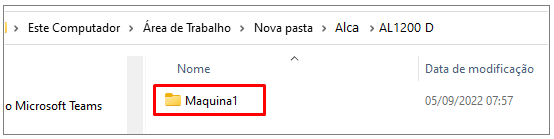

IMPORTANT: The name set in this field also changes the name of the folder where the generated files will be saved.
Length X (mm): the value entered this field indicates the maximum usable length of the machine.
Width Y (mm): the value entered this field indicates the maximum usable width of the machine.
Use Clamps: defines whether the machine uses the clamps to hold the part.
Macro Clamp Positioning
Clamps lenght (mm): size of the machine's clamps, in millimeters.
Macro name: name of the macro to be used on the machine's command.
Clamp distance relative to piece edge (mm): distance from the center of the clamp to the edge of the part, in millimeters.
Clamp height measure (mm): height of contact between the machine clamps and the workpiece, in millimeters.
Minimum clamp contact length (mm): minimum contact length of the machine collet with the workpiece, in millimeters.
Minimum distance between clamps (mm): minimum distance between machine clamps, in millimeters.
Safety measure between operation and clamp: extra safety distance from the clamp for invalid operations.
Tools

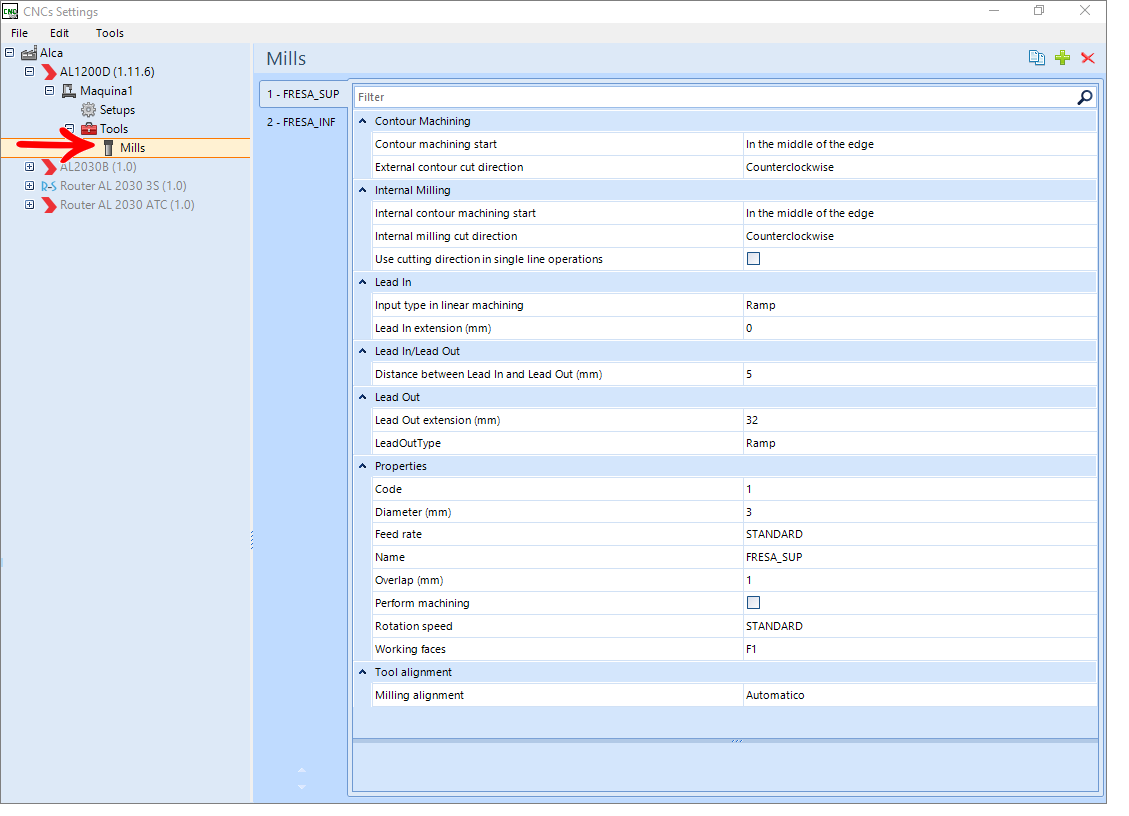

To check the settings about CNC Tools, click here.
Mills
The mills are used to perform slotting and machining.
Contour Machining

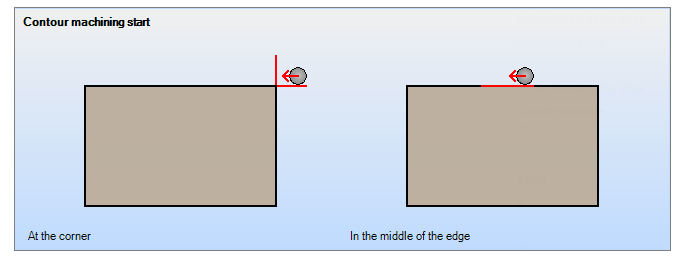

Contour machining start: defines where contour machining starts, at one of the corners or in the middle of one of the workpiece edges. This option is applicable only to external contour machining.

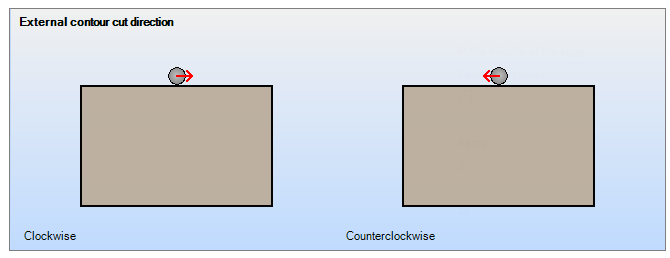

External contour cut direction: defines whether contour machining has to be done clockwise or counterclockwise.
Internal Milling

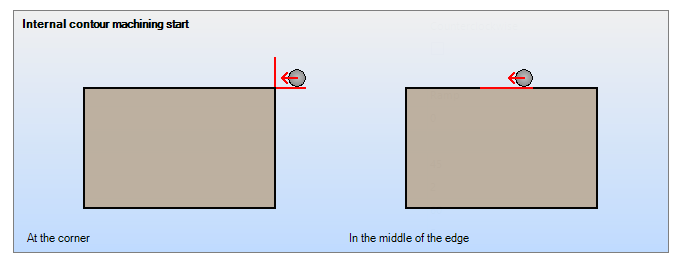

Internal contour machining start: it defines internal machining to be made in a non-clockwise or anti-clockwise direction.

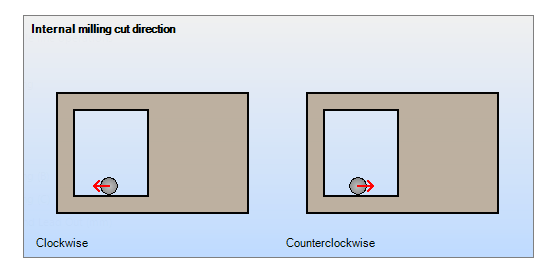

Internal milling cut direction: defines where internal contour machining starts, at one of the corners or in the middle of a machining edge.
Use cutting direction in single line operations: when you mark this setting, single-line machining operations follow the cutting direction of the mills. For more information click here.
Lead in
Input type in linear machining: defines the type of input the tool will use when machining and contouring linear forms. Options Ramp, vertical, circular.
- Circular: in this type the tool descends outside the part and then starts cutting tangentially before entering the part.
- Vertical: in this type the tool descends vertically onto the workpiece and begins cutting.
- Ramp: in this type the tool descends by making a ramp until it reaches the maximum depth of operation.
Lead in extension (mm): extension of the entrance before the contour cutting starts, equivalent to the red line in the image.
Lead in/ Lead out

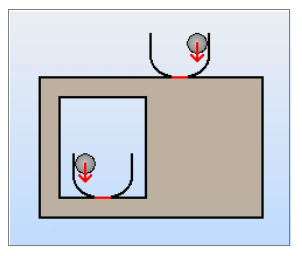

Distance between lead in and lead out (mm): distance the tool exits and enters the part. It is advisable that this value be greater than zero so that the cut does not leave any fragments (burrs).
Lead Out
Lead Out extension (mm): output extension after machining/contouring is finished, equivalent to the red line.
Lead Out Type: defines the type of output that the tool will use when machining and contouring.
- In the vertical type, the tool descends vertically onto the workpiece and begins cutting.
- In the circular type, the tool descends outside the part and then starts cutting tangentially before entering the part.
- In the ramp type, the tool descends as a ramp and starts cutting.
Properties
Code: the code defined in this field must match the registration defined on the machine so that the tool can be located correctly.
Diameter (mm): tool diameter.
Name: the name defined in this field must match the registration defined on the machine so that the tool can be located correctly.
Overlap (mm): overpass between tool passes to avoid material leftovers.
Perform machining: if the machine does machining.
Rotation speed: tool rotation speed, the default value is STANDARD.
Working faces: faces where the tool is used to perform operations.
Tool Alignment
Milling alignment: defines whether the tool has an offset in the center, left or right according to the direction of the Cutting direction option for contour machining.

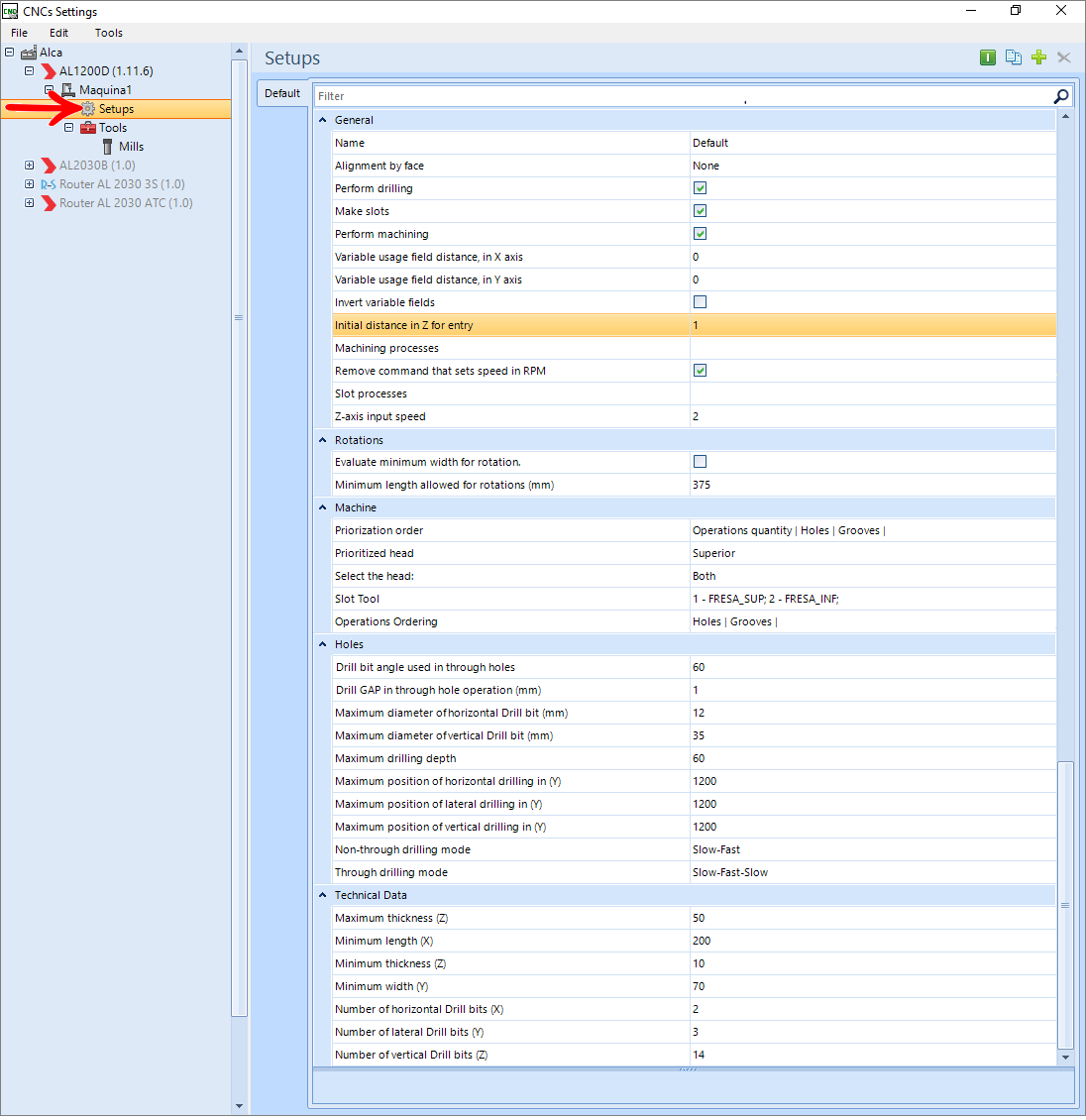

Setups
General

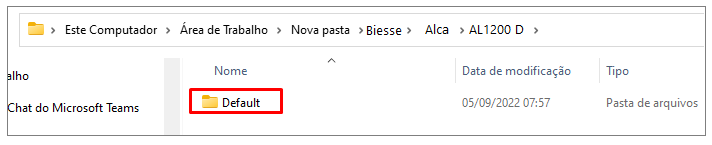

Name:the name set in this field also changes the name of the folder where the generated files will be saved.

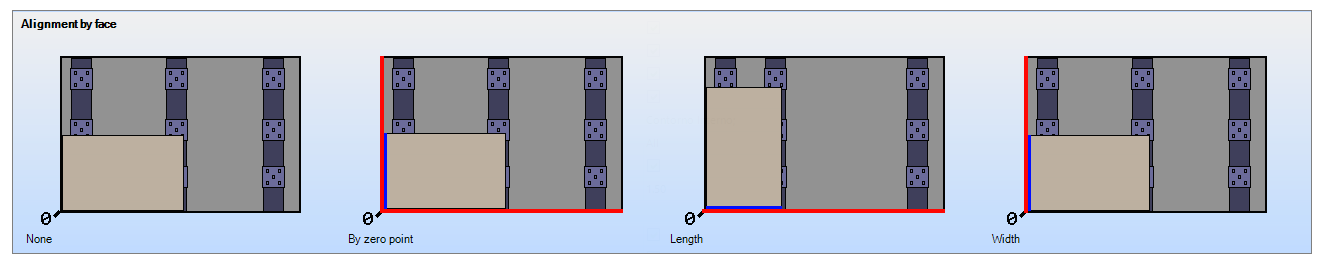

Alignment by face: defines whether the alignment face registered on each part is considered when generating programs. If yes, this face will be aligned according to the selected configuration. For more information clickhere.
Perform drilling: machine is enabled to drill holes.
Make slots: with the option checked the registered slot will be generated in the machine programs.
Perform machining: with the option checked the registered machining operations will be generated in the machine programs.

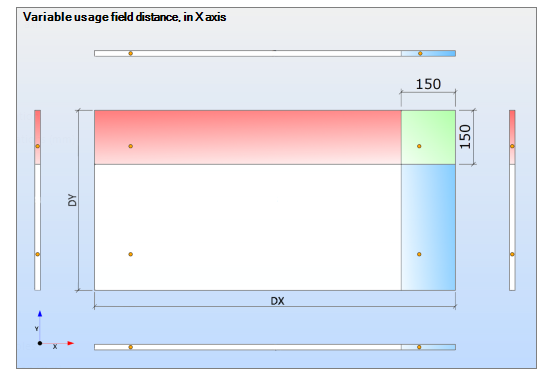

Variable usage field distance, in the X axis: distance from the end of the part on the X axis, which determines the area (blue area on the image) where operations should take variable part size minus the distance from the operation under consideration to the end.

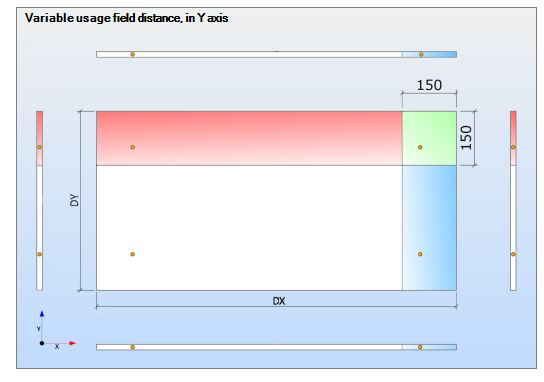

Variable usage field distance, in the Y axis: distance from the end of the part on the Y axis, which determines the area (red area on the image) where operations should take variable part size minus the distance from the operation under consideration to the end.
Invert variable fields: by checking this option, when a rotated part is generated, the fields invert as shown in the picture.
Initial distance in Z for entry: possibility of specifying a numerical value for the following commands: AZ command: This command allows you to set the initial distance in Z for entry.
ZU command: This command allows you to set the input speed on the Z axis, especially useful for sensitive parts.
Machining processes: using the Plugin Builder, it is possible to create and determine types of machining processes registered in the library, thus making it possible to use a particular tool for a particular machining operation. For more information click here.
Remove command that sets speed in RPM: allows the "S_A = 'STANDARD'" command, which sets the rotation speed in RPM, to be removed. When the option is ON: The command is EXCLUDED from the machine program. When the option is UNCHECKED: The command remains in the machine program.
Slot processes: through the Plugin Builder, it is possible to create and determine types of processes for tears registered in the library, thus making it possible to use a certain tool for a certain tear. For more information click here.
Z-Axis input speed: speed for movement of sensitive parts.
Rotations

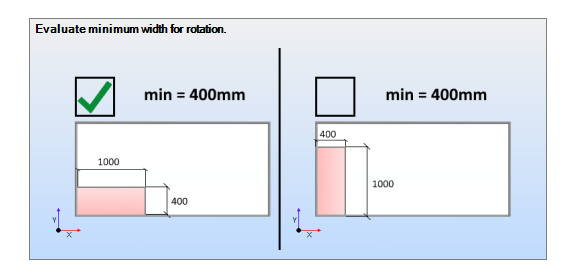

Evaluate minimum width for rotation:defines if in the generation of the programs the minimum dimension of the part to be rotated in the length direction will be evaluated. If yes, parts that have a face with a dimension smaller than the one defined will be rotated, they will have this face aligned to the machine width axis.
Minimium length allowed for rotations (mm):defines the minimum length allowed for rotations, in millimeters. If the part's length is shorter than defined, the largest part dimension will be set to X. (displayed value is 400)
Machine
Priorization order: defines the order of prioritization of operations for program generation. According to the order indicated in this field the plugin will prioritize in program A the selected option.
Example: In a part that has holes on one side and tears on the other side, the order indicated in this field will determine which of them will be prioritized in the A program.
Prioritized head: head to be prioritized when creating the machine program.
Select the head: indicates which head will perform the operations, either the lower head, the upper head, or both. If only one head is used, operations on opposite sides are performed in different programs.
Slot tool: tool used for slots. IMPORTANT: This option is available when the Make Slots option is selected.
Operations ordering: order that the machine performs operations. Example: in a part that has holes and tears on the same face the order indicated in this field will determine the sequence in which they will be executed by the machine.
Holes
Drill bit angle used in through holes: determine the drill bit end angle for through hole usage (from 25 to 90 degrees). This value is used in the calculation to determine the increment in the through-hole depth to ensure that the hole passes completely through the part.
Drill GAP in through hole operation (mm): determine the clearance of the drill for use in through holes.
Maximum diameter of horizontal drill bit (mm): maximum diameter of the horizontal drills.
Maximum diameter of vertical drill bit (mm): maximum diameter of the vertical drills, in millimeters. Maximum value: 35.
Maximum drilling depth: maximum depth the drill can drill, in millimeters.
Maximum position of horizontal drilling in (Y): maximum position at which the machine can drill horizontal holes in (y), in millimeters.
Maximum position of lateral drilling in (Y): maximum position at which the machine can drill in (Y).
Maximum position of vertical drilling in (Y): maximum position at which the machine can drill vertical holes in (Y).
Non-through drilling mode: drilling mode for through holes. Value: Slow-Fast-Slow.
Trough drilling mode: defines the mode to be used Fast-Fast or Slow-Fast.
Technical Data
Maximum thickness(Z): maximum thickness of the part that the machine can perform operations.
Minimum length (X): minimum thickness of the part that the machine can perform operations.
Minimum thickness (Z): minimum thickness of the part that the machine can perform operations.
Minimum width (Y): minimum part length for the machine to perform operations.
Number of horizontal drill bits (X): the number of drills, for each horizontal face, present in the machine.
Number of lateral drill bits (Y): number of drill bits, for each side face, present in the machine.
Number of vertical drill bits (Z): number of vertical drills present in the machine.
