Builder - Creator 950 – Generate the complete machining path

Updated
Follow

Available from version 1.60.33.0 or higher of the Builder plugin.

In the General Settings of the machine plugin Creator 905, the functionality Generate the complete machining path has been included.

IMPORTANT: The functionality is only available for the machine Creator 950.

To access it, follow the procedures below:

1. Open the Promob Catalog.

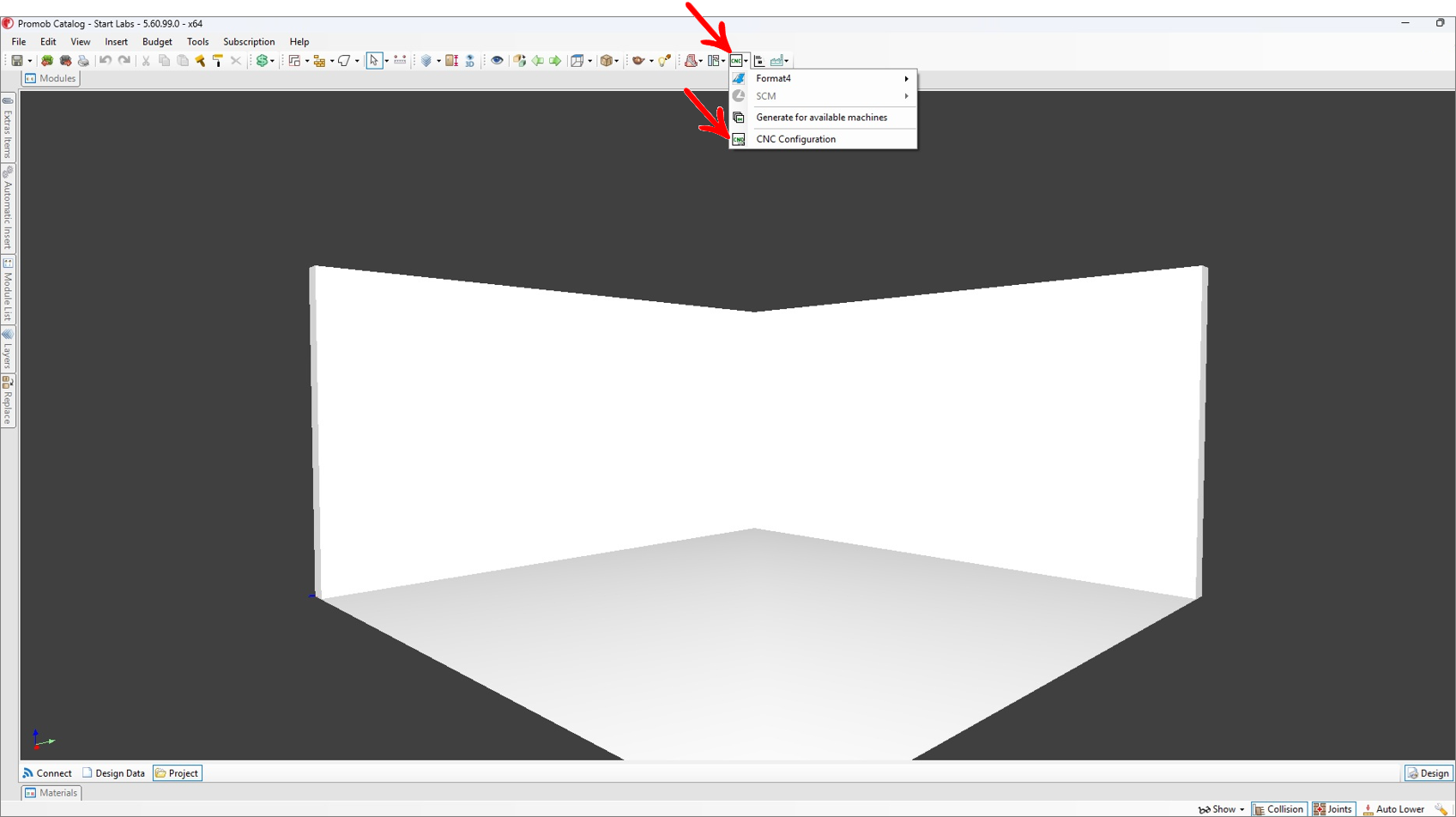

2. Go to CNC Machine Settings and click on CNC Configuration.




3. Select the manufacturer Format4 and click on the machine plugin Creator 950:




Setup

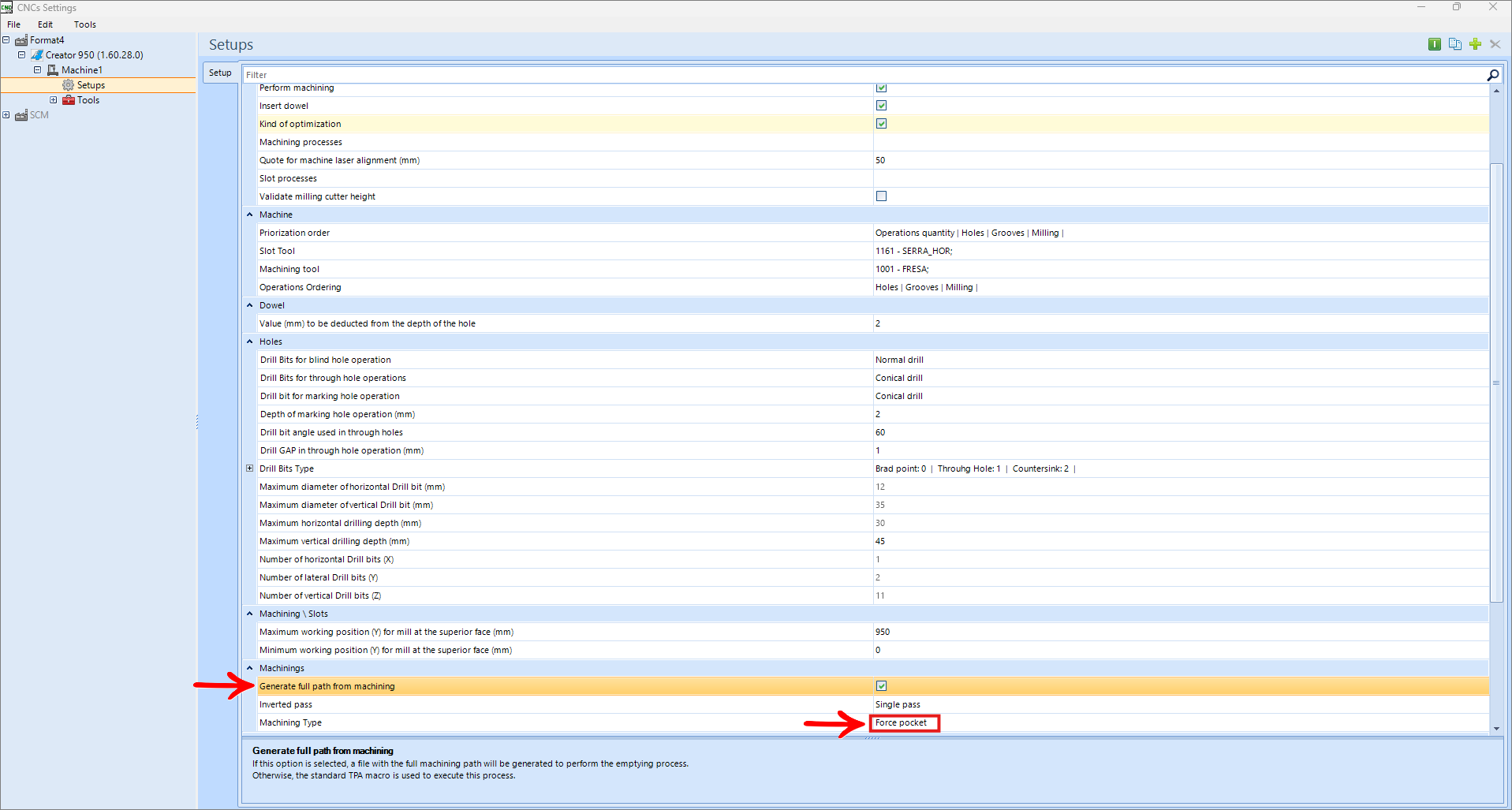

In the machine setup, when the option Machining Type is set to “Force Emptying”, the option Generate the complete machining path will be enabled. This setting allows you to determine if a file will be generated with the total machining path to perform the emptying process. The available options are:

  • When checking the option: A file will be generated with the total machining path to perform the emptying process.
  • When unchecking the option: The standard TPA macro will be used for execution.
