Cut Pro - Cutting Manager - WDMAX – KDT PreSize

Updated
Follow

To use the KDT PreSize Plugin:

1. Activate the Plugin. For information about subscribing to the plugin, contact Promob.

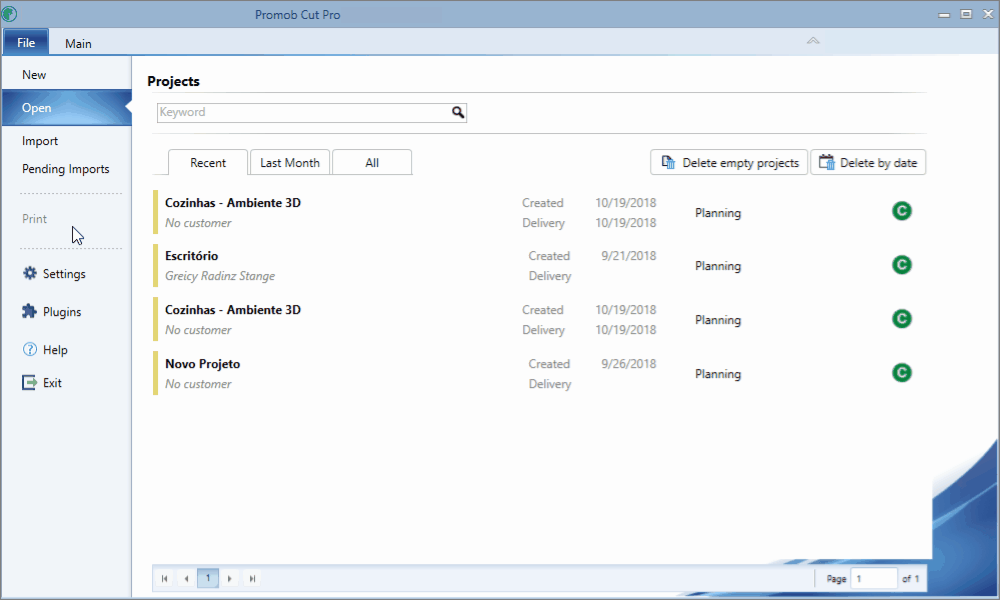

2. Configure your plugin by accessing the Main - Export Settings menu.

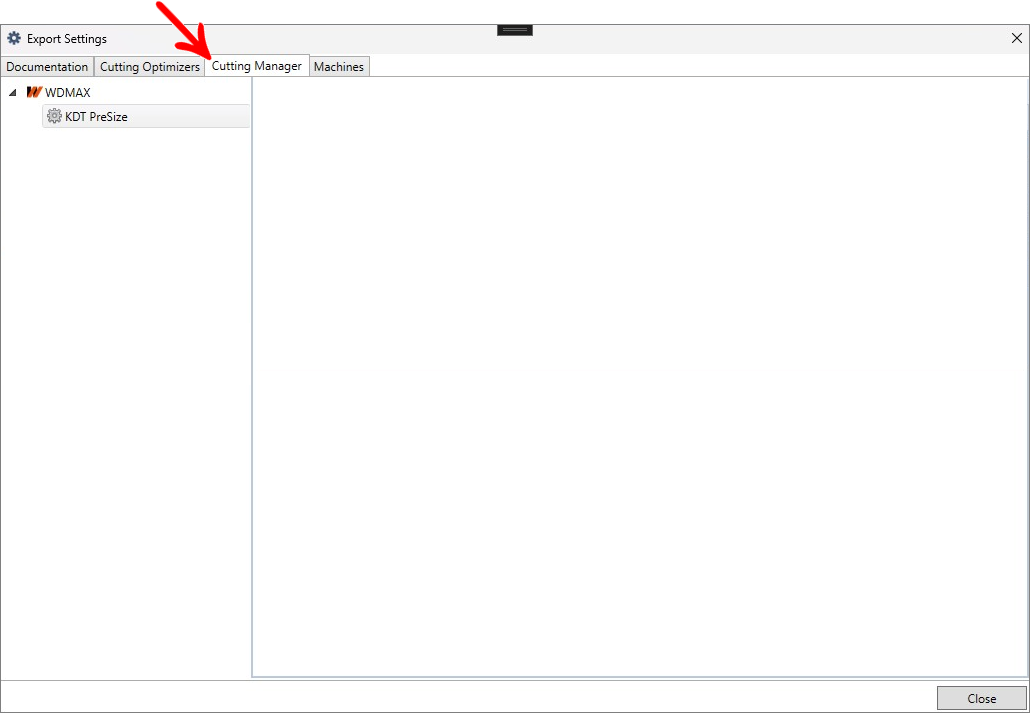

3. Access the Cutting Managers tab:

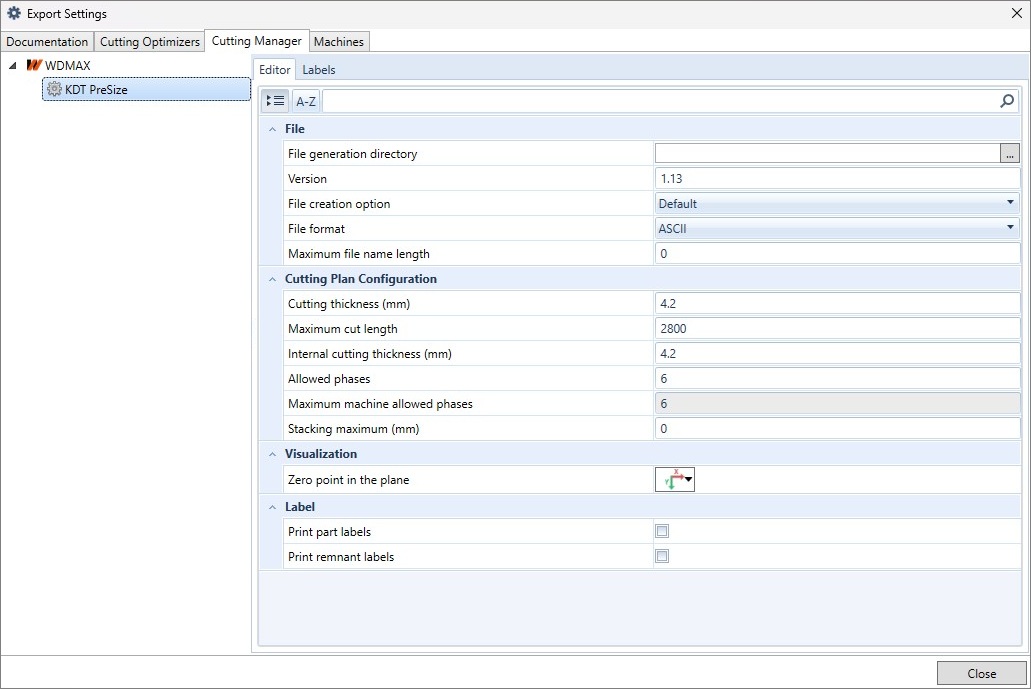

4. In the Configurator tab, define the desired settings for the KDT PreSize plugin.

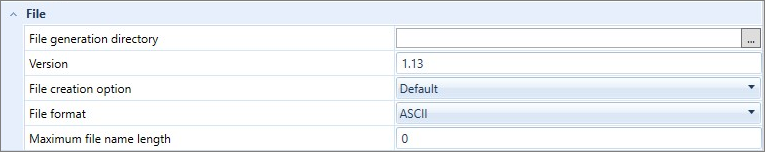

File


  • File generation directory: indicates the directory where the .ptx file will be generated.

    • When the file generation directory is not specified in the Export Settings, the file will be saved in the directory indicated in the Location field on the Generate Documents screen.

  • Version: file version.

  • File creation option: allows integration files to be generated separately by material; learn more here.

  • File format:  Format of the file to be generated: ASCII (default) or Unicode (recommended for use with Chinese characters)

  • Maximum file name length: enter the maximum number of characters for the integration file name. IMPORTANT:

    • Use the value 0 to remove the file name length limit;

    • The minimum number of characters is 5.

Cutting Plan Configuration

  • Cutting Thickness  (mm): defines the thickness of the cut, in millimeters, that performs the cut.

  • Maximum cut length: defines the maximum possible cutting size for the machine.

  • Internal cutting thickness (mm): defines the internal trim thickness. If you enter 0, the cutting plan will be generated without trim.

  • Allowed phases: defines the number of phases to be used in the cutting manager.

  • Maximum machine allowed phases: defines the maximum number of phases allowed by the panel saw.

  • Stacking Maximum (mm): defines the maximum size, in millimeters, of stacked panels for cutting.

Visualization

  • Zero point in the plane: define the position of the origin point used by the manager.



Label

  • Print part labels:  when this option is selected, information related to part labels is sent in the .ptx file.

  • Print remnant labels:  when this option is selected, information related to remnant labels is sent in the .ptx file.

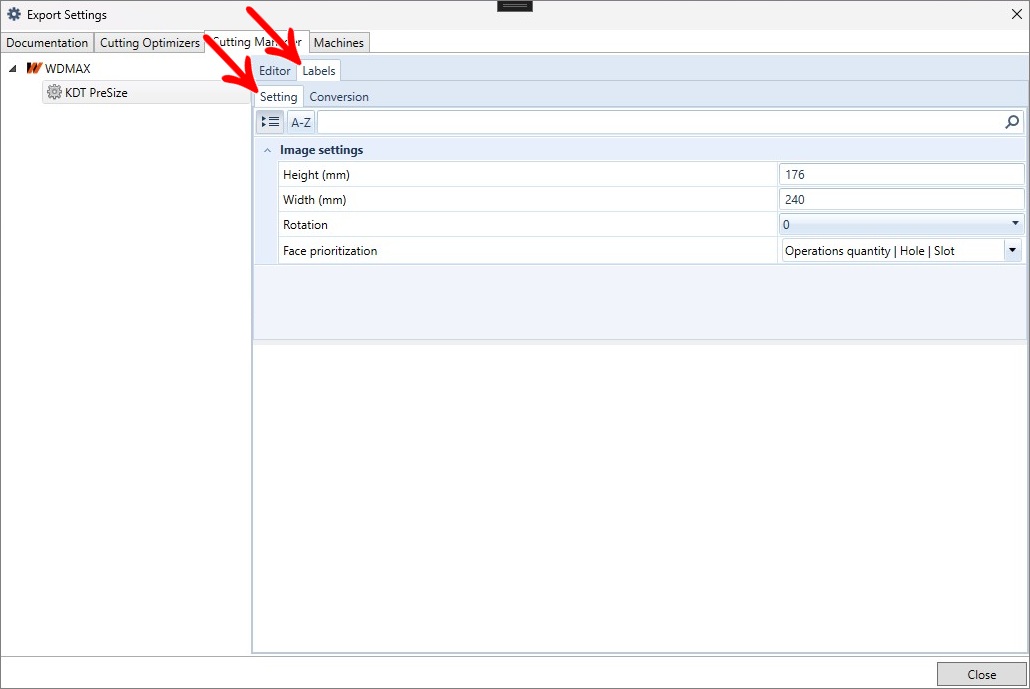

5. On the Labels tab, under the Configuration guide, adjust the rotation, width, and height of the label image.

IMPORTANT: these measurements are defined in the KDT PreSize settings because KDT PreSize does not send the label template, only the content of each field.

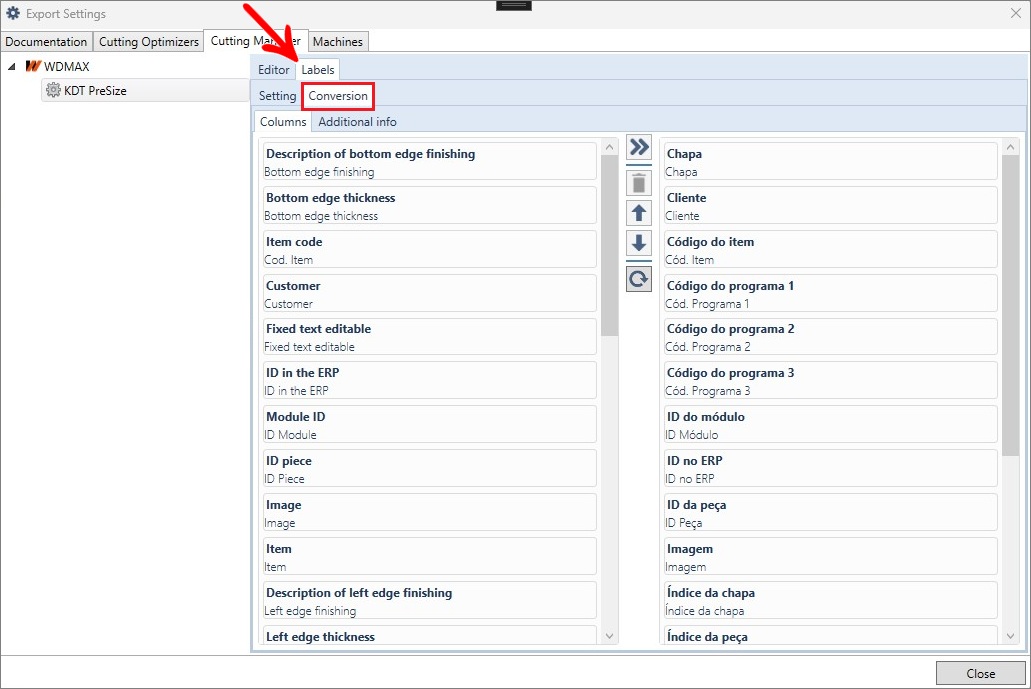

6. On the Labels tab, under the Conversion guide, you can configure the columns that will be sent for label printing. IMPORTANT: Values are sent in the order in which they are configured on this guide.




IMPORTANT:

  1. The cutting manager files will not be generated if the cutting plan has been edited by moving the parts.

  2. For all managers, you can configure the label image through the File - Print menu.
