When creating new entities that have a Geometry Drawing (Drawing tab) in a Promob library, these items are not automatically associated with the available CNC plug-ins for security reasons. Therefore, before publishing, it is necessary to associate these entities with the corresponding plug-ins.
Below, see the procedure for performing this association.

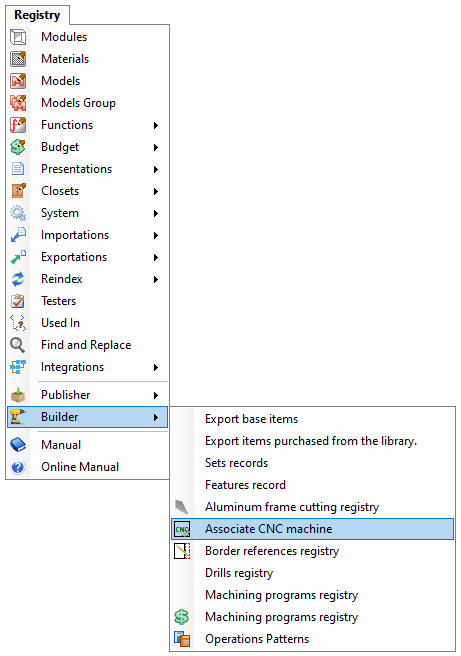

1. In Promob Catalog, access the Registration - Builder menu and select Associate CNC machine.

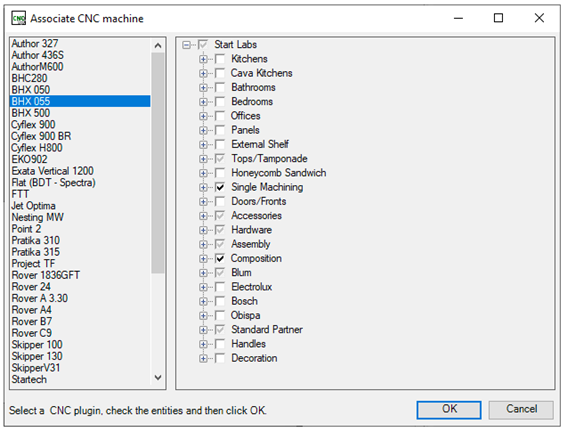

2. Select the desired plugins, according to the plugins you have:
IMPORTANT:
1. Select a plug-in and clear everything by clicking the root folder. Then, select the root folder again so that the entire library is selected again.
2. Repeat this procedure for all plug-ins you want to associate, and then click OK.
3. After completing this procedure, only the items with characteristics valid for association with CNC machines will remain selected—that is, those that have a Geometry Drawing in their registration.
