Cut Pro - Leftover labels

Updated
Follow

In Promob Cut Pro you can print the leftover labels generated in the cutting plane.

To generate the labels, after the leftovers have been saved, follow the procedures below:

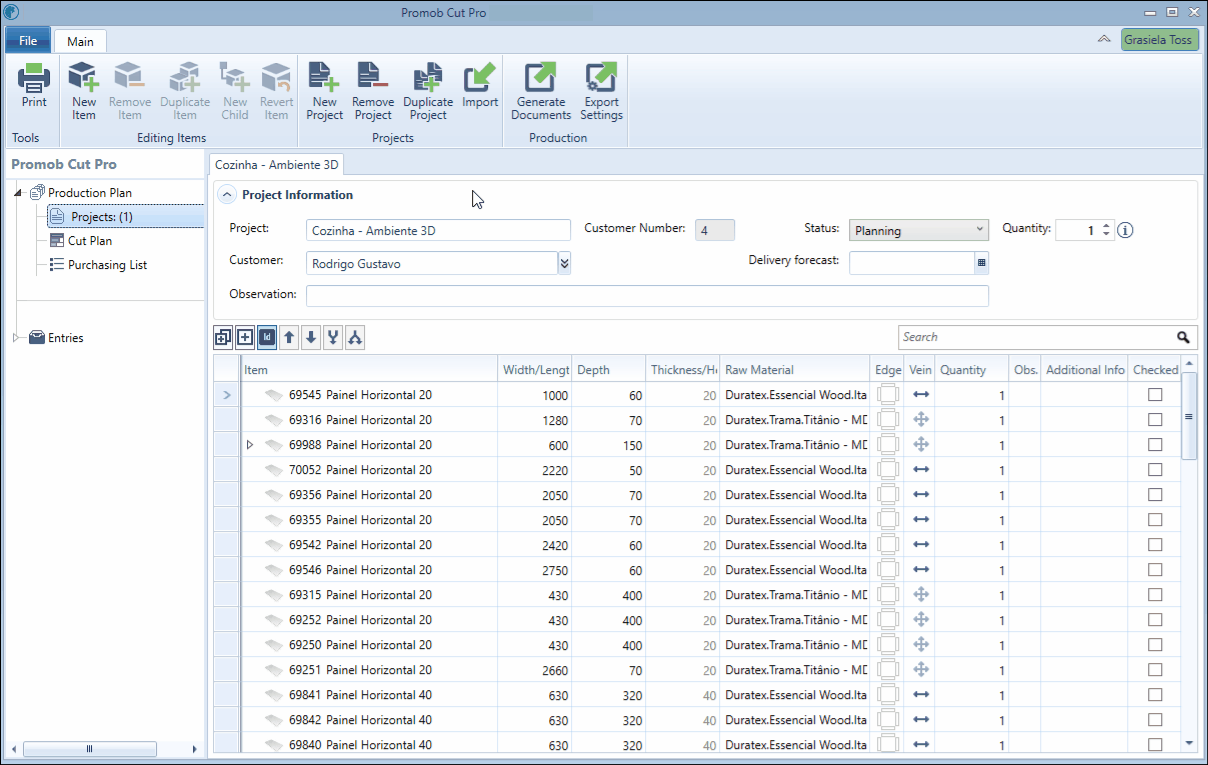

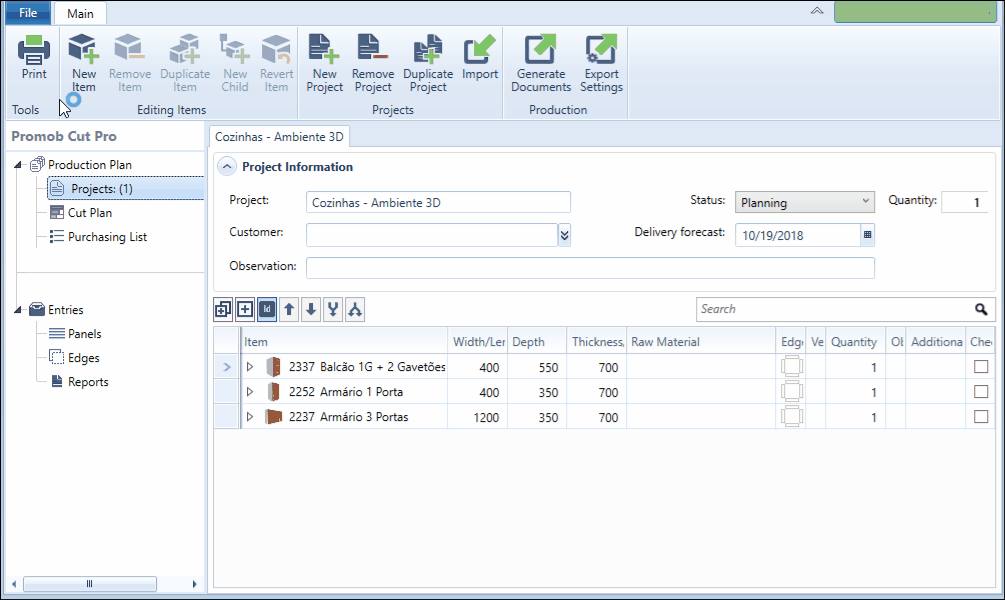

1. Click on the Print icon;

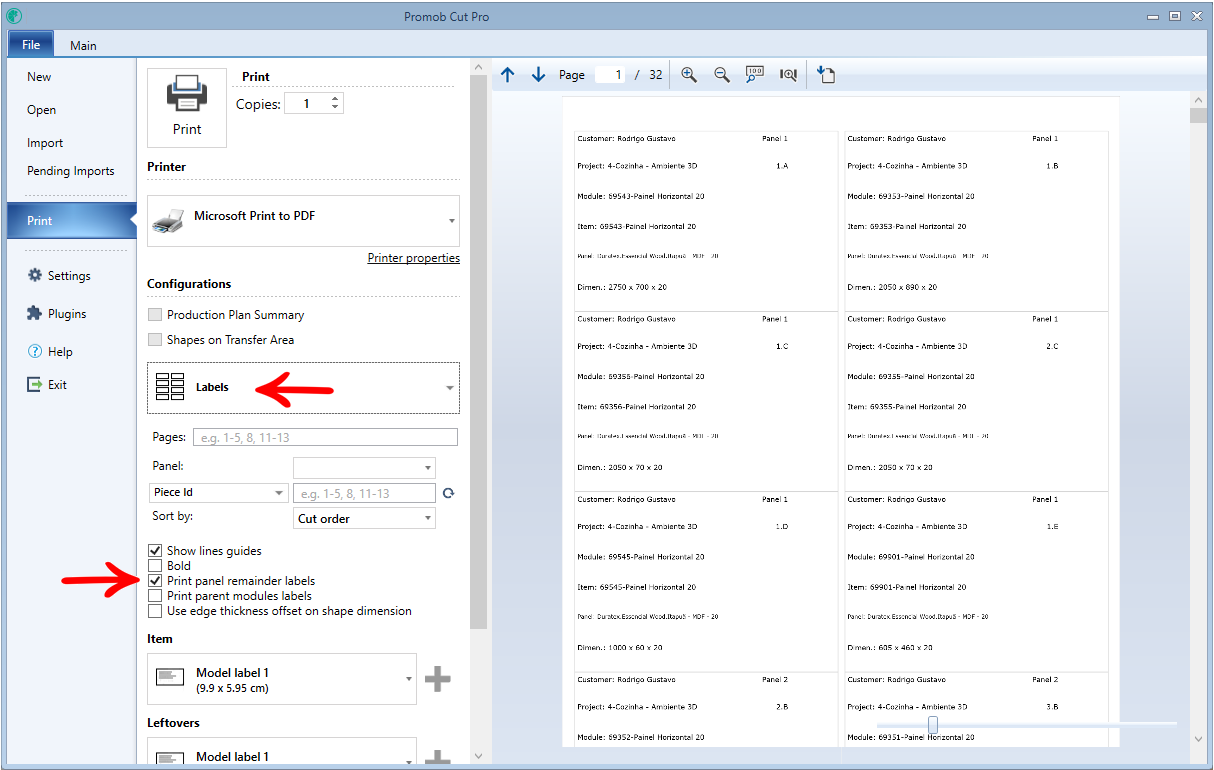

2. Select the Labels option;

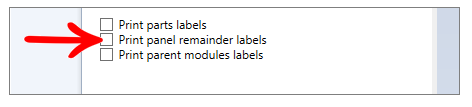

3. Select the Print leftover labels field.

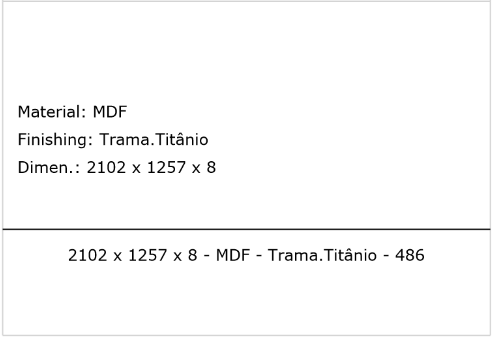

The leftover labels will be printed along with the other project labels in the format illustrated in the image below.


IMPORTANT: It is possible to print the labels individually, to print only leftover labels, check only the Print leftover labels option.


IMPORTANT: it is advisable to label application on the left is made as illustrated in the image below, in order to facilitate the visualization of information present on the label when the leftovers are stored side by side:



In addition to this label format, Promob Cut Pro allows you to edit or create new leftover label templates.

To do this, by checking the Print leftover labels option, a new field is enabled.

In this field, you can edit, delete, set as default, or add a new leftover label template.

IMPORTANT: In the leftover label editor, only fields related to leftover will be available.


Starting with Promob Cut Pro version 1.2.2.41, you can print leftover labels that have been manually registered. For this, it is necessary to inform Cut Pro that the printing of leftover labels will refer to the manually registered leftovers and not to the leftovers generated in the project cutting plan.




To print manually registered scrap labels:

1. Access the File menu Print;

2. Select the labels option;

3. Check the option Register;

4. Click Filter Remnants;

5. Set the leftover criteria for label printing. Specify material, description, and dimensions.

6. Apply the filter and click Print.






Sort leftover labels

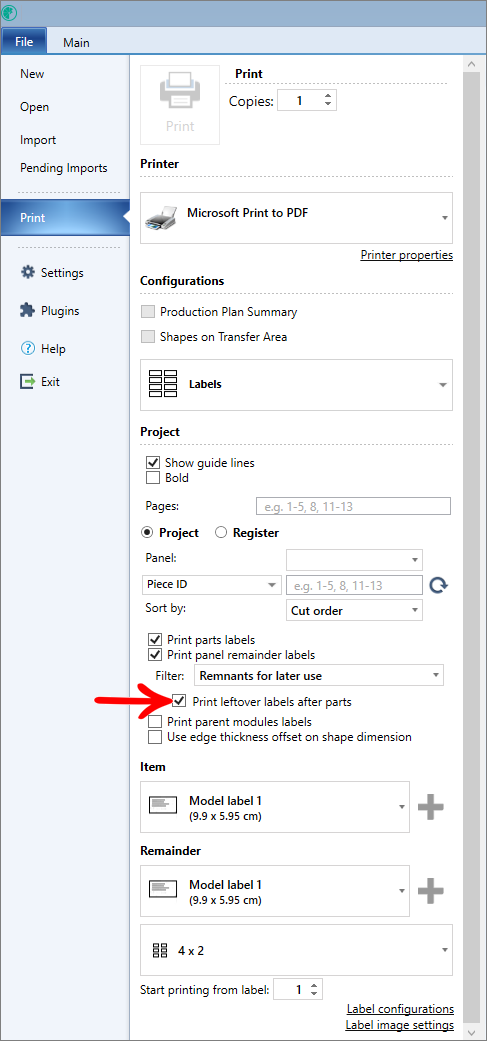

Using the Print leftover labels after parts option you can order the remnant labels of each sheet to be printed after the part labels of each plate.






Example:

Selecting the Print leftover labels after parts option will print all parts from panel 1 and then all leftovers from panel 1, then all parts from panel 2 and all leftovers from panel 2.




New Fields

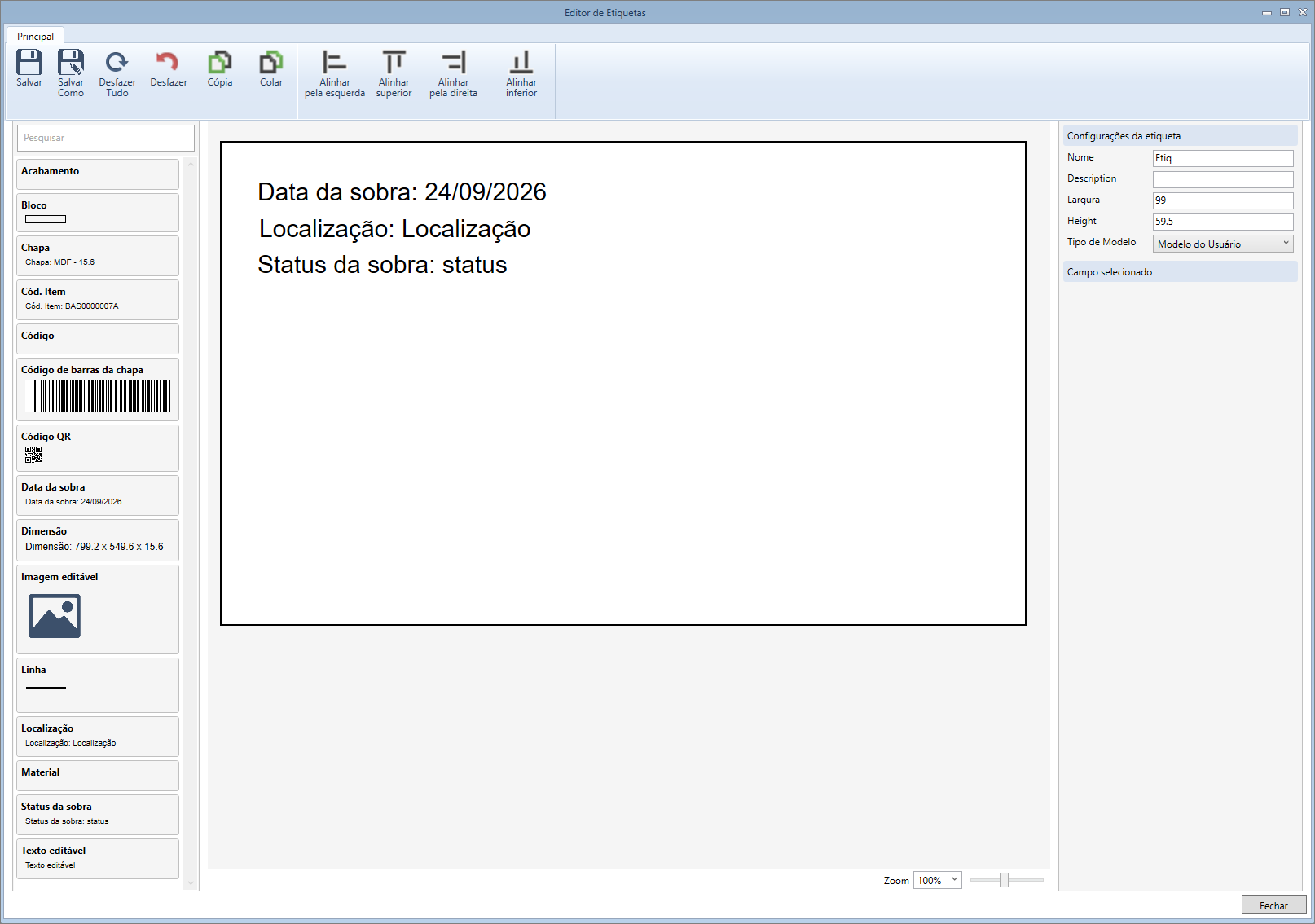

Starting with version 1.2.22.0 of Cut Pro, three new fields are available for Remnant Labels:

  • Location: indicates the location of the remnant in inventory.
  • Remnant date: date on which the remnant was made available for use. Remnants pending approval will not have a date and will therefore receive the description “No date available”.
  • Remnant status: status of the remnant. It can be Pending, Available, or Show on plan only.

The information for these 3 new fields can be viewed and edited through Sheet and Remnant Registration.


For more information about Remnant Status, click here.

IMPORTANT: the Filter field, available for remnant labels, will determine which type of remnant will be considered when generating the labels. The available types are:

  • Remnants for later use: remnants that can be used in the future – Status: Pending and enabled for use.
  • Remnants without later use: remnants that cannot be used – Status: Show on plan only.
  • All: all remnants, regardless of their potential use.
