Plugin Editor - How to generate the technical drawing

IMPORTANT:
The generation of technical drawings is online, so it is necessary that the computer is connected to the internet at the moment of the generation of technical drawings.



To generate the technical drawing:

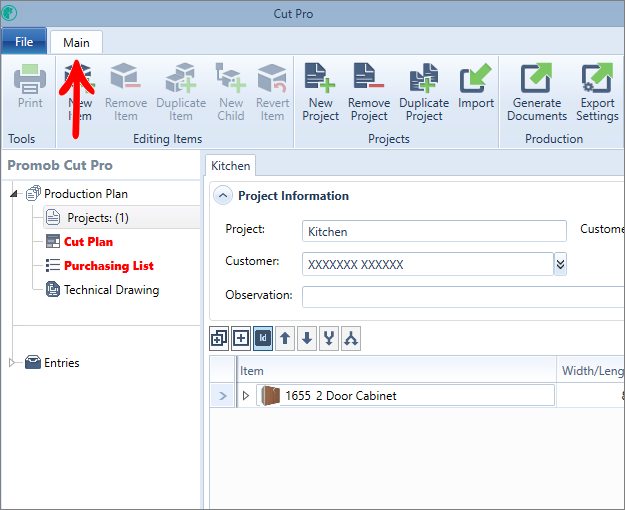

1. Click on the Main menu;

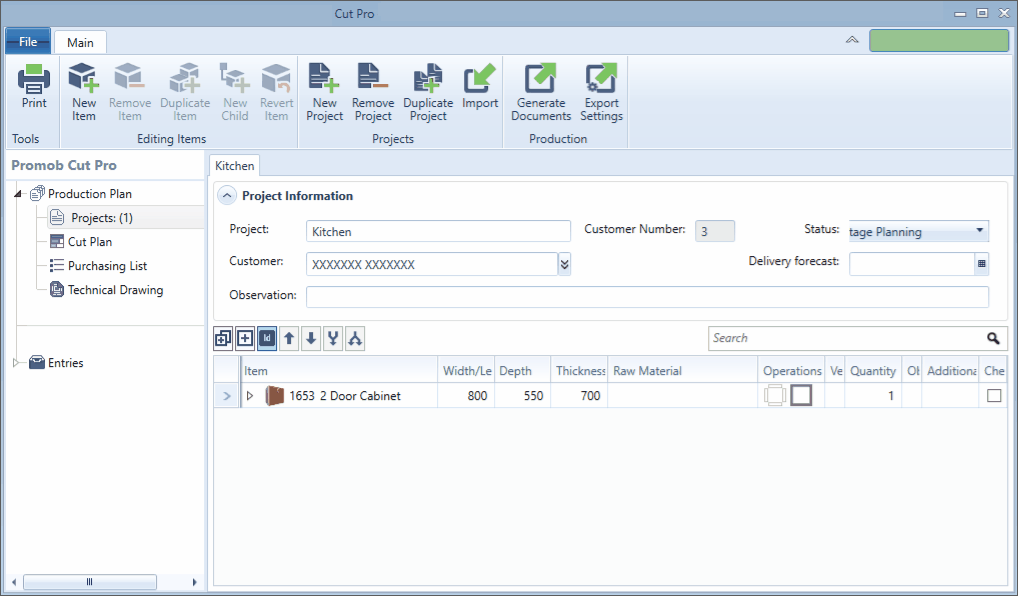

2. Click on the menu Technical Drawings;

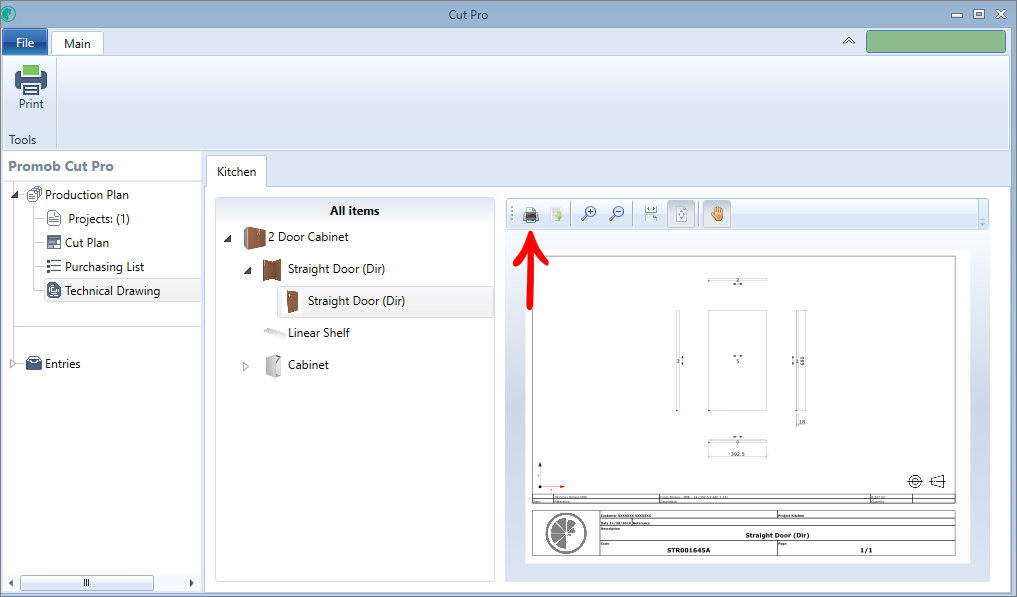

3. Click on a piece and the preview will be displayed;

4. Click on the parent module to preview the exploded view of the module;



Starting with Cut Pro version 1.2.2.33, you can insert a logo on the printout of the technical drawing:



To insert a logo:

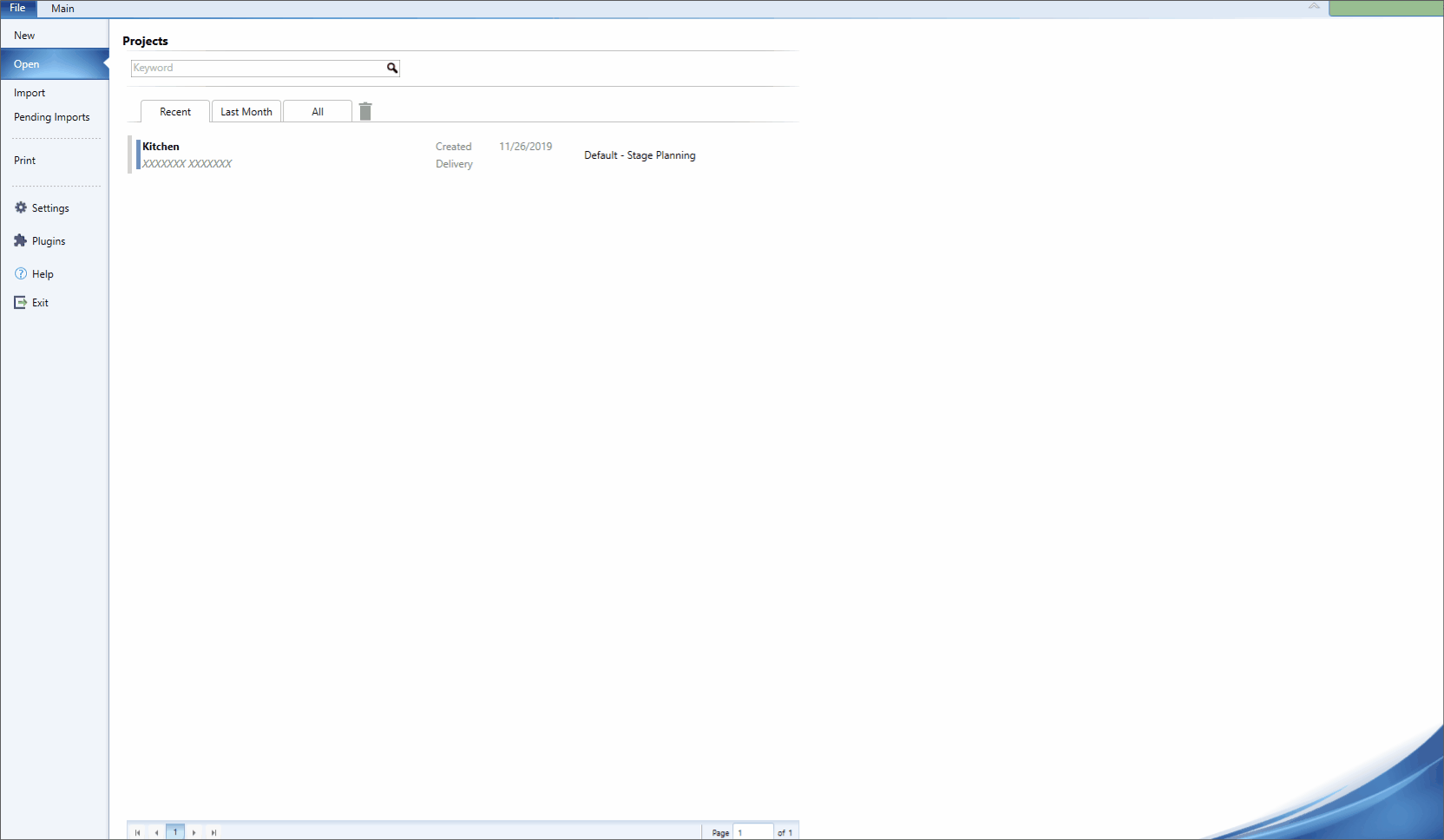

1. Access the File menu;

2. Click on the Settings menu;

3. Click on Import;

4. Click Import logo;

5. Locate an image and click Open;

6. Access the Main menu;

7. Click on the menu Technical Drawings;

8. Click on an item and the logo will appear on the print page:

You can print the technical drawing directly to the printer set up and installed on the machine, as well as generate the print PDF file.

To print the technical drawing directly:

1. Click on the Main menu;
