Cut Pro - Biesse Cutting Managers

Promob Cut Pro provides the Plugin Biesse OSI Manager Cut. For more information on purchasing the plugin, contact Promob.

Plugin Activation

To use the Plugin Biesse OSI Manager Cut:

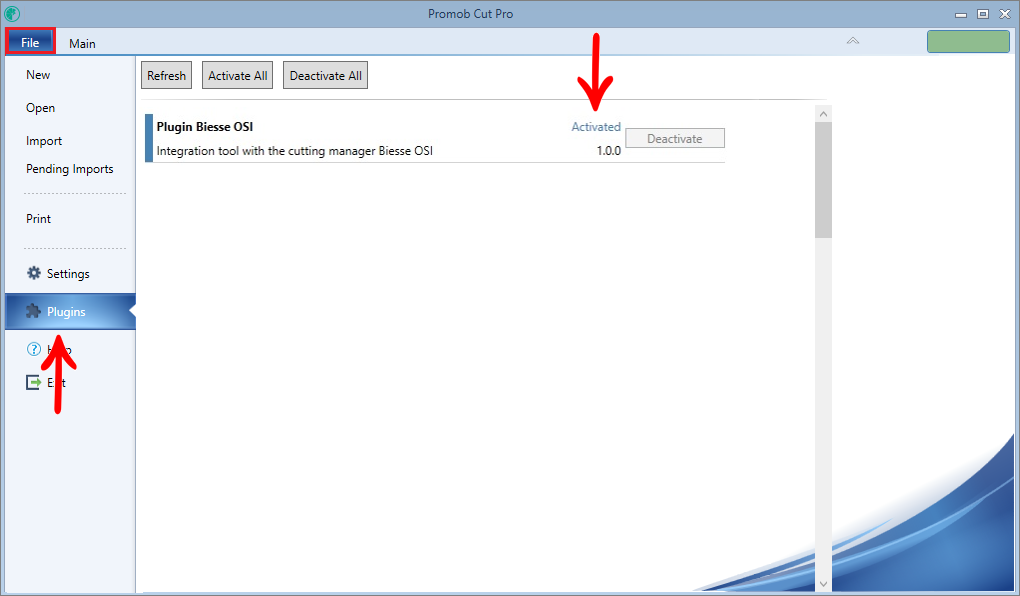

1. Active the Plugin, go to File - Plugins and click Activate.

IMPORTANT:

• The Cut Manager files are not generated if the cut plane was edited by Moving Parts.

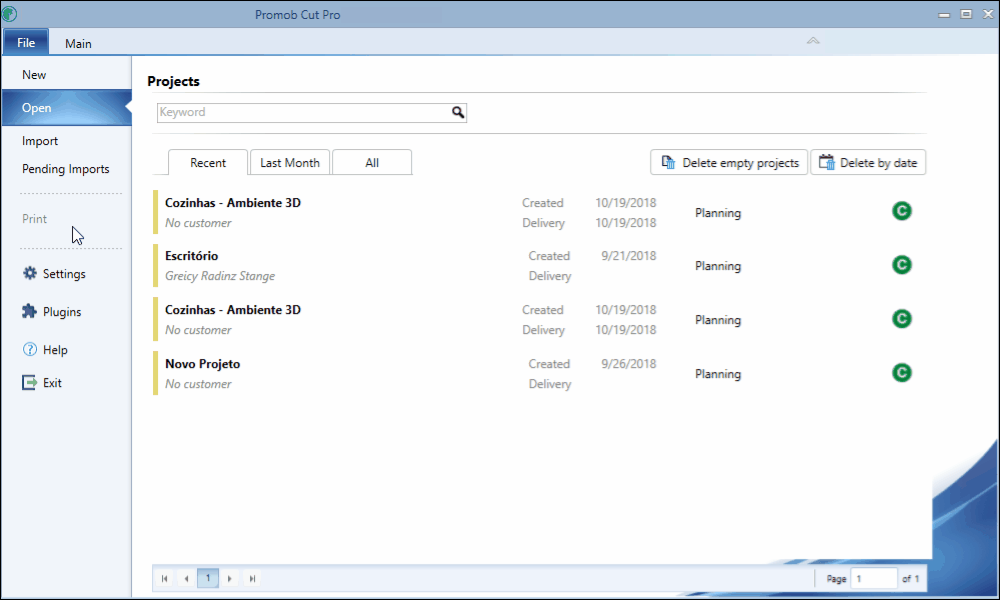

• For all managers, it is possible to configure the label image through the File-Print menu. For more information, click here.

Plugin Configuration

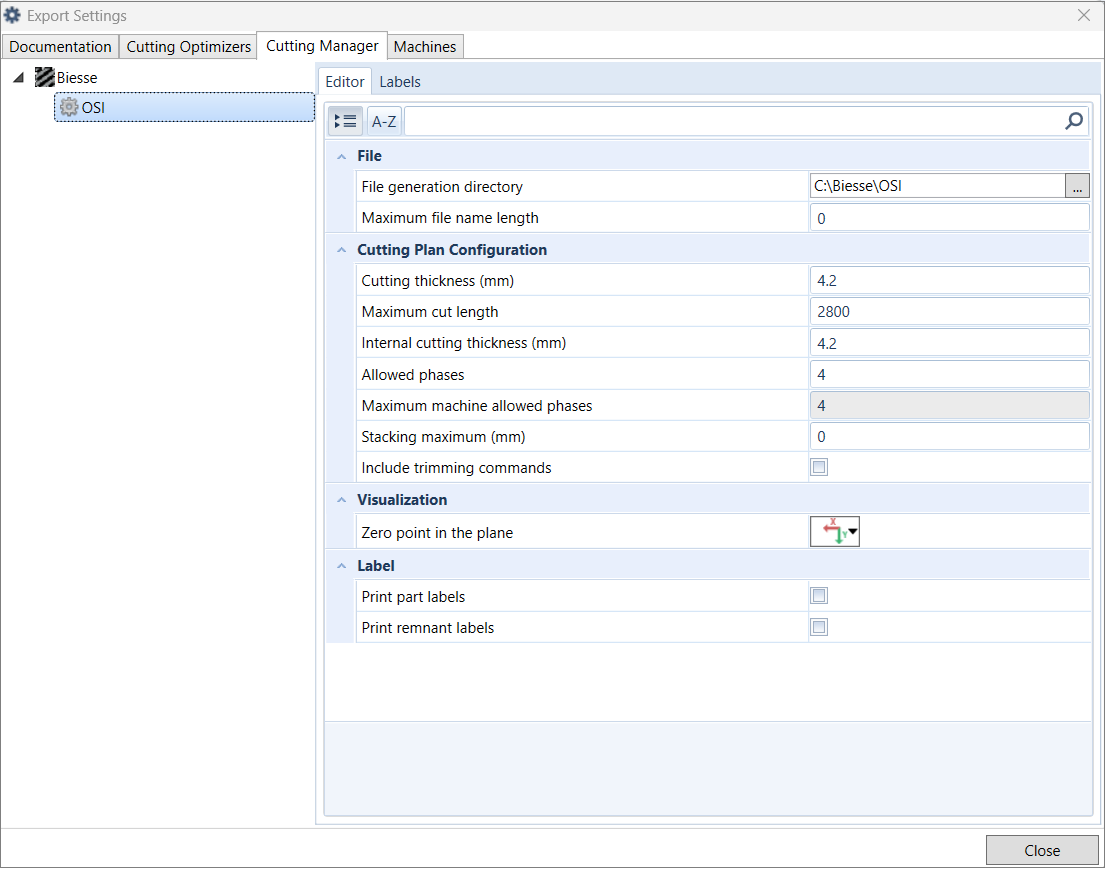

1. Configure your plugin by going to the Main menu - Export Settings.

2. In the window that appears click on the Cutting Manager and select Biesse.

3. Click on the manager name to access specific information:

• OSI
