Available from versions:
- Version Plugin Builder: 1.60.14.8 or superior;
- Version of Plugin Door Report: 1.60.14.1 or superior;
Through Builder, you can generate a report to display all doors present in the environment. For having it displayed in the report, the doors must be registered with the DOOR_REPORT attribute. Check the information below:
Report Fields:
|
Field |
Value |
|
Code |
Code of the item (ID of Promob or code of database) |
|
Description |
Description of the door |
|
Reference |
Reference of the door |
|
Measure |
Measure of the door - Width x Depth x Height |
|
Type (Product Type) |
Value relating to the attribute TYPE_PRODUCT or TIPO_PRODUTO |
To display the Doors in the report:
1. Locate the door's register;

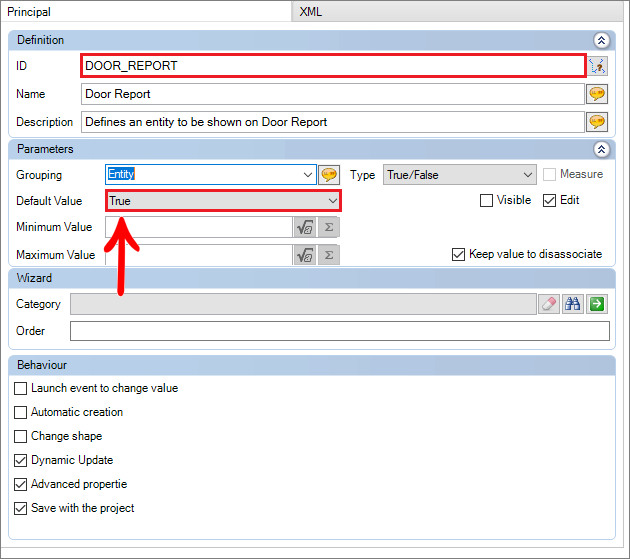

2. Add the DOOR_REPORT attribute with value True;
For more information on setting an attribute, click here.
3. Add the attribute TYPE_PRODUCT or TIPO_ATRIBUTO (as registered in your library) with the desired value.
4. Through the Builder Plugin select the Generate Door Report option.

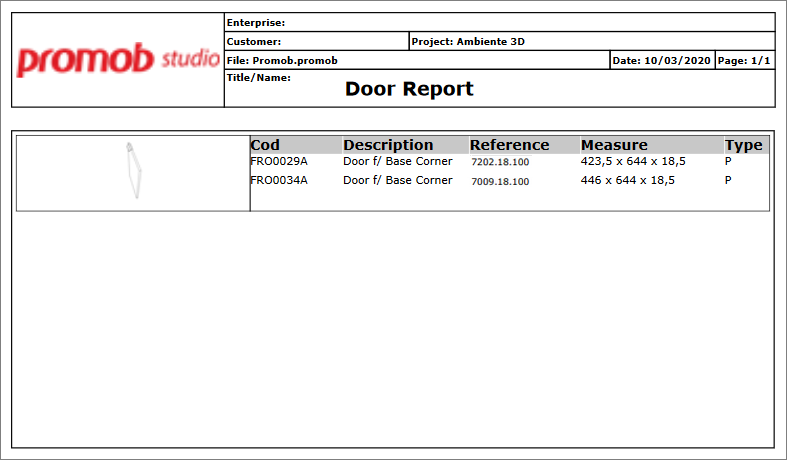

5. The report will be displayed:
IMPORTANT:
- The criteria for grouping Doors/Fronts is the entity ID in the Promob Catalog Registry, it means that two Doors with exactly same characteristics won’t be grouped if they are not the same entity ID.

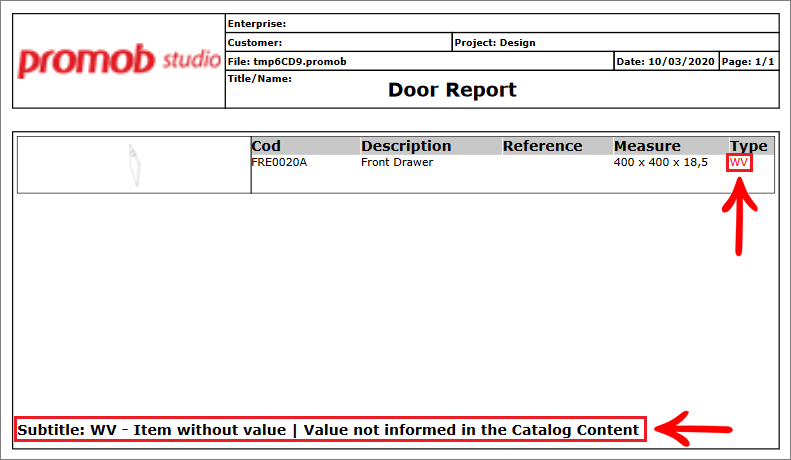

- If the attribute TYPE_PRODUCT or TIPO_ATRIBUTO is not added to the door, the abbreviation WV will be written in the corresponding cell, that means Item without value | Value not informed in the Catalog content. A footer will be generated on the page with the caption referring to the abbreviation.
