In Cut Pro, after generating the necessary information for the Cut Plan, it is possible to print them using the File - Print menu.
View more information about printing below:

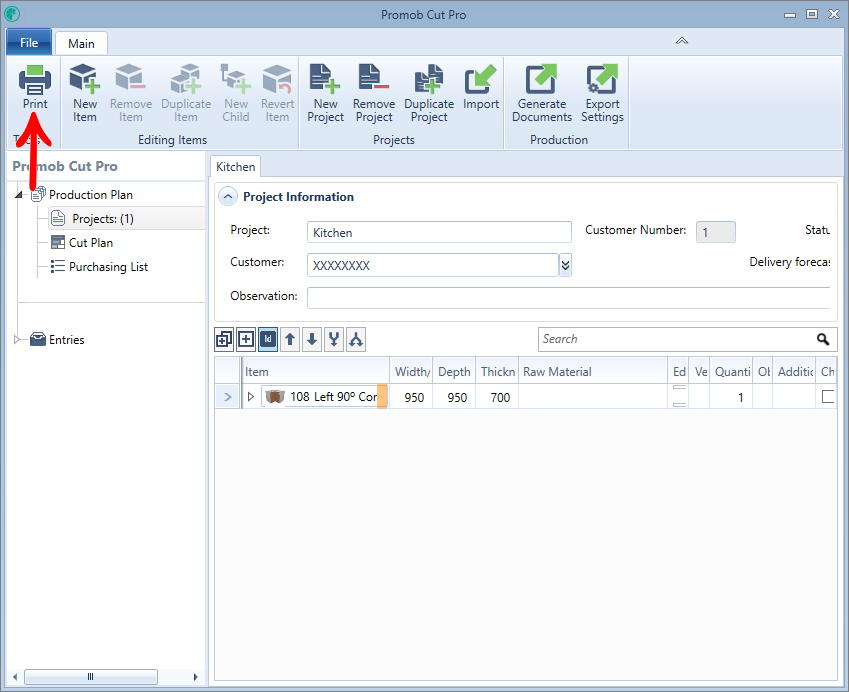

1. Click the Print button.

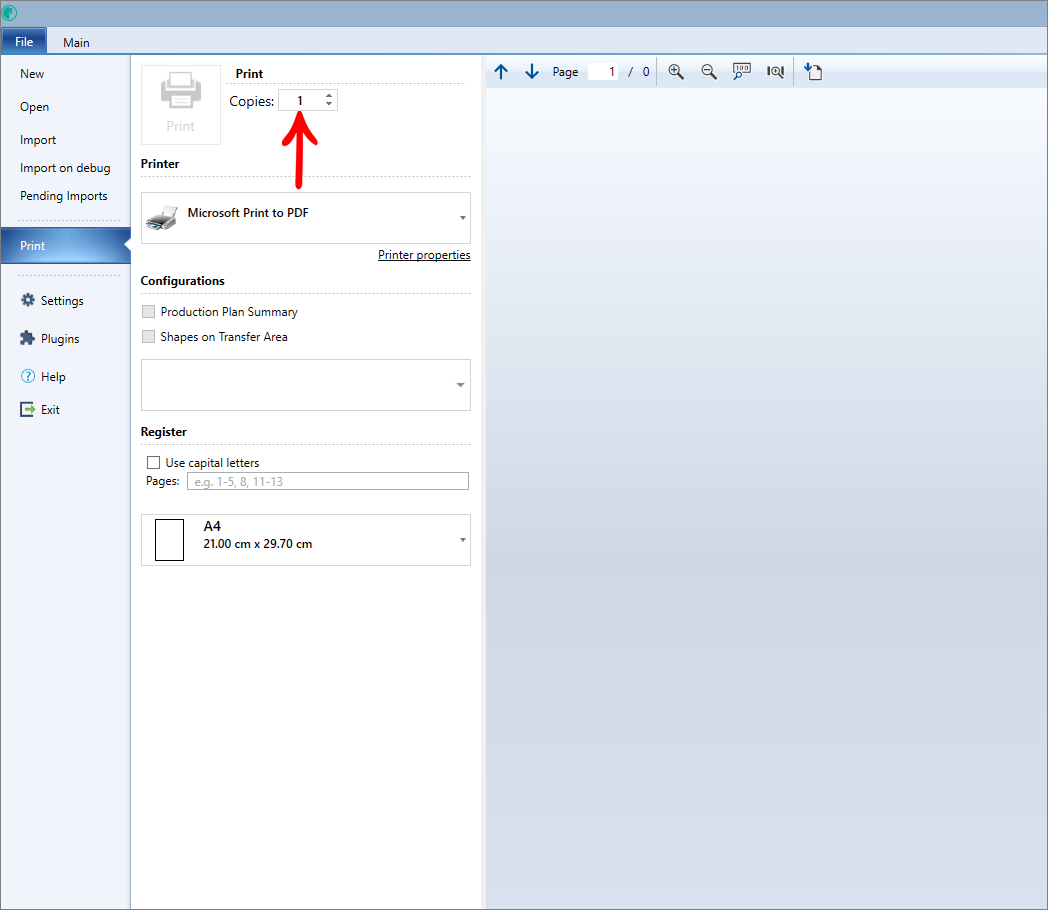

2. On the print page, define the number of copies to be printed.

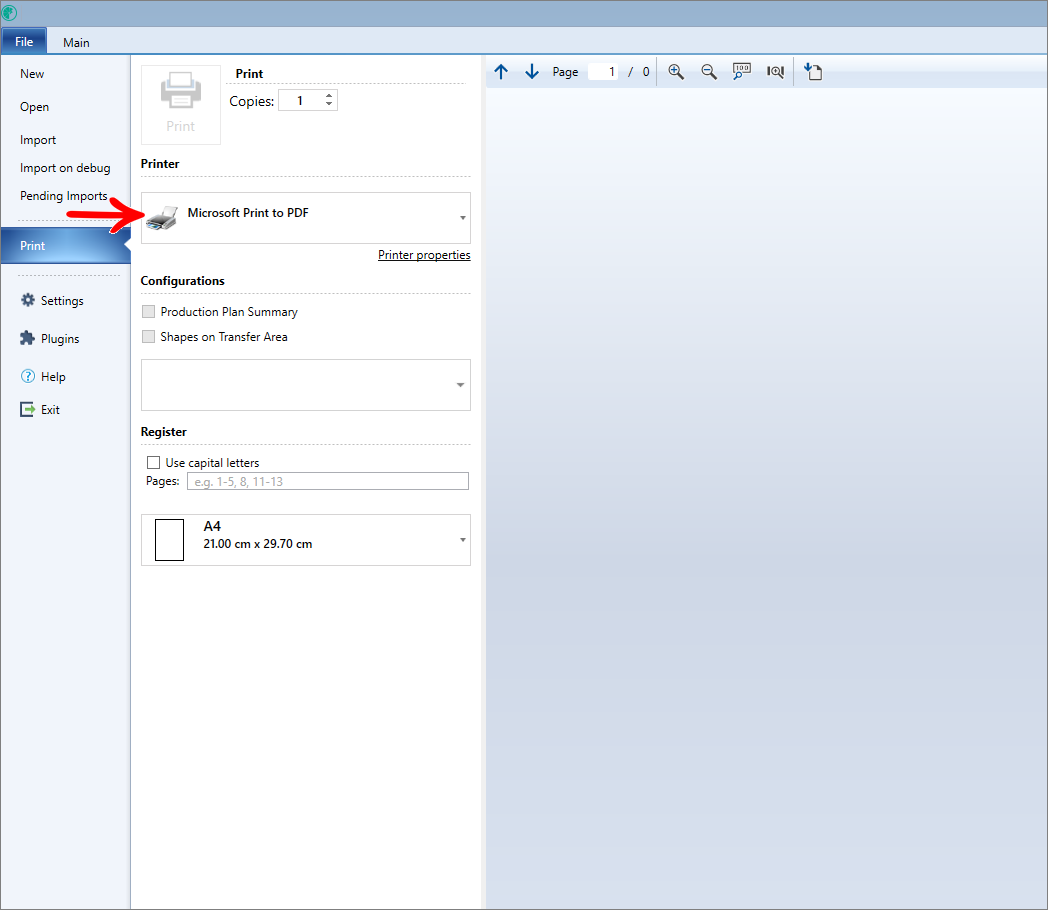

3. Select the printer to be used.
Settings:

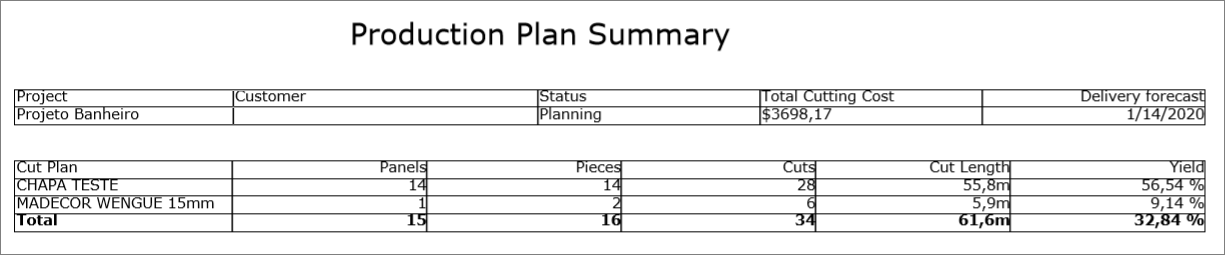

1. Check the Production Plan Summary option to print a sheet with the manufacturing plan summary.
- The Production Plan Summary contains the project data, such as name, customer, situation, total cost of the cut, and the estimated delivery, as registered in the project information, in the Main menu.
2. Check the Shapes on Transfer Area option to include the pieces in the Transfer Area in the printout.

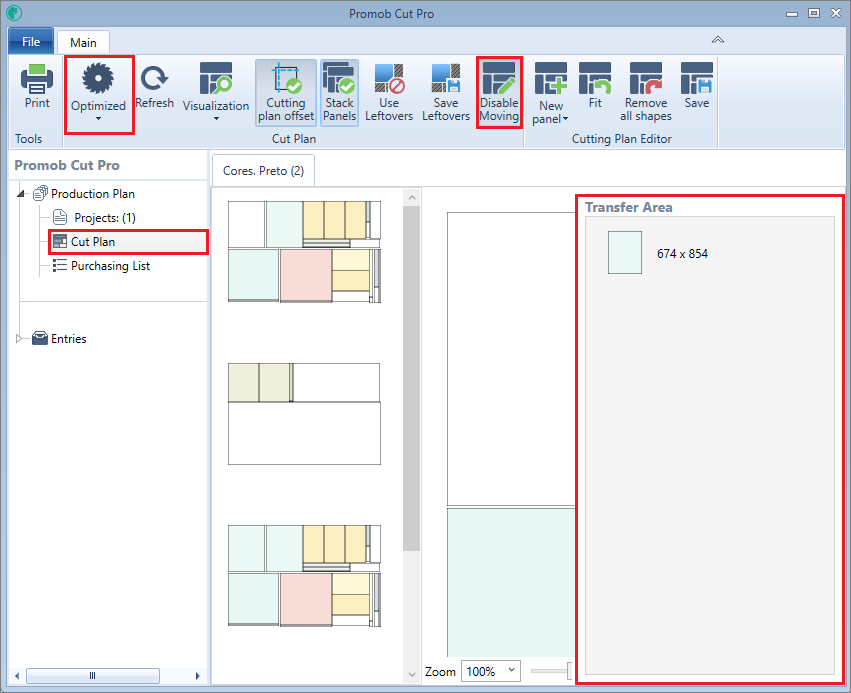

- When the movement of the pieces on the cut plane is enabled, there is the Transfer Area, to facilitate the fitting of the pieces on the plate. This function is active when using the saw.
3. Select the information to be printed.
- The available prints are: cut preview, cut list preview, simplified cut list, production plan, labels, purchasing list, panels and leftovers, edges tape report.
Project:

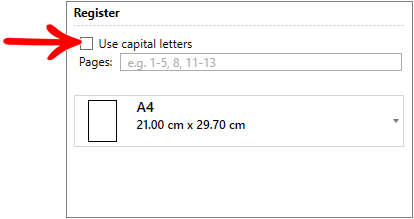

1. Click on the Use capital letters option so that the contents of the reports are printed in upper case. This option only changes the content of the report tables and the cutting plane. The column headings and report titles remain unchanged.
2. Apply the filter of the plates that will be considered in the printing.

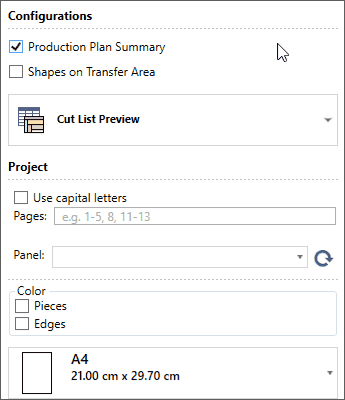

3. When the selected report is Cut preview or Preview and cut list, three new options are displayed: Parts, Edges & Page Orientation.
- By means of them, it is possible to define if the printing will be in black and white or colored and also the page orientation (landscape or portrait).
Black and white or color printing:

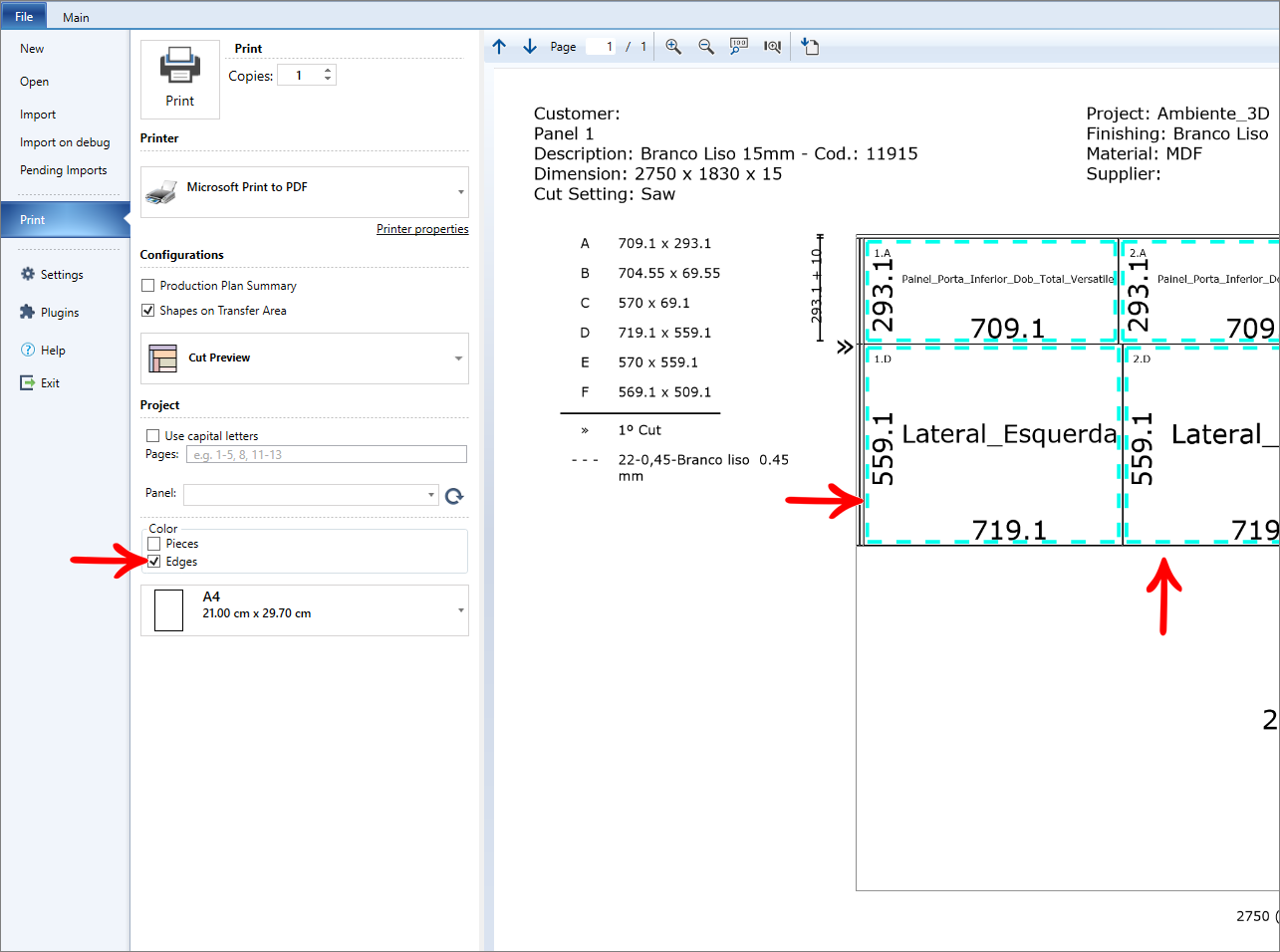

- In the example below, color printing was requested, only from the edges.

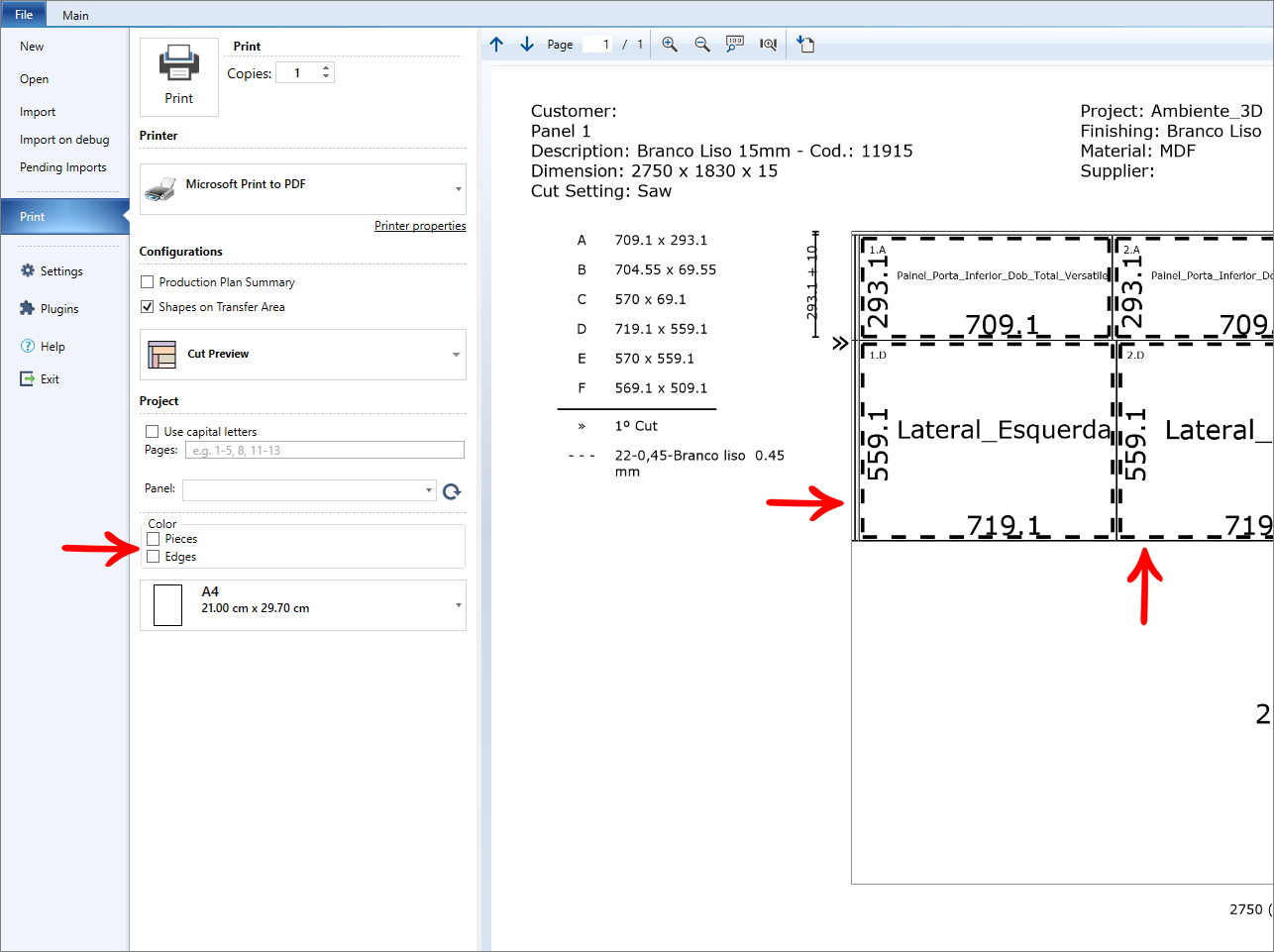

- In this other example, none of the options are checked, so the print will be black and white.

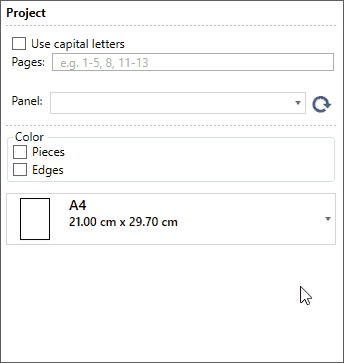

Orientation of the page:
- Automatic: Each page will be printed according to the plate size (horizontal plates will have
horizontal pages and vertical plates will have vertical pages). The cut list will always be printed in
horizontal orientation; - Landscape mode: The pages will be printed in landscape mode (horizontal);
- Portrait mode: The pages will be printed in portrait (vertical) mode.

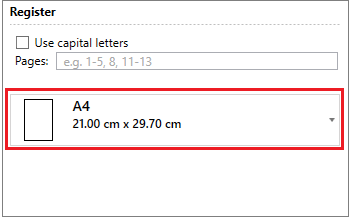

4. Select the paper size.

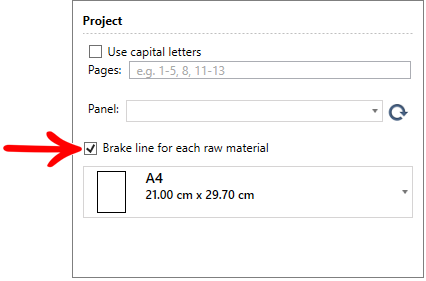

5. When the selected report is Cut list, a new option appears: Break page to different raw materials. When this option is checked, the report separates the cut list of each material into separate pages.
6. Click on Print.
