Builder – Application of laminates per module report

Available from version:

Plugin Builder 1.12.13.0 or higher

Plugin Builder Catalog 1.12.13.0

Plugin Application of laminates per module report:  1.60.14.7

The Application of laminates per module report displays information for all slides applied to the project items.

Generate report

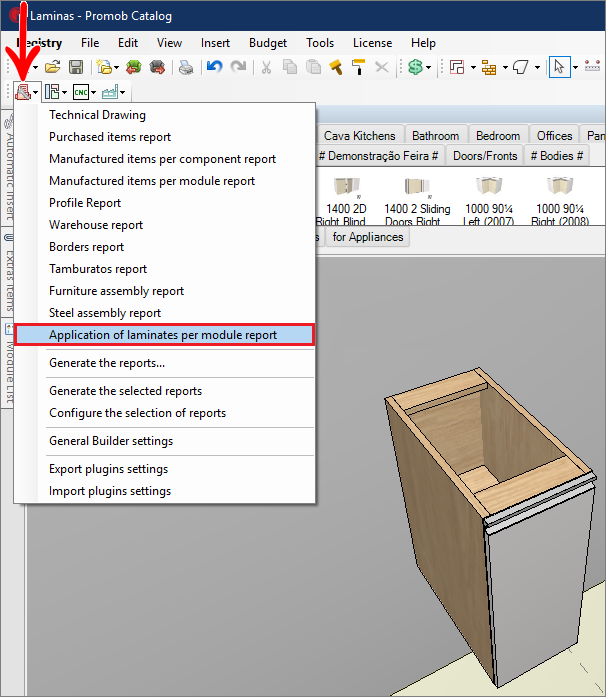

1. Access the Documentations menu - Application of laminates per module report

Data

The data displayed in this report is ordered per piece, in the following order:

1. Piece information (code, description and measurement)
2. Information of the applied laminates (code, description and measurement).

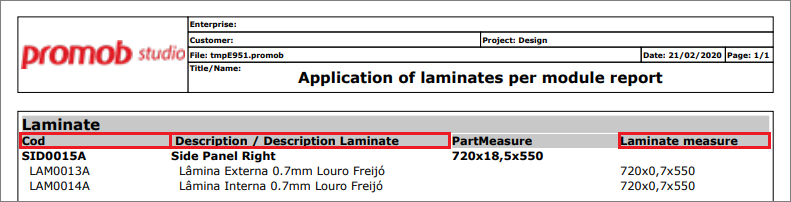

Each piece can contain up to 2 laminates, one internal and one external. The display of the report information will be set up as follows:

• Laminate Code: information of the applied laminate design code;
• Description: information of the registration of the laminate model;
• Laminate Measurement: information of the laminate measurement according to the insertion in the 3D environment.

Laminates Application

To apply a laminate model to an item:

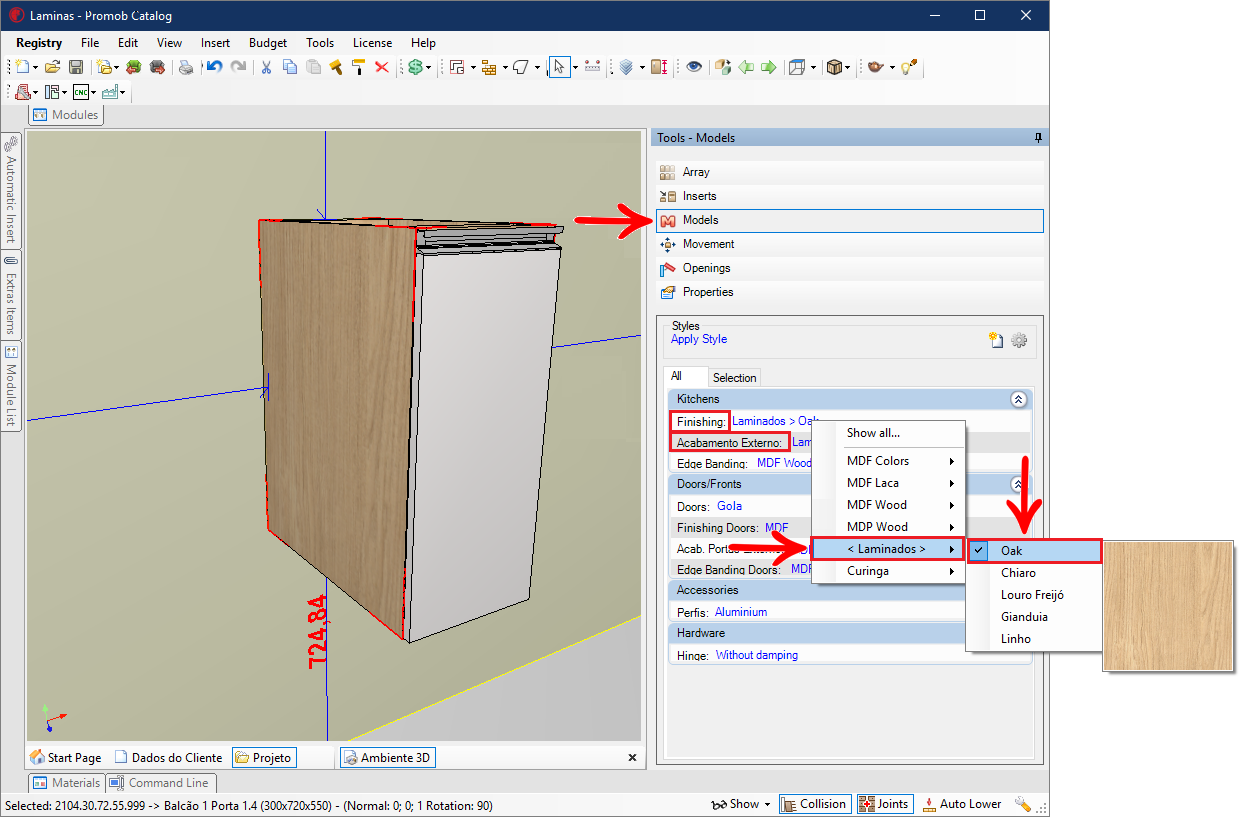

1. Go to Tools - Models;

2. Select the Internal Finishing or External Finishing option and locate a laminate model;

3. Apply the selected model.

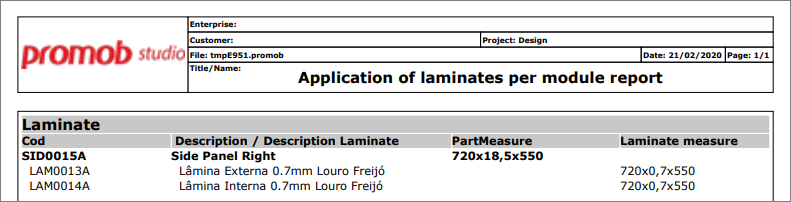

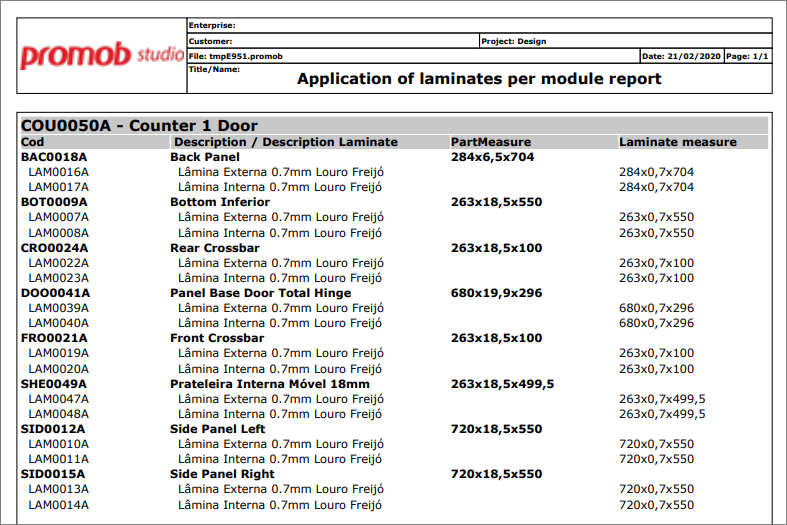

The laminates per module report will be displayed as follows:
