Builder - Attributes Register - Drawer Box Report

Updated
Follow



  • The attributes presented here are mandatory and necessary for the report to work.

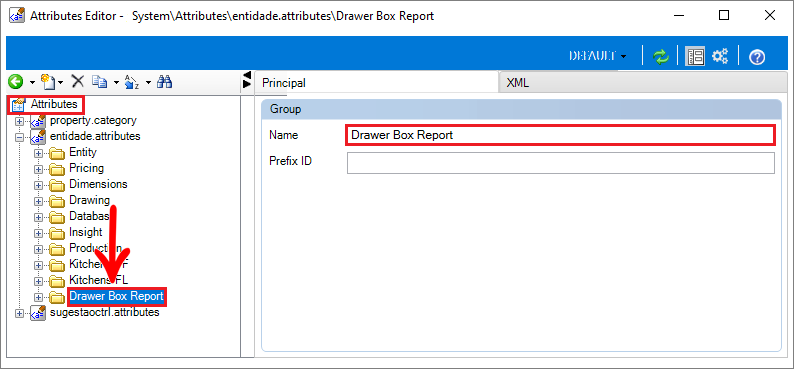

  • They must be grouped in a folder named: Drawer Box Report;


  • For each of the attributes, follow the images shown:

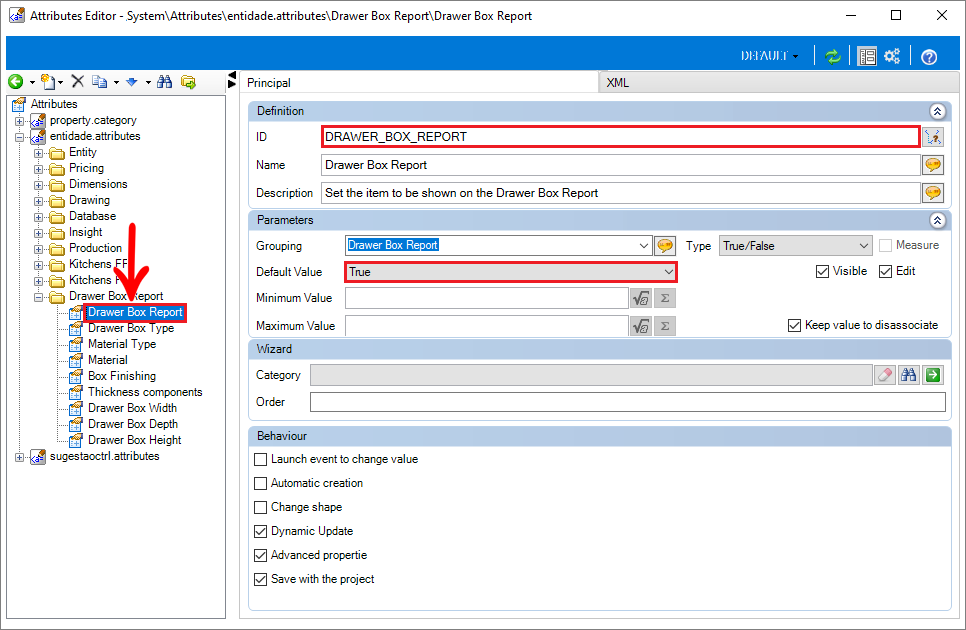

DRAWER_BOX_REPORT

  • Attribute that defines whether the drawer box will be shown in the report;

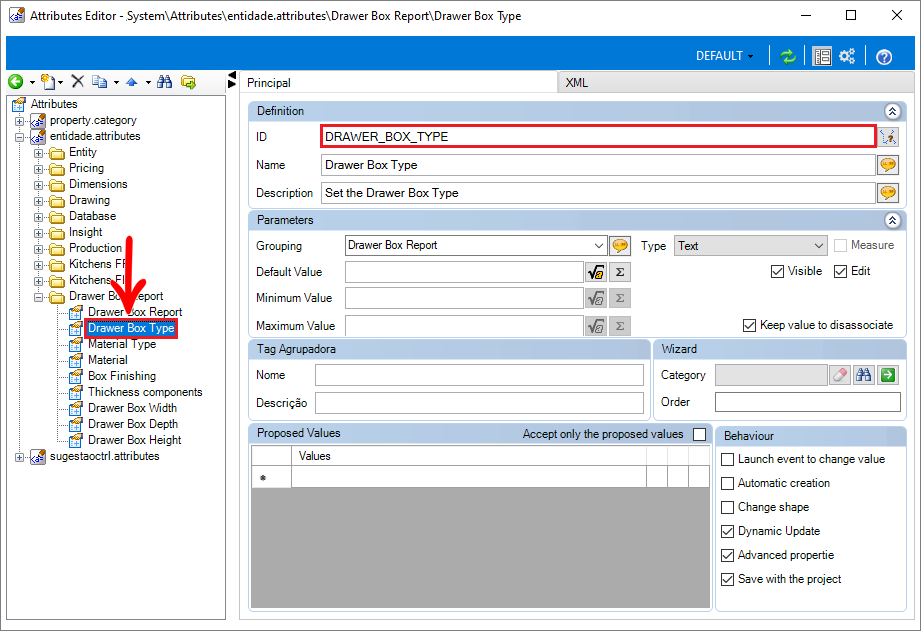

DRAWER_BOX_TYPE

  • Attribute that defines the type of box.
  • Example: Invisível/Undermount/Invisible; Telescópica/Ballbearing/Telescópico; Comum/Epoxi/Común;

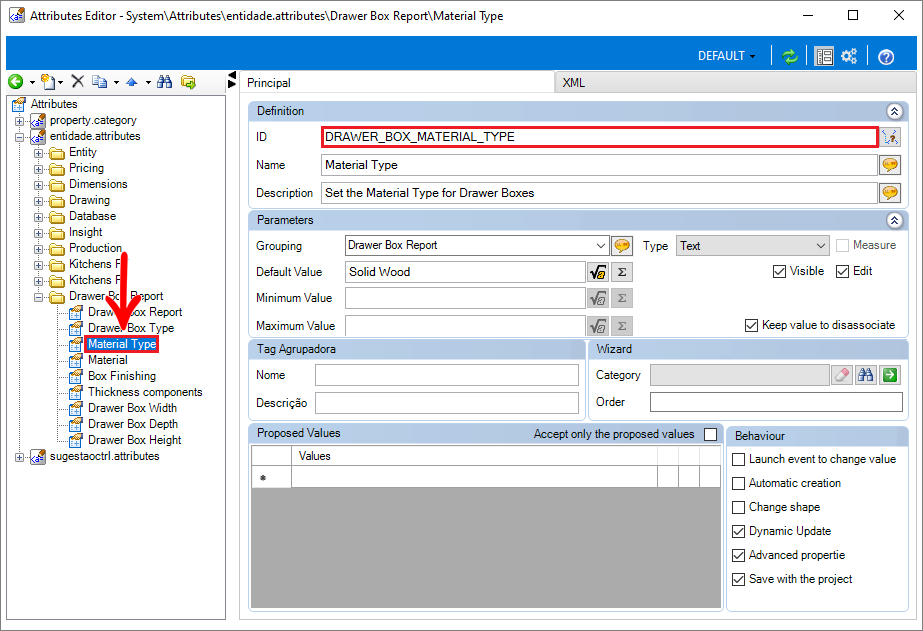

DRAWER_BOX_MATERIAL_TYPE

  • Attribute that defines the type of box material;
  • Example: Madeira/Solid Wood/Madeira; MDF; MDP; Plywood;

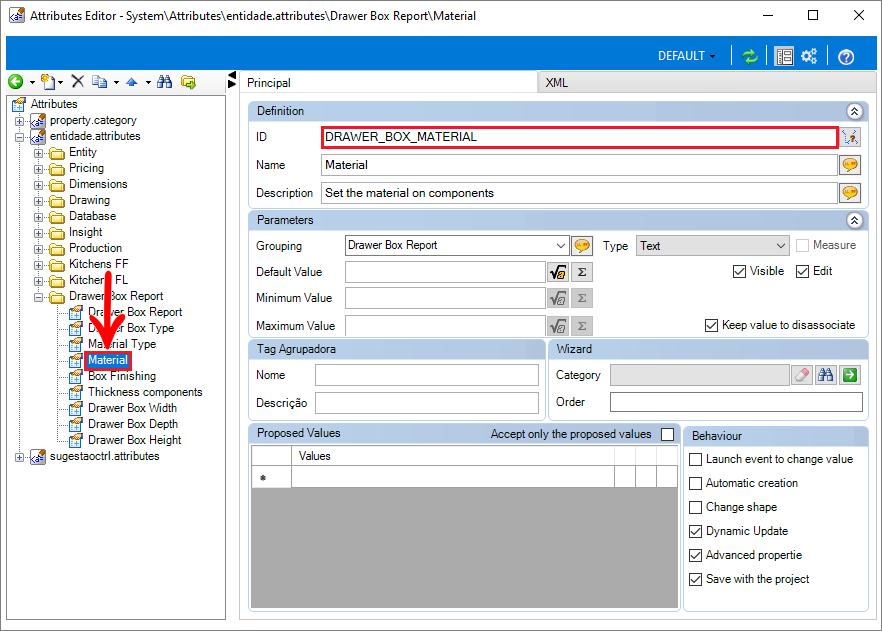

DRAWER_BOX_MATERIAL

  • Attribute that defines the material for the components of the box;
  • Example: Carvalho/Oak/Roble; Melamina Branca/White Melamine/Melamina Blanca;

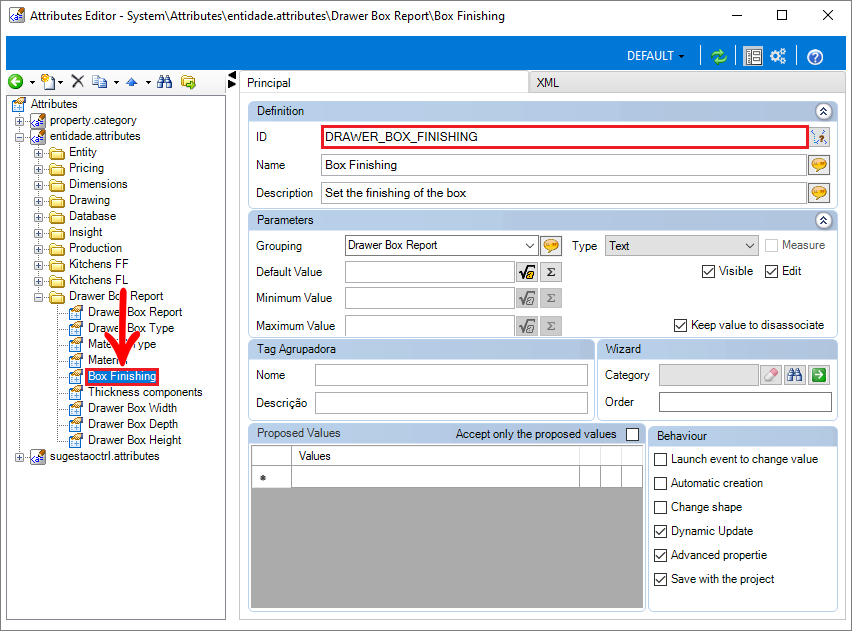

DRAWER_BOX_FINISHING

  • Attribute that defines the finish of the box;
  • Example: Acabado/Finished/Termonado; Envernizado/Varnished/Barnizado;

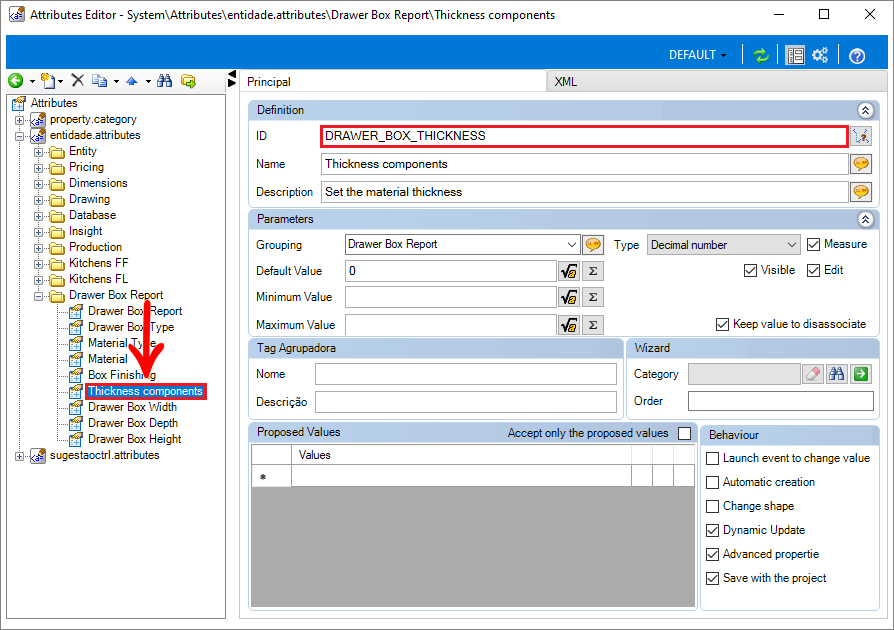

DRAWER_BOX_THICKNESS

  • Attribute that defines the thickness of the components of the box;

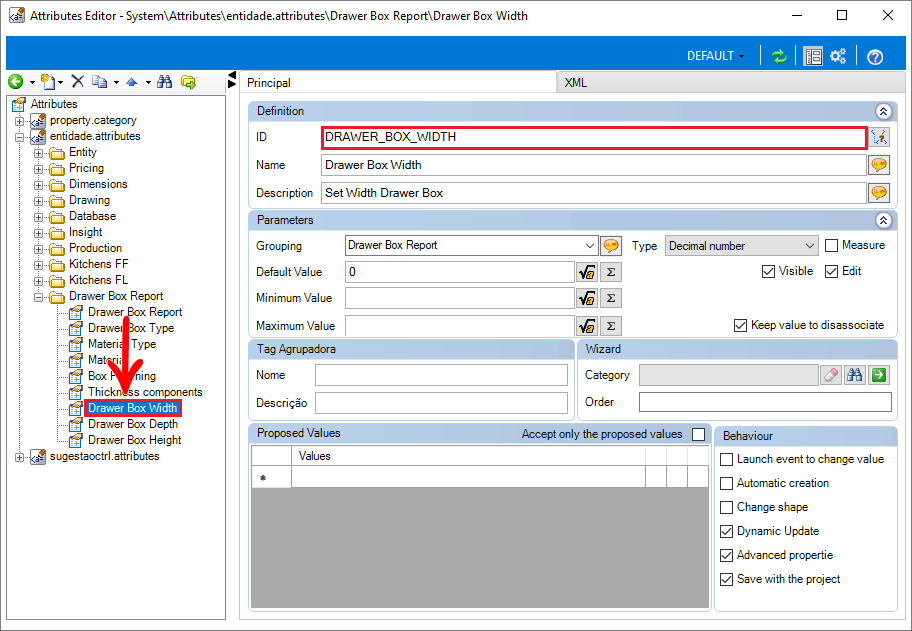

DRAWER_BOX_WIDTH

  • Attribute that defines the width of the box.
  • This attribute allows formulas to be created to define the width of the drawer box;

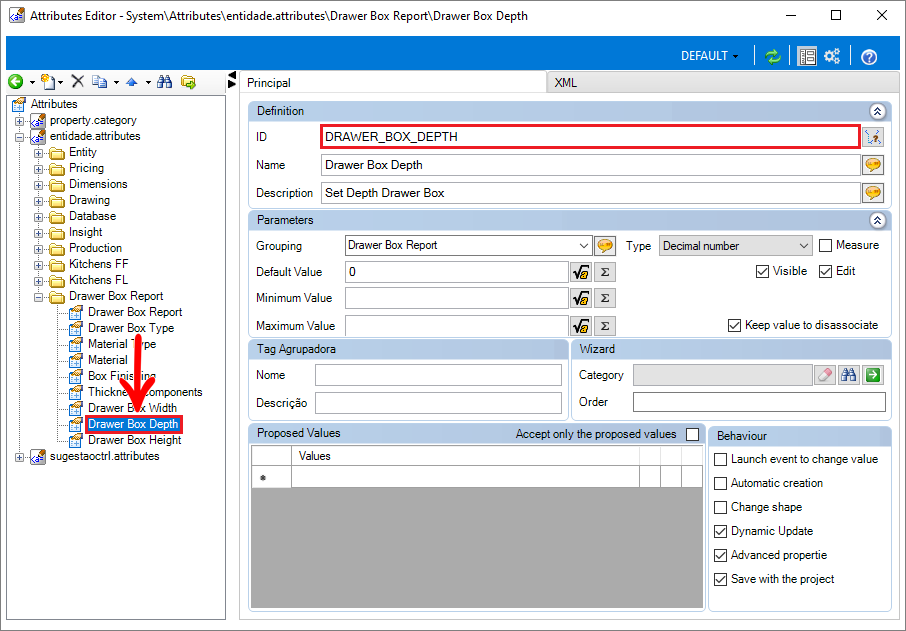

DRAWER_BOX_DEPTH

  • Attribute that defines the depth of the box.
  • This attribute allows formulas to be created to define the depth of the drawer box;

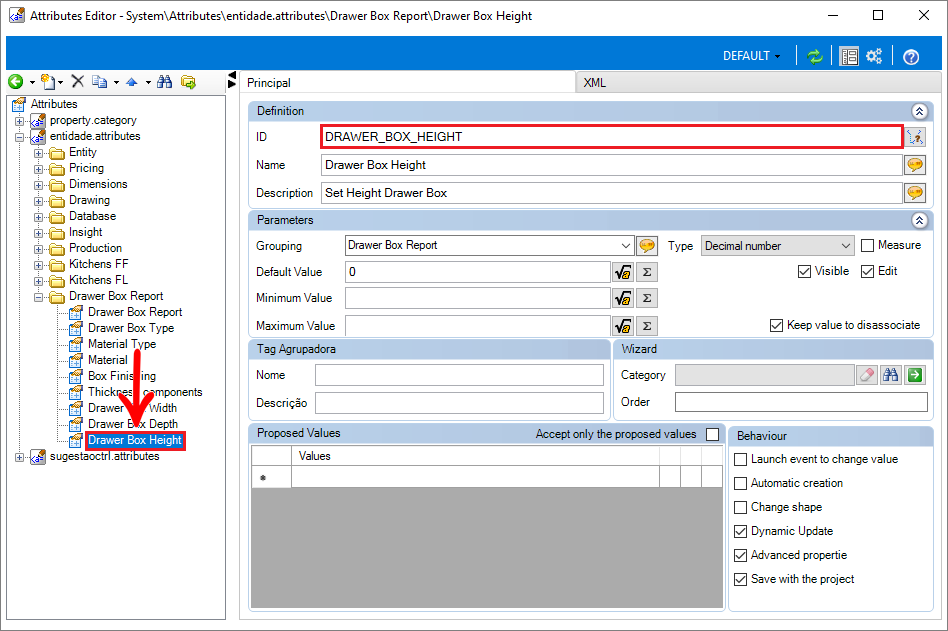

DRAWER_BOX_HEIGHT

  • Attribute that defines the height of the box.
  • This attribute allows formulas to be created to define the height of the drawer box.
