Builder – Integration XML - Structure Hash

Updated
Follow

Available from versions:

  • Plugin Builder 1.11.26 or higher
  • Plugin Builder Budget 1.11.24 or higher.
  • Plugin ERP Promob 1.11.10 or higher.
  • Plugin ERP Promob Start 1.11.9 or higher.
  • Plugin ERP Focco 1.11.11 or higher.
  • Serviço de intgração (DocumentDatabaseService) 1.2.0.0 or higher.



In the integration XML, the following attributes are generated:


HASHDESENHO:

  • Corresponds to the hash generated from all piece information;


HASHESTRUTURA:

  • Corresponds to the hash generated from all the structures that make up the piece.


Without HASHESTRUTURA:




Structures as children

From version 1.60.14.15 of Plugin Builder or higher, when generating the ERP integration with the Plugin ERP Promob, Plugin ERP Promob Start and Plugin ERP Standard plugins, the items that contain structures as a child, containing the information HASHESTRUCTURE will be displayed in the *.xml file, due to the integration result, as item attribute.

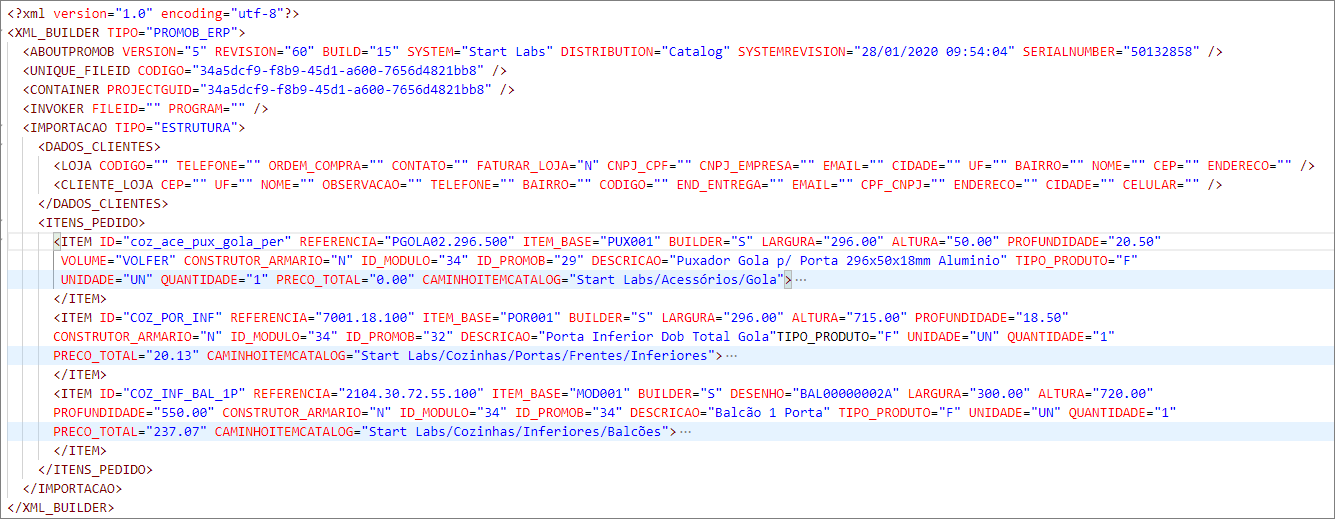

Example:


            IMPORTANT:

  • No specific configuration or registration change of items is required for functionality.
