Plugin Builder - Structures

Updated
Follow

Available from versions:

  • Plugin Builder Catalog - 1.12.8.17 or higher
  • Plugin Builder - 1.12.12.24 or higher
  • Plugin Cut Pro – 1.12.7.15 or higher

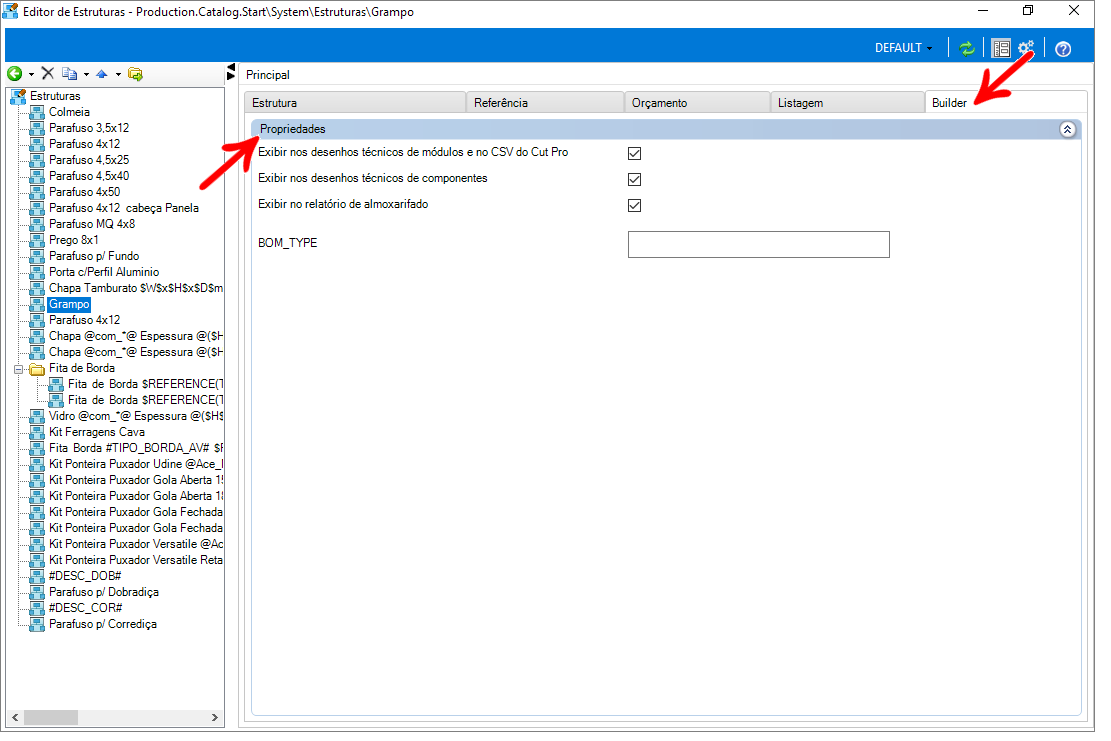

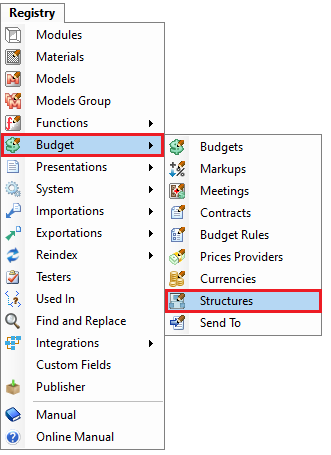

On the Catalog Structures tab in Registry- Budget - Structures, the Builder tab is displayed.




On the Builder tab, there are three display options:




1. View in Cut Pro technical module drawings and CSV

When this option is checked, the respective structure will be displayed in the module's technical drawing, in the hardware list, and also in the Plugin Cut Pro export file.

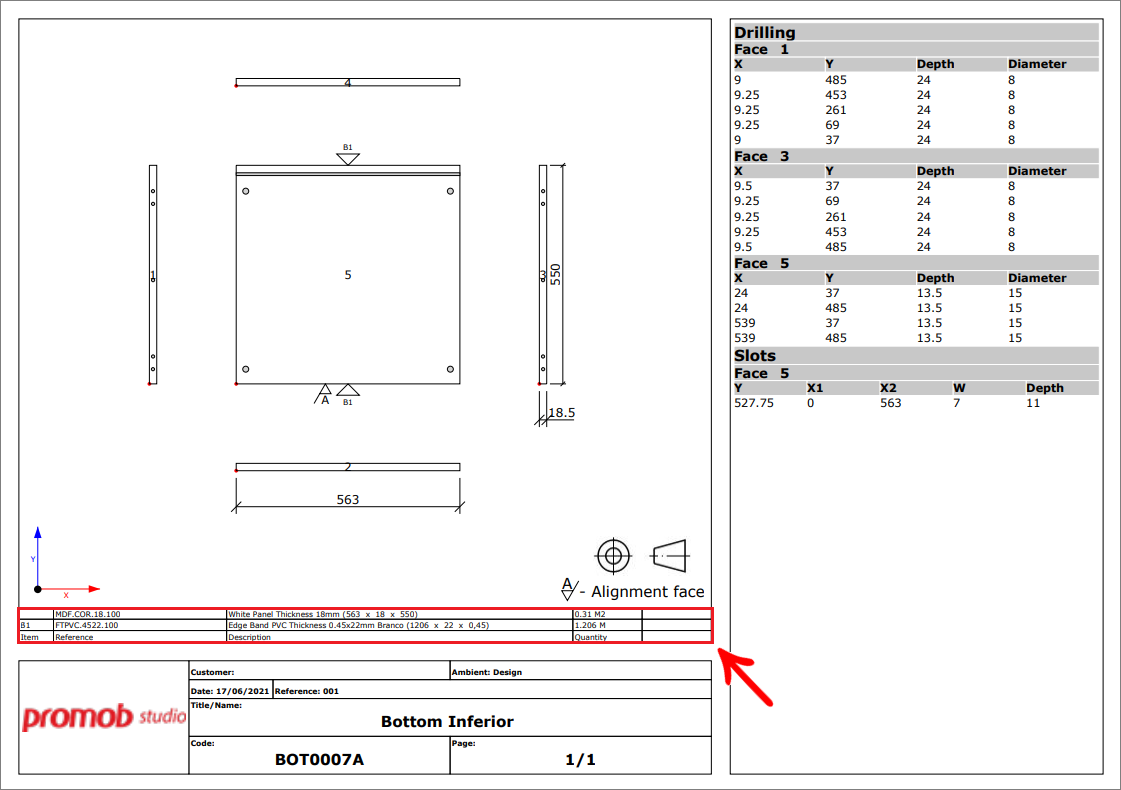

2. Display in technical drawings of components

Structure items that have the Display in technical drawings of component option checked will include the respective items in the technical drawing of the spare parts.

IMPORTANT: by default this option is checked.

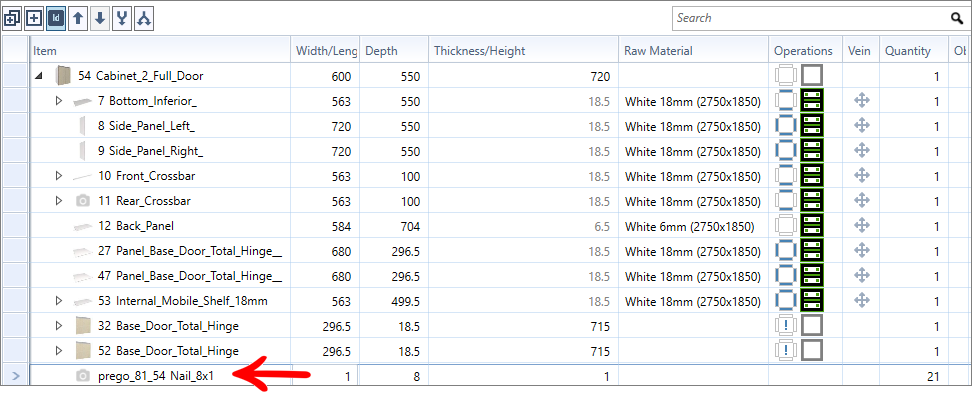

Items are or are not displayed in the item structure list:






3. Display in warehouse report

When this option is checked, the respective structure will be considered for the warehouse separation report, regardless of whether the item is purchased or not.



IMPORTANT:

  • Changes are automatically saved by checking and unchecking any of the options, it is not necessary to update information as in the Catalog.
  • This information is saved in the Catalog Builder in the %Local System Folder%\CatalogBuilder\StructureExtension\Entities directory.


EXAMPLES:

Module Technical Drawing

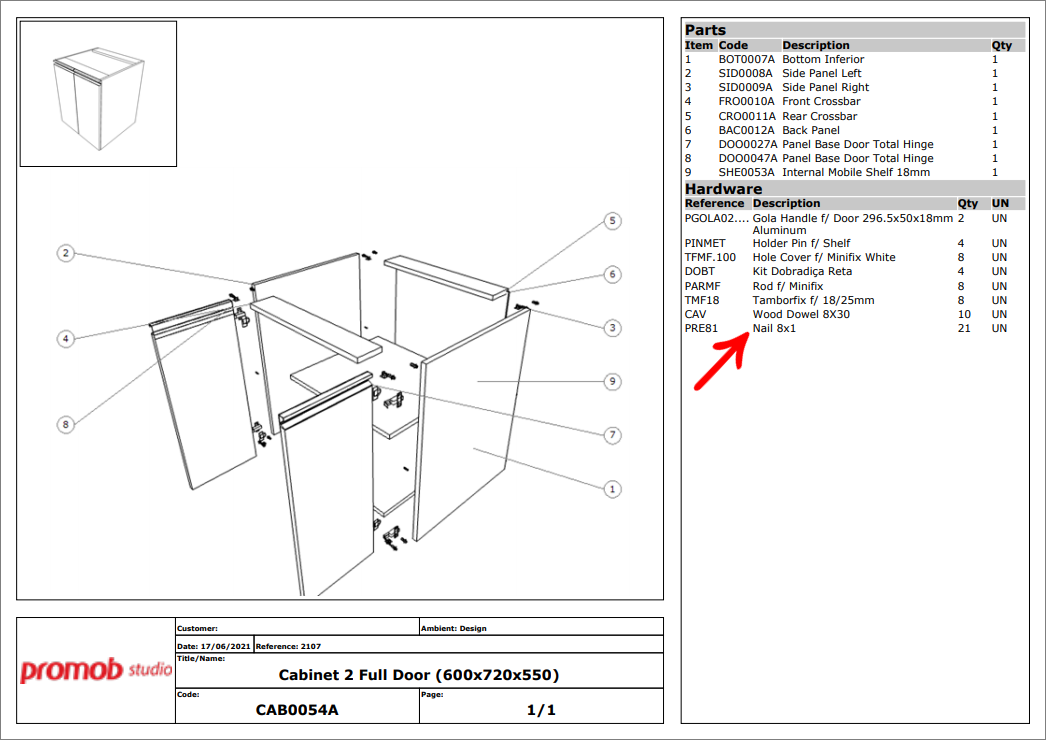

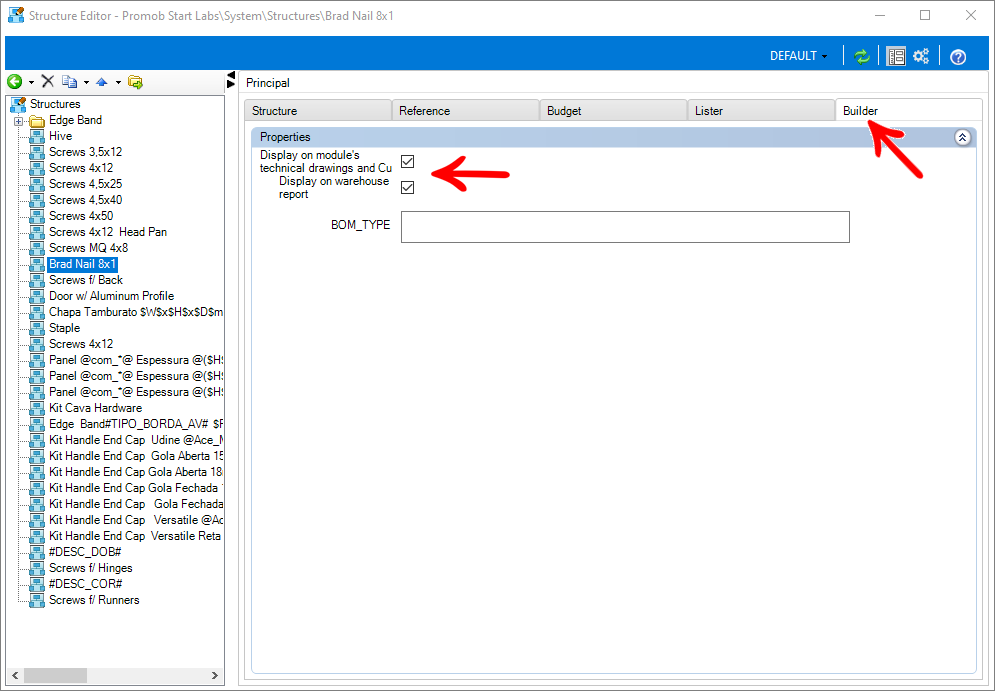

1. When you check the option Show in the module's technical drawings and in the Cut Pro CSV for the structure Brad Nail 8x1 and apply it to the background, the result will be:




If the respective option is not checked or the structure is not applied, it will not be displayed in the drawing.


Export with Cut Pro

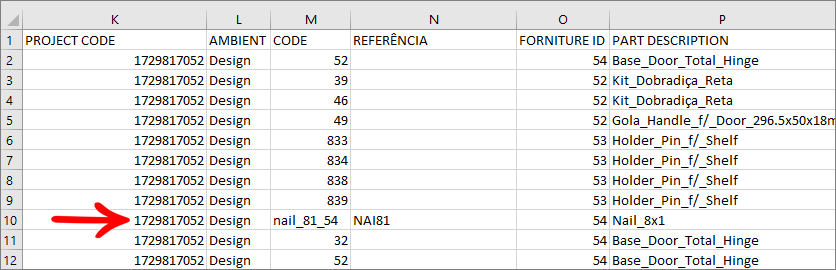

1. When you check the option Show in Technical Module Drawings and Cut Pro CSV for Brad Nail 8x1 structure and apply it to the background, the export result will be:


In Cut Pro, it will be displayed as follows:


If the respective option is not checked for Brad Nail 8x1, it will not be exported in the .CSV file and will not be displayed in Cut Pro.


Warehouse Report

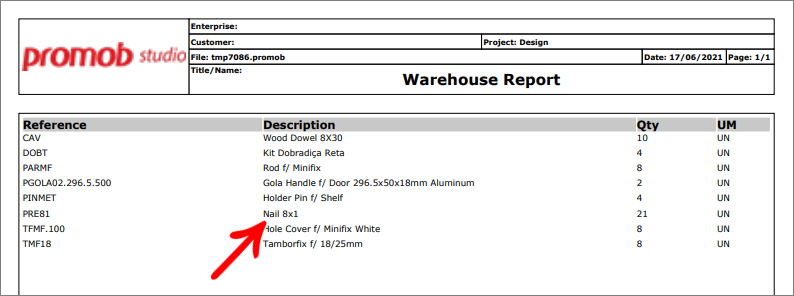

1. When you check the option Display in warehouse report for the structure Brad Nail 8x1 and apply it to the background, the result will be displayed as follows:




If the respective option is not checked or the structure is not applied, it will not be displayed in the report.
