  1. Promob Support
  2. Manufacture
  3. Promob Cut Pro

Cut Pro - Promob Plus Integration

Updated
Follow

    Available for products


      Promob Plus

      Promob Plus Professional


To export the projects carried out through Promob Plus, follow the procedures:

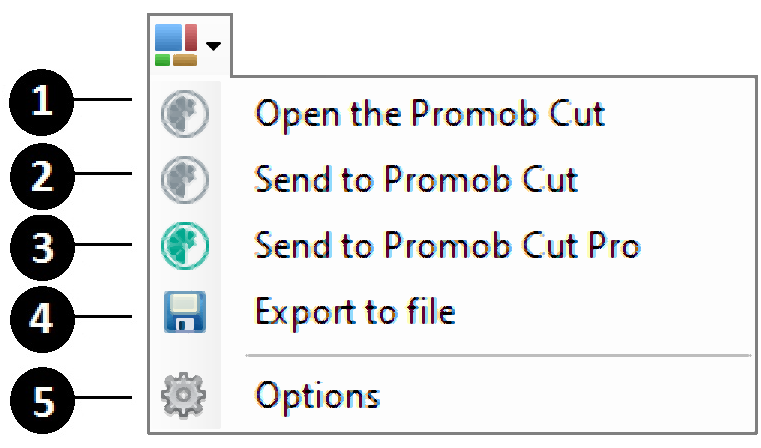

1. Locate the shortcut shown below;
2. By clicking on it, the following options will be enabled:



1. Open the Promob Cut
  • Only available for Promob versions 5.38 with the Cut plugin active;
  • Clicking on this option just opens Cut without the project.
2. Send to Promob Cut
  • Send the project carried out on Promob Plus directly to Promob Cut.
IMPORTANT: this action is only possible if you have purchased Promob Cut;
3. Send to Promob Cut Pro
  • Send the project carried out on Promob Plus directly to Promob Cut Pro.
  • This option should be used when Promob Plus and Promob Cut Pro are installed on the same machine.

IMPORTANT: this action is only possible if you have purchased Promob Cut Pro;

4. Export to file
  • By clicking on this option, a * .planner file will be generated, that is, the project created in Promob Plus will give rise to a file that is compatible with Promob Cut Pro;
  • This option should be used when Promob Cut Pro is not installed on the same machine as Promob Plus.

IMPORTANT: only Promob Cut Pro is compatible with the * .planner format. To know how to import this file click here;



5. Options

  • This functionality allows the selection of environments for export.

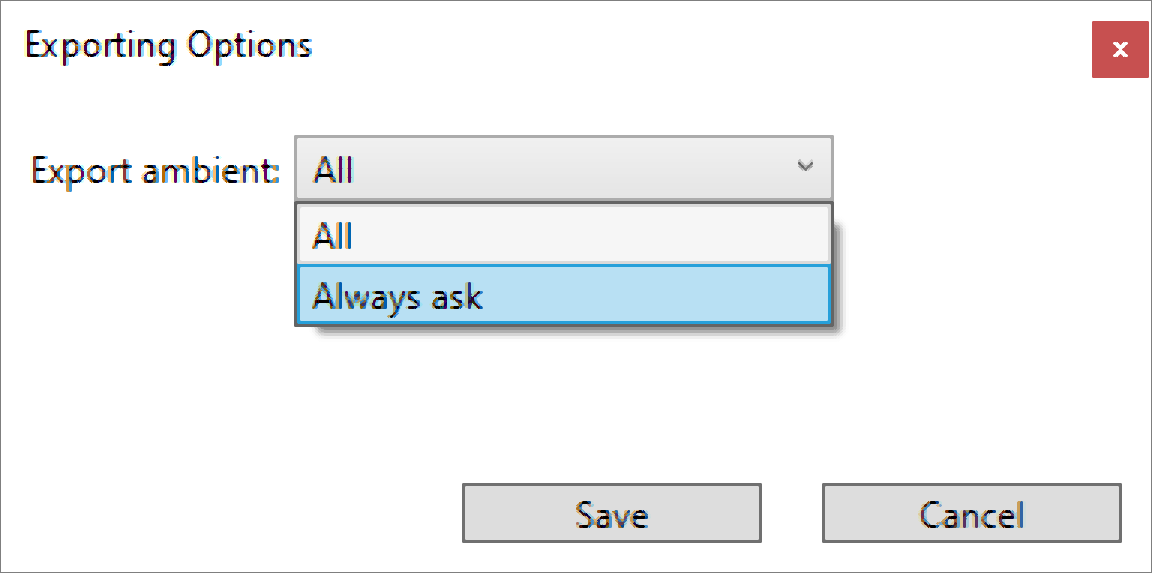

  • When clicking on the option, the following window will be enabled:

All: by checking this option, all environments present in the project will be exported;
Always ask: selecting this option Promob Plus will always ask which or which environments you want to export when the project has more than one environment.

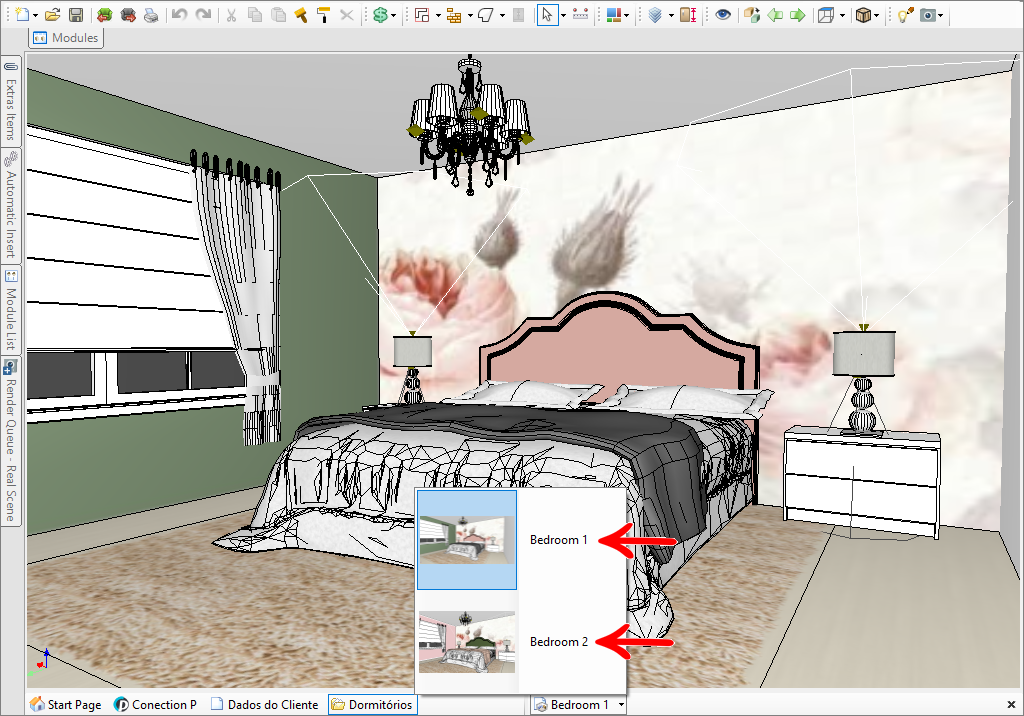

EXAMPLE:




Export Promob Plus Professional
To export the projects carried out through Promob Plus Professional, there will be only the options, Send to Promob Cut Pro, Export to file, and Options.
  • In Promob Plus Professional it is not possible to duplicate the 3D Environment, however, the Options functionality is available for the execution of projects with more than one environment created in version 5.38.
