What happens?

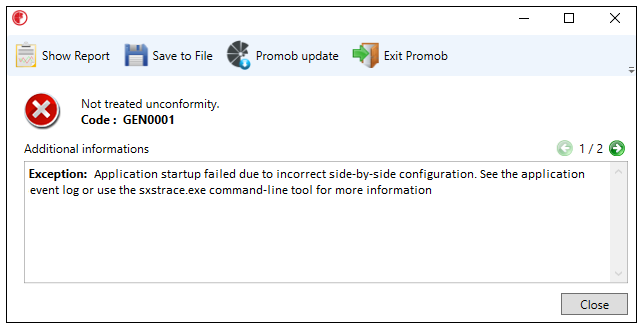

When generating CNC machine programs for SCM plugins (Cyflex 900, Cyflex 900 BR, TechZ1, TechZ2, etc) the unconformity System.ComponentModel.Win32Exception: Application startup failed due to incorrect configuration. Reinstallation of the application may solve the problem.
Why does it happen?
This error occurs when the plug-in tries to generate CNC programs and compile them through a third-party application.
This application is called WinXiso and can be found at C:\Program Files\Promob\{Library}\Program\bin\CNCPlugins\Utils\{CNC Machine}\Winxiso.exe.
Winxiso requires the C++ libraries (C++ Redistributable Packages) to be installed on the computer, and it doesn't work if you don't find them.
What to do?
To correct the situation, just update Windows through Windows Update to the latest updates.
In case there is no time for this, just identify which of the C++ Redistributable Packages is missing through the Control Panel – Programs and Features, and then download the missing versions.
For this, click here to see available C++ downloads.
If you prefer, below are the more specific links for some versions:
IMPORTANT: if Windows is 64-bit, install the X86 version first and then the X64 version. If it is 32-bit, install only the X86 version.
- Microsoft Visual C++ 2005 Redistributable Package
- Microsoft Visual C++ 2008 Redistributable Package
- Microsoft Visual C++ 2010 Redistributable Package

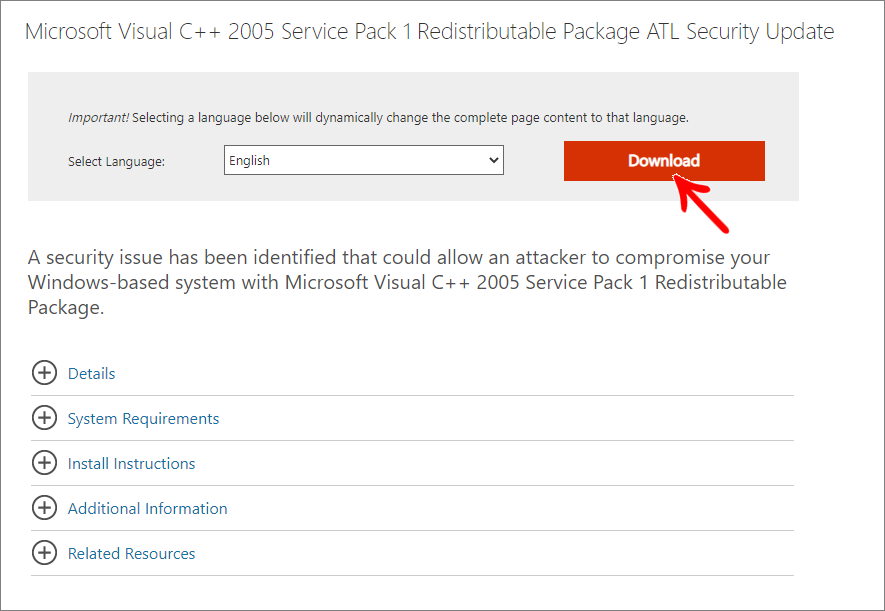

After accessing one of the links above, click on Downloads.

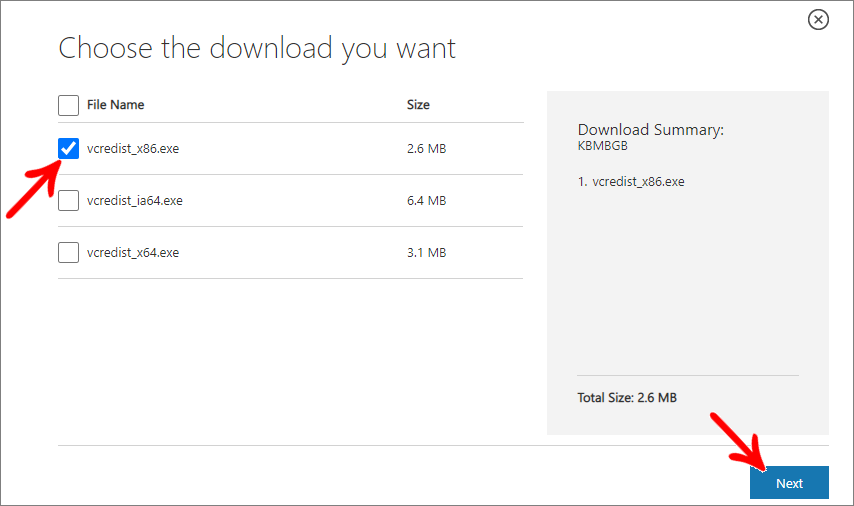

Choose one of the service versions to download and click Next.
